3008_en_Chap00c_eco-conduite_ed01-2015
Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof
bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations on
maintenance
Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
-
b
efore a long journey,
-

a
t each change of season,
-

a
fter a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil filter, air filter,
passenger compartment filter...) and observe the schedule of
operations recommended in the manufacturer's service schedule.
With a BlueHDi Diesel engine, if the SCR system is faulty your vehicle
becomes polluting; go to a PEUGEOT dealer or a qualified workshop
without delay to have the emissions of nitrous oxides brought back to
the legal level.
When refuelling, do not continue after the third cut-off of the nozzle to
avoid any over flow.
At the wheel of your new vehicle, it is only after the first 1 800 miles
(3
000 kilometres) that you will see the fuel consumption settle down to
a consistent average.
.
Eco-driving

22
3008_en_Chap01_controle-marche_ed01-2015
Warning/indicator lampis onCause Action / Observations
Engine
autodiagnosis
system flashing.
The engine management system has
a fault. Risk of destruction of the catalytic converter.
Have it checked by a PEUGEOT dealer or a qualified
workshop.
fixed. The emission control system has a
fault.
The warning lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or qualified
workshop without delay.
Low fuel levelfixed with the needle
in the red zone. When it first comes on there remains
approximately 6 litres of fuel in the
tank.
At this point, you begin to use the fuel
reserve. Refuel as soon as possible to avoid running out of fuel.
This warning lamp will come on every time the ignition
is switched on, until a sufficient addition of fuel is made.
Fuel tank capacity: approximately 60 litres
.
Never continue to drive until you run out of fuel, as
this could damage the emission control and injection
systems.
Maximum coolant
temperature fixed with the needle
in the red zone. The temperature of the cooling
system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before topping
up the level, if necessary.
If the problem persists, contact a PEUGEOT dealer or
a qualified workshop.
Engine oil
pressure fixed.
There is a fault with the engine
lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a PEUGEOT
dealer or a qualified workshop.
Dynamic
stability control

(DSC/ASR) flashing.
The DSC/ASR regulation is
operating. The system optimises traction and improves the
directional stability of the vehicle in the event of loss of
grip or trajectory.
fixed. The DSC/ASR system has a fault. Have it checked by a PEUGEOT dealer or a qualified
workshop.
Monitoring

190

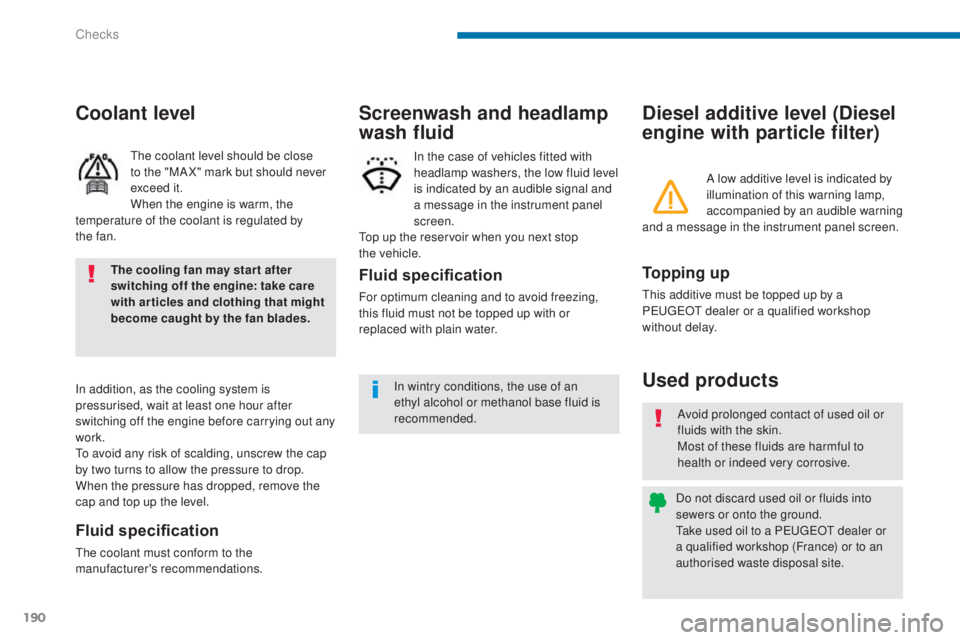

3008_en_Chap09_verifications_ed01-2015
Diesel additive level (Diesel
engine with particle filter)
Used products
To p p i n g u p
This additive must be topped up by a
PEUGEOT dealer or a qualified workshop
without delay.
Fluid specification
For optimum cleaning and to avoid freezing,
this fluid must not be topped up with or
replaced with plain water.In the case of vehicles fitted with
headlamp washers, the low fluid level
is indicated by an audible signal and
a message in the instrument panel
screen.
Top up the reservoir when you next stop
the

vehicle.
Screenwash and headlamp
wash fluid
A low additive level is indicated by
illumination of this warning lamp,
accompanied by an audible warning
and a message in the instrument panel screen.
Avoid prolonged contact of used oil or
fluids with the skin.
Most of these fluids are harmful to
health or indeed very corrosive.
Do not discard used oil or fluids into
sewers or onto the ground.
Take used oil to a PEUGEOT dealer or
a qualified workshop (France) or to an
authorised waste disposal site.
Fluid specification
The coolant must conform to the
manufacturer's recommendations. The coolant level should be close
to the "MA X" mark but should never
exceed it.
When the engine is warm, the
temperature of the coolant is regulated by
the fan.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying out any
work.
To avoid any risk of scalding, unscrew the cap
by two turns to allow the pressure to drop.
When the pressure has dropped, remove the
cap and top up the level.
Coolant level
The cooling fan may star t after
switching off the engine: take care
with articles and clothing that might
become caught by the fan blades. In wintry conditions, the use of an
ethyl alcohol or methanol base fluid is
recommended.
Checks

207
3008_en_Chap10_infos-pratiques_ed01-2015
F Turn the selector A to the "air" position.
F

U
ncoil the black pipe H fully.
F

C
onnect the black pipe to the
valve of the wheel. F
C onnect the compressor's electric plug to
the vehicle's 12 V socket.
F

S
tart the vehicle again and leave the
engine running. F
A djust the pressure using the compressor
(to inflate: switch B in position "I" ; to
deflate: switch B
in position "O" and press
button C ), in accordance with the vehicle's
tyre pressure label (located on the left
hand door aperture).
A l

oss of pressure indicates that the
puncture has not been fully plugged;
contact a PEUGEOT dealer or qualified
workshop for assistance.
F

R
emove and stow the kit.
F

D
rive at reduced speed (50 mph [80 km/h]
max) limiting the distance travelled to
approximately 120 miles (200 km).
2. Inflation
As soon as possible, go to a PEUGEOT
dealer or a qualified workshop.
You must inform the technician that you
have used this kit. After inspection, the
technician will advise you on whether
the tyre can be repaired or if it must be
replaced.
10
Practical information

208
3008_en_Chap10_infos-pratiques_ed01-2015
Removing the cartridge
F Stow the black pipe.
F Detach the angled base from the white pipe.
F
S

upport the compressor vertically.
F
U

nscrew the cartridge from the bottom.
Checking tyre pressures /
i nflating accessories
F Turn the selector A to the "Air"
position.
F

U
ncoil the black pipe H fully.
F

C
onnect the black pipe to the
valve of the wheel or accessory.
I

f necessary, fit one of the adaptors
supplied with the kit first.
You can also use the compressor, without
injecting any product, to:
-

c
heck or adjust the pressure of your tyres,
-
i
nflate other accessories (balls, bicycle
tyres...).
F
C
onnect the compressor's electrical
connector to the vehicle's 12 V socket.
F
S
tart the vehicle and let the engine run.
F
A
djust the pressure using the compressor
(to inflate: switch B in position "I" ; to
deflate: switch B in position "O" and press
button C ), according to the vehicle's tyre
pressure label or the accessory's pressure
label.
F R emove the kit then stow it.
Beware of discharges of fluid.
The expiry date of the fluid is indicated
on the cartridge.
The sealant cartridge is designed for
single use; even if only partly used, it
must be replaced.
After use, do not discard the cartridge
into the environment, take it to an
authorised waste disposal site or a
PEUGEOT dealer.
Do not forget to obtain a new sealant
cartridge, available from PEUGEOT
dealers or from a qualified workshop.
Practical information

225
3008_en_Chap10_infos-pratiques_ed01-2015
Engine compartment fuses
The fusebox is placed in the engine
compartment near the battery.Fuse N° Rating
(A) Functions
F2 15Horn.
F3 10Front
/ rear wash-wipe.
F4 10Daytime running lamps.
F5 15Purge canister, turbine discharge and Turbo pressure
regulation electrovalves (1.6 litre THP), oil vapour heater
(1.6 litre THP), diesel heater (1.6 litre HDi).
F6 10Diagnostic socket, directional headlamps, particle filter pump
(Diesel), Distance alert, mirror adjustment control.
F7 10Power steering control unit, automatic gearbox, directional
headlamps height adjustment motor.
F8 20Starter motor control.
F9 10Clutch and brake pedal switches.
F11 40Air conditioning fan.
Access to the fuses
F Unclip the cover.
F
C hange the fuse (see corresponding
paragraph).
F

W
hen you have finished, close the cover
carefully to ensure correct sealing of the
fusebox.
Fuse table
10
Practical information

332
3008_en_Chap13_index-alpha_ed01-2015
Accessories .................................................. 240
Additive, AdBlue .............................. 23, 193 -200
Additive, Diesel


..................................... 19 0, 191
Adjusting headlamps


...................................... 84
Adjusting head restraints


................................69
Adjusting seats


.......................................... 67, 68
Adjusting the date


........................32, 34 , 35, 39
Adjusting the height and reach of the steering wheel


....................................76
Adjusting the seat belt height


.......................129
Adjusting the time


........................32, 34 , 35, 39
Advice on driving


.......................................... 13 6
Airbags


.................................................... 25, 132
Airbags, curtain
..................................... 13

4, 13 5
Airbags, front ......................................... 132, 13 5
Airbags, lateral


...................................... 13 4, 13 5
Air conditioning


......................................... 12, 60
Air conditioning, digital


...................................64
Air conditioning, manual


.................................61
Air vents


.......................................................... 59
Alarm


............................................................... 50
Anti-pinch


................................................ 52, 102
Anti-theft


................................................. 49, 137
Armrest, front
............................................ 94, 96
Armrest, rear
................................................. 10

0
Assistance call


.............................................. 252
Audible warning


............................................ 123
Audio streaming (Bluetooth)
................ 29

6, 323
Audio systems
....................................... 2 5 5 , 311Battery, remote control .............................
48,
49
Blanking screen (snow shield) ...................... 23
9
Blind, panoramic sunroof


..............................101
Blinds, side


....................................................108
BlueHDi


...................................................23, 193
Bluetooth (hands-free)
.......................... 2

78, 321
Bluetooth (telephone)


............................278, 321
Bonnet


...........................................................185
Boot


.................................................................57
Brake discs
.................................................... 19

2
Brake lamps
...............................

...................218
Brakepads
..................................................... 19

2
Braking, dynamic emergency


.......................143
Bulbs (changing)
...............................

....215 , 220
A
Child seats .............................. ..............109-121
Child seats, conventional ......................11 6, 117
Child seats, ISOFIX

...............................11

8 -12 0
Closing the boot
........................................ 57, 58
Closing the doors


............................................ 54
Configuration, vehicle


..........32, 34 , 36, 39, 328
Control, electric windows


................................52
Control, emergency door


................................56
Control, heated seats


...................................... 70
Control, panoramic sunroof blind


.................101
Control stalk, lighting
...................................... 77
C

ontrol stalk, wipers ...........................86, 87 , 89
Courtesy lamps
............................................... 91
Cover, load space

......................................... 10

4
Cruise control
................................................ 15

5
Cup holder

...............................
........................94
Capacity, fuel tank
..............................

.......... 180
Cap, fuel filler

................................................ 180
CD


......................................................... 293, 316
CD, MP3
........................................ 2

93, 316 , 317
Central locking


............................................... 55
Changing a bulb


.................................... 215, 220
Changing a fuse


.................................... 221-227
Changing a wheel


......................... 201, 20 9 -213
Changing a wiper blade


.......................... 90, 232
Changing the remote control battery


.............. 48
Checking the engine oil level


.................. 29, 188
Checking the levels


............................... 18 8 -19 0
Checking tyre pressures (using the kit)
..............................

................ 208
Checks
...............

.................................... 18 6-192
Checks, routine


..................................... 191, 192
Child lock
...............................

............ 52, 53 , 12 2
Children (safety)
..................... 1

09 -122, 131, 133
C
Battery ........................................... 191, 228-230
Battery, charging ........................................... 230
B
D
DAB (Digital Audio Broadcasting) -
Digital radio ......................................... 290, 291
Date (setting)
...............................

.32 , 34 , 35, 39
Daytime running lamps, LED


..........81, 215 , 216
Deactivating ESC


.......................................... 126
Deactivating the passenger airbag
.......................................................... 13

3
Deadlocking


.................................................... 46
Defrosting


...................................... 62, 63, 64, 74
Demisting
...............................

.......62, 63, 64, 74
Dials and gauges


............................................ 14
Diesel


............................................................ 182
Dimensions


................................................... 250
Dipstick
................

.................................... 29, 188
Direction indicators


...............123, 215 , 216 , 218
Display screen, instrument panel


...........14, 168
Alphabetical index

335
3008_en_Chap13_index-alpha_ed01-2015
Screenwash, front ........................................... 88
Screenwash, rear ............................................ 87
SCR (Selective Catalytic Reduction)
............................................ 2

4, 193
Seat belts
............................................... 1

2 9 -131
Seats, electric


................................................. 68
Seats, front
...............................

...........67, 68 , 71
Seats, heated


.................................................. 70
Seats, rear


....................................................... 72
Serial number, vehicle
.................................. 2

51
Service indicator


............................................. 27
Servicing
...............................

..........................12
Settings, equipment


.................... 31, 33 , 35, 38 , 39, 326
Sidelamps


............................... 77, 215 , 216 , 218
Side repeater
..............................

..................217
Ski flap
..............................

............................10 0
Snow chains
.................................................. 2

14
Socket, 12 V accessory

....................94,

97, 10 6
Socket, auxiliary jack
.............. 9

6, 293, 297, 320
Socket, JACK


.......................... 96, 297 , 318 , 320
Speed limiter


................................................. 152
Speedometer


.................................................. 14
Spotlamps, side


.............................................. 92
Starting the engine


.......................137, 160, 164
Starting using another battery
...................... 2

29
Stay, bonnet


.................................................. 185
Steering mounted controls, audio


................................................... 25 8, 313
Steering wheel, adjustment


............................76
Stop & Start


.......................... 18, 41 , 62 , 65 , 169 ,
181 , 185 , 191, 228
Storage


..................................... 94, 96 , 10 0 , 103
Storage box
..................................................... 95
St

orage wells

................................................ 103
Stowing rings


................................................ 103
Sun visor


................................................. 95, 108
Switching off the engine
............... 1

37, 163, 167
Radio


..................................................... 287, 315
Range


.............................................................. 41
Range, AdBlue


.............................................. 195
Reading lamps, rear


........................................ 91
Rear screen, demisting


............................. 63, 74
Recharging the battery
................................. 23

0
Reduction of electrical load


.......................... 231
Regeneration of the particle filter

................. 19

1
Reinitialising the electric windows
.................. 52
R

einitialising the remote control
..................... 48R

eminder, key in ignition

...............................
13 9
Remote control .......................................... 4
5-49
Removing a wheel

........................................ 210
Removing the mat


........................................... 97
Replacing bulbs


.................................... 215 -220
Replacing fuses
..............................

...... 221-227
Replacing the air filter


................................... 191
Replacing the oil filter
................................... 19

1
Replacing the passenger compartment filter


...................................... 191
Reservoir, headlamp wash


........................... 19 0
Reservoir, screenwash
................................. 19

0
Resetting the service indicator


....................... 28
Resetting the trip recorder


.............................. 30
Rev counter


..................................................... 14
Reversing camera


......................................... 176
Reversing lamp
............................................. 2

18
Risk areas (update)

....................................... 266
Roof bars
....................................................... 23

8
Running out of fuel (Diesel)

.......................... 18

4
R
Parking brake, electric .............21, 140 -143, 192
Parking sensors, audible and visual .............174
Parking sensors, front


...................................174
Parking sensors, rear .................................... 174
Parking space sensor
..................................17 7
Particle filter


.......................................... 19 0, 191
P
E

UGEOT
C
onnect Assistance

...................252
P
E

UGEOT
C
onnect Navigation
(RT6)
..................................................... 38,

255
P
E

UGEOT
C
onnect Packs

...........................252
P
E

UGEOT
C
onnect SOS
............................. 2

52
P
E

UGEOT
C
onnect Sound (RD5)
..........35,

311
Plates, identification ...................................... 2 51
Player, MP3 CD
............................. 293, 316, 317
Players, music media
.................................... 292
Port, USB

................................ 96, 2

93, 297, 318
Pressures, tyres


............................................ 2 51
Pre-tensioning seat belts


..............................131
Priming the fuel system
................................18 4
Protecting children


................................ 109-12 2 , 131, 13 3
Puncture


........................................................ 203
Safety, children
...................... 10

9-12 2 , 131, 13 3
Satellite navigation system


.....................38, 261
Screen, cold climate
.....................................239
Screen, colour and mapping ..........38, 259 , 300
Screen, colour, retractable
............................. 40
S

creen menu map

........................300, 324 , 326
Screen, monochrome A


..............31, 33, 42, 324
Screen, monochrome C
................... 3

5, 43, 326
Screen, multifunction (with audio system)
.......................................33
Screen, multifunction (without audio system)
..................................31
S
.
Alphabetical index
