2016 NISSAN VERSA SEDAN tow

11

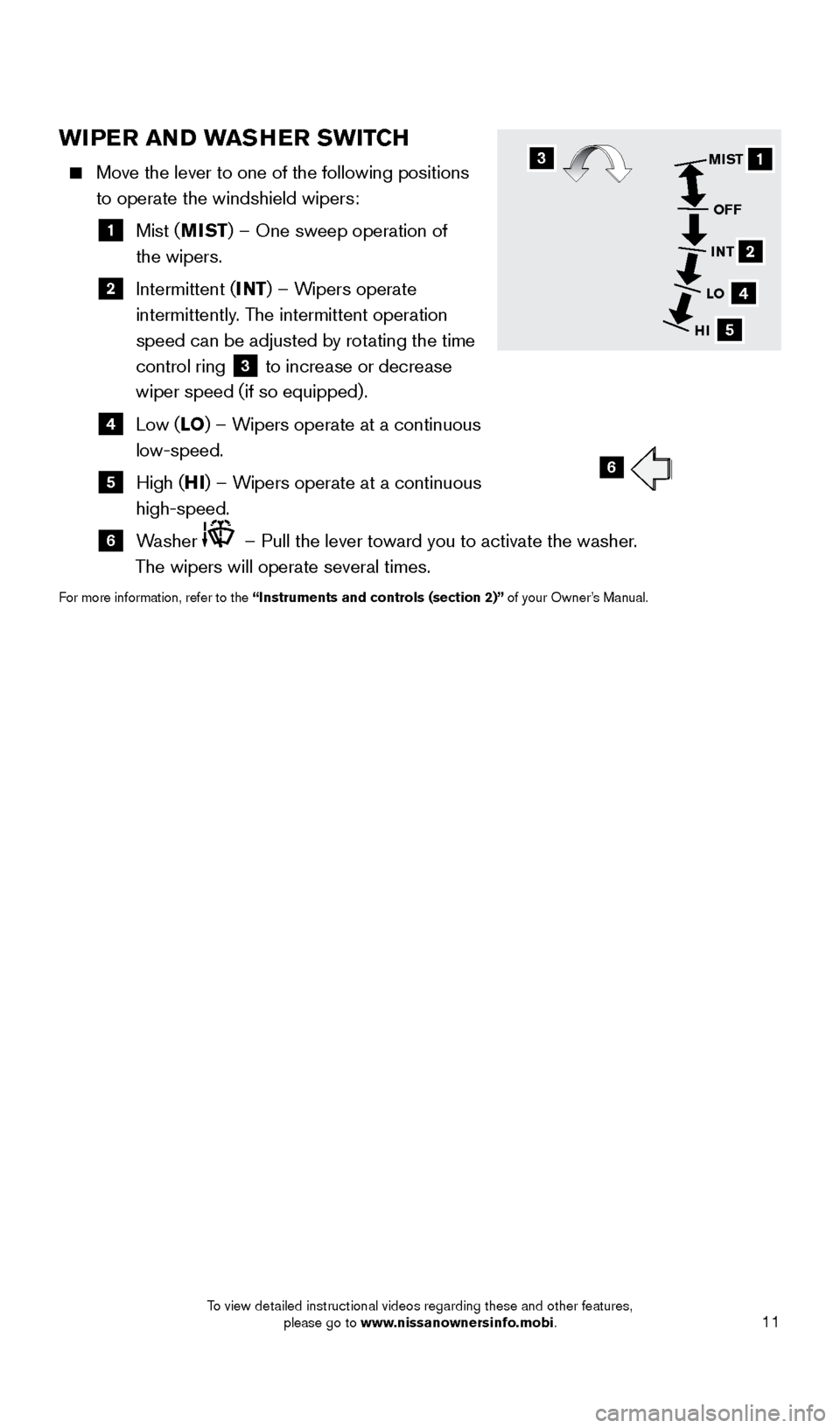

WIPER AND WASHER SWITCH
Move the lever to one of the following positions
to operate the windshield wipers:
1 Mist (MIST) – One sweep operation of
the wipers.
2 Intermittent (INT) – Wipers operate
intermittently . The intermittent operation
speed can be adjusted by rotating the time
control ring
3 to increase or decrease
wiper speed (if so equipped).
4 Low (LO ) – W ipers operate at a continuous
low-speed.
5 High (HI ) – W ipers operate at a continuous
high-speed.
6 Washer – Pull the lever toward you to activate the washer.
The wipers will operate several times.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
31
2
4
5
MIST
OFF
INT
LO
HI
6
2360726_16c_Versa_Sedan_US_pQRG_022516.indd 112/25/16 11:36 AM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

12
HEATER AND AIR CONDITIONER (manual)
1 FAN SPEED CONTROL DIAL
Turn the dial to the left to decrease fan speed or to the right to increa\
se fan speed.
2 AIR FLOW CONTROL DIAL
Turn the dial to select one of the following air
flow outlets:



Air flows from the
center and side vents.



Air flows from the
center, side and
foot vents.



Air flows mainly from
the foot vents.



Air flows from
the front defroster and
foot vents.


Air flows mainly from the front defroster and side vents.
3 TEMPERATURE CONTROL DIAL
Turn the temperature control dial left for cooler air or right for warmer\
air.
4 DEFROSTING FRONT AND SIDE WINDOWS
First, move the air int ake lever 5 to the left position to draw fresh air into
the vehicle.
Then turn the air flow control dial 2 to the front window defroster mode .
Align the left and right side vents 6 to direct
air flow toward the front side windows.
When the or position is selected, the
air conditioner will turn on automatically for
better performance. This will dehumidify the air
and help defog the windows.
7 REAR WINDOW DEFROSTER SWITCH
Push the rear window defroster switc h to turn the system on or off.
This function automatically turns off after approximately 15 minutes.
8 A/C BUTTON
Press the A/C button to turn the air conditioner on. This system helps cool and
dehumidify the air inside the cabin and defog the windows.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4) ” of
your Owner’s Manual.
1
23
4
5
78
6
FIRST DRIVE FEATURES
2360726_16c_Versa_Sedan_US_pQRG_022516.indd 122/25/16 11:36 AM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
