Page 1 of 28
QUICK REFERENCE GUIDE
2 016
VERSA SEDAN
2360726_16c_Versa_Sedan_US_pQRG_022516.indd 32/25/16 11:32 AM
Page 2 of 28
*See your Owner’s Manual for information.
13
2
4
5
9
15
12
13
6
14
11
7
8
1 Trip Computer2 Low Tire Pressure Warning Light3 Instrument Brightness Control*4 Headlight and Turn Signal Switch5 Wiper and Washer Switch
6 Outside Mirror Control Switc h7 Steering Wheel Switches for
Audio / Bluetooth
®
8 Cruise Control9 Steering W heel Tilt Adjustment*
10 Vehicle Dynamic Control (VDC)
OFF Switch*11 Fuel-filler Door Release
12 Hood Release* 13 Front Passenger Air B ag Status Light*
14 Audio and Navigation System
15 Heater and Air Conditioner
(manual)
10
2360726_16c_Versa_Sedan_US_pQRG_022516.indd 42/25/16 11:32 AM
Page 3 of 28
Please see your Owner’s Manual for important safety information and system operation limitations.
• A cellular telephone should not be used for any purpose while driving
so full attention may be given to vehicle operation.
•
Always wear your seat belt.
•
Supplement
al air bags do not replace proper seat belt usage.
•
Children 12 and under should always ride in the rear seat properly secur\
ed
in child restraints or seat belts according to their age and weight.
•
Do not drink and drive.
F
or more information, refer to the “Safety — Seats, seat belts and supplemental restraint system (se\
ction 1)”, the
“Monitor, climate, audio, phone and voice recognition systems (section 4)” \
and the “Starting and driving
(section 5)” of your Owner’s Manual.
TAB LE OF CONTE NTS
Additional information about your vehicle is also available in your Owne\
r’s Manual, Navigation System
Owner’s Manual and at www.NissanUSA.com.
NEW SYSTEM FEATURES
RearView Monitor (if so equipped) ........................................................................\
.................................... 2
T rip Computer ........................................................................\
......................................................................... 2
USB (Universal Serial Bus) Connection Port/Aux Jack and iPod
® Interface (if so equipped) ..... 3
SiriusX
M Travel Link and SiriusXM Traffic (if so equipped)
................................................................. 3
ESSENTIAL INFORMATION
Tire Pressure Monitoring System (TPMS) with Easy Fill Tire Alert (if so equipped) ......................4
Loose Fuel Cap ........................................................................\
...................................................................... 5
Fuel-filler Door
........................................................................\
........................................................................ 5
Clock Set/Adjustment
........................................................................\
........................................................... 5
FIRST DRIVE FEATURES
NISSAN Intelligent Key® System (if so equipped) ........................................................................\
.........7
Rear T
runk Release (if so equipped) ........................................................................\
................................. 8
Seat Adjustments
........................................................................\
................................................................... 8
Power Outside Mirror Control Switch
........................................................................\
............................... 8
Starting/Stopping the Engine
........................................................................\
............................................. 9
Headlight Control Switc
h
........................................................................\
................................................... 10

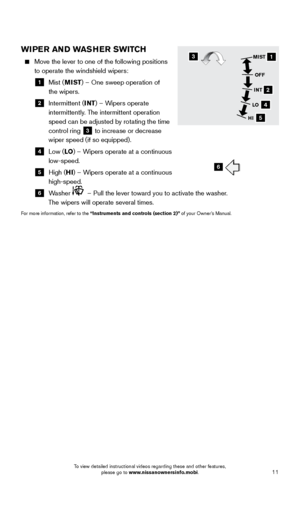

W
iper and Washer Switch
........................................................................\
................................................. 11
Heater and Air Conditioner (manual)
........................................................................\
.............................. 12
FM/AM/SiriusXM
® Satellite Radio with CD Player (if so equipped) ............................................... 13
Cruise Control (if so equipped)
........................................................................\
........................................ 14
SYSTEM GUIDE
NissanConnectsm Mobile Apps (if so equipped) ........................................................................\
...........15
Hands-free T
ext Messaging Assistant (if so equipped) ...................................................................... 16
Bluetooth
® Hands-free Phone System ........................................................................\
........................... 17
•
System Operating T
ips
........................................................................\
.................................................. 17
Bluetooth® System without Navigation (if so equipped) .................................................................... 18
Bluetooth® System with Navigation (if so equipped) ........................................................................\
.. 20
Navigation System (if so equipped) ........................................................................\
................................. 22
2360726_16c_Versa_Sedan_US_pQRG_022516.indd 52/25/16 11:32 AM
Page 4 of 28
2
REARVIEW MONITOR (if so equipped)
When the shift lever is moved to the R (REVERSE) position, the front display shows
the view to the rear of the vehicle.
The colored lines on the display screen indicate approximate distances to objects.
•
Red 1.5 ft (0.5 m); Y
ellow 3 ft (1 m); Green 7 ft
(2 m) and 10 ft (3 m).
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4)” of
your Owner’s Manual.
NEW SYSTEM FEATURES
TRIP COMPUTER
With the ignition switch in the ON position,
modes of the trip computer
1 can be selected
by pressing the trip computer change/reset
button
2 on the instrument panel.
The following modes can be selected in the display:
•
OD
O – records the total distance the vehicle
has been driven.
•
T
rip A – measures the distance of one specific trip.
•
T
rip B – measures the distance of a second specific trip.
• mpg
– displays the instant fuel consumption.
• mpg A
VG – displays the average fuel consumption since the last reset.
•
mls
– displays the estimated distance that can be driven before refueling.
•
Outside A
ir Temperature (if so equipped) – displays the outside air temperature
in °F or °C.
To reset Trip A, Trip B, mpg or mpg AVG, go to the desired mode on the trip
computer and press and hold the trip computer change button
2 for more
than 3 seconds.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
1
2
2360726_16c_Versa_Sedan_US_pQRG_022516.indd 22/25/16 11:33 AM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
Page 5 of 28
3
USB (Universal Serial Bus) CONNECTION PORT/AUX JACK
AND i POD® INTERFACE ( if so equipped)
The USB port/Aux jack 1 is located on the
center console.
When a compatible USB memory device, iPod®
or auxiliary device is plugged into the USB
port/Aux jack, compatible audio files stored on
the device can be played through the vehicle’s
audio system.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4)” of
your Owner’s Manual.
1
SiriusXM TRAVEL LINK* AND SiriusXM TRAFFIC*
(if so equipped)
Your vehicle’s Navigation System is equipped
with SiriusXM Travel Link and SiriusXM
Traffic capabilities.
SiriusXM Travel Link provides access to real-time weather information and forecasts, nearby fuel
prices, movie listings and stock quotes.
SiriusXM Traffic provides information that may help to avoid delays due to traffic incidents.
Traffic jams, roadwork, road closures around the
current location, etc., are represented graphically
on the map by icons depicting the nature of the
event. Incidents on the route are automatically
displayed when they are approached.
* These features, SiriusXM® Satellite Radio, Travel Link and Traffic, require an active subscription. Multiple subscriptions
may be necessary to activate the various features.
For more information, refer to the “Navigation (section 4)” and the “General system information (section 6)” of
your Navigation System Owner’s Manual.
2360726_16c_Versa_Sedan_US_pQRG_022516.indd 32/25/16 11:33 AM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
Page 6 of 28
4
ESSE NTIAL I N FOR MATION
TIRE PRESSURE MONITORING SYSTEM (TPMS)
WITH EASY FILL TIRE ALERT ( if so equipped)
A CHECK TIRE PRES warning message will appear in the trip computer 1 and
the low tire pressure warning light
2 will illuminate when one or more tires are low in
pressure and air is needed.
•
T
he tire pressures should be checked when the
tires are cold. The tires are considered cold
after the vehicle has been parked for 3 hours
or more or driven less than 1 mi (1.6 km) at
moderate speeds.
After the tire pressures are adjusted, drive the
vehicle at speeds above 16 mph (25 km/h). T he
CHECK TIRE PRES warning message and low
tire pressure warning light
2 will extinguish.
When adding air to an under-inflated tire, the TPMS with Easy Fill Tire Alert (if so equipped) provides visual and audible signals to help you inflate the\
tire to the
recommended COLD tire pressure.
T
o use the Easy Fill Tire Alert (if so equipped):
1.
Move the shift lever to the
P (PARK) position and apply the parking brake.
2.
Place the ignition switc
h in the ON position. Do not start the engine.
3.
Add air to the under-inflated tire, and within a few seconds, the haza\
rd warning
lights will st
art flashing.
4.
W
hen the designated tire pressure is reached, the horn will beep once and the
hazard warning flashers will stop flashing.
5.
Repeat this procedure for any additional under-inflated tires.
When the low tire pressure warning light 2 flashes for 1 minute and then remains
on, the TPMS is not functioning properly. Have the system checked. It is
recommended you visit a NISSAN dealer for this service.
Tire pressure rises and falls depending on the heat caused by the vehicle\
’s operation and the outside temperature. Low outside temperature can lower the tempe\
rature of
the air inside the tire, which can cause a lower tire inflation pressure. This may cause
the low tire pressure warning light
2 to illuminate. If the warning light illuminates,
check the tire pressure in your tires.
•
Chec
k the tire pressure (including the spare tire) often and always prior \
to long
distance trips.
The Tire and Loading Information label contains valuable information. Please refer to the “Technical and consumer information (section 9)” of your Owner’s Manual for the
location of the Tire and Loading Information label.
For more information, refer to the “Instruments and controls (section 2)”, the “Starting and driving (section 5)”
and the “Maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
1
2
2360726_16c_Versa_Sedan_US_pQRG_022516.indd 42/25/16 11:33 AM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
Page 7 of 28
5
LOOSE FUEL CAP
A LOOSE FUEL CAP warning message will
display in the odometer
1 when the fuel-filler
cap is not tightened correctly.
To tighten, turn the cap clockwise until a single click is heard.
The warning message will extinguish when the vehicle detects the fuel-filler cap is properly
tightened and the change/reset button
2 is pressed for more than 1 second.
If the cap is not fully tightened, the Malfunction Indicator Light may also illuminate.
For more information, refer to the “Instruments and controls (section 2)” and the “Pre-driving checks and
adjustments (section 3)” of your Owner’s Manual.
1
2
FUEL-FILLER DOOR
The fuel-filler door release 1 is located to
the left of the steering wheel and below the
instrument panel.
To open the fuel-filler door, pull the release. To lock, close the fuel-filler door securely.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
1
CLOCK SET/ADJUSTMENT
FM/AM RADIO WITH COMPACT DISC (CD) PLAYER (Type A) (if so equipped)
1.
Press the
MENU button
1 repeatedly until
“Adjust Clock: NO” appears on the display.
2.
T
urn the TUNE/FOLDER knob
2 to change
to “Adjust Clock: Yes”.
3.
Press the
MENU button
1.
4.
W
hen “Change Hour” appears, turn the
TUNE/FOLDER knob
2 to adjust the hours.
5.
Press the
MENU button 1.
6.
W
hen the “Change Minute” appears, turn the TUNE/FOLDER knob
2 to
adjust the minutes.
7
.
Press the
MENU button
1 to finish.
1
2
2360726_16c_Versa_Sedan_US_pQRG_022516.indd 52/25/16 11:34 AM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
Page 8 of 28
6
FM/AM RADIO WITH COMPACT DISC (CD)
PLAYER (Type B) (if so equipped)
1.
Press the
SETUP button
3.
2.
T
urn the TUNE/MENU knob
5 to
select “CLOCK”.
3.
Press the
ENTER button
4.
4.
T
urn the TUNE/MENU knob
5 to
select “Set time”.
5.
Press the
ENTER button
4.
The display will return to the regular clock display after 10 seconds.
FM/AM/SAT RADIO WITH COMPACT DISC (CD) PLAYER (if so equipped)
1.
Press the
ENTER/SETTING button
6 to
show the “Settings” screen on the display.
2.
T
urn the TUNE/SCROLL knob
7 to
highlight “Clock Adjust”.
3.
Press the
ENTER/SETTING button
6 to
highlight the hours or minutes and use the
TUNE/SCROLL knob
7 to adjust the value.
4.
Press the
ENTER/SETTING button 6 to
set the value.
Press the BACK button 8 to return to the previous screen.
WITH NAVIGATION SYSTEM (if so equipped)
To adjust the time and the appearance of the clock on the display:
1. Press the button 9.
2. T
ouch the “Settings” key.
3. T
ouch the “System” key.
4. T
ouch the “Clock” key.
The following settings can be adjusted:
•
Time Format: The clock can be set to 12
hours or 24 hours.
•
Date F
ormat: The date can be changed to one of five different formats.
•
Cloc
k Mode: From here, the clock mode options are:
·
Manual: Allows for the option “Set Clock Manually”. Touch this to begin setting
the clock manually using the “+” or “–” to adjust the hours, minu\
tes, day, and
month up or down.
·
Time Zone: Touch the “Time Zone” key
10
to choose from the applicable time zone list
and/or touch the “Daylight Savings Time” key
to switch between ON and OFF.
·
A
uto: Automatically sets the clock to the
vehicle’s current location.
Press the BAC K button
11 to return to the previous screen.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4)” of
your Owner’s Manual.
9
11
ESSE NTIAL I N FOR MATION
6
8
7
10
4
5
3
2360726_16c_Versa_Sedan_US_pQRG_022516.indd 62/25/16 11:34 AM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
