2016 NISSAN VERSA NOTE Quick Reference Guide

7
CLOCK SET/ADJUSTMENT
FM/AM RADIO WITH COMPACT DISC (CD) PLAYER (Type A) (if so equipped)
1. Press the MENU button
1 repeatedly until
“Adjust Clock: NO” appears on the display.
2. Turn the TUNE/FOLDER knob
2 to change
to “Adjust Clock: Yes”.
3. Press the MENU button
1.
4. When “Change Hour” appears, turn the
TUNE/FOLDER knob
2 to adjust the hours.
5. Press the MENU button 1.
6. When “Change Minute” appears, turn the TUNE/FOLDER knob
2 to adjust
the minutes.
7. Press the MENU button
1 to finish.
FM/AM RADIO WITH COMPACT DISC (CD) PLAYER (Type B) (if so equipped)
1. Press the SETUP button
3.
2. Turn the TUNE/MENU knob
4 to
select “CLOCK”.
3. Press the ENTER button
5.
4. Turn the TUNE/MENU knob
4 to select
“Set time”.
5. Press the ENTER button
5.
6. Turn the TUNE/MENU knob
4 to adjust the
hours.
7. Press the ENTER button
5.
8. Turn the TUNE/MENU knob
4 to adjust the minutes.
9. Press the ENTER button 5.
The display will return to the regular clock display after 10 seconds.
FM/AM/SAT RADIO WITH COMPACT DISC (CD) PLAYER (if so equipped)
1. Press the ENTER/SETTING button
6 to
show the “Settings” screen on the display.
2. Turn the TUNE/SCROLL knob
7 to
highlight “Clock Adjust”.
3. Press the ENTER/SETTING button
6 to
highlight the hours or minutes and use the
TUNE/SCROLL knob
7 to adjust the value.
4. Press the ENTER/SETTING button 6 to
set the value.

Press the BACK button 8 to return to the previous screen.
1
2
6
8
7
5
4
3
1938151_16b_VersaNote_US_pQRG_102315.indd 710/23/15 3:35 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

8
ESSE NTIAL I N FOR MATION
WITH NAVIGATION SYSTEM (if so equipped)

To adjust the time and the appearance of the
clock on the display:
1. Press the
button
9.
2. Touch the “Settings” key.
3. Touch the “System” key.
4. Touch the “Clock” key.

The following settings can be adjusted:
• Time Format: The clock can be set to 12 hours or 24 hours.
• Date Format: The date can be changed to one of five different formats.
• Clock Mode: From here, the clock mode options are:
· Manual: Allows for the option “Set Clock Manually”. Touch this to begin setting
the clock manually using the “+” or “–” to adjust the hours, minu\
tes, day, and
month up or down.
· Time Zone: Touch the “Time Zone” key

10
to choose from the applicable time zone list
and/or touch the “Daylight Savings Time” key
to switch between ON and OFF.
· Auto: Automatically sets the clock to the
vehicle’s current location.

Press the BACK button
11 to return to the previous screen.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4)” of
your Owner’s Manual.
10
9
11
1938151_16b_VersaNote_US_pQRG_102315.indd 810/23/15 3:35 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

9
FIRST DRIVE FEATURES
NISSAN INTELLIGENT KEY® SYSTE M (if so equipped)
The NISSAN Intelligent Key® system allows you to lock or unlock your
vehicle and activate the panic alarm. It is important to make sure the
Intelligent Key is with you (that is, in your pocket or purse).

The operating range of the Intelligent Key is within 31.5 in (80 cm)
from each request switch.

To lock the vehicle, press the button 1 on the key fob or push
either door handle request switch
2 once.

To unlock the vehicle, perform one of the following procedures:
• Push either door handle request switch
2
once; the corresponding door will unlock. Push
the door handle request switch
2 again within
60 seconds; all other doors will unlock, or
• Press the
button 3 on the key fob to unlock
the driver’s side door. Press the
button 3
again; all other doors will unlock.

The Intelligent Key can also be used to activate the panic alarm by pressing and
holding the
button 4 for more than 0.5 seconds. Once activated, the panic alarm
and headlights will stay on for a period of time.
INTELLIGENT KEY BATTERY DISCHARGE

If the battery of the Intelligent Key is discharged
or environmental conditions interfere with
the Intelligent Key operation, start the engine
according to the following procedure:
1. Move the shift lever to the P (PARK) position.
2. Firmly apply the foot brake.
3. Touch the ignition switch with the Intelligent
Key, and a chime will sound.
4. Within 10 seconds after the chime sounds,
press the ignition switch START/STOP
button while depressing the brake pedal and
the engine will start.
For more information, refer to the “Pre-driving checks and adjustments (section 3)”, the “Starting and driving
(section 5)” and the “Maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
2
1
3
4
1938151_16b_VersaNote_US_pQRG_102315.indd 910/23/15 3:35 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

10
REAR HATCH RELEASE (NISSAN Intelligent Key® models only –
if so equipped)
To open the rear hatch, unlock it with one of the following operations:
• Press the
button
1 on the key fob twice.
• Push the rear hatch request switch

2 while carrying the NISSAN
Intelligent Key® with you.

Then pull the handle
3 located below the rear hatch request
switch
2.

Pull up on the rear hatch to open.
For more information, refer to the “Pre-driving checks and
adjustments (section 3)” of your Owner’s Manual.
SEAT ADJUSTMENTS
To slide the front seat forward or backward, pull
up on the lever
1 under the front of the seat
and slide forward or backward. Release the lever
to lock the seat in position.

To recline the seatback, pull up on the lever 2
and lean back. To bring the seatback forward,
pull the lever up and lean your body forward.
Release the lever to lock the seatback in position.
SEAT LIFTER (if so equipped for driver’s seat)

To adjust the seat height, pull up or push down
on the adjusting lever
3 repeatedly.
For more information, refer to the “Safety — Seats, seat belts and supplemental restraint system (se\
ction 1)”
of
your Owner’s Manual.
1
23
OUTSIDE MIRROR CONTROL SWITCH
Move the switch 1 right or left to select the
right or left mirror.

Adjust each mirror to the desired position using
the switch

2.

Move the switch
1 to the center (neutral)
position to prevent accidentally moving the mirror.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
1
2
2
1
3
FIRST DRIVE FEATURES
1938151_16b_VersaNote_US_pQRG_102315.indd 1010/23/15 3:35 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

11
3
4
STARTING/STOPPING THE ENGINE
STARTING THE ENGINE

It is important to make sure the Intelligent Key is
with you (that is, in your pocket or purse).
CONTINUOUSLY VARIABLE TRANSMISSION
(NISSAN Intelligent Key
® models only – if so equipped)

Depress the brake pedal.
• If the brake pedal is not depressed, pushing
the ignition switch once enters the ACC mode.
• If the ignition switch is pushed a second time, the vehicle will enter the ON mode.

Move the shift lever to the P (PARK) position.

Press the ignition switch START/STOP button to start or stop the engine.
MANUAL TRANSMISSION/CONTINUOUSLY VARIABLE TRANSMISSION
(if so equipped)

Depress the brake pedal.

Depress the clutch pedal to the floor
(manual transmission only).

Move the shift lever to the N (NEUTRAL)
position (manual transmission only).

Turn the ignition switch to START.
TURNING THE ENGINE OFF

For a Continuously Variable Transmission (NISSAN Intelligent Key® models only – if
so equipped), apply the brake pedal, move the shift lever to the P (PARK) position,
apply the parking brake and press the ignition switch START/STOP button or turn the
ignition switch to the LOCK position to turn the engine off.

For a manual transmission, apply the brake pedal, place the vehicle in 1s\
t gear, apply
the parking brake and turn the ignition switch to the LOCK position.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
HEADLIGHT CONTROL SWITCH
HEADLIGHT CONTROL

Turn the headlight control switch to the
position
1 to turn on the front parking, tail,
license plate and instrument panel lights. Turn
the switch to the
position 2 to turn on
the headlights.
HIGH BEAM SELECT

With the headlights on, push the headlight
control switch forward
3 to select the high
beam function.
1
2
1938151_16b_VersaNote_US_pQRG_102315.indd 1110/23/15 3:35 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

12
WIPER AND WASHER SWITCH
Move the lever to one of the following positions to operate the windshie\
ld wipers:

1 Mist (MIST) – One sweep operation of
the wipers.

2 Intermittent (INT) – Wipers operate
intermittently. The intermittent operation
speed can be adjusted by rotating the time
control ring
3 to increase or decrease
wiper speed (if so equipped).

4 Low (LO) – Wipers operate at a
continuous low-speed.

5 High (HI) – Wipers operate at a
continuous high-speed.

6 Washer
– Pull the lever toward you
to activate the washer. The wipers will
operate several times.
31
4
5
MIST
OFF
2INT
LO
HI
69
The blue indicator light will illuminate in the instrument panel. Pull the headlight
switch back to the original position to select the low beam. The blue indicator light
will extinguish.

Pull and release the headlight control switch 4 to flash the headlight high beams on
and off.
FOG LIGHT SWITCH (if so equipped)

The headlights must be on and the low beams
selected for the fog lights to operate.

Turn the switch (inside collar) to the position
5 to turn the fog lights on.

Turn the switch (inside collar) to the OFF
position to turn the fog lights off.
LANE CHANGE SIGNAL

Move the lever up or down until the turn signal
begins to flash, but does not latch, to signal a
lane change. Hold the lever until the lane change
is completed.

Move the lever up or down until the turn signal
begins to flash, but the lever does not latch, and
release the lever. The turn signal will automatically flash three times.
Choose the appropriate method to signal a lane change based on road and
traffic conditions.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
5
FIRST DRIVE FEATURES
1938151_16b_VersaNote_US_pQRG_102315.indd 1210/23/15 3:36 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

13

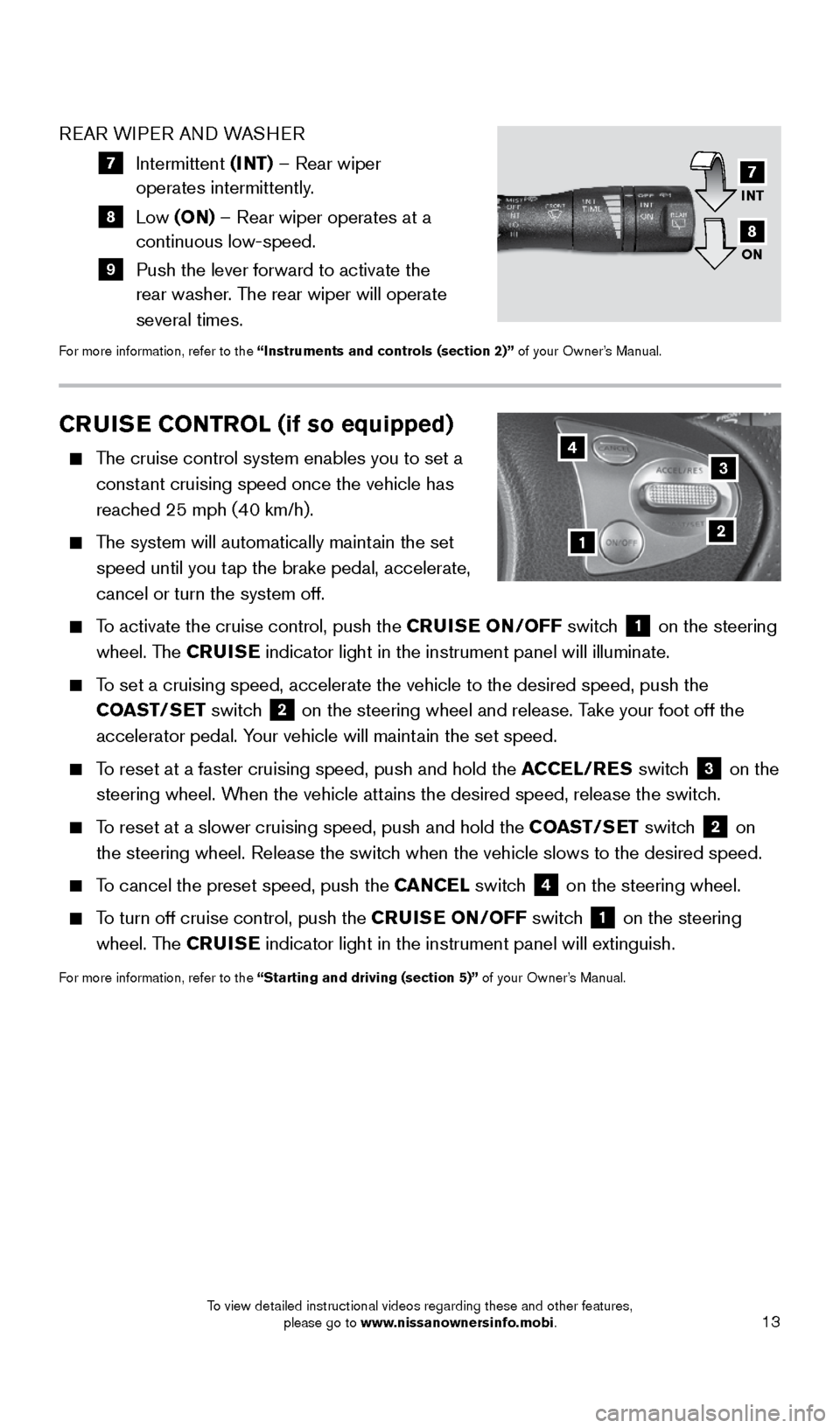

REAR WIPER AND WASHER

7 Intermittent (INT) – Rear wiper
operates intermittently.

8 Low (ON) – Rear wiper operates at a
continuous low-speed.

9 Push the lever forward to activate the
rear washer. The rear wiper will operate
several times.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
INT
ON7
8
CRUISE CONTROL (if so equipped)
The cruise control system enables you to set a
constant cruising speed once the vehicle has
reached 25 mph (40 km/h).

The system will automatically maintain the set
speed until you tap the brake pedal, accelerate,
cancel or turn the system off.

To activate the cruise control, push the CRUISE ON/OFF switch
1 on the steering
wheel. The CRUISE indicator light in the instrument panel will illuminate.

To set a cruising speed, accelerate the vehicle to the desired speed, pus\
h the
COAST/SET switch

2 on the steering wheel and release. Take your foot off the
accelerator pedal. Your vehicle will maintain the set speed.

To reset at a faster cruising speed, push and hold the ACCEL/RES switch
3 on the
steering wheel. When the vehicle attains the desired speed, release the switch.

To reset at a slower cruising speed, push and hold the COAST/SET switch
2 on
the steering wheel. Release the switch when the vehicle slows to the desired speed.

To cancel the preset speed, push the CANCEL switch
4 on the steering wheel.

To turn off cruise control, push the CRUISE ON/OFF switch 1 on the steering
wheel. The CRUISE indicator light in the instrument panel will extinguish.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
43
21
1938151_16b_VersaNote_US_pQRG_102315.indd 1310/23/15 3:36 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

14
HEATER AND AIR CONDITIONER (manual)
1 FAN SPEED CONTROL DIAL
Turn the dial to the left to decrease fan speed or to the right to increa\
se fan speed.
2 AIR FLOW CONTROL DIAL
Turn the dial to select one of the
following air flow outlets:

Air flows from the center and
side vents.

Air flows from the center,
side and foot vents.

Air flows mainly from the
foot vents.

Air flows from the front
defroster and foot vents.

Air flows mainly from
the front defroster and
side vents.
3 TEMPERATURE CONTROL DIAL
Turn the temperature control dial left for cooler air or right for warmer\
air.
4 DEFROSTING/DEFOGGING FRONT AND SIDE WINDOWS
First, move the air intake lever 5 to the left position
to draw fresh air into
the vehicle.

Then turn the air flow control dial 2 to the
front window defroster mode .

Align the left and right side vents 6 to direct
airflow towards the front side windows.

When the or position is selected, the
air conditioner will turn on automatically for
better performance. This will dehumidify the air and help defog the windows.
7 REAR WINDOW AND OUTSIDE MIRROR (if so equipped)
DEFROSTER SWITCH

Push the rear window defroster switch to turn the system on or off.

This function automatically turns off after approximately 15 minutes.
8 A/C BUTTON

Press the A/C button to turn the air conditioner on. This system helps cool and
dehumidify the air inside the cabin and defog the windows.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4)” of
your Owner’s Manual.
1
23
4
5
78
6
FIRST DRIVE FEATURES
1938151_16b_VersaNote_US_pQRG_102315.indd 1410/23/15 3:36 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
