2016 NISSAN TITAN power steering fluid

Cummins 5.0 L engine
1. Windshield-washer fluid reservoir(P. 8-12)
2. Fuse box (P. 8-20)
3. Fuse/Fusible link box (P. 8-20)
4. Engine coolant reservoir*
5. Fuel filter (Stage 2)*
6. Engine oil filler cap*
7. Brake fluid reservoir (P. 8-11)
8. Air cleaner*
9. Battery (P. 8-13)
10. Power steering fluid reservoir (P. 8-11)
11. Radiator cap*
12. Engine oil dipstick*
13. Drive belt location*
14. Fuse/Fusible link box (P. 8-20)
15. Battery (P. 8-13)
*: Refer to the separate Titan Diesel Owner’s
Manual.
Refer to the page number indicated in pa-
rentheses for operating details.
LDI2870
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

VK56VD engine
1. Windshield-washer fluid reservoir(P. 8-12)
2. Fuse box (P. 8-20)
3. Engine oil dipstick (P. 8-6)
4. Power steering fluid reservoir (P. 8-11)
5. Engine oil filler cap (P. 8-6)
6. Brake fluid reservoir (P. 8-11)
7. Air cleaner (P. 8-17)
8. Fuse/Fusible link box (P. 8-20)
9. Engine coolant reservoir (P. 8-4)
10. Drive belt location (P. 8-15)
11. Battery (P. 8-13)
12. Radiator cap (P. 8-4)
Refer to the page number indicated in pa-
rentheses for operating details.
LDI2973
Illustrated table of contents0-9

8 Do-it-yourself
Maintenance precautions...........................8-2
Engine compartment check locations ................8-3
Engine cooling system .............................8-4
Checking engine coolant level ...................8-5
Changing engine coolant ........................8-5
Engine oil .........................................8-6
Checking engine oil level ........................8-6
Changing engine oil ............................8-7
Changing engine oil filter ........................8-8
Fuel filter (CUMMINS 5.0L) .........................8-9
Fuel filter replacement (stage 1) ..................8-9
Fuel filter replacement (stage 2) ..................8-9
Draining water .................................8-9
Fuel system priming .............................8-9
Diesel particulate filter (DPF) .......................8-10
Automatic regeneration ........................ 8-10
6-speed automatic transmission fluid (ATF)
(diesel engine only) ............................... 8-10
7-speed automatic transmission fluid (ATF)
(gasoline engine only) ............................. 8-10
Power steering fluid ............................... 8-11
Brake fluid ....................................... 8-11
Windshield-washer fluid ........................... 8-12Windshield-washer fluid reservoir . .
.............8-12
Battery .......................................... 8-13
Jump starting ................................. 8-14
Variable voltage control system (if so equipped) ......8-15
Drive belt ........................................ 8-15
Spark plugs (gasoline engine only) .................8-16
Replacing spark plugs ......................... 8-16
Air cleaner ....................................... 8-17
In-cabin microfilter ............................. 8-17
Windshield wiper blades .......................... 8-18
Cleaning ..................................... 8-18
Replacing .................................... 8-18
Brakes .......................................... 8-19
Fuses ........................................... 8-20
Engine compartment ........................... 8-20
Passenger compartment .......................8-22
Battery replacement .............................. 8-23
NISSAN

Intelligent Key® ....................... 8-24
Lights ........................................... 8-25
Headlights .................................... 8-25
Fog lights (if so equipped) ......................8-26
Daytime running light (DRL) (if so equipped) ......8-27
Exterior and interior lights .......................8-28

VK56VD engine
1. Windshield-washer fluid reservoir
2. Fuse box
3. Engine oil dipstick
4. Power steering fluid reservoir
5. Engine oil filler cap
6. Brake fluid reservoir
7. Air cleaner
8. Fuse/Fusible link box
9. Engine coolant reservoir
10. Drive belt location
11. Battery
12. Radiator cap
For additional information on the Cummins 5.0L
engine, refer to the “Titan Diesel Owner’s
Manual”.
LDI2973
ENGINE COMPARTMENT CHECK
LOCATIONS
Do-it-yourself8-3

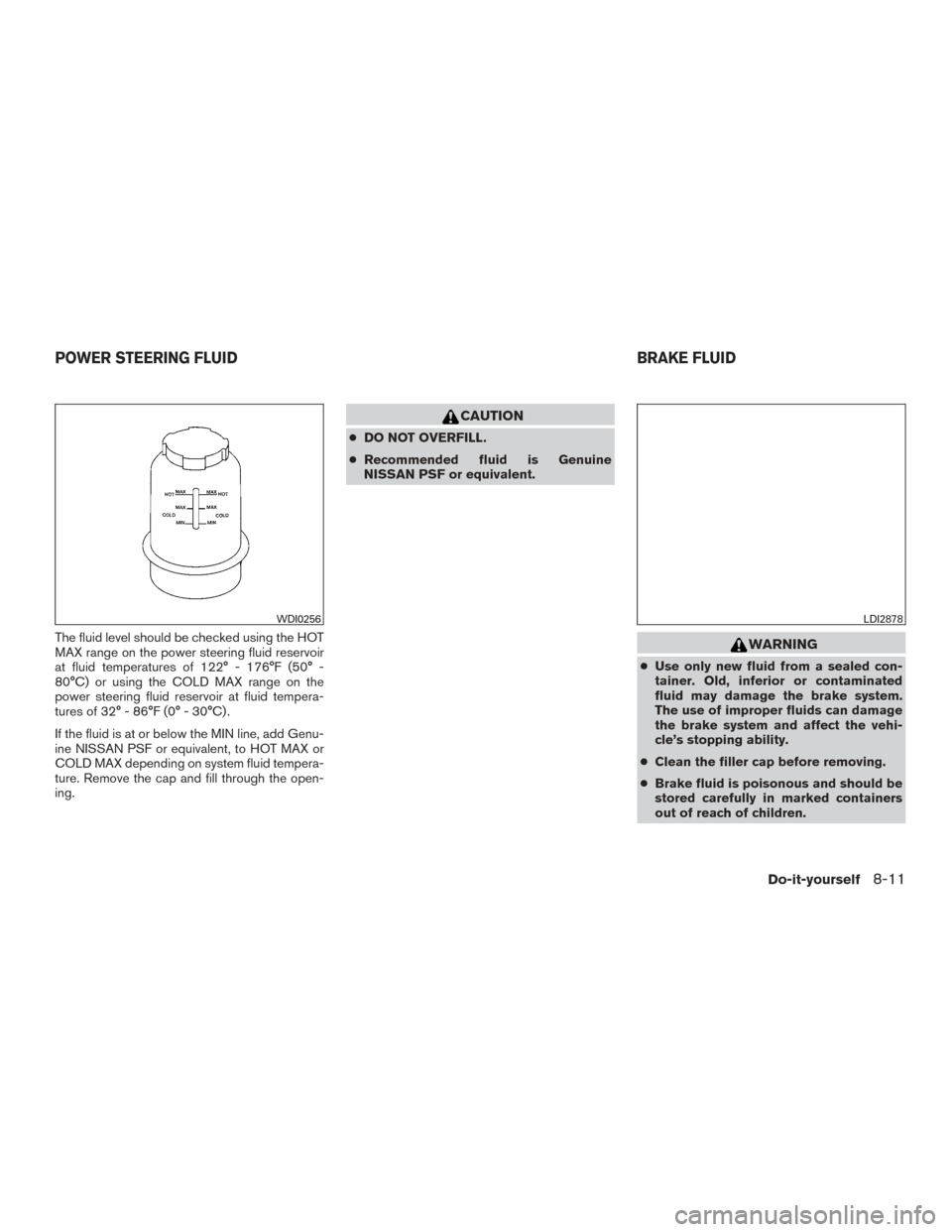

The fluid level should be checked using the HOT
MAX range on the power steering fluid reservoir
at fluid temperatures of 122° - 176°F (50° -
80°C) or using the COLD MAX range on the
power steering fluid reservoir at fluid tempera-
tures of 32° - 86°F (0° - 30°C) .
If the fluid is at or below the MIN line, add Genu-
ine NISSAN PSF or equivalent, to HOT MAX or
COLD MAX depending on system fluid tempera-
ture. Remove the cap and fill through the open-
ing.
CAUTION
●DO NOT OVERFILL.
● Recommended fluid is Genuine
NISSAN PSF or equivalent.
WARNING
● Use only new fluid from a sealed con-
tainer. Old, inferior or contaminated
fluid may damage the brake system.
The use of improper fluids can damage
the brake system and affect the vehi-
cle’s stopping ability.
● Clean the filler cap before removing.
● Brake fluid is poisonous and should be
stored carefully in marked containers
out of reach of children.
WDI0256LDI2878
POWER STEERING FLUID BRAKE FLUID
Do-it-yourself8-11

CAUTION

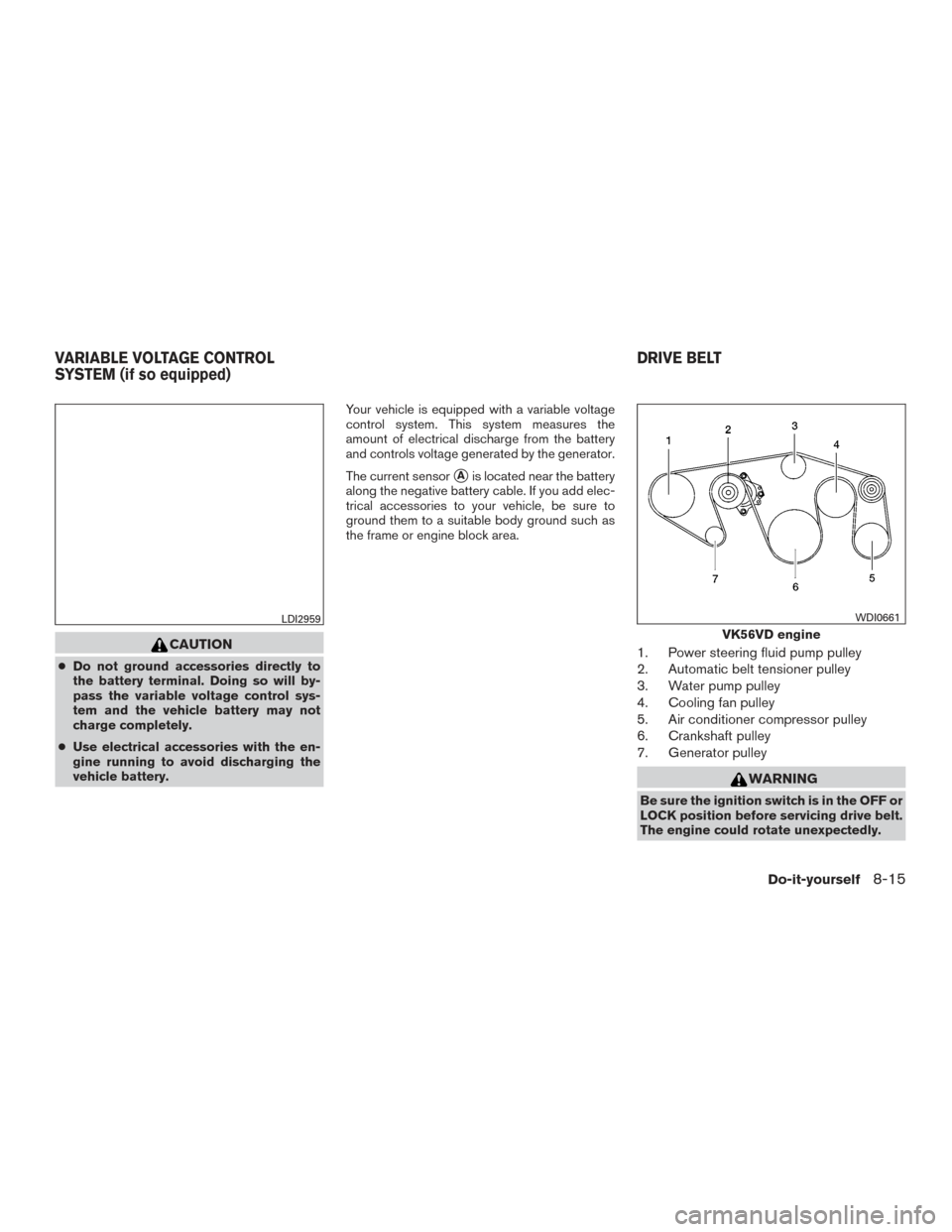

●Do not ground accessories directly to
the battery terminal. Doing so will by-
pass the variable voltage control sys-
tem and the vehicle battery may not
charge completely.
● Use electrical accessories with the en-
gine running to avoid discharging the
vehicle battery. Your vehicle is equipped with a variable voltage
control system. This system measures the
amount of electrical discharge from the battery
and controls voltage generated by the generator.
The current sensor
Ais located near the battery
along the negative battery cable. If you add elec-
trical accessories to your vehicle, be sure to
ground them to a suitable body ground such as
the frame or engine block area.
1. Power steering fluid pump pulley
2. Automatic belt tensioner pulley
3. Water pump pulley
4. Cooling fan pulley
5. Air conditioner compressor pulley
6. Crankshaft pulley
7. Generator pulley
WARNING
Be sure the ignition switch is in the OFF or
LOCK position before servicing drive belt.
The engine could rotate unexpectedly.
LDI2959
VK56VD engine
WDI0661
VARIABLE VOLTAGE CONTROL
SYSTEM (if so equipped) DRIVE BELT
Do-it-yourself8-15

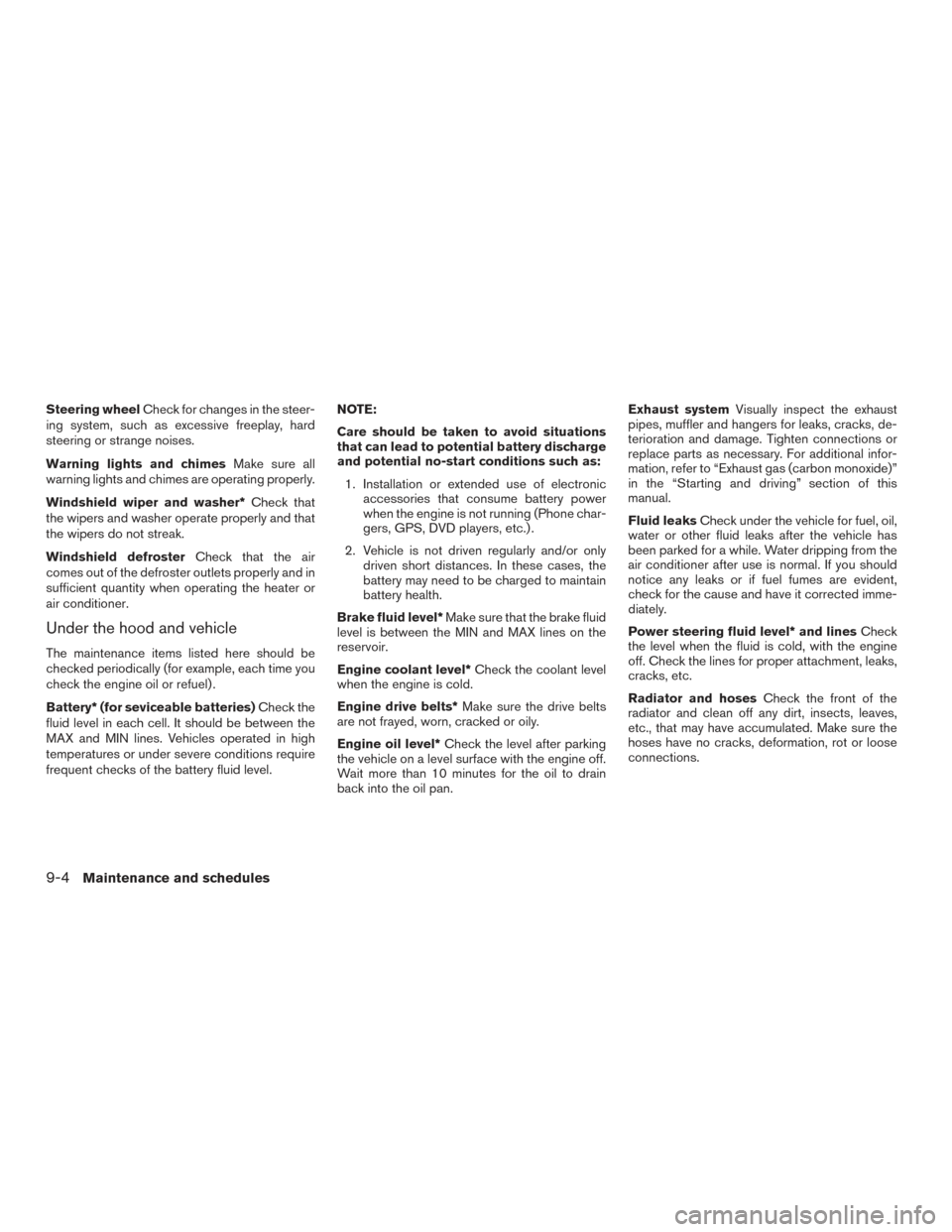

Steering wheelCheck for changes in the steer-
ing system, such as excessive freeplay, hard
steering or strange noises.
Warning lights and chimes Make sure all
warning lights and chimes are operating properly.
Windshield wiper and washer* Check that
the wipers and washer operate properly and that
the wipers do not streak.
Windshield defroster Check that the air
comes out of the defroster outlets properly and in
sufficient quantity when operating the heater or
air conditioner.
Under the hood and vehicle
The maintenance items listed here should be
checked periodically (for example, each time you
check the engine oil or refuel) .
Battery* (for seviceable batteries) Check the
fluid level in each cell. It should be between the
MAX and MIN lines. Vehicles operated in high
temperatures or under severe conditions require
frequent checks of the battery fluid level. NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1. Installation or extended use of electronic accessories that consume battery power
when the engine is not running (Phone char-
gers, GPS, DVD players, etc.) .
2. Vehicle is not driven regularly and/or only driven short distances. In these cases, the
battery may need to be charged to maintain
battery health.
Brake fluid level* Make sure that the brake fluid
level is between the MIN and MAX lines on the
reservoir.
Engine coolant level* Check the coolant level
when the engine is cold.
Engine drive belts* Make sure the drive belts
are not frayed, worn, cracked or oily.
Engine oil level* Check the level after parking
the vehicle on a level surface with the engine off.
Wait more than 10 minutes for the oil to drain
back into the oil pan. Exhaust system
Visually inspect the exhaust
pipes, muffler and hangers for leaks, cracks, de-
terioration and damage. Tighten connections or
replace parts as necessary. For additional infor-
mation, refer to “Exhaust gas (carbon monoxide)”
in the “Starting and driving” section of this
manual.
Fluid leaks Check under the vehicle for fuel, oil,
water or other fluid leaks after the vehicle has
been parked for a while. Water dripping from the
air conditioner after use is normal. If you should
notice any leaks or if fuel fumes are evident,
check for the cause and have it corrected imme-
diately.
Power steering fluid level* and lines Check
the level when the fluid is cold, with the engine
off. Check the lines for proper attachment, leaks,
cracks, etc.
Radiator and hoses Check the front of the
radiator and clean off any dirt, insects, leaves,
etc., that may have accumulated. Make sure the
hoses have no cracks, deformation, rot or loose
connections.
9-4Maintenance and schedules

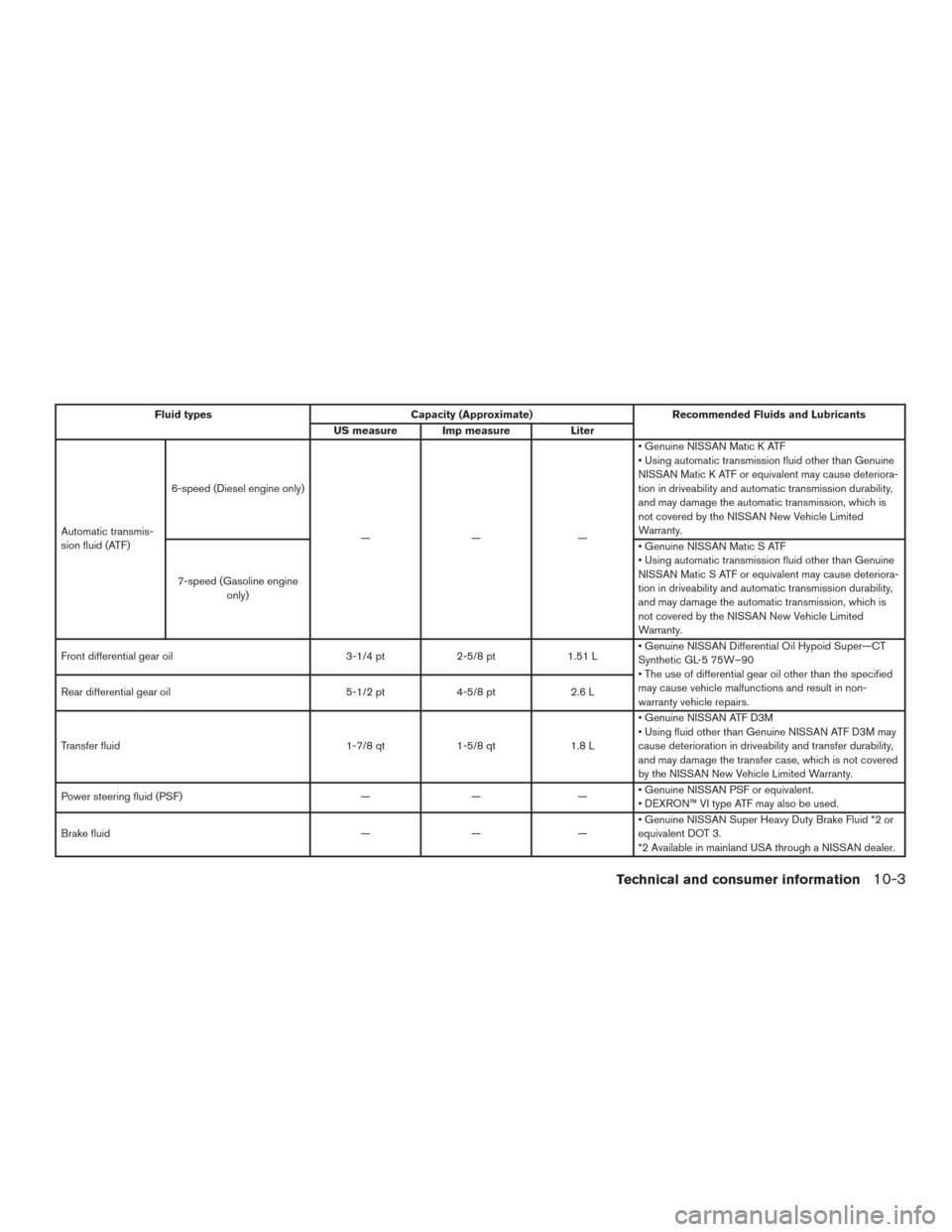

Fluid typesCapacity (Approximate) Recommended Fluids and Lubricants
US measure Imp measure Liter
Automatic transmis-
sion fluid (ATF) 6-speed (Diesel engine only)
——— • Genuine NISSAN Matic K ATF
• Using automatic transmission fluid other than Genuine
NISSAN Matic K ATF or equivalent may cause deteriora-
tion in driveability and automatic transmission durability,
and may damage the automatic transmission, which is
not covered by the NISSAN New Vehicle Limited
Warranty.
7-speed (Gasoline engine only) • Genuine NISSAN Matic S ATF
• Using automatic transmission fluid other than Genuine
NISSAN Matic S ATF or equivalent may cause deteriora-
tion in driveability and automatic transmission durability,
and may damage the automatic transmission, which is
not covered by the NISSAN New Vehicle Limited
Warranty.
Front differential gear oil 3-1/4 pt2-5/8 pt 1.51 L• Genuine NISSAN Differential Oil Hypoid Super—CT
Synthetic GL-5 75W–90
• The use of differential gear oil other than the specified
may cause vehicle malfunctions and result in non-
warranty vehicle repairs.
Rear differential gear oil
5-1/2 pt4-5/8 pt 2.6 L
Transfer fluid 1-7/8 qt1-5/8 qt 1.8 L• Genuine NISSAN ATF D3M
• Using fluid other than Genuine NISSAN ATF D3M may
cause deterioration in driveability and transfer durability,
and may damage the transfer case, which is not covered
by the NISSAN New Vehicle Limited Warranty.
Power steering fluid (PSF) ———• Genuine NISSAN PSF or equivalent.
• DEXRON™ VI type ATF may also be used.
Brake fluid ———• Genuine NISSAN Super Heavy Duty Brake Fluid *2 or
equivalent DOT 3.
*2 Available in mainland USA through a NISSAN dealer.
Technical and consumer information10-3
