2016 NISSAN SENTRA odometer

NISSAN CARES...
Both NISSAN and your NISSAN dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your NISSAN dealer are
our primary concerns. Your NISSAN dealer is always available to assist you with all your automobile sales and service needs.
However, if there is something that your NISSAN
dealer cannot assist you with or you would like to
provide NISSAN directly with comments or
questions, please contact the NISSAN Con-
sumer Affairs Department using our toll-free
number:
For U.S. customers1-800-NISSAN-1
(1-800-647-7261)
For Canadian customers 1-800-387-0122 The Consumer Affairs Department will ask for the
following information:
– Your name, address, and telephone number
– Vehicle identification number (attached to the
top of the instrument panel on the driver’s
side)
– Date of purchase
– Current odometer reading
– Your NISSAN dealer’s name
– Your comments or questions
OR You can write to NISSAN with the information at:
For U.S. customers
Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
or via e-mail at:
[email protected]
For Canadian customers Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario L4W 4Z5
or via e-mail at:
[email protected]
If you prefer, visit us at:
www.nissanusa.com (for U.S. customers) or
www.nissan.ca (for Canadian customers)
We appreciate your interest in NISSAN and thank you for buying a quality NISSAN vehicle.

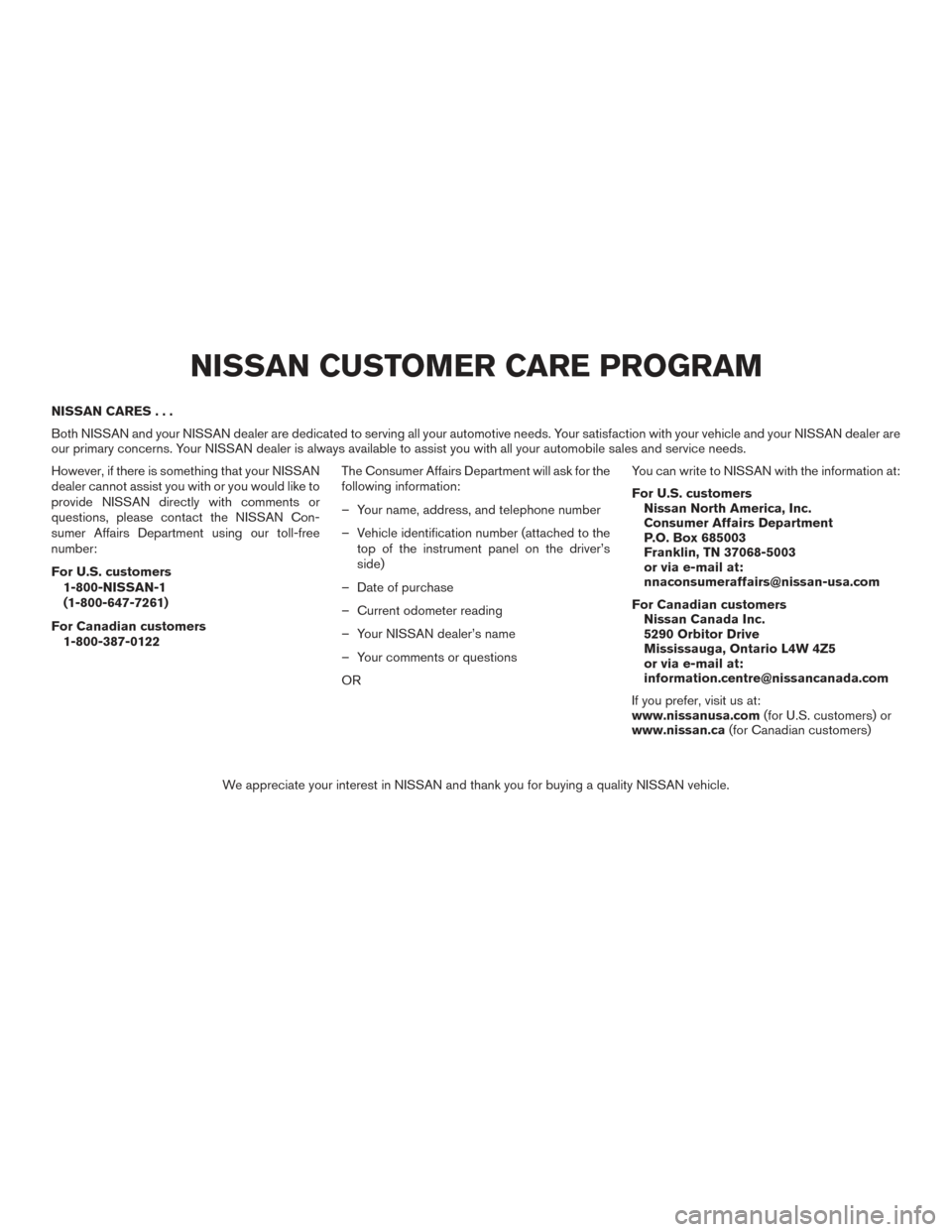

NISSAN CUSTOMER CARE PROGRAM

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-3
Speedometer and odometer .....................2-4
Tachometer ....................................2-7
Engine coolant temperature gauge ...............2-7
Fuel gauge ....................................2-8
Trip computer (if so equipped) ...................2-8
Outside temperature display (if so equipped) .....2-11
Compass (if so equipped) ......................... 2-12
Compass display .............................. 2-12
Warning lights, indicator lights and audible
reminders ........................................ 2-15
Checking lights ............................... 2-16
Warning lights ................................ 2-16
Indicator lights ................................ 2-21
Audible reminders ............................. 2-23
Vehicle Information Display (if so equipped) .........2-24
How to use the vehicle information display .......2-25
Startup display ................................ 2-25
Settings ...................................... 2-25
Vehicle information display warnings and
indicators ..................................... 2-32
Security systems ................................. 2-35Vehicle security system (if so equipped)
..........2-35
NISSAN vehicle immobilizer system .............2-36
Wiper and washer switch ......................... 2-38
Switch operation .............................. 2-38
Rear window and outside mirror (if so equipped)
defroster switch .................................. 2-39
Headlight and turn signal switch ....................2-39
Headlight control switch ........................ 2-39
Daytime running light system (Type A)
(if so equipped) ............................... 2-41
Daytime running light system (Type B)
(if so equipped) ............................... 2-41
Instrument brightness control ...................2-42
Turn signal switch ............................. 2-42
Fog light switch (if so equipped) ................2-43
Horn ............................................ 2-44
Heated seat switches (if so equipped) ..............2-44
V

ehicle Dynamic Control (VDC) off switch ...........2-45
E-call (SOS) switch (if so equipped) ................2-45
Power outlet ..................................... 2-46
Storage ......................................... 2-46
Map pockets .................................. 2-46
Storage pouch ................................ 2-47
Seatback pockets (if so equipped) ..............2-47

15. Ignition switch (if so equipped) (P. 5-8)Push-button ignition switch
(if so equipped) (P. 5-10)
16. Telescopic steering (P. 3-29)
17. Hood release (P. 3-24)
18. Fuel filler door release (P. 3-26)
19. ECO mode switch (P. 5-22) Vehicle Dynamic Control (VDC) OFF
switch (P. 2-45)
SPORT mode switch (P. 5-22)
20. Instrument brightness control (P. 2-39) Power mirror switch (P. 3-32)
Trunk release (P. 3-25)
Refer to the page number indicated in pa-
rentheses for operating details.
1. Tachometer
2. Coolant temperature gauge
3. Warning and indicator lights
4. Fuel gauge
5. Speedometer 6. Odometer
Trip computer
Twin trip odometer
Fuel Economy
ECO mode indicator
Outside temperature display
Type A (if so equipped)
LIC3415
METERS AND GAUGES
Instruments and controls2-3

1. TachometerWarning and indicator lights
2. Vehicle information display Odometer
Twin trip odometer Outside temperature display
3. Speedometer Warning and indicator lights
4. Fuel gauge
5. Engine coolant temperature gauge
SPEEDOMETER AND ODOMETER
This vehicle is equipped with a speedometer and
odometer. The speedometer is located on the
right side of the meter cluster. The odometer is
located in the vehicle information display to the
left of the speedometer and can be accessed
with the vehicle in the ON position.
Type B (if so equipped)
LIC3416
2-4Instruments and controls

Speedometer
The speedometer indicates the vehicle speed.Odometer/Twin trip odometer
The odometer2and the twin trip odometer1
are displayed when the ignition switch is placed
in the ON position.
The odometer records the total distance the ve-
hicle has been driven.
The twin trip odometer records the distance of
individual trips.
To switch between the odometer and the twin trip
odometer press the
button on the steering
wheel. Changing the display
Press the
button on the steering wheel to
change the display as follows:
Accel guide/Average fuel economy →Instant fuel
economy/Average fuel economy →Average fuel
economy →Average speed →Distance to empty
→ Trip A →Trip B
Resetting the trip odometer
Press the
button on the steering wheel for
more than 1 second to reset the currently dis-
played trip odometer to zero.
LIC2255
Type A (if so equipped)
LIC3050
Instruments and controls2-5

Low tire pressure warning light
Your vehicle is equipped with a TPMS that moni-
tors the tire pressure of all tires except the spare.
The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.
After the ignition switch is placed in the ON
position, this light illuminates for about 1 second
and turns off.
Low tire pressure warning
If the vehicle is being driven with low tire
pressure, the warning light will illuminate.
A CHECK TIRE PRES warning message is
also displayed in the odometer.
When the low tire pressure warning light
illuminates, you should stop and adjust the
tire pressure of all four tires to the recom-
mended COLD tire pressure shown on the
Tire and Loading Information label located
in the driver’s door opening. The low tire
pressure warning light does not automati-
cally turn off when the tire pressure is ad-
justed. After the tire is inflated to the rec-
ommended pressure, the vehicle must be
driven at speeds above 16 mph (25 km/h) to
activate the TPMS and turn off the low tirepressure warning light. Use a tire pressure
gauge to check the tire pressure.
The low tire pressure warning light remains illu-
minated until the tires are inflated to the recom-
mended COLD tire pressure. The CHECK TIRE
PRES warning message is displayed each time
the ignition switch is placed in the ON position as
long as the low tire pressure warning light re-
mains illuminated.
For additional information, refer to “Check tire
pressure warning message” in the “Instruments
and controls” section and “Tire Pressure Monitor-
ing System (TPMS)” in the “Starting and driving”
section and in the “In case of emergency” section
of this manual.
TPMS malfunction
If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
placed in the ON position. The light will remain on
after the 1 minute. Have the system checked. It is
recommended that you visit a NISSAN dealer for
this service. The CHECK TIRE PRES warning
message is not displayed if the low tire pressure
warning light illuminates to indicate a TPMS mal-
function.
For additional information, refer to “Tire Pressure
Monitoring System (TPMS)” in the “Starting and
driving” section and “Tire pressure” in the “Main-
tenance and do-it-yourself” section of this
manual.
WARNING
●
Radio waves could adversely affect
electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufac-
turer for the possible influences before
use.
● If the light does not illuminate with the
ignition switch placed in the ON posi-
tion, have the vehicle checked. It is rec-
ommended that you visit a NISSAN
dealer as soon as possible for this
service.
2-18Instruments and controls

HOW TO USE THE VEHICLE
INFORMATION DISPLAY
The vehicle information display can be changed
using the
buttonsand ENTER lo-
cated on the steering wheel.
1.
— navigate through the items in the
vehicle information display
ENTER — change or select an item in the
vehicle information display
2.
— go back to the previous menu 3.
— select/enter the vehicle information
display menu items or to change from one
display screen to the next (i.e. trip, TPMS,
Fuel economy)
The ENTER and
buttons also control audio
and control panel functions. For additional infor-
mation, refer to “Steering wheel switch for audio
control” in the “Monitor, climate, audio, phone
and voice recognition systems” section of this
manual.
STARTUP DISPLAY
When the vehicle in placed in the ON or ACC (if
so equipped) position the screens that display in
the vehicle information include:
● Active system status (if so equipped)
● Trip computer
● Tire pressure information
● Fuel economy
● Warnings
● Outside air temperature
● Odometer/Twin Trip Odometer
Warnings will only display if there are any pres-
ent. For additional information, refer to “Vehicle
information display warnings and indicators” in
this section. To control what items display in the vehicle infor-
mation display, refer to “Meter settings” in this
section.
SETTINGS
The setting mode allows you to change the infor-
mation displayed in the vehicle information dis-
play:
● Driver Assistance (if so equipped)
● Clock
● Meter Settings
● Vehicle Settings
● Maintenance
● Alarm
● Tire Pressures (if so equipped)
● Unit
● Language
● Factory Reset
Type B (if so equipped)
LIC3465
Instruments and controls2-25

To remove the fuel-filler cap:1. Turn the fuel-filler cap counterclockwise to remove.
2. Put the fuel-filler cap on the cap holder
1
while refueling.
To install the fuel-filler cap: 1. Insert the fuel-filler cap straight into the fuel- filler tube.
2. Turn the fuel-filler cap clockwise until a single click is heard.
Loose Fuel Cap warning
The LOOSE FUEL CAP warning appears in the
odometer or vehicle information display (if so
equipped) when the fuel-filler cap is not tight-
ened correctly after the vehicle has been refu-
eled. It may take a few driving trips for the mes-
sage to be displayed. To turn off the warning, do
the following:
1. Remove and install the fuel-filler cap as pre- viously described as soon as possible.
2. Tighten the fuel-filler cap until it clicks. 3. Press the
buttonAon the steering
wheel for about 1 second to turn off the
LOOSE FUEL CAP warning
Bafter tight-
ening the fuel-filler cap.
LPD2125
Type A (if so equipped)
LPD2124
Type B (if so equipped)
LPD2398
3-28Pre-driving checks and adjustments
