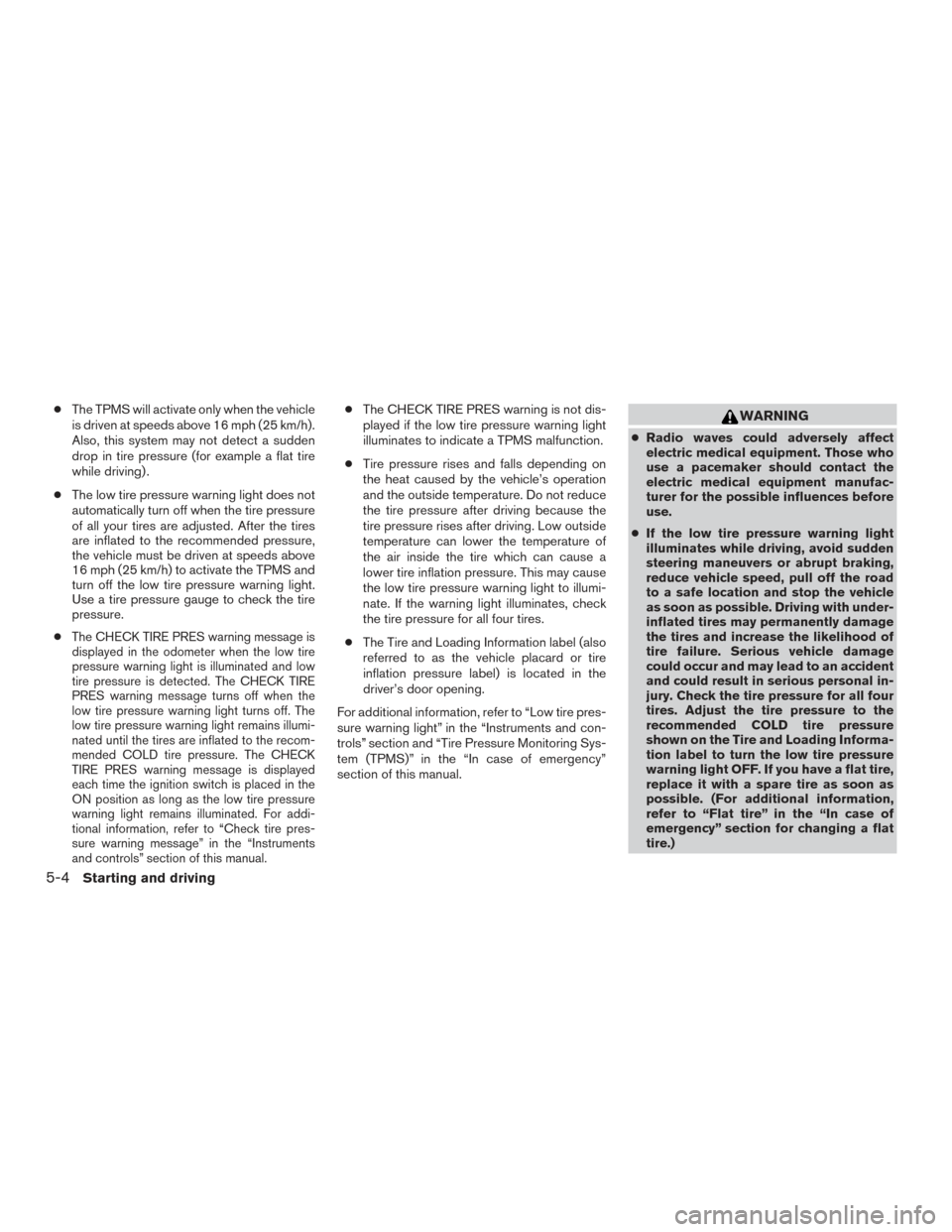

●The TPMS will activate only when the vehicle
is driven at speeds above 16 mph (25 km/h).
Also, this system may not detect a sudden
drop in tire pressure (for example a flat tire
while driving) .
● The low tire pressure warning light does not
automatically turn off when the tire pressure
of all your tires are adjusted. After the tires
are inflated to the recommended pressure,
the vehicle must be driven at speeds above
16 mph (25 km/h) to activate the TPMS and
turn off the low tire pressure warning light.
Use a tire pressure gauge to check the tire
pressure.
●
The CHECK TIRE PRES warning message is
displayed in the odometer when the low tire
pressure warning light is illuminated and low
tire pressure is detected. The CHECK TIRE
PRES warning message turns off when the
low tire pressure warning light turns off. The
low tire pressure warning light remains illumi-
nated until the tires are inflated to the recom-
mended COLD tire pressure. The CHECK
TIRE PRES warning message is displayed
each time the ignition switch is placed in the
ON position as long as the low tire pressure
warning light remains illuminated. For addi-
tional information, refer to “Check tire pres-
sure warning message” in the “Instruments
and controls” section of this manual.
● The CHECK TIRE PRES warning is not dis-
played if the low tire pressure warning light
illuminates to indicate a TPMS malfunction.
● Tire pressure rises and falls depending on
the heat caused by the vehicle’s operation
and the outside temperature. Do not reduce
the tire pressure after driving because the
tire pressure rises after driving. Low outside
temperature can lower the temperature of
the air inside the tire which can cause a
lower tire inflation pressure. This may cause
the low tire pressure warning light to illumi-
nate. If the warning light illuminates, check
the tire pressure for all four tires.
● The Tire and Loading Information label (also
referred to as the vehicle placard or tire
inflation pressure label) is located in the
driver’s door opening.
For additional information, refer to “Low tire pres-
sure warning light” in the “Instruments and con-
trols” section and “Tire Pressure Monitoring Sys-
tem (TPMS)” in the “In case of emergency”
section of this manual.WARNING
● Radio waves could adversely affect
electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufac-
turer for the possible influences before
use.
● If the low tire pressure warning light
illuminates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road
to a safe location and stop the vehicle
as soon as possible. Driving with under-
inflated tires may permanently damage
the tires and increase the likelihood of
tire failure. Serious vehicle damage
could occur and may lead to an accident
and could result in serious personal in-
jury. Check the tire pressure for all four
tires. Adjust the tire pressure to the
recommended COLD tire pressure
shown on the Tire and Loading Informa-
tion label to turn the low tire pressure
warning light OFF. If you have a flat tire,
replace it with a spare tire as soon as
possible. (For additional information,
refer to “Flat tire” in the “In case of
emergency” section for changing a flat
tire.)
5-4Starting and driving

TIRE PRESSURE MONITORING
SYSTEM (TPMS)
This vehicle is equipped with TPMS. It monitors
tire pressure of all tires except the spare. When
the low tire pressure warning light is lit, and the
CHECK TIRE PRES warning message is dis-
played in the odometer, one or more of your tires
is significantly under-inflated. If the vehicle is
being driven with low tire pressure, the TPMS will
activate and warn you of it by the low tire pressure
warning light. This system will activate only when
the vehicle is driven at speeds above 16 mph
(25 km/h). For additional information, refer to
“Warning lights, indicator lights and audible re-
minders” in the “Instruments and controls” sec-
tion, and “Tire Pressure Monitoring System
(TPMS)” in the “Starting and driving” sections of
this manual.
WARNING
●Radio waves could adversely affect
electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufac-
turer for the possible influences before
use. ●
If the low tire pressure warning light
illuminates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road
to a safe location and stop the vehicle
as soon as possible. Driving with under-
inflated tires may permanently damage
the tires and increase the likelihood of
tire failure. Serious vehicle damage
could occur and may lead to an accident
and could result in serious personal in-
jury. Check the tire pressure for all four
tires. Adjust the tire pressure to the
recommended COLD tire pressure
shown on the Tire and Loading Informa-
tion label to turn the low tire pressure
warning light OFF. If you have a flat tire,
replace it with a spare tire as soon as
possible.
● Since the spare tire is not equipped with
the TPMS, when a spare tire is mounted
or a wheel is replaced, the TPMS will
not function and the low tire pressure
warning light will flash for approxi-
mately one minute. The light will remain
on after one minute. Have your tires
replaced and/or TPMS system reset as
soon as possible. It is recommended
that you visit a NISSAN dealer for these
services. ●
Replacing tires with those not originally
specified by NISSAN could affect the
proper operation of the TPMS.
● Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pressure
sensors.
CHANGING A FLAT TIRE
If you have a flat tire, follow the instructions be-
low:
Stopping the vehicle
1. Safely move the vehicle off the road and
away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking brake. Shift the manual transmission into R
(Reverse) , or the CVT into P (Park) .
4. Turn off the engine.
5. Raise the hood to warn other traffic and to signal professional road assistance person-
nel that you need assistance.
6. Have all passengers get out of the vehicle and stand in a safe place, away from traffic
and clear of the vehicle.
FLAT TIRE
In case of emergency6-3

Changing engine oil filter..........8-11
Checking engine coolant level ........8-8
Checking engine oil level ...........8-9
Engine compartment check locations ....8-6
Engine coolant temperature gauge .....2-7
Engine cooling system ............8-7
Engine oil ...................8-9
Engine oil and oil filter recommendation . . .9-6
Engine oil pressure warning light ......2-17
Engine oil viscosity ..............9-7
Engine serial number ............9-12
Engine specifications .............9-8
Starting the engine ..........5-14,5-15
Engine coolant temperature gauge .......2-7
Enterbutton....................4-4
Event Data recorders ..............9-21
Exhaust gas (Carbon monoxide) .........5-2
Explanation of maintenance items ........8-2
Extendedstorageswitch ............8-24
F
Flashers (See hazard warning flasher switch) . .6-2
Flat tire .......................6-3
Floor mat positioning aid .............7-5
Fluid Brake fluid ..................8-12
Capacities and recommended
fuel/lubricants .................9-2
Clutchfluid..................8-13
Continuously Variable Transmission (CVT)
fluid......................8-12
Engine coolant .................8-7
Engine oil ...................8-9
F.M.V.S.S. certification label ...........9-12Foglightswitch .................2-43
Forward Emergency Braking (FEB)
.......2-17
Front air bag system
(See supplemental restraint system) ......1-48
Front power seat adjustment ...........1-4
Frontseats.....................1-2
Fuel Capacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-68
Fuel-filler cap .................3-26
Fuel-filler door lock opener lever ......3-26
Fuel-filler lid .................3-26
Fuel gauge ...................2-8
Fuel octane rating ...............9-5
Fuel recommendation .............9-4
Loose fuel cap warning ........2-6,2-33
Fuel Cell Vehicle (FCV) System Tirepressure.................8-33
Fuel-filler door ..................3-26
Fuelgauge.....................2-8
Fuses.......................8-21
Fusiblelinks ...................8-23
G
Garage door opener, HomeLink® Universal
Transceiver . .2-58, 2-59, 2-60, 2-61, 2-61, 2-62
Gascap .....................3-26
Gauge Engine coolant temperature gauge .....2-7
Fuel gauge ...................2-8
Odometer ...................2-5
Speedometer .................2-5
Tachometer ..................2-7 Trip computer
.................2-8
Trip odometer .................2-5
General maintenance ...............8-2
Glovebox.....................2-49
H
Hazard

warning flasher switch ..........6-2
Headlightandturnsignalswitch........2-39
Headlightcontrolswitch ............2-39
Headlights....................8-28
Head restraints ..................1-7
Heated seats ...................2-44
Heated seat switches ..........2-44,4-66
Heater Heater and air conditioner (automatic)
(if so equipped) ...............4-24
Heater and air conditioner
controls ................4-18,4-25
Heater and air conditioner (manual) ....4-16
Heater operation ...........4-18,4-26
Heater and air conditioner (automatic) .....4-24
HomeLink® Universal
Transceiver . .2-58, 2-59, 2-60, 2-61, 2-61, 2-62
Hood.......................3-24
Horn .......................2-44
I
Ignition switch ...................5-8
Ignition Switch Push-Button Ignition Switch ........5-10
Immobilizer system .........2-36,5-10,5-13
Important vehicle information label .......9-12
10-3

Seat belt maintenance............1-18
Under the hood and vehicle .........8-4
Maintenance requirements ............8-2
Malfunction indicator light ............2-22
Manual front seat adjustment ...........1-3
Maplights ....................2-58
Map pocket ....................2-46
Meters and gauges ................2-3
Instrument brightness control ........2-42
Mirror Automatic anti-glare inside mirror ......3-31
Outside mirror control ............3-32
Outside mirrors ...............3-32
Rearview ...................3-30
Vanity mirror .................3-30
Mirrors ......................3-30
Mobileapps ...................4-65
Moonroof .................2-54,2-54
N
NissanConnect
SM................4-65
NissanConnectSMServices...........4-66
NISSAN Intelligent Key® .........3-2,3-10
NISSAN Vehicle Immobilizer
System ...............2-36,5-10,5-13
NISSAN voice recognition system ......4-106
O
Octanerating(Seefueloctanerating)......9-5
Odometer .....................2-5 Oil
Capacities and recommended
fuel/lubricants .................9-2
Changingengineoil.............8-10
Changing engine oil filter ..........8-11
Checking engine oil level ...........8-9
Engine oil ...................8-9
Engine oil and oil filter recommendation . . .9-6
Engine oil viscosity ..............9-7
Oneshotcall...........4-74,4-89,4-101
Outside mirror control ..............3-32
Outside mirrors .................3-32
Overheat If your vehicle overheats ...........6-10
Owner’s manual order form ...........9-22
Owner’s manual/service manual order
information ....................9-22
P
Parking Parking brake operation ...........5-21
Parking/parking on hills ...........5-69
Power Power door locks ............3-5,3-6
Power outlet .................2-46
Power rear windows .............2-53
Power steering system ...........5-70
Power windows ...............2-52
Rear power windows ............2-53
Power outlet ...................2-46
Power steering ..................5-70
Precautions Maintenance precautions ...........8-5 Precautions on booster
seats
...........1-21,1-28,1-33,1-38
Precautions on child
restraints .........1-21,1-28,1-33,1-38
Precautions on seat belt usage .......1-11
Precautions on supplemental restraint
system ....................1-41
Precautions when starting and driving ....5-2
Programmable features ..........4-7,4-36
Push starting ...................6-10
R
Radio CarphoneorCBradio ...........4-70
FM/AM radio with compact disc (CD)
player .....................4-35
FM/AM/SAT radio with compact disc (CD)
player .................4-40,4-45
Steering wheel audio control switch . . . .4-63
Readiness for inspection maintenance (I/M)
test ........................9-21
Rear Cross Traffic Alert (RCTA) ........5-34
Rear power windows ..............2-53
Rearseat......................1-6
Rearview mirror .................3-30
RearView Monitor ................4-10
Rear window and outside mirror defroster
switch.......................2-39
Recommended Fluids ...............9-2
Recorders EventData..................9-21
Refrigerant recommendation ...........
9-7
Registering a vehicle in another country ....9-11
Remote keyless entry system ...........3-7
10-5

Reporting safety defects (US only).......9-20
S
Safety Child safety rear door lock ..........3-6
Childseatbelts.....1-21,1-28,1-33,1-38
Reporting safety defects (US only) .....9-20
Seat adjustment Front manual seat adjustment ........1-3
Front power seat adjustment .........1-4
Rear seat adjustment .............1-6
Seatback pockets ................2-47
Seat belt Childsafety..................1-19
Infantsandsmallchildren..........1-19
Injured Person ................1-14
Largerchildren................1-20
Precautionsonseatbeltusage.......1-11
Pregnant women ...............1-14
Seat belt extenders .............1-18
Seat belt maintenance ............1-18
Seat belts ................1-11,7-6
Shoulder belt height adjustment ......1-17
Three-point type with retractor .......1-14
Seat belt extenders ...............1-18
Seatbeltwarninglight..........1-14,2-20
Seats Adjustment ...................1-2
Armrests....................1-6
Frontseats...................1-2
Heatedseats.................2-44
Manual front seat adjustment .........1-3
Rear seat ....................1-6
Security indicator light ..............2-22 Security system (NISSAN Vehicle Immobilizer
System) , engine start
.......2-36,5-10,5-13
Security systems Vehicle security system ........2-35,2-35
Self-adjusting brakes ..............8-21
Service manual order form ...........9-22
Servicing air conditioner .............4-27
Setting button ...............4-7,4-36
Shifting Continuously Variable Transmission
(CVT) .....................5-17
Manual transmission .............5-20
Shiftlockrelease.................5-18
Shoulder belt height adjustment ........1-17
Side air bag system (See supplemental
side air bag and curtain side-impact air bag
system) ......................1-56
Siri® Eyes-Free .................4-66
Smartphone connectivity ............4-65
Sparkplugreplacement.............8-17
Sparkplugs ...................8-17
Specifications ...................9-8
Speedometer ...................2-5
Speedometer and odometer ...........2-4
Spotlights(Seemaplight) ...........2-58
SRSwarninglabel................1-58
Stability control .................5-73
Starting Before starting the engine ..........5-13
Jump starting ..............6-8,8-15
Precautions when starting and driving ....5-2
Push starting .................6-10
Starting the engine ..........5-14,5-15
Starting the engine ............5-14,5-15
Steering Power steering system ...........5-70 Steering wheel
..................3-29
Steering wheel audio control switch ......4-63
Stoplight.....................8-31
Storage......................2-46
Storage tray ...................2-48
Sunglasses case .................2-50
Sunglasses

holder ................2-50
Sunroof......................2-54
Sunroof(seeMoonroof).............2-54
Sun visors ....................3-29
Supplemental air bag warning labels ......1-58
Supplemental air bag warning light . . .1-59, 2-20
Supplemental front impact air bag system . . .1-48
Supplemental restraint system Information and warning labels .......1-58
Precautions on supplemental restraint
system ....................1-41
Supplemental restraint system
(Supplemental air bag system) .........1-41
Supplemental side and curtain side-impact
airbagsystem..................1-56
Switch Autolightswitch...............2-40
Automatic power window switch ......2-53
Fog light switch ...............2-43
Hazard warning flasher switch ........6-2
Headlightandturnsignalswitch......2-39
Headlight control switch ..........2-39
Ignition switch .................5-8
Instrument brightness control ........2-42
Power door lock switch .........3-5,3-6
Rear window and outside mirror defroster
switch .....................2-39
Turnsignalswitch..............2-42
Vehicle dynamic control (VDC) off
switch .....................2-45
10-6

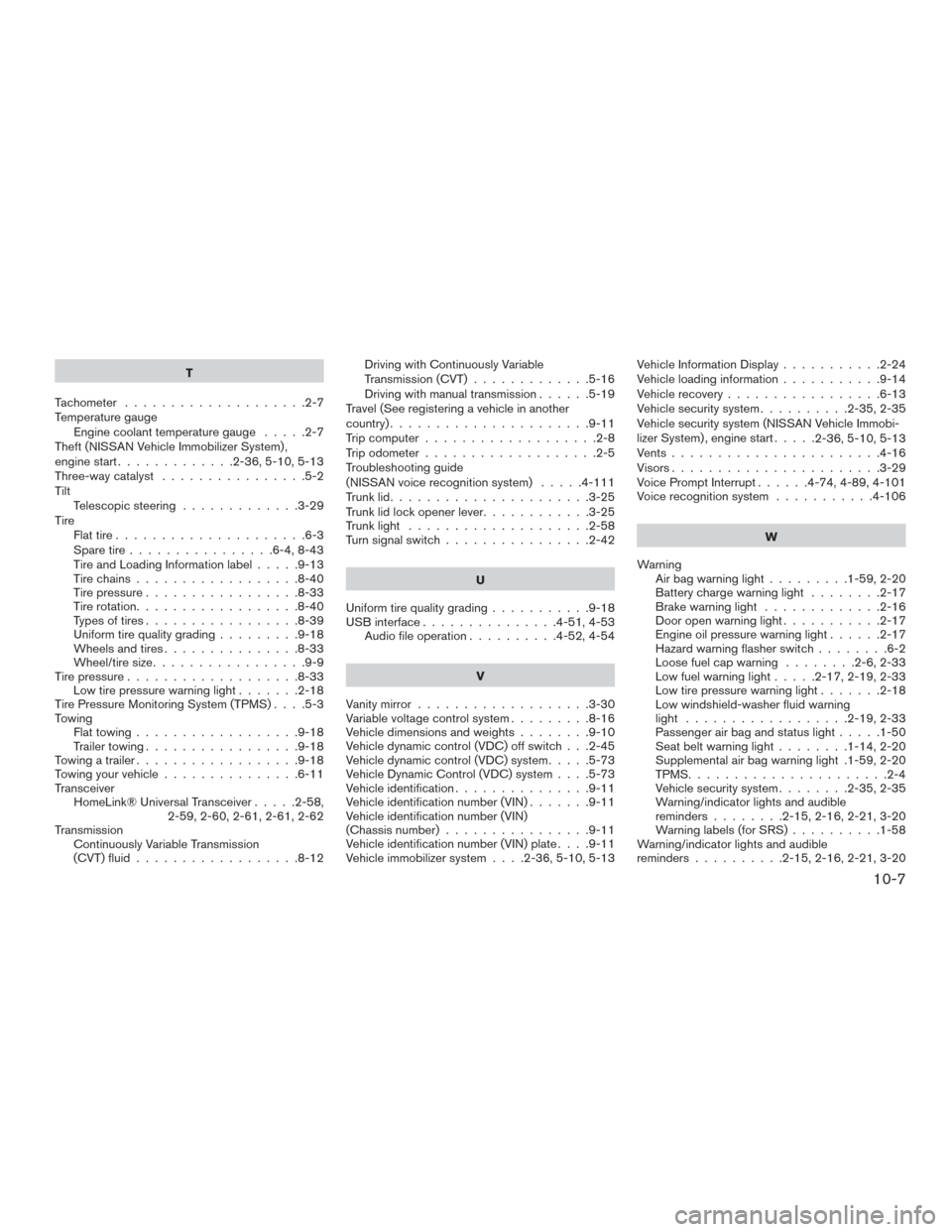

T
Tachometer ....................2-7
Temperature gauge Engine coolant temperature gauge .....2-7
Theft (NISSAN Vehicle Immobilizer System) ,
engine start .............2-36,5-10,5-13
Three-way catalyst ................5-2
Tilt Telescopic steering .............3-29
Tire Flat tire .....................6-3
Spare tire ................6-4,8-43
TireandLoadingInformationlabel.....9-13
Tire chains ..................8-40
Tirepressure.................8-33
Tire rotation..................8-40
Types of tires .................8-39
Uniform tire quality grading .........9-18
Wheels and tires ...............8-33
Wheel/tire size .................9-9
Tirepressure...................8-33 Low tire pressure warning light .......2-18
Tire Pressure Monitoring System (TPMS) ....5-3
Towing Flattowing..................9-18
Trailer towing .................9-18
Towing a trailer ..................9-18
Towingyourvehicle...............6-11
Transceiver HomeLink® Universal Transceiver .....2-58,
2-59, 2-60, 2-61, 2-61, 2-62
Transmission Continuously Variable Transmission
(CVT) fluid ..................8-12 Driving with Continuously Variable
Transmission (CVT)
.............5-16
Driving with manual transmission ......5-19
Travel (See registering a vehicle in another
country) ......................9-11
Trip computer ...................2-8
Trip odometer ...................2-5
Troubleshooting guide
(NISSAN voice recognition system) .....4-111
Trunklid......................3-25
Trunklidlockopenerlever............3-25
Trunklight ....................2-58
Turn signal switch ................2-42
U
Uniform tire quality grading ...........9-18
USB interface ...............4-51,4-53
Audio file operation ..........4-52,4-54
V
Vanity mirror ...................3-30
Variable voltage control system .........8-16
Vehicle dimensions and weights ........9-10
Vehicle dynamic control (VDC) off switch . . .2-45
Vehicle dynamic control (VDC) system .....5-73
Vehicle Dynamic Control (VDC) system ....5-73
Vehicle identification ...............9-11
Vehicle identification number (VIN) .......9-11
Vehicle identification number (VIN)
(Chassis number) ................9-11
Vehicle identification number (VIN) plate ....9-11
Vehicle immobilizer system ....2-36,5-10,5-13Vehicle Information Display
...........2-24
Vehicle loading information ...........9-14
Vehicle recovery .................6-13
Vehicle security system ..........2-35,2-35
Vehicle security system (NISSAN Vehicle Immobi-
lizer System) , engine start .....
2-36,5-10,5-13
Vents.......................4-16
Visors.......................3-29
Voice Prompt Interrupt ......4-74,4-89,4-101
Voice recognition system ...........4-106
W
Warning Airbagwarninglight.........1-59,2-20
Battery charge warning light ........2-17
Brake warning light .............2-16
Door open warning light ...........2-17
Engine oil pressure warning light ......2-17
Hazard warning flasher switch ........6-2
Loose fuel cap warning ........2-6,2-33
Low fuel warning light .....2-17,2-19,2-33
Low tire pressure warning light .......2-18
Low windshield-washer fluid warning
light ..................2-19,2-33
Passenger air bag and status light .....1-50
Seat belt warning light ........1-14,2-20
Supplemental air bag warning light .1-59, 2-20
TPMS ......................2-4
Vehicle security system ........2-35,2-35
Warning/indicator lights and audible
reminders ........2-15,2-16,2-21,3-20
Warning labels (for SRS) ..........1-58
Warning/indicator lights and audible
reminders..........2-15,2-16,2-21,3-20
10-7
