2016 NISSAN NV200 service indicator

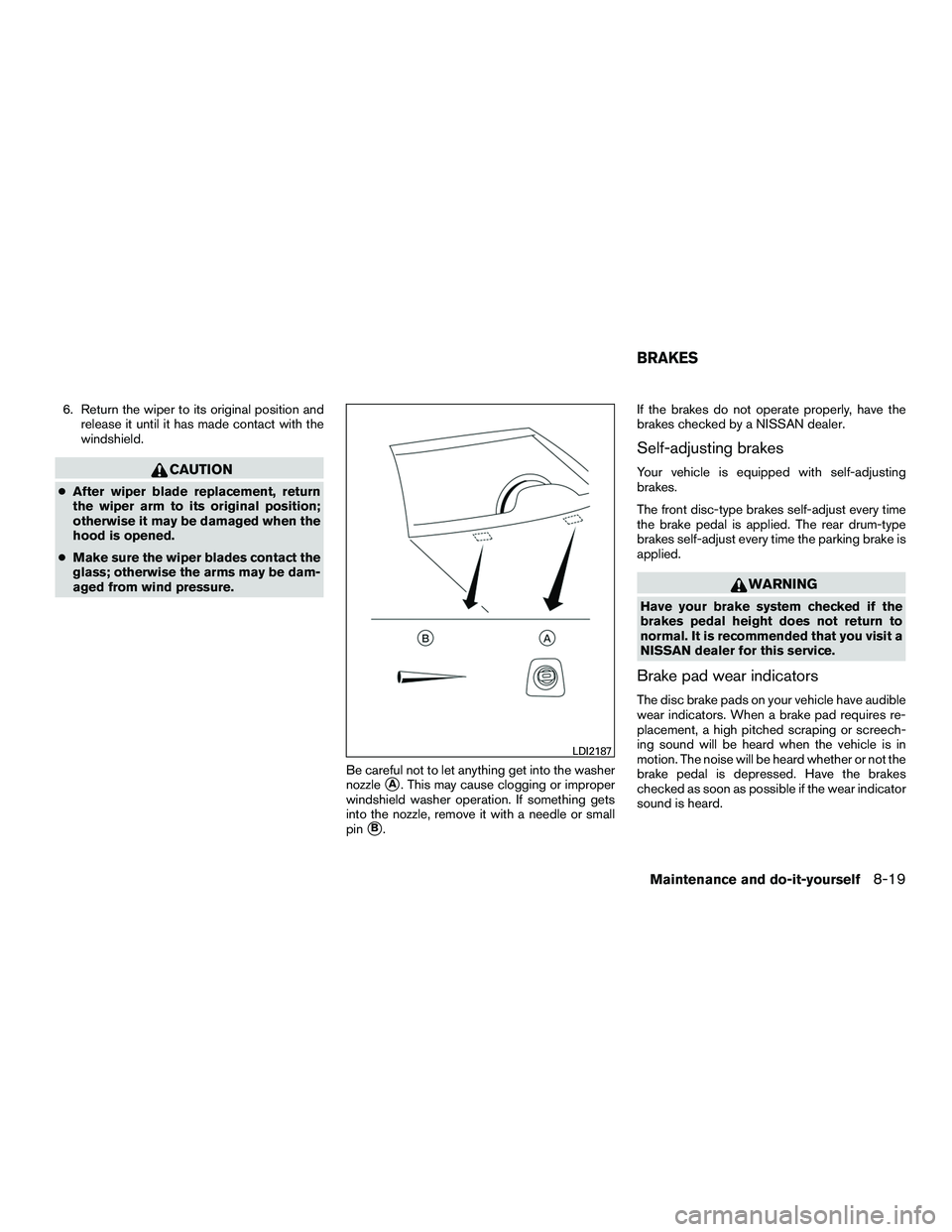

6. Return the wiper to its original position andrelease it until it has made contact with the
windshield.
CAUTION
●After wiper blade replacement, return
the wiper arm to its original position;
otherwise it may be damaged when the
hood is opened.
● Make sure the wiper blades contact the
glass; otherwise the arms may be dam-
aged from wind pressure.
Be careful not to let anything get into the washer
nozzle
A. This may cause clogging or improper
windshield washer operation. If something gets
into the nozzle, remove it with a needle or small
pin
B. If the brakes do not operate properly, have the
brakes checked by a NISSAN dealer.
Self-adjusting brakes
Your vehicle is equipped with self-adjusting
brakes.
The front disc-type brakes self-adjust every time
the brake pedal is applied. The rear drum-type
brakes self-adjust every time the parking brake is
applied.
WARNING
Have your brake system checked if the
brakes pedal height does not return to
normal. It is recommended that you visit a
NISSAN dealer for this service.
Brake pad wear indicators
The disc brake pads on your vehicle have audible
wear indicators. When a brake pad requires re-
placement, a high pitched scraping or screech-
ing sound will be heard when the vehicle is in
motion. The noise will be heard whether or not the
brake pedal is depressed. Have the brakes
checked as soon as possible if the wear indicator
sound is heard.
LDI2187
BRAKES
Maintenance and do-it-yourself8-19

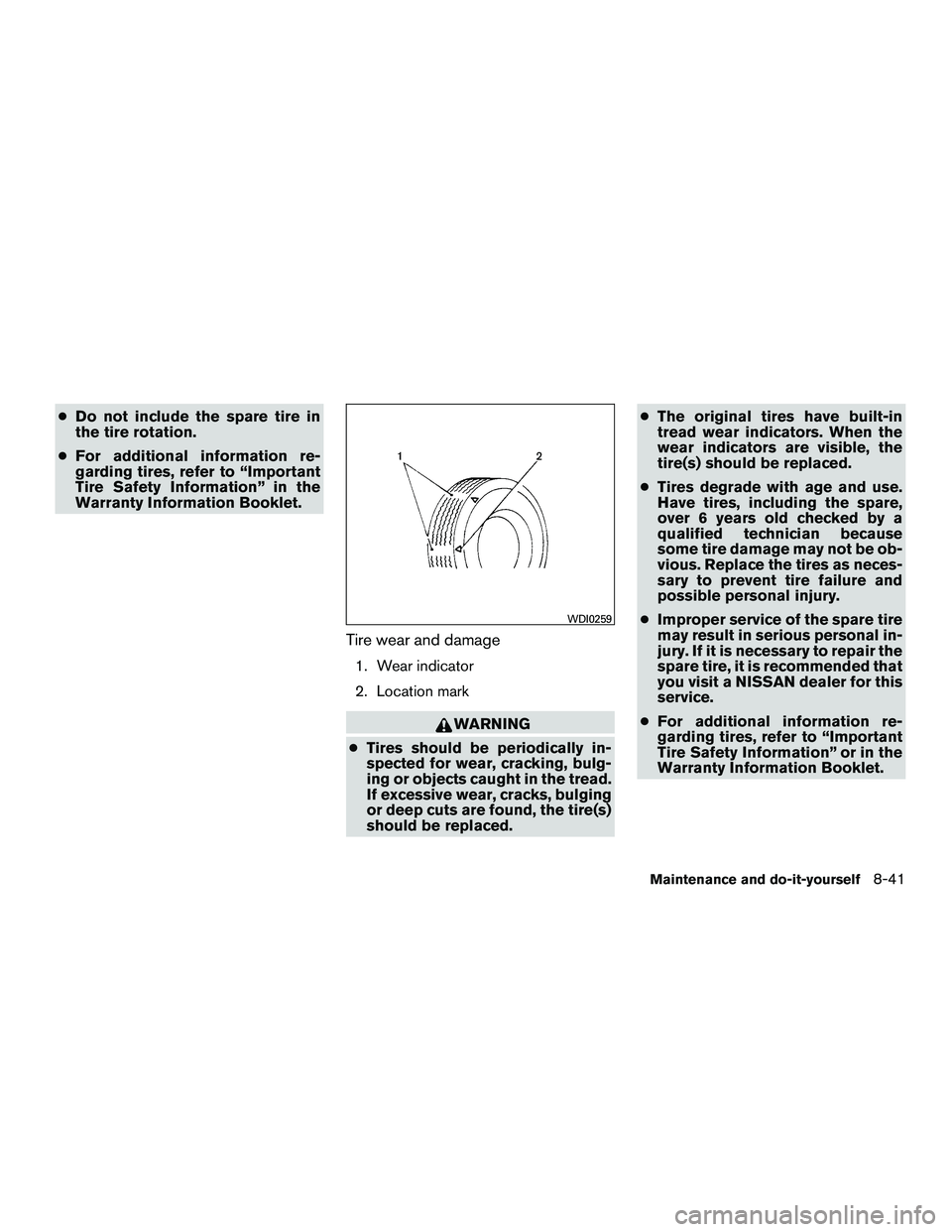

●Do not include the spare tire in
the tire rotation.
● For additional information re-
garding tires, refer to “Important
Tire Safety Information” in the
Warranty Information Booklet.
Tire wear and damage
1. Wear indicator
2. Location mark
WARNING
● Tires should be periodically in-
spected for wear, cracking, bulg-
ing or objects caught in the tread.
If excessive wear, cracks, bulging
or deep cuts are found, the tire(s)
should be replaced. ●
The original tires have built-in
tread wear indicators. When the
wear indicators are visible, the
tire(s) should be replaced.
● Tires degrade with age and use.
Have tires, including the spare,
over 6 years old checked by a
qualified technician because
some tire damage may not be ob-
vious. Replace the tires as neces-
sary to prevent tire failure and
possible personal injury.
● Improper service of the spare tire
may result in serious personal in-
jury. If it is necessary to repair the
spare tire, it is recommended that
you visit a NISSAN dealer for this
service.
● For additional information re-
garding tires, refer to “Important
Tire Safety Information” or in the
Warranty Information Booklet.
WDI0259
Maintenance and do-it-yourself8-41

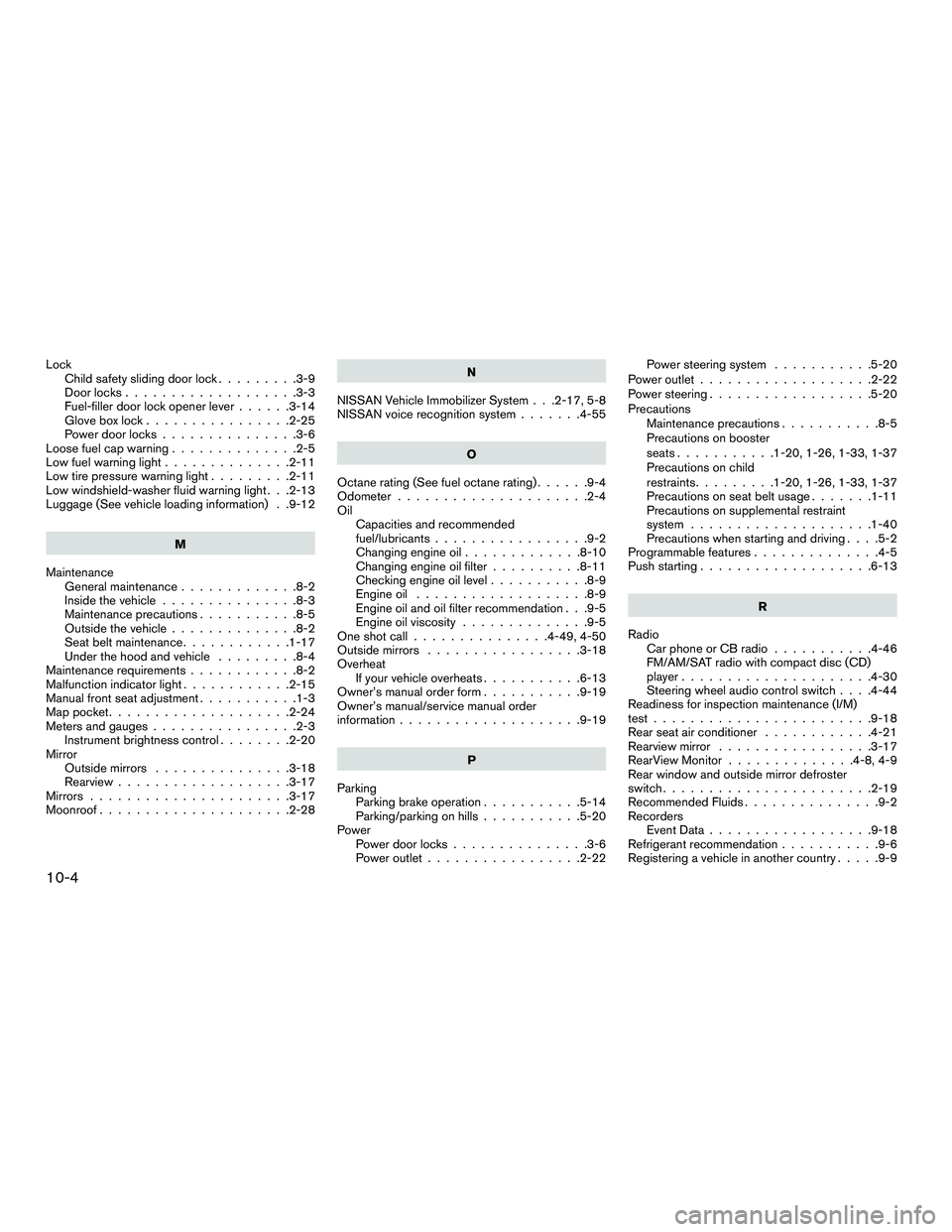

LockChild safety sliding door lock .........3-9
Door locks ...................3-3
Fuel-filler door lock opener lever ......3-14
Gloveboxlock................2-25
Power door locks ...............3-6
Loose fuel cap warning ..............2-5
Lowfuelwarninglight..............2-11
Low tire pressure warning light .........2-11
Low windshield-washer fluid warning light . . .2-13
Luggage (See vehicle loading information) . .9-12
M
Maintenance Generalmaintenance.............8-2
Insidethevehicle...............8-3
Maintenanceprecautions...........8-5
Outsidethevehicle..............8-2
Seat belt maintenance ............1-17
Under the hood and vehicle .........8-4
Maintenance requirements ............8-2
Malfunctionindicatorlight............2-15
Manual front seat adjustment ...........1-3
Map pocket ....................2-24
Meters and gauges ................2-3
Instrument brightness control ........2-20
Mirror Outside mirrors ...............3-18
Rearview ...................3-17
Mirrors ......................3-17
Moonroof.....................2-28 N
NISSAN Vehicle Immobilizer System . . .2-17, 5-8
NISSAN voice recognition system .......4-55
O
Octane rating (See fuel octane rating) ......9-4
Odometer .....................2-4
Oil Capacities and recommended
fuel/lubricants .................9-2
Changingengineoil.............8-10
Changing engine oil filter ..........8-11
Checking engine oil level ...........8-9
Engineoil ...................8-9
Engine oil and oil filter recommendation . . .9-5
Engine oil viscosity ..............9-5
Oneshotcall...............4-49,4-50
Outside mirrors .................3-18
Overheat If your vehicle overheats ...........6-13
Owner’s manual order form ...........9-19
Owner’s manual/service manual order
information ....................9-19
P
Parking Parking brake operation ...........5-14
Parking/parking on hills ...........5-20
Power Power door locks ...............3-6
Power outlet .................2-22 Power steering system
...........5-20
Poweroutlet...................2-22
Power steering ..................5-20
Precautions Maintenance precautions ...........8-5
Precautions on booster
seats...........1-20,1-26,1-33,1-37
Precautions on child
restraints .........1-20,1-26,1-33,1-37
Precautionsonseatbeltusage.......1-11
Precautions on supplemental restraint
system ....................1-40
Precautions when starting and driving ....5-2
Programmable features ..............4-5
Push starting ...................6-13
R
Radio CarphoneorCBradio ...........4-46
FM/AM/SAT radio with compact disc (CD)
player.....................4-30
Steering wheel audio control switch ....4-44
Readiness for inspection maintenance (I/M)
test........................9-18
Rear seat air conditioner ............4-21
Rearview mirror .................3-17
RearView

Monitor ..............4-8,4-9
Rear window and outside mirror defroster
switch.......................2-19
Recommended Fluids ...............9-2
Recorders EventData..................9-18
Refrigerant recommendation ...........9-6
Registering a vehicle in another country .....9-9
10-4

Remote keyless entry system...........3-9
Reporting safety defects (US only) .......9-18

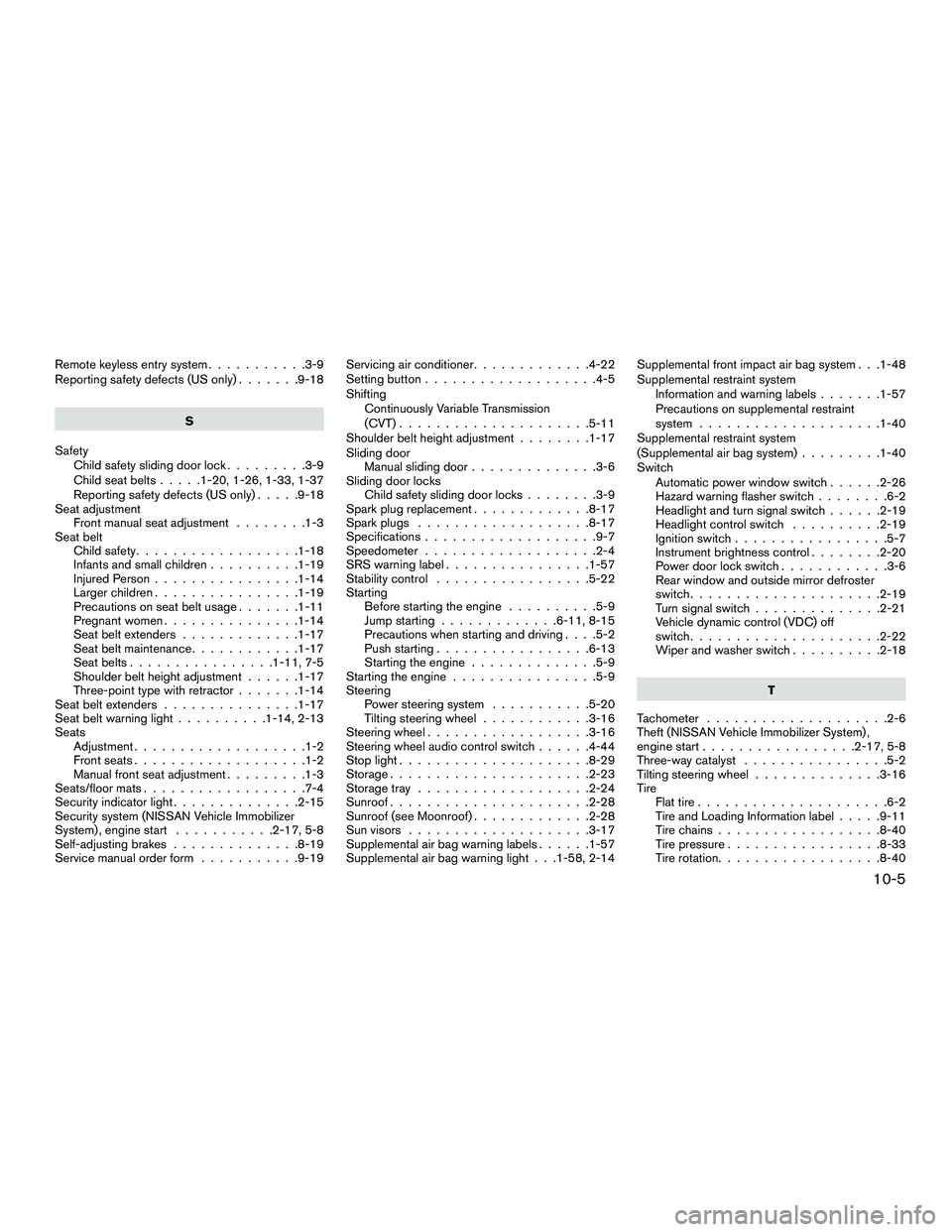

S
Safety Child safety sliding door lock .........3-9
Childseatbelts.....1-20,1-26,1-33,1-37
Reporting safety defects (US only) .....9-18
Seat adjustment Front manual seat adjustment ........1-3
Seat belt Child safety ..................1-18
Infantsandsmallchildren..........1-19
InjuredPerson................1-14
Largerchildren................1-19
Precautionsonseatbeltusage.......1-11
Pregnant women ...............1-14
Seat belt extenders .............1-17
Seat belt maintenance ............1-17
Seat belts ................1-11,7-5
Shoulder belt height adjustment ......1-17
Three-point type with retractor .......1-14
Seat belt extenders ...............1-17
Seatbeltwarninglight..........1-14,2-13
Seats Adjustment ...................1-2
Frontseats...................1-2
Manual front seat adjustment .........1-3
Seats/floor mats ..................7-4
Security indicator light ..............2-15
Security system (NISSAN Vehicle Immobilizer
System) , engine start ...........2-17,5-8
Self-adjusting brakes ..............8-19
Service manual order form ...........9-19Servicing air conditioner
.............4-22
Setting button ...................4-5
Shifting Continuously Variable Transmission
(CVT) .....................5-11
Shoulder belt height adjustment ........1-17
Sliding door Manual sliding door ..............3-6
Sliding door locks Child safety sliding door locks ........3-9
Spark plug replacement .............8-17
Sparkplugs ...................8-17
Specifications ...................9-7
Speedometer ...................2-4
SRS warning label ................1-57
Stability control .................5-22
Starting Before starting the engine ..........5-9
Jump starting .............6-11,8-15
Precautions when starting and driving ....5-2
Push starting .................6-13
Starting the engine ..............5-9
Starting the engine ................5-9
Steering Power steering system ...........5-20
Tilting steering wheel ............3-16
Steering wheel ..................3-16
Steering wheel audio control switch ......4-44
Stoplight.....................8-29
Storage......................2-23
Storage tray ...................2-24
Sunroof ......................2-28
Sunroof (see Moonroof) .............2-28
Sun visors ....................3-17
Supplemental air bag warning labels ......1-57
Supplemental

air bag warning light . . .1-58, 2-14 Supplemental front impact air bag system . . .1-48
Supplemental restraint system
Information and warning labels .......1-57
Precautions on supplemental restraint
system ....................1-40
Supplemental restraint system
(Supplemental air bag system) .........1-40
Switch Automatic power window switch ......2-26
Hazard warning flasher switch ........6-2
Headlightandturnsignalswitch......2-19
Headlight control switch ..........2-19
Ignition switch .................5-7
Instrument brightness control ........2-20
Powerdoorlockswitch............3-6
Rear window and outside mirror defroster
switch.....................2-19
Turnsignalswitch..............2-21
Vehicle dynamic control (VDC) off
switch.....................2-22
Wiperandwasherswitch..........2-18
T
Tachometer ....................2-6
Theft (NISSAN Vehicle Immobilizer System) ,
enginestart.................2-17,5-8
Three-way catalyst ................5-2
Tilting steering wheel ..............3-16
Tire Flat tire .....................6-2
Tire and Loading Information label .....9-11
Tirechains..................8-40
Tirepressure.................8-33
Tire rotation..................8-40
10-5
