2016 NISSAN NV PASSENGER VAN headlight bulb

1. Engine hood (P. 3-12)
2. Wiper and washer switch (P. 2-25)
3. Windshield (P. 8-22)
4. Power windows (if so equipped)(P. 2-46)
5. Door locks (P. 3-3) Key fob (if so equipped) (P. 3-8)
Keys (P. 3-2)
6. Mirrors (P. 3-17)
7. Tire pressure (P. 8-33)
8. Flat tire (P. 6-2)
9. Tire chains (P. 8-33)
10. Headlight and turn signal switch
(P. 2-27)
Replacing bulbs (P. 8-29)
Refer to the page number indicated in
parentheses for operating details.
LII2320
EXTERIOR FRONT
Illustrated table of contents0-3

FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation.
Note:
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.
For Canada:
This devise complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause inter-
ference, and (2) this device must accept any
interference, including interference that
may cause undesired operation of the de-

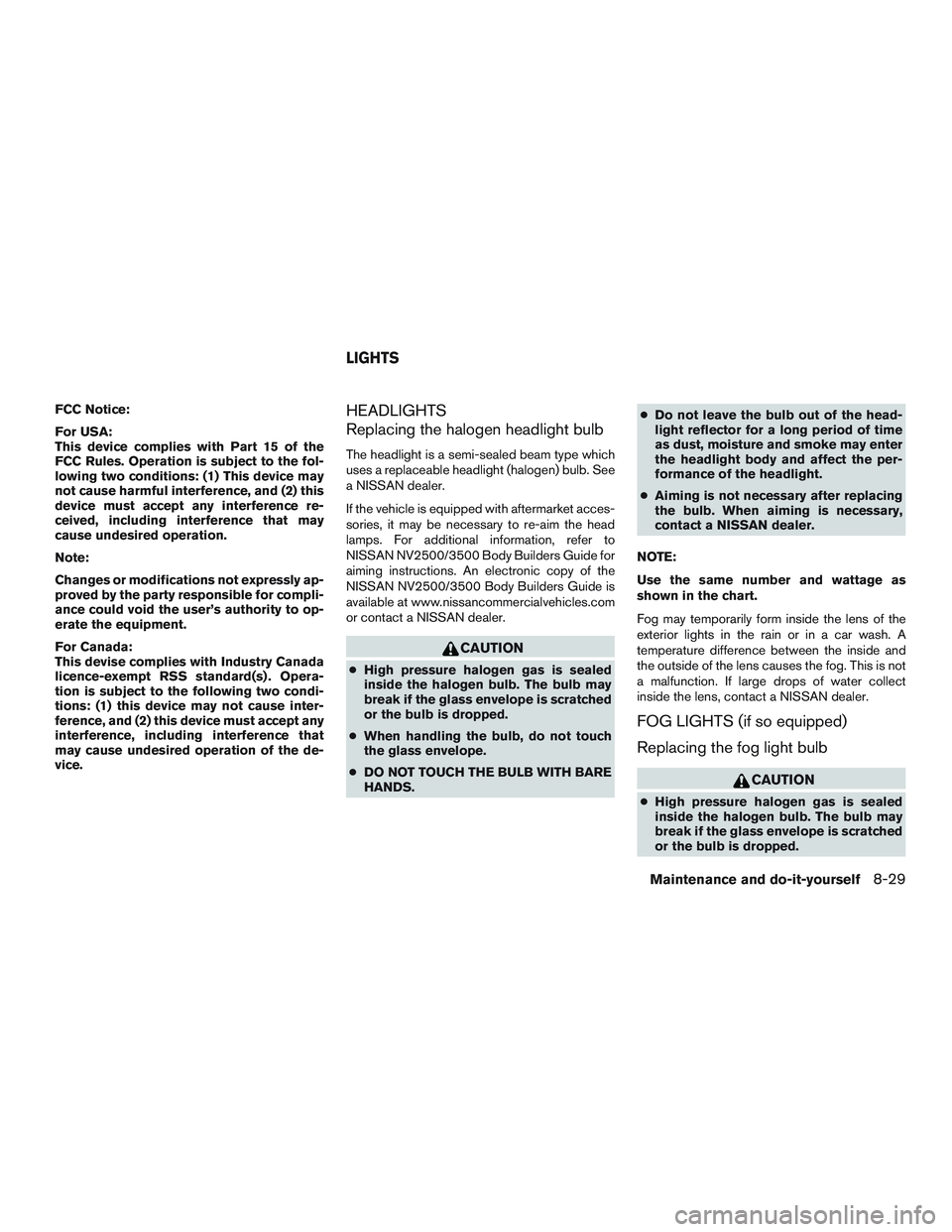

vice.HEADLIGHTS
Replacing the halogen headlight bulb
The headlight is a semi-sealed beam type which
uses a replaceable headlight (halogen) bulb. See
a NISSAN dealer.
If the vehicle is equipped with aftermarket acces-
sories, it may be necessary to re-aim the head
lamps. For additional information, refer to
NISSAN NV2500/3500 Body Builders Guide for
aiming instructions. An electronic copy of the
NISSAN NV2500/3500 Body Builders Guide is
available at www.nissancommercialvehicles.com
or contact a NISSAN dealer.
CAUTION
●High pressure halogen gas is sealed
inside the halogen bulb. The bulb may
break if the glass envelope is scratched
or the bulb is dropped.
● When handling the bulb, do not touch
the glass envelope.
● DO NOT TOUCH THE BULB WITH BARE
HANDS. ●
Do not leave the bulb out of the head-
light reflector for a long period of time
as dust, moisture and smoke may enter
the headlight body and affect the per-
formance of the headlight.
● Aiming is not necessary after replacing
the bulb. When aiming is necessary,
contact a NISSAN dealer.
NOTE:
Use the same number and wattage as
shown in the chart.
Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is not
a malfunction. If large drops of water collect
inside the lens, contact a NISSAN dealer.
FOG LIGHTS (if so equipped)
Replacing the fog light bulb
CAUTION
● High pressure halogen gas is sealed
inside the halogen bulb. The bulb may
break if the glass envelope is scratched
or the bulb is dropped.
LIGHTS
Maintenance and do-it-yourself8-29

EXTERIOR AND INTERIOR LIGHTS
ItemWattage (W)Bulb No.
Headlight assembly* High/Low/Daytime running light 65/55H13
Park/Turn 8/273157AK
Side marker 3.8194
Fog lights (if so equipped) 55H11
Map lights* 8—
Interior lights (rear) (if so equipped)* 8—
Cargo light* 10—
Step lights (if so equipped) 3.8194
High-mounted stop light* 16921
Rear combination light Tail/Stop 8/273157KX
Backup (reversing) 18921
Turn 273156AK
License plate light* 5W5W
* See a NISSAN dealer for replacement.
Always check with the Parts Department at a NISSAN dealer for the latest parts information.
Maintenance and do-it-yourself8-31

1. Map lights
2. Step light (if so equipped)
3. Cargo light
4. High-mounted stoplight
5. Rear combination light
6. License plate light
7. Interior lights (rear) (if so equipped)
8. Headlight assembly
9. Fog lights (if so equipped)
Replacement procedures
All other lights are either type A, B, C or D. When
replacing a bulb, first remove the lens, lamp
and/or cover.
Indicates bulb removal
Indicates bulb installationLDI2612
WDI0263
8-32Maintenance and do-it-yourself

K
Key.........................3-2
Key fob battery replacement .......8-27,8-28
Keyless entry Without Intelligent Key system
(See remote keyless entry system) . . .3-8, 3-9
Keys NISSAN Vehicle Immobilizer System keys . .3-2
L
Labels Air conditioner specification label .....9-12
C.M.V.S.S. certification label ........9-11
Emissioncontrolinformationlabel.....9-12
Engine serial number ............9-11
F.M.V.S.S. certification label .........9-11
Tire and Loading Information label .....9-12
Vehicle identification number (VIN) .....9-10
Vehicle identification number (VIN) plate . .9-10
Warning labels (for SRS) ..........1-62
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-31
License plate Installing the license plate ..........9-13
Light Airbagwarninglight.........1-62,2-15
Brake light (See stop light) .........8-31
Bulb replacement ..............8-31
Charge warning light ............2-13
ExteriorandInteriorlights..........8-31
Foglights...................8-29
Foglightswitch ...............2-29 Headlight and turn signal switch
......2-27
Headlight control switch ..........2-27
Headlights..................8-29
Interiorlight..................2-48
Lightbulbs..................8-29
Low tire pressure warning light .......2-13
Low windshield-washer fluid warning
light......................2-15
Security indicator light ............2-17
Warning/indicator lights and audible
reminders ............2-11,2-12,2-16
Lights.......................8-29 Maplights ..................2-49
Lock Child safety sliding door lock .........3-8
Power door locks ...............3-5
Loose fuel cap warning .............2-22
Lowfuelwarninglight.......2-13,2-15,2-22
Low tire pressure warning light .........2-13
Low windshield-washer fluid warning light . . .2-15
Luggage (See vehicle loading information) . .9-13
M
Maintenance Generalmaintenance.............8-2
Insidethevehicle...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............8-2
Seatbeltmaintenance............1-26
Underthehoodandvehicle .........8-4
Maintenancerequirements............8-2
Malfunction indicator lamp (MIL) ........2-16
Manual front seat adjustment ...........1-3
Manual vent windows ..............2-48 Manual windows
.................2-47
Maplights ....................2-49
Mappocket....................2-38
Meters and gauges ................2-3
Instrument brightness control ........2-29
Mirror Automatic anti-glare inside mirror ......3-17
Outside mirrors ...............3-18
Rearview ...................3-17
Mirrors ......................3-17
Mobileapps ...................4-60
N
NissanConnect
SM................4-60
NISSAN Vehicle Immobilizer System . . .2-24, 5-9
NISSAN voice recognition system .......4-82
O
Octane rating (See fuel octane rating) ......9-5
Odometer .....................2-4
Oil Capacities and recommended
fuel/lubricants.................9-2
Changingengineoil.............8-12
Changing engine oil filter ..........8-14
Checking engine oil level ..........8-11
Engineoil...................8-11
Engine oil and oil filter recommendation . . .9-6
Engine oil pressure low/engine coolant
temperature high warning light .......2-12
Engine oil viscosity ..............9-7
Oneshotcall...............4-65,4-77
