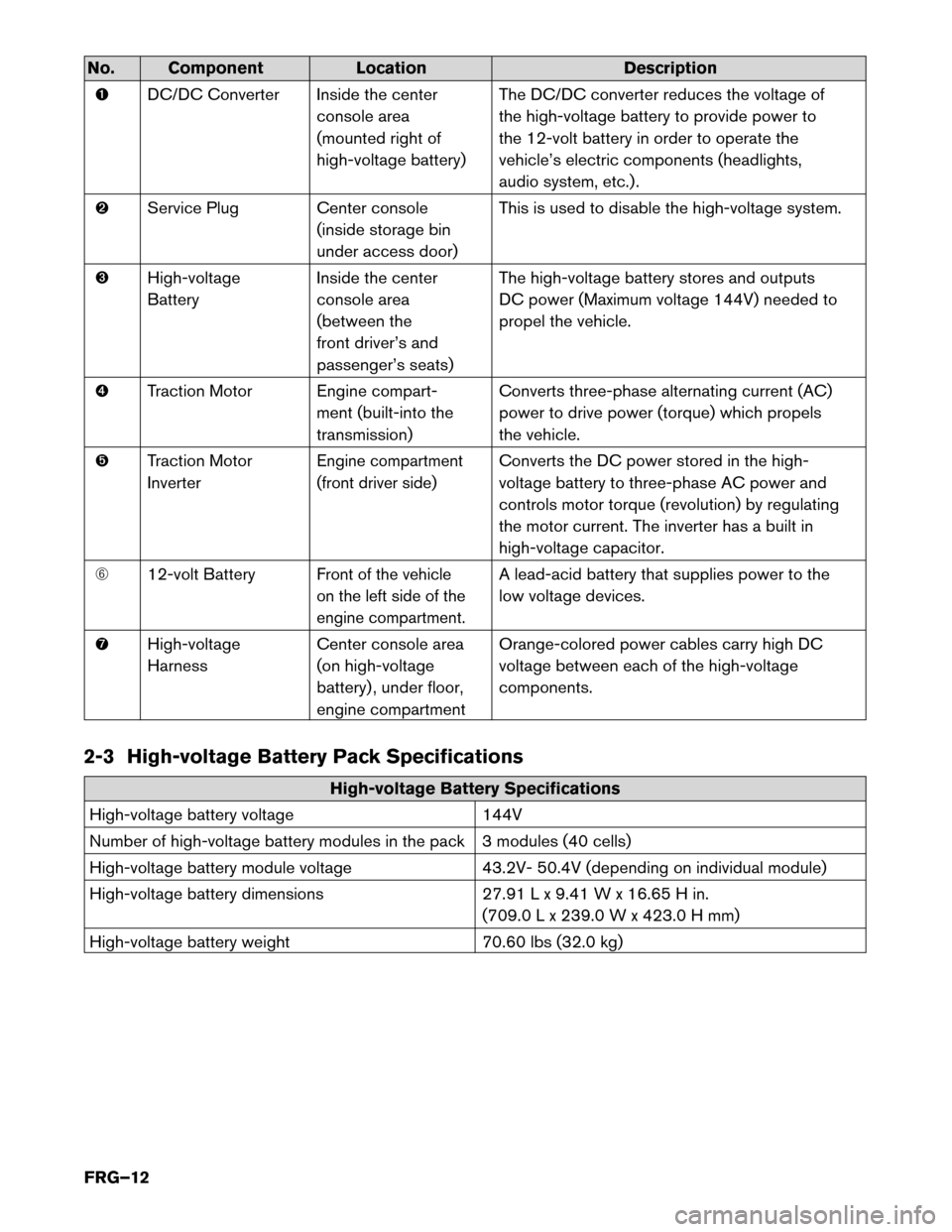

No. Component
LocationDescription
DC/DC
Converter Inside the centerconsole area
(mounted right of
high-voltage battery) The DC/DC converter reduces the voltage of
the high-voltage battery to provide power to
the 12-volt battery in order to operate the
vehicle’s electric components (headlights,
audio system, etc.) .
Service Plug Center console
(inside storage bin
under access door) This is used to disable the high-voltage system.
High-voltage
Battery Inside the center
console area
(between the
front driver’s and
passenger’s seats) The high-voltage battery stores and outputs
DC power (Maximum voltage 144V) needed to
propel the vehicle.
Traction Motor Engine compart-
ment (built-into the
transmission) Converts three-phase alternating current (AC)
power to drive power (torque) which propels
the vehicle.
Traction Motor
Inverter
Engine compartment
(front driver side)Converts the DC power stored in the high-
voltage battery to three-phase AC power and
controls motor torque (revolution) by regulating
the motor current. The inverter has a built in
high-voltage capacitor.
12-volt Battery
Front of the vehicle
on the left side of the
engine compartment.A lead-acid battery that supplies power to the
low voltage devices.
High-voltage
Harness Center console area
(on high-voltage
battery) , under floor,
engine compartment Orange-colored power cables carry high DC
voltage between each of the high-voltage
components.
2-3 High-voltage Battery Pack Specifications High-voltage Battery Specifications
High-voltage
battery voltage 144V
Number of high-voltage battery modules in the pack 3 modules (40 cells)
High-voltage battery module voltage 43.2V- 50.4V (depending on individual module)
High-voltage battery dimensions 27.91 L x 9.41 W x 16.65 H in.
(709.0 L x 239.0 W x 423.0 H mm)
High-voltage battery weight 70.60 lbs (32.0 kg)
FRG–12
