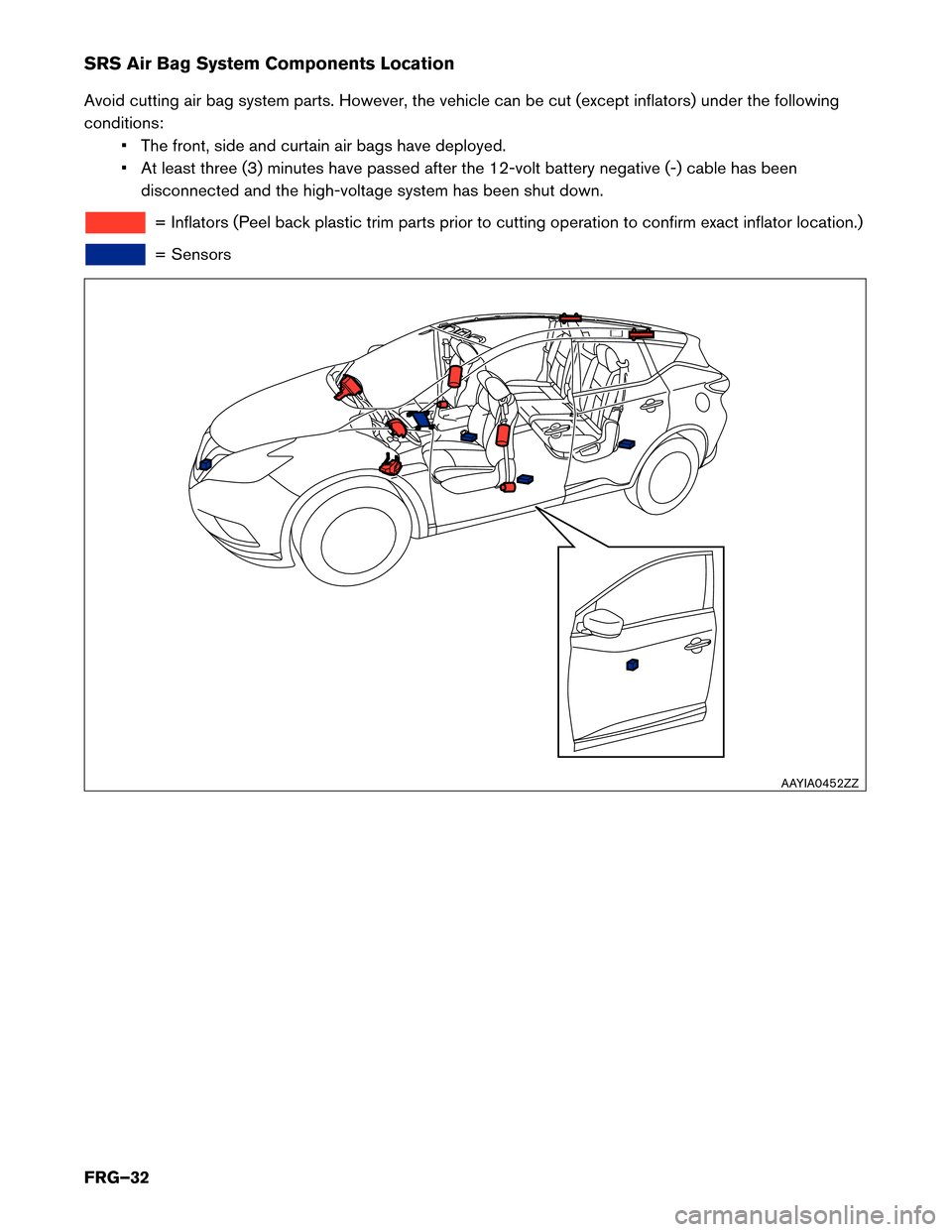

SRS Air Bag System Components Location
Avoid
cutting air bag system parts. However, the vehicle can be cut (except inflators) under the following
conditions: • The front, side and curtain air bags have deployed.
• At least three (3) minutes have passed after the 12-volt battery negative (-) cable has beendisconnected and the high-voltage system has been shut down. = Inflators (Peel back plastic trim parts prior to cutting operation to confirm exact inflator location.)
= Sensors
AAYIA0452ZZ
FRG–32

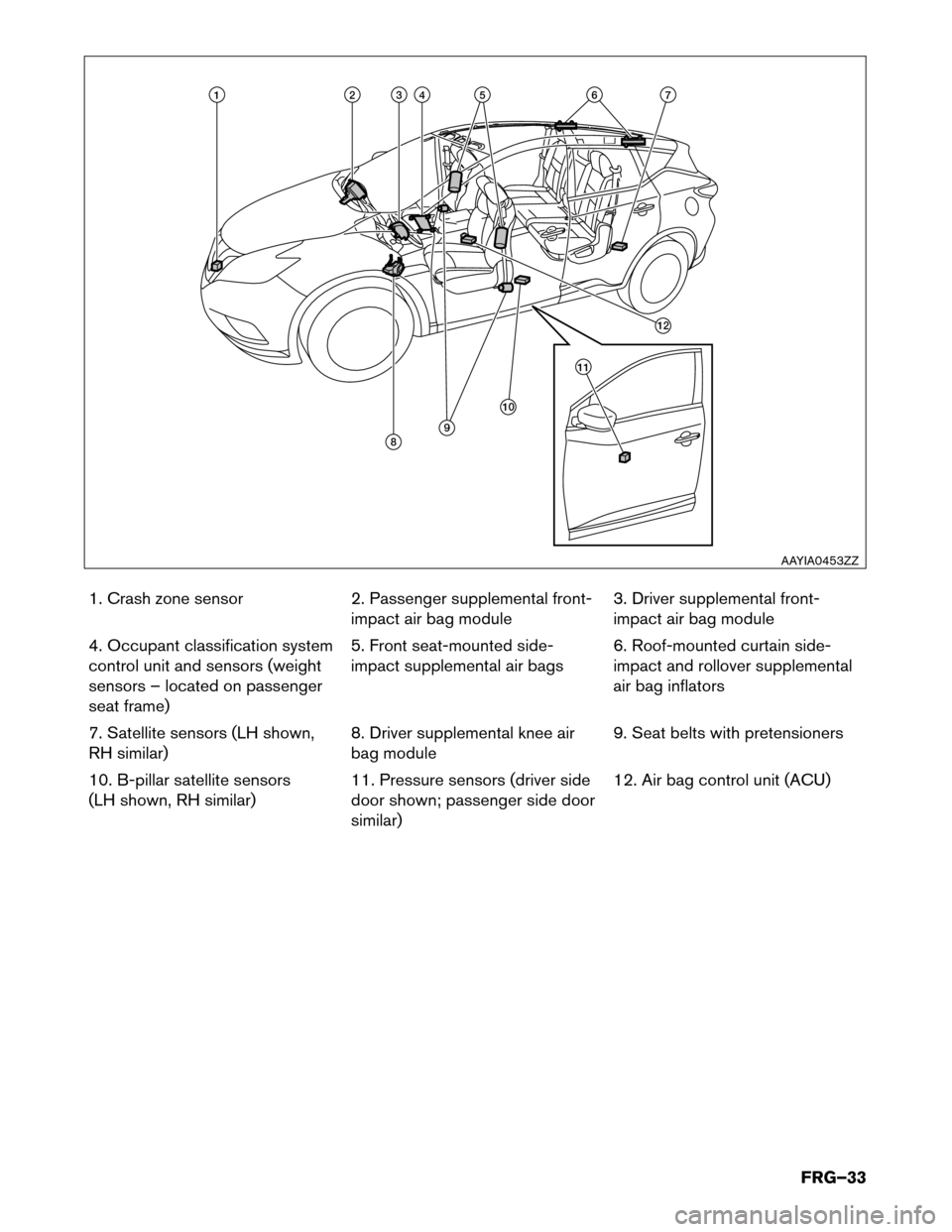

1. Crash zone sensor
2. Passenger supplemental front-
impact air bag module3. Driver supplemental front-
impact air bag module
4. Occupant classification system
control unit and sensors (weight
sensors – located on passenger
seat frame) 5. Front seat-mounted side-
impact supplemental air bags
6. Roof-mounted curtain side-
impact and rollover supplemental
air bag inflators
7. Satellite sensors (LH shown,
RH similar) 8. Driver supplemental knee air
bag module9. Seat belts with pretensioners
10. B-pillar satellite sensors
(LH shown, RH similar) 11. Pressure sensors (driver side
door shown; passenger side door
similar)12. Air bag control unit (ACU)1
8 10 12
92
113 4 75 6
AAYIA0453ZZ
FRG–33
