2016 NISSAN MURANO HYBRID First Responders Guide

Page 17 of 44

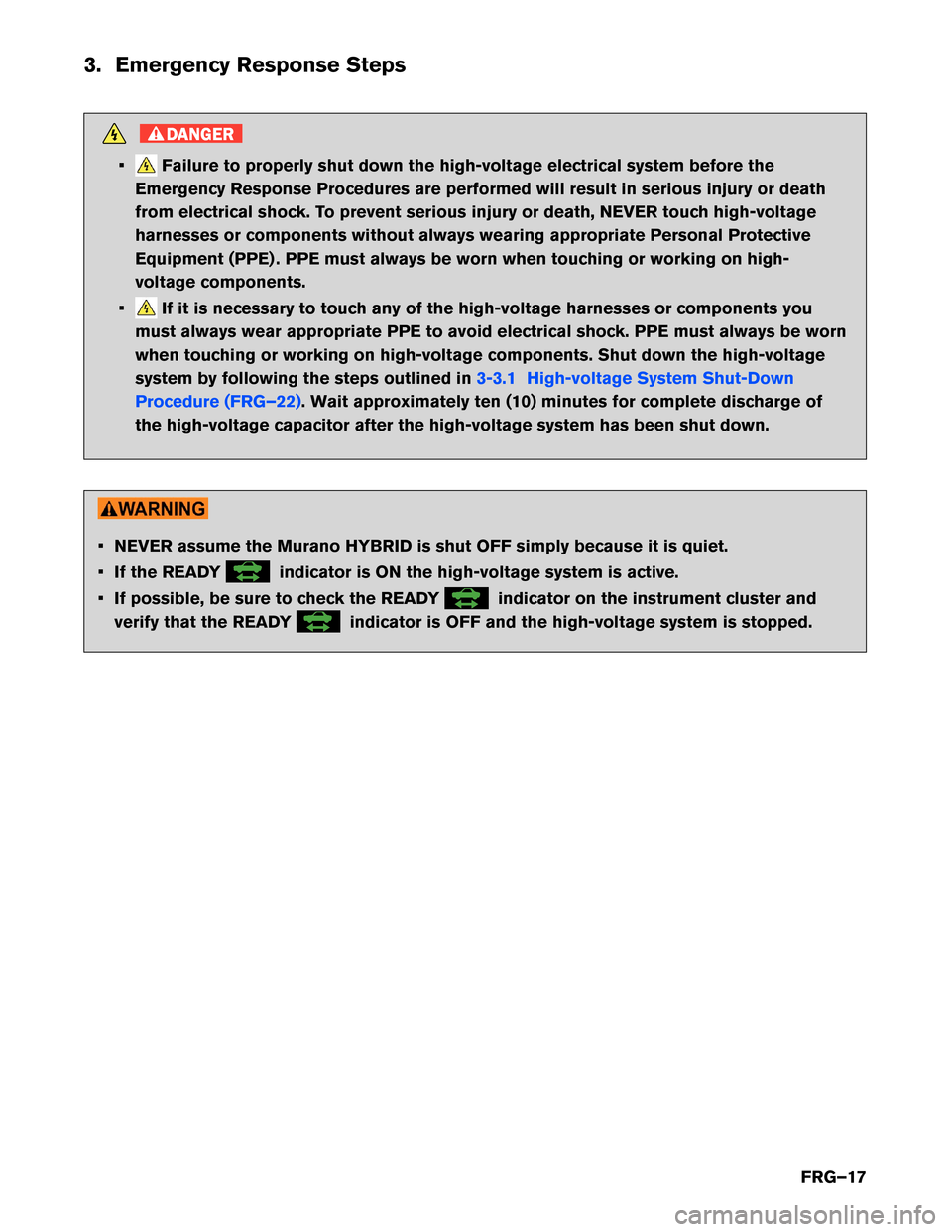

NISSAN MURANO HYBRID 2016 3.G First Responders Guide 3. Emergency Response Steps
DANGER
• Failure to properly shut down the high-voltage electrical system before the
Emergency Response Procedures are performed will result in serious injury or death
fr

Page 18 of 44

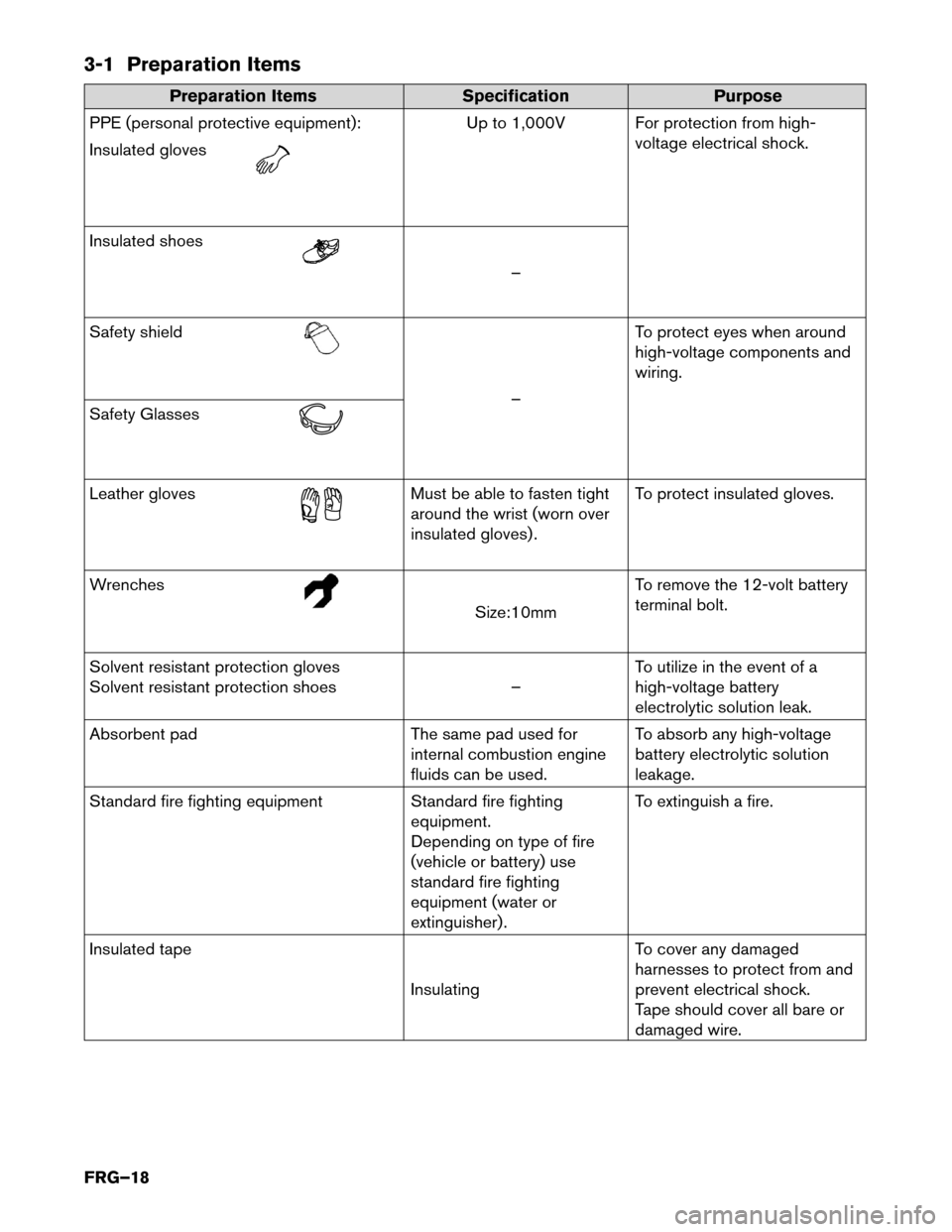

NISSAN MURANO HYBRID 2016 3.G First Responders Guide 3-1 Preparation Items
Preparation Items
SpecificationPurpose
PPE
(personal protective equipment): Up to 1,000V For protection from high-
voltage electrical shock.
Insulated gloves Insulated shoes
–

Page 19 of 44

NISSAN MURANO HYBRID 2016 3.G First Responders Guide 3-1.1 Personal Protective Equipment (PPE) Protective Wear Control
Perform
an inspection of the Personal Protective Equipment (PPE) items before beginning work. Do not use
any damaged PPE items.
3-1.2

Page 20 of 44

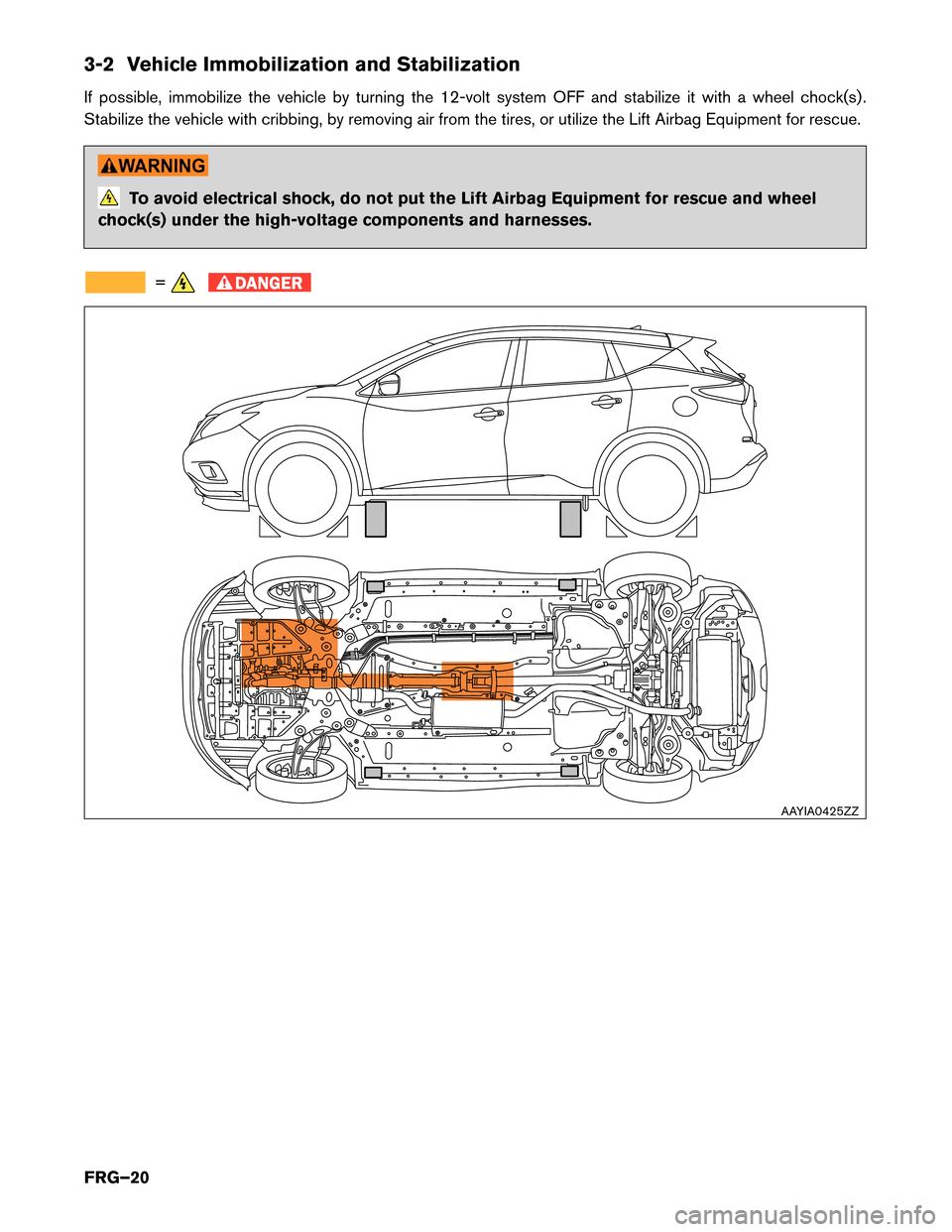

NISSAN MURANO HYBRID 2016 3.G First Responders Guide 3-2 Vehicle Immobilization and StabilizationIf possible, immobilize the vehicle by turning the 12-volt system OFF and stabilize it with a wheel chock(s) .
Stabilize the vehicle with cribbing, by remov

Page 21 of 44

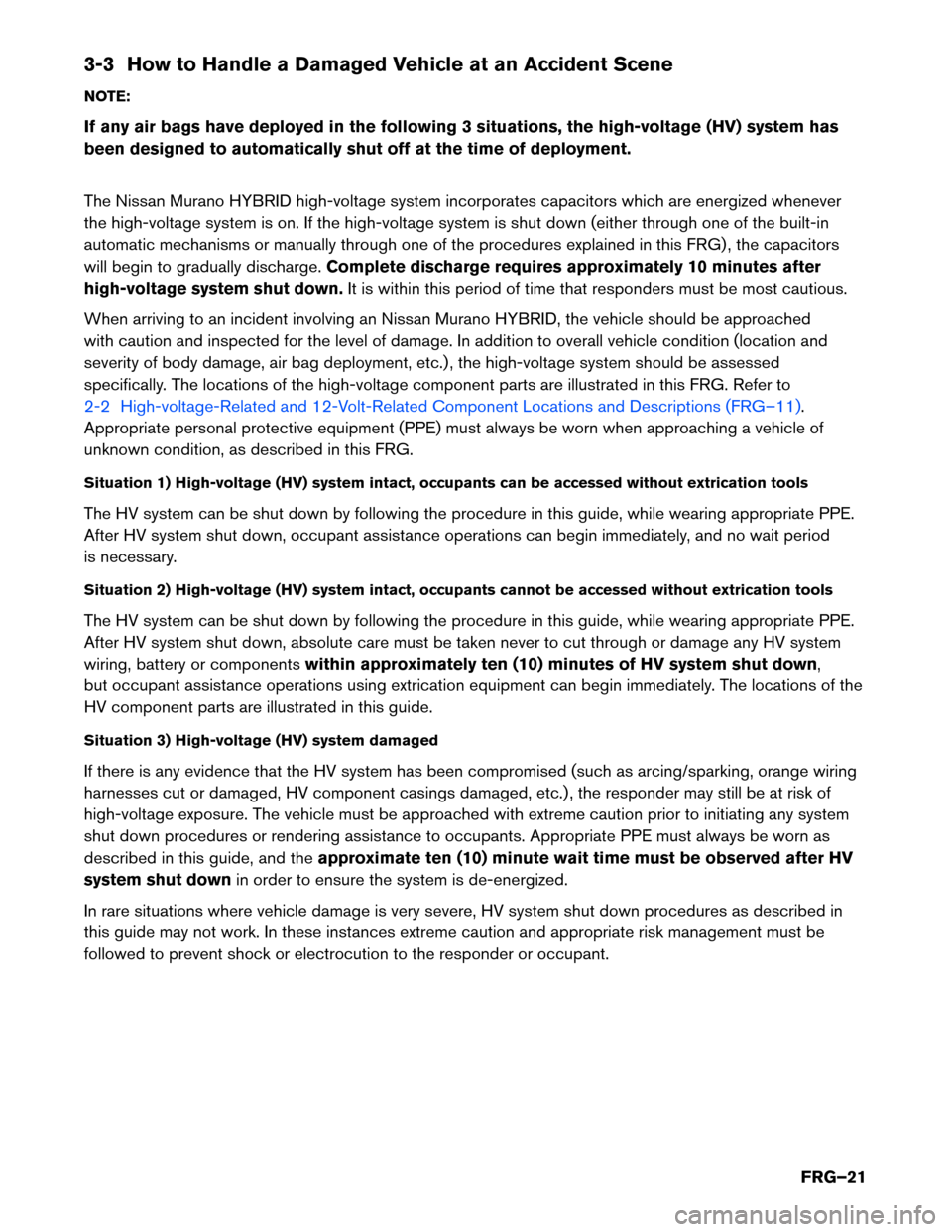

NISSAN MURANO HYBRID 2016 3.G First Responders Guide 3-3 How to Handle a Damaged Vehicle at an Accident Scene
NO
TE:
If any air bags have deployed in the following 3 situations, the high-voltage (HV) system has
been designed to automatically shut off at

Page 22 of 44

NISSAN MURANO HYBRID 2016 3.G First Responders Guide 3-3.1 High-voltage System Shut-Down Procedure
Any
of the following procedures can shut down the high-voltage system. The first response operation can
only begin after shutting down the high-voltage sy

Page 23 of 44

NISSAN MURANO HYBRID 2016 3.G First Responders Guide Powering Down the High-voltage System
The
high-voltage system can be shut down with any 1 of the following procedures:• Turn OFF the ignition switch and disconnect the 12-volt battery. Refer to Prim

Page 24 of 44

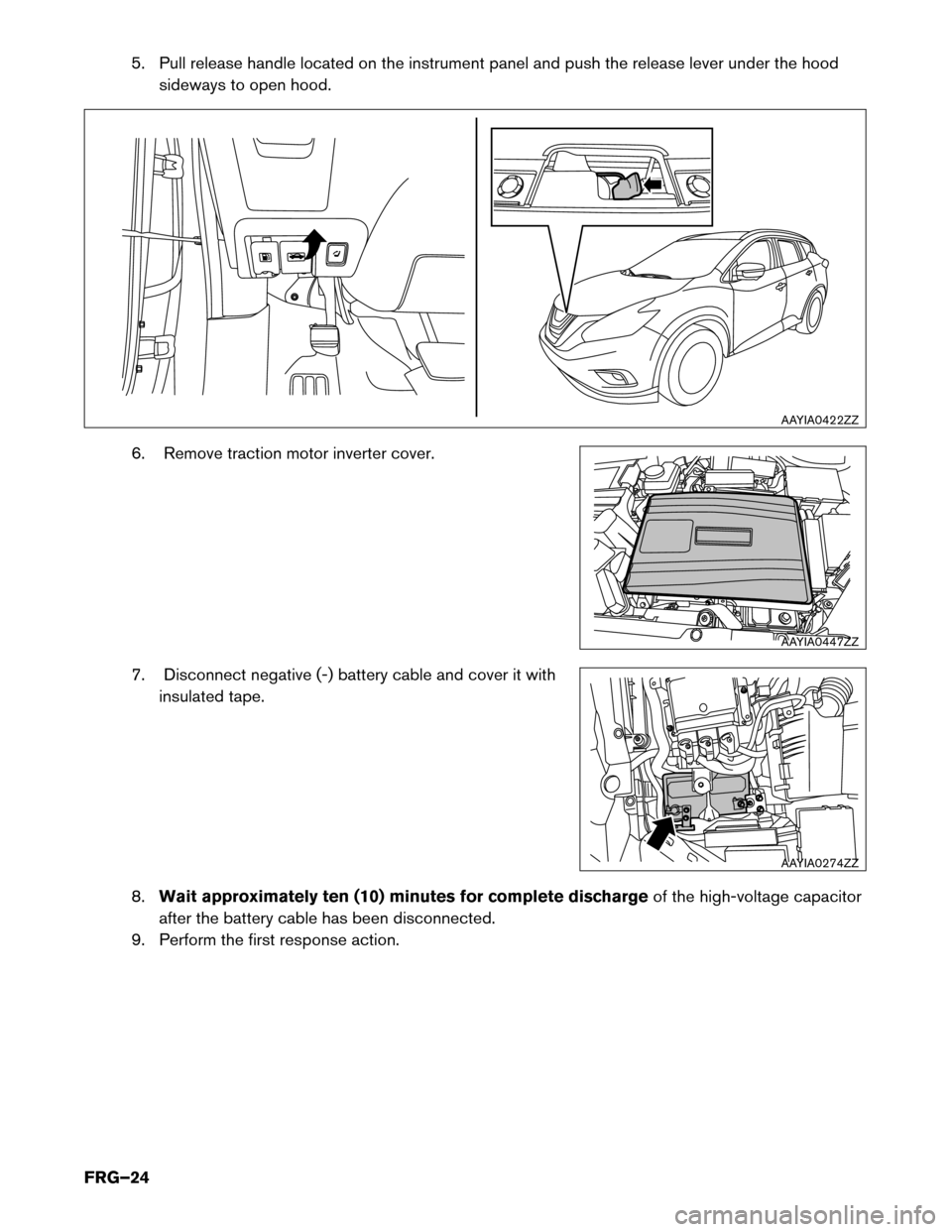

NISSAN MURANO HYBRID 2016 3.G First Responders Guide 5. Pull release handle located on the instrument panel and push the release lever under the hood
sideways to open hood.
6. Remove traction motor inverter cover.
7. Disconnect negative (-) battery cabl
