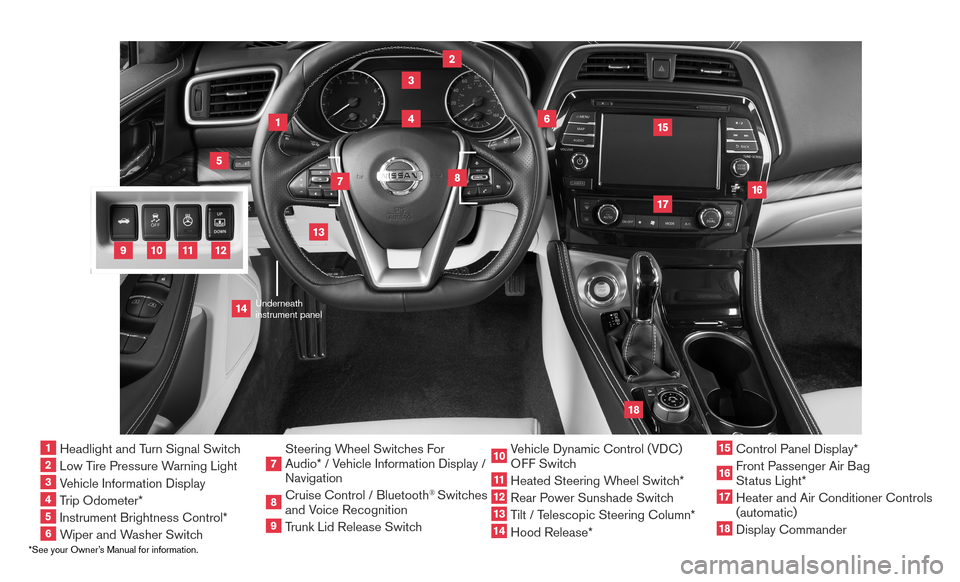

2016 NISSAN MAXIMA steering wheel

*See your Owner’s Manual for information.
1 Headlight and Turn Signal Switch2 Low Tire Pressure Warning Light3 Vehicle Information Display4 Trip Odometer*5 Instrument Brightness Control* 6 Wiper and Washer Switch
7 Steering Wheel Switches For

Audio* / Vehicle Information Display / Navigation8 Cruise Control / Bluetooth
® Switches

and Voice Recognition9 Trunk Lid Release Switch
10 Vehicle Dynamic Control (VDC)

OFF Switch
11 Heated Steering Wheel Switch*12 Rear Power Sunshade Switch13 Tilt / Telescopic Steering Column*14 Hood Release*
15 Control Panel Display*16 Front Passenger Air Bag

Status Light*
17 Heater and Air Conditioner Controls (automatic)
18 Display Commander
2
3
5
4
1
6
10
11
9
12
13
14
15
16
17
7
8
Underneath

instrument panel
18

Please see your Owner’s Manual for important safety information and system operation limitations.• A cellular telephone should not be used for any purpose while driving so full attention may be given to vehicle operation.• Always wear your seat belt.• Supplemental air bags do not replace proper seat belt usage. • Children 12 and under should always ride in the rear seat properly secur\
ed in child restraints or seat belts according to their age and weight. • Do not drink and drive.For more information, refer to the “Safety — Seats, seat belts and supplemental restraint system (sectio\
n 1)”, the “Monitor, climate, audio, phone and voice recognition systems (section 4)” and the “Starting and driving (section 5)” of your Owner’s Manual.
Additional information about your vehicle is also available in your Owne\
r’s Manual, Navigation System Owner’s Manual and at www.NissanUSA.com.

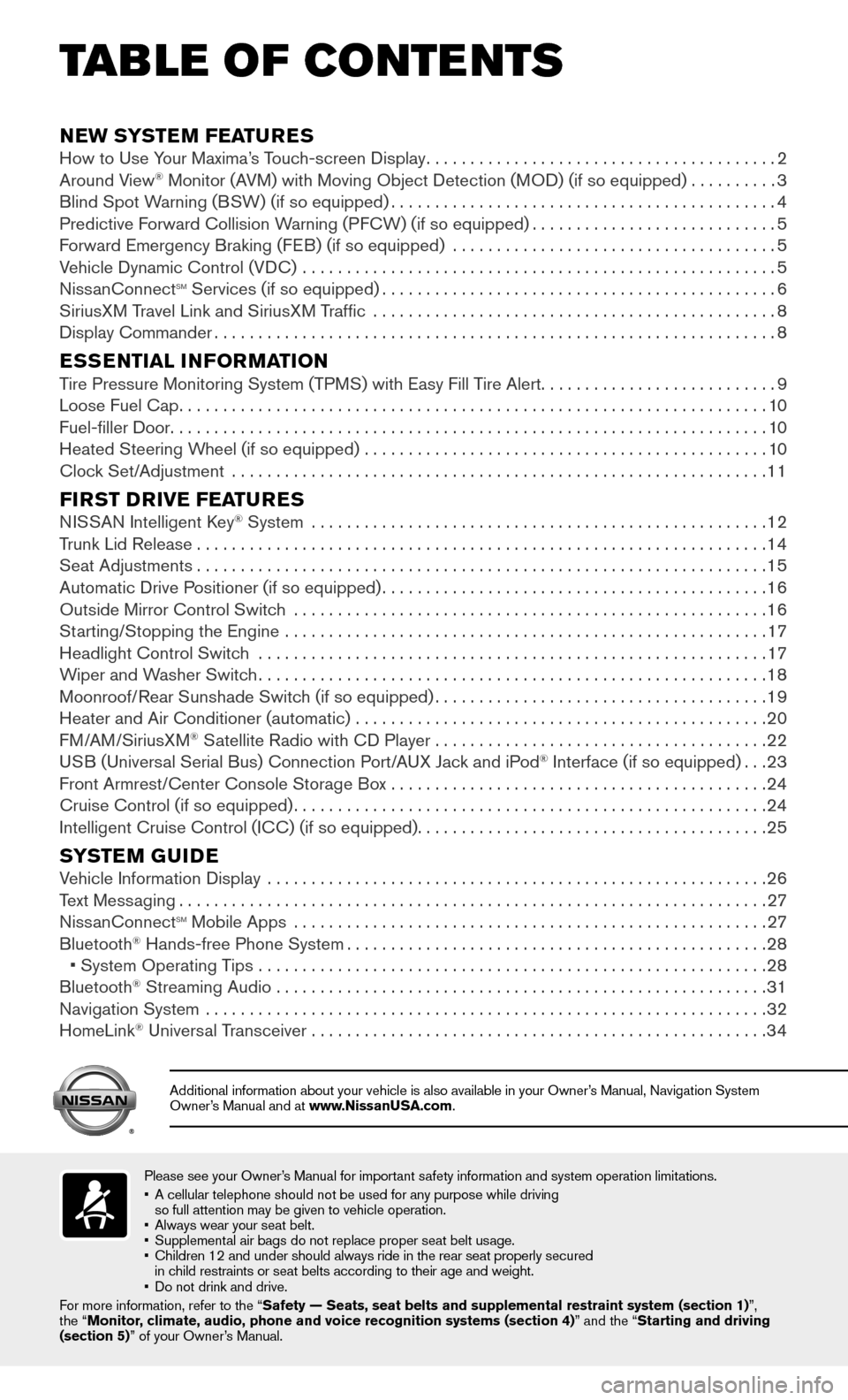

NEW SYSTEM FEATURESHow to Use Your Maxima’s Touch-screen Display........................................2Around View® Monitor (AVM) with Moving Object Detection (MOD) (if so equipped)..........3Blind Spot Warning (BSW) (if so equipped)............................................4Predictive Forward Collision Warning (PFCW) (if so equipped)............................5Forward Emergency Braking (FEB) (if so equipped) .....................................5Vehicle Dynamic Control (VDC) ......................................................5NissanConnectsm services (if so equipped).............................................6siriusXm Travel Link and siriusXm Trafc ..............................................8Display Commander................................................................8
ESSENTIAL INFORMATIONTire Pressure Monitoring System (TPMS) with Easy Fill Tire Alert...........................9Loose Fuel Cap...................................................................10Fuel-filler Door....................................................................10Heated Steering Wheel (if so equipped) ..............................................10Clock Set/Adjustment .............................................................11
FIRST DRIVE FEATURESNISSAN Intelligent Key® System ....................................................12Trunk Lid Release.................................................................14Seat Adjustments.................................................................15Automatic Drive Positioner (if so equipped)............................................16Outside Mirror Control Switch ......................................................16Starting/Stopping the Engine .......................................................17Headlight Control Switch ..........................................................17Wiper and Washer Switch..........................................................18Moonroof/Rear Sunshade Switch (if so equipped)......................................19Heater and Air Conditioner (automatic) ...............................................20FM/AM/SiriusXM® Satellite Radio with CD Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .22USB (Universal Serial Bus) Connection Port/AUX Jack and iPod® Interface (if so equipped)...23Front Armrest/Center Console Storage Box ...........................................24Cruise Control (if so equipped)......................................................24Intelligent Cruise Control (ICC) (if so equipped)........................................25
SYSTEM GUIDEVehicle Information Display .........................................................26Text Messaging...................................................................27NissanConnectsm mobile Apps ......................................................27Bluetooth

10

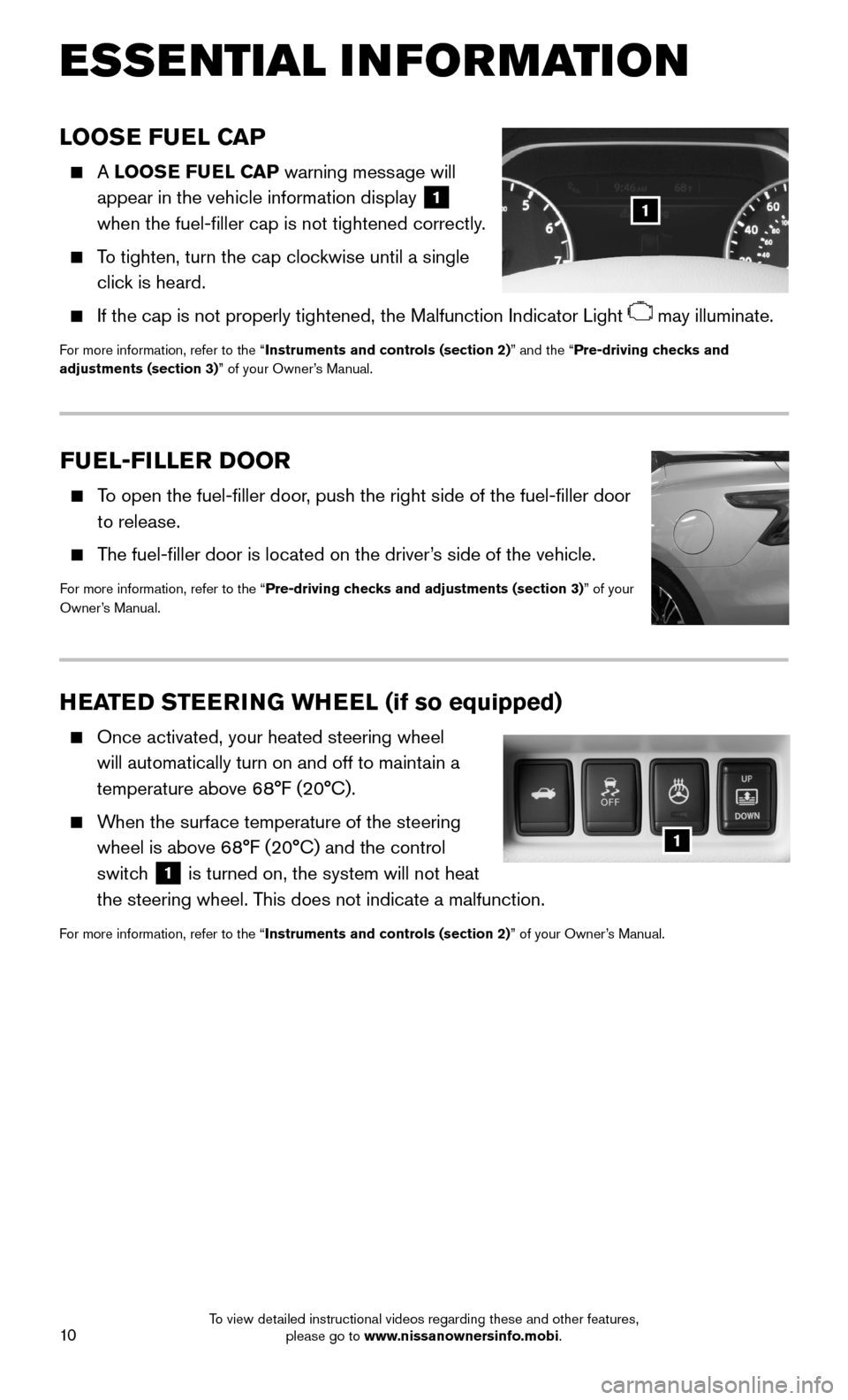

ESSE NTIAL I N FOR MATION
FUEL-FILLER DOOR
To open the fuel-filler door, push the right side of the fuel-filler door
to release.
The fuel-filler door is located on the driver’s side of the vehicle.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
HEATED STEERING WHEEL (if so equipped)
Once activated, your heated steering wheel
will automatically turn on and off to maintain a
temperature above 68°F (20°C).
When the surface temperature of the steering
wheel is above 68°F (20°C) and the control
switch 1 is turned on, the system will not heat
the steering wheel. This does not indicate a malfunction.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
LOOSE FUEL CAP
A LOOSE FUEL CAP warning message will
appear in the vehicle information display 1
when the fuel-filler cap is not tightened correctly.
To tighten, turn the cap clockwise until a single
click is heard.
If the cap is not properly tightened, the Malfunction Indicator Light may illuminate.
For more information, refer to the “Instruments and controls (section 2)” and the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
1
1
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

14
3

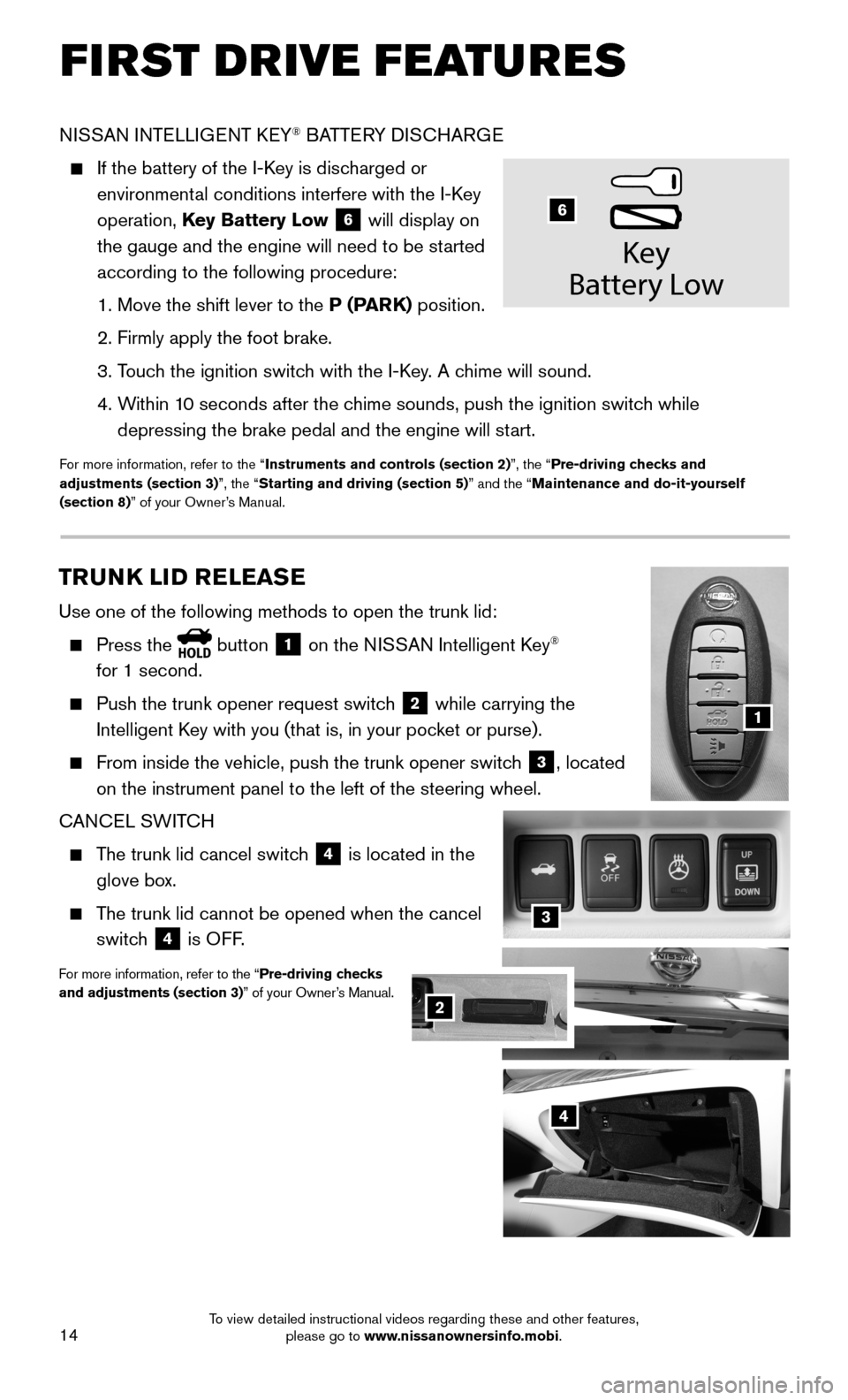

NISSAN INTELLIGENT KEY® BATTERY DISCHARGE
If the battery of the I-Key is discharged or
environmental conditions interfere with the I-Key
operation, Key Battery Low 6 will display on
the gauge and the engine will need to be started
according to the following procedure:
1. Move the shift lever to the P (PARK) position.
2. Firmly apply the foot brake.
3. Touch the ignition switch with the I-Key. A chime will sound.
4. Within 10 seconds after the chime sounds, push the ignition switch while
depressing the brake pedal and the engine will start.
For more information, refer to the “Instruments and controls (section 2)”, the “Pre-driving checks and adjustments (section 3)”, the “Starting and driving (section 5)” and the “Maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
Key
Batter y Low
6
TRUNK LID RELEASE
Use one of the following methods to open the trunk lid:
Press the button 1 on the NISSAN Intelligent Key®
for 1 second.
Push the trunk opener request switch 2 while carrying the
Intelligent Key with you (that is, in your pocket or purse).
From inside the vehicle, push the trunk opener switch 3, located
on the instrument panel to the left of the steering wheel.
CANCEL SWITCH
The trunk lid cancel switch 4 is located in the
glove box.
The trunk lid cannot be opened when the cancel
switch 4 is OFF.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
1
2
4
2
FIRST DRIVE FEATURES
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

19

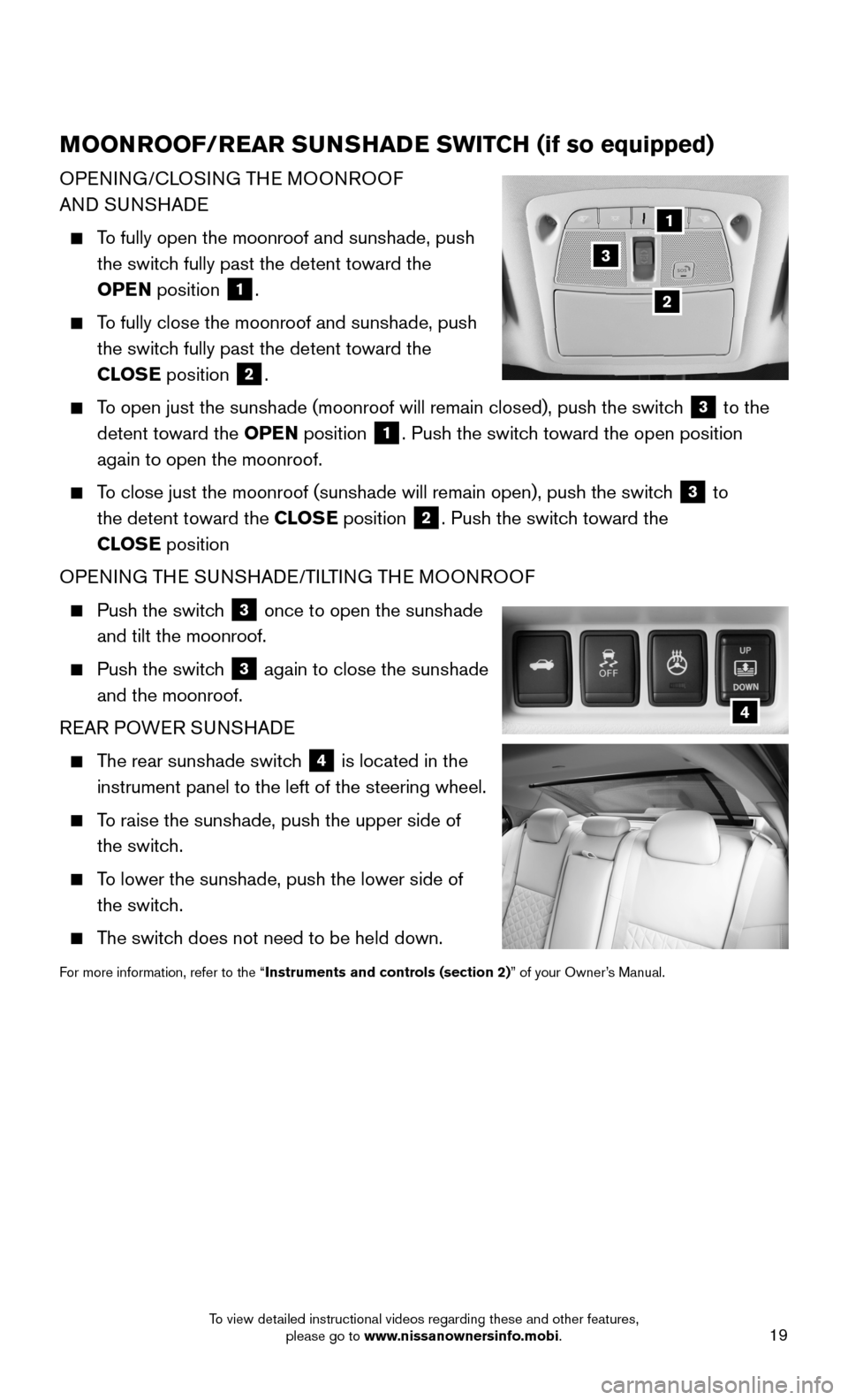

MOONROOF/REAR SUNSHADE SWITCH (if so equipped)
OPENING/CLOSING THE MOONROOF
AND SUNSHADE
To fully open the moonroof and sunshade, push
the switch fully past the detent toward the
OPEN position 1.
To fully close the moonroof and sunshade, push
the switch fully past the detent toward the
CLOSE position 2.
To open just the sunshade (moonroof will remain closed), push the switc\
h 3 to the
detent toward the OPEN position 1. Push the switch toward the open position
again to open the moonroof.
To close just the moonroof (sunshade will remain open), push the switch 3 to
the detent toward the CLOSE position 2. Push the switch toward the
CLOSE position
OPENING THE SUNSHADE/TILTING THE MOONROOF
Push the switch 3 once to open the sunshade
and tilt the moonroof.
Push the switch 3 again to close the sunshade
and the moonroof.
REAR POWER SUNSHADE
The rear sunshade switch 4 is located in the
instrument panel to the left of the steering wheel.
To raise the sunshade, push the upper side of
the switch.
To lower the sunshade, push the lower side of
the switch.
The switch does not need to be held down.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
4
1
2
3
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

26

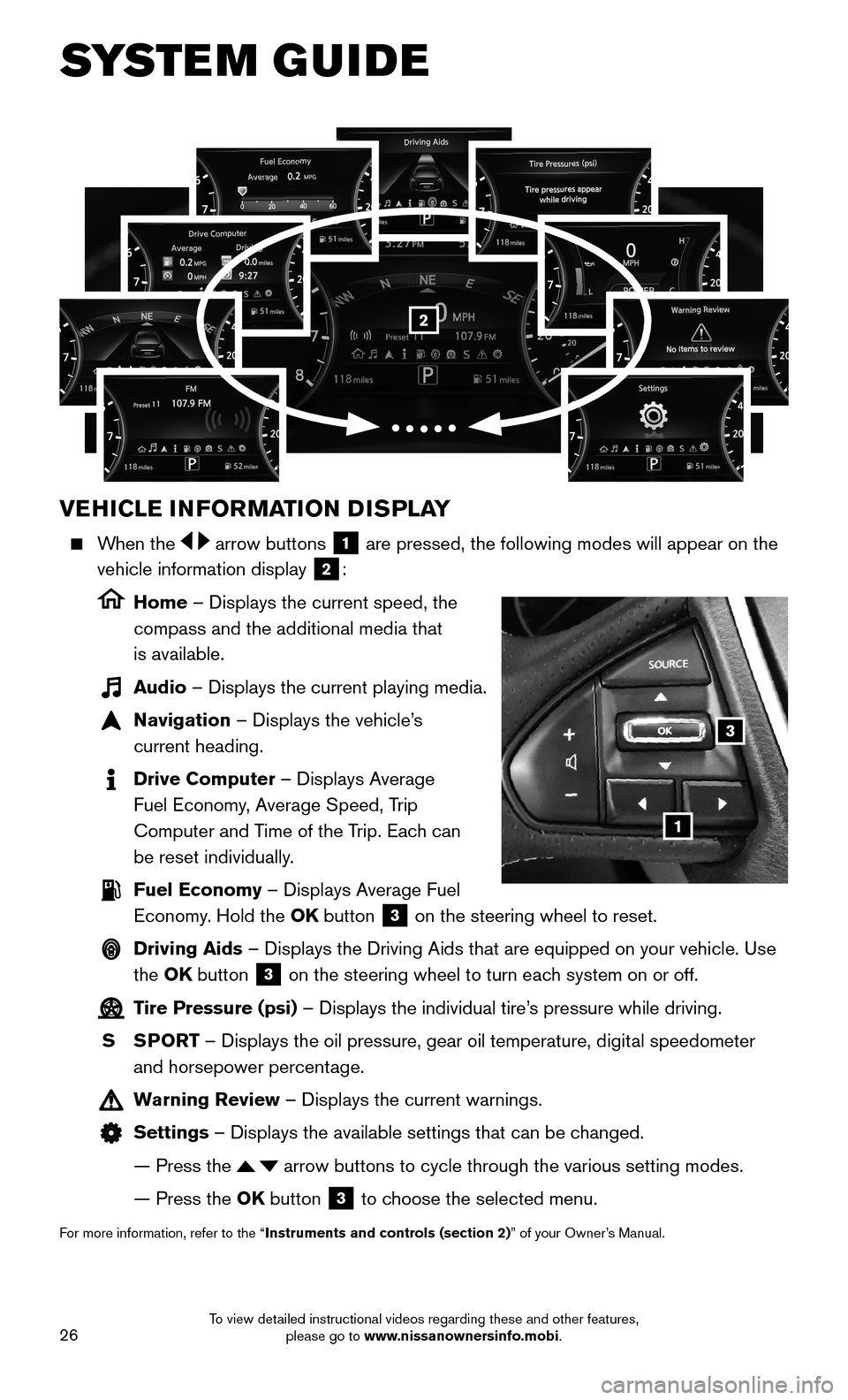

VEHICLE INFORMATION DISPLAY
When the arrow buttons 1 are pressed, the following modes will appear on the
vehicle information display 2:
Home – Displays the current speed, the
compass and the additional media that
is available.
Audio – Displays the current playing media.
Navigation – Displays the vehicle’s
current heading.
Drive Computer – Displays Average
Fuel Economy, Average Speed, Trip
Computer and Time of the Trip. Each can
be reset individually.
Fuel Economy – Displays Average Fuel
Economy. Hold the OK button 3 on the steering wheel to reset.
Driving Aids – Displays the Driving Aids that are equipped on your vehicle. Use
the OK button 3 on the steering wheel to turn each system on or off.
Tire Pressure (psi) – Displays the individual tire’s pressure while driving.
S SPORT – Displays the oil pressure, gear oil temperature, digital speedometer
and horsepower percentage.
Warning Review – Displays the current warnings.
Settings – Displays the available settings that can be changed.
— Press the arrow buttons to cycle through the various setting modes.
— Press the OK button 3 to choose the selected menu.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
3
1
2
SYSTEM GUIDE
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

27

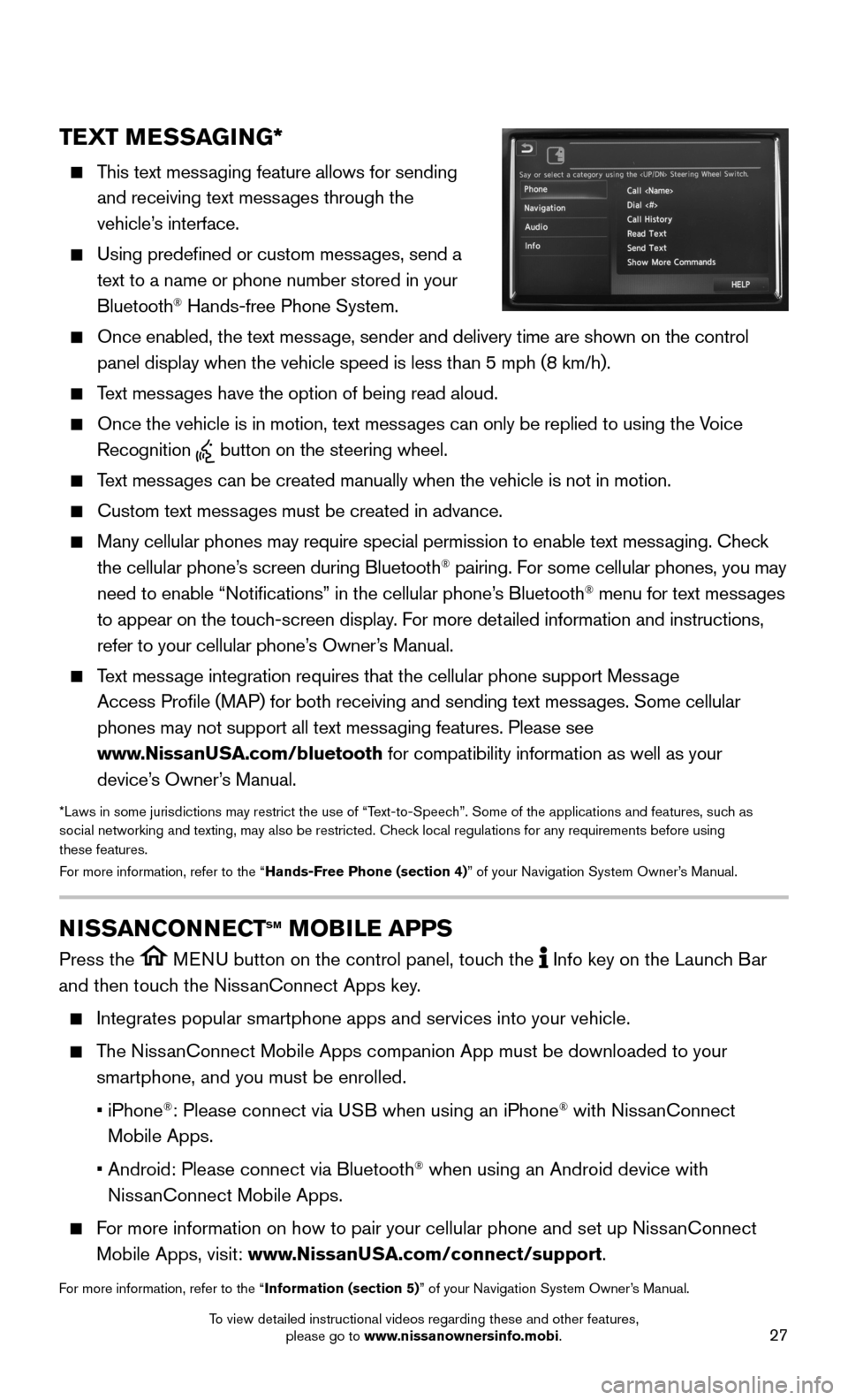

TEXT MESSAGING*
This text messaging feature allows for sending
and receiving text messages through the
vehicle’s interface.
Using predefined or custom messages, send a
text to a name or phone number stored in your
Bluetooth® Hands-free Phone System.
Once enabled, the text message, sender and delivery time are shown on the control
panel display when the vehicle speed is less than 5 mph (8 km/h).
Text messages have the option of being read aloud.
Once the vehicle is in motion, text messages can only be replied to using the Voice
Recognition button on the steering wheel.
Text messages can be created manually when the vehicle is not in motion.
Custom text messages must be created in advance.
Many cellular phones may require special permission to enable text messaging. Check
the cellular phone’s screen during Bluetooth® pairing. For some cellular phones, you may
need to enable “Notifications” in the cellular phone’s Bluetooth® menu for text messages
to appear on the touch-screen display. For more detailed information and instructions,
refer to your cellular phone’s Owner’s Manual.
Text message integration requires that the cellular phone support Message
Access Profile (MAP) for both receiving and sending text messages. Some cellular
phones may not support all text messaging features. Please see
www.NissanUSA.com/bluetooth for compatibility information as well as your
device’s Owner’s Manual.
*Laws in some jurisdictions may restrict the use of “Text-to-Speech”. Some of the applications and features, such as social networking and texting, may also be restricted. Check local regulations for any requirements before using these features. For more information, refer to the “Hands-Free Phone (section 4)” of your Navigation System Owner’s Manual.
NISSANCONNECTsm mOBILE APPs
Press the MENU button on the control panel, touch the Info key on the Launch Bar
and then touch the NissanConnect Apps key.
Integrates popular smartphone apps and services into your vehicle.
The NissanConnect Mobile Apps companion App must be downloaded to your
smartphone, and you must be enrolled.
• iPhone®: Please connect via USB when using an iPhone® with NissanConnect
Mobile Apps.
• Android: Please connect via Bluetooth® when using an Android device with
NissanConnect Mobile Apps.
For more information on how to pair your cellular phone and set up NissanConnect
Mobile Apps, visit: www.NissanUSA.com/connect/support.
For more information, refer to the “Information (section 5)” of your Navigation System Owner’s Manual.
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

28

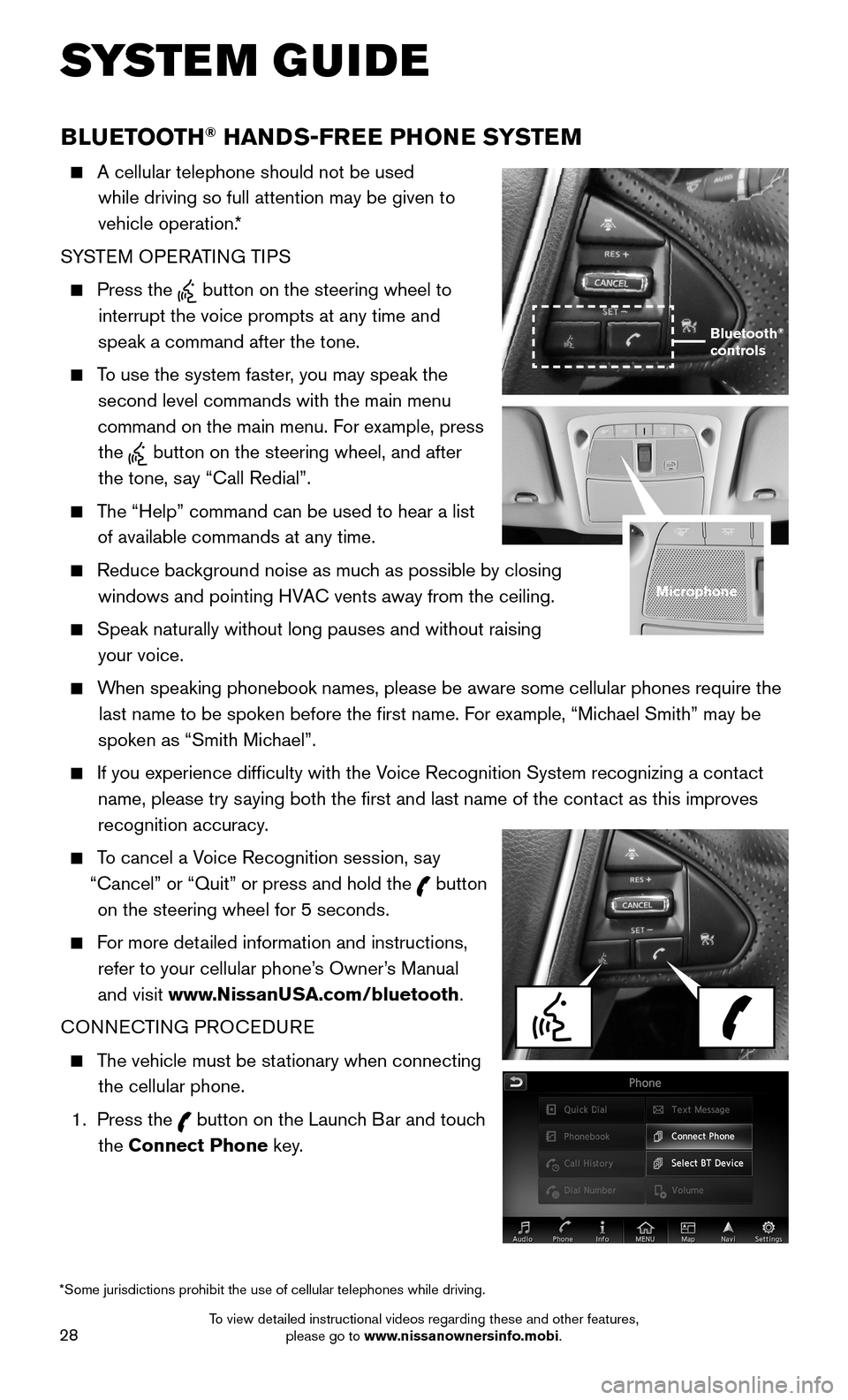

BLUETOOTH® HANDS-FREE PHONE SYSTEM
A cellular telephone should not be used
while driving so full attention may be given to
vehicle operation.*
SYSTEM OPERATING TIPS
Press the button on the steering wheel to
interrupt the voice prompts at any time and
speak a command after the tone.
To use the system faster, you may speak the
second level commands with the main menu
command on the main menu. For example, press
the button on the steering wheel, and after
the tone, say “Call Redial”.
The “Help” command can be used to hear a list
of available commands at any time.
Reduce background noise as much as possible by closing
windows and pointing HVAC vents away from the ceiling.
Speak naturally without long pauses and without raising
your voice.
When speaking phonebook names, please be aware some cellular phones requi\
re the
last name to be spoken before the first name. For example, “Michael Smith” may be
spoken as “Smith Michael”.
If you experience difficulty with the Voice Recognition System recognizing a contact
name, please try saying both the first and last name of the contact as this improves
recognition accuracy.
To cancel a Voice Recognition session, say
“Cancel” or “Quit” or press and hold the button
on the steering wheel for 5 seconds.
For more detailed information and instructions,
refer to your cellular phone’s Owner’s Manual
and visit www.NissanUSA.com/bluetooth.
CONNECTING PROCEDURE
The vehicle must be stationary when connecting
the cellular phone.
1. Press the button on the Launch Bar and touch
the Connect Phone key.
Microphone
*Some jurisdictions prohibit the use of cellular telephones while drivin\
g.
Bluetooth® controls
SYSTEM GUIDE
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
