2016 NISSAN LEAF Service And Maintenance Guide

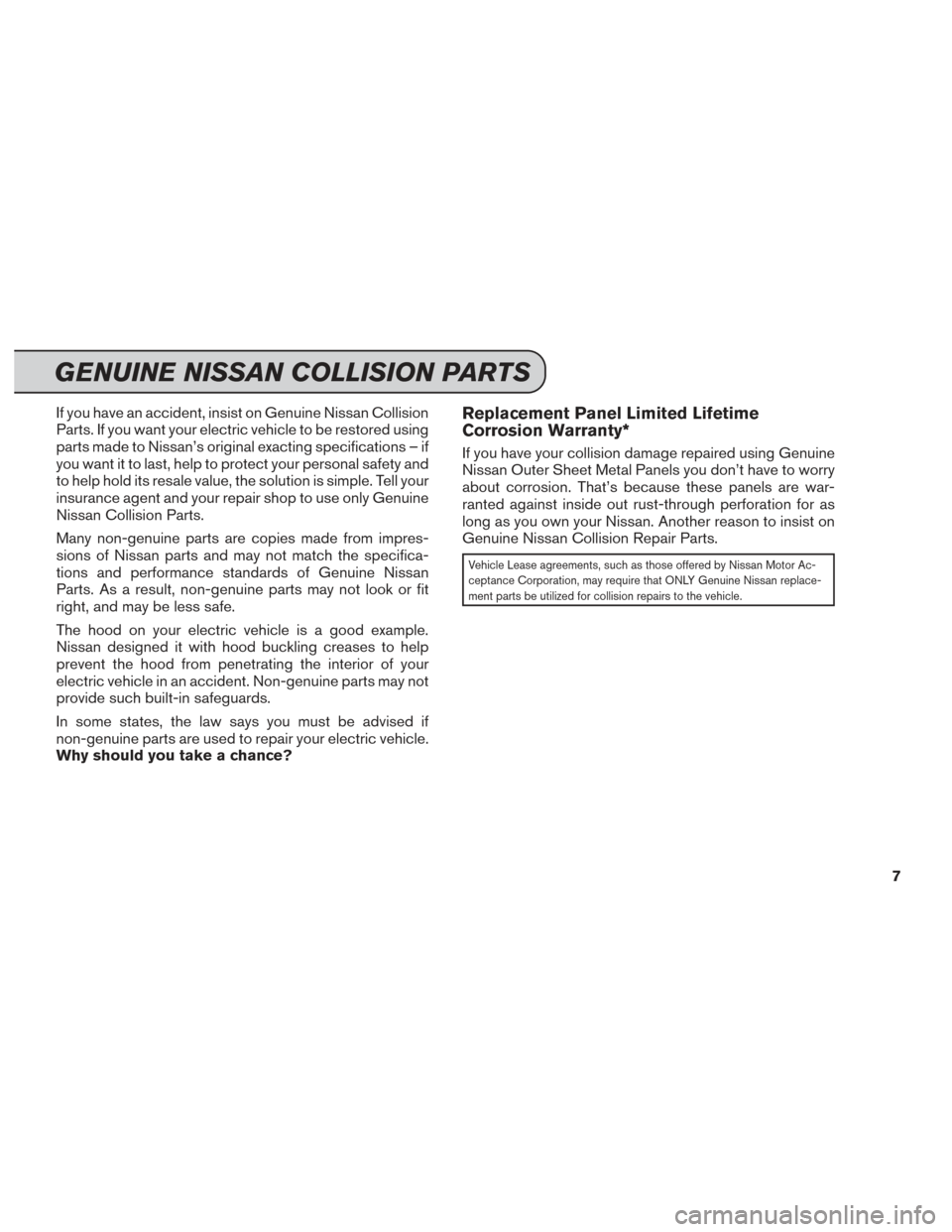

If you have an accident, insist on Genuine Nissan Collision
Parts. If you want your electric vehicle to be restored using
parts made to Nissan’s original exacting specifications – if
you want it to last, help to protect your personal safety and
to help hold its resale value, the solution is simple. Tell your
insurance agent and your repair shop to use only Genuine
Nissan Collision Parts.
Many non-genuine parts are copies made from impres-
sions of Nissan parts and may not match the specifica-
tions and performance standards of Genuine Nissan
Parts. As a result, non-genuine parts may not look or fit
right, and may be less safe.
The hood on your electric vehicle is a good example.
Nissan designed it with hood buckling creases to help
prevent the hood from penetrating the interior of your
electric vehicle in an accident. Non-genuine parts may not
provide such built-in safeguards.
In some states, the law says you must be advised if
non-genuine parts are used to repair your electric vehicle.
Why should you take a chance?Replacement Panel Limited Lifetime
Corrosion Warranty*
If you have your collision damage repaired using Genuine
Nissan Outer Sheet Metal Panels you don’t have to worry
about corrosion. That’s because these panels are war-
ranted against inside out rust-through perforation for as
long as you own your Nissan. Another reason to insist on
Genuine Nissan Collision Repair Parts.
Vehicle Lease agreements, such as those offered by Nissan Motor Ac-
ceptance Corporation, may require that ONLY Genuine Nissan replace-
ment parts be utilized for collision repairs to the vehicle.
GENUINE NISSAN COLLISION PARTS
7

As a condition of your electric vehicle’s warranty, you are responsible for properly maintaining your electric
vehicle. In maintaining your electric vehicle, you should follow either Schedule 1 or Schedule 2 as listed
below. Use these guidelines to determine which maintenance schedule to use.
SCHEDULE 1 (more severe operating conditions)
Use Schedule 1 if you primarily operate your electric vehicle under any
of these conditions:
●Repeated short trips of less than 5 miles in normal temperatures or
less than 10 miles in freezing temperatures
● Stop-and-go traffic in hot weather or low speed driving for long dis-
tances
● Driving in dusty conditions or on rough, muddy, or salt-spread roads
● Using a car-top carrier SCHEDULE 2 (less severe operating conditions)
Schedule 2 features 7,500-mile service intervals; with Schedule 2
fewer maintenance items are regularly checked or replaced than with
Schedule 1.
Generally, Schedule 2 applies only to highway driving in temperate
conditions. Use Schedule 2 only if you primarily operate your electric
vehicle under conditions other than those listed in Schedule 1.
* This warranty does not apply to vehicles or parts not distributed by Nissan North America and/or sold outside the United States.
DETERMINING THE PROPER MAINTENANCE INTERVAL
8

The following descriptions are pro-
vided to give you a better understand-
ing of the scheduled maintenance
items that should be regularly
checked or replaced. The mainte-
nance log indicates at which
mileage/time intervals each item re-
quires service.
In addition to scheduled mainte-
nance, your Nissan requires that
some items be checked during nor-
mal day-to-day operation. You can
find these items listed under “General
Maintenance” in Chapter 8 of your
Owner’s Manual.
Items marked with“*”are recom-
mended by Nissan for reliable electric
vehicle operation. You are not re-
quired to perform maintenance on
these items in order to maintain the
warranties which come with your
Nissan. Other maintenance items and
intervals are required.
When applicable, additional informa-
tion can be found in the “Maintenance and do-it-yourself” section in Chapter
8 of your Owner’s Manual.
NOTE: Nissan North America does
not advocate the use of non-OEM
approved aftermarket flushing sys-
tems and strongly advises against
performing these services on a
Nissan product. Many of the aftermar-
ket flushing systems use non-OEM
approved chemicals or solvents, the
use of which has not been validated
by Nissan North America.
For recommended lubricants, fluids,
grease, and refrigerant, refer to
Chapter 9 in your Owner’s Manual.
EV System
Charging Port*
Check the charging port for any signs
of contamination, dust, sand, etc.
Charging Port Sealing Cap*
Use only compressed air with proper
eye protection to clean any contami-
nation from the sealing cap.
EV Battery Usage Report
To maximize the life of your Li-ion bat-
tery, have the EV Battery Usage Re-
port generated and reviewed with
you. Review of the EV Battery Usage
Report is required as a condition of
EV battery warranty. Refer to your
2016 LEAF warranty information
booklet for details. Both the 12 month
and 24 month inspections will be per-
formed by your Nissan LEAF certified
dealer at no cost to the vehicle owner.
Coolant
Replace coolant at the interval speci-
fied below. When adding or replacing
coolant, be sure to use only Genuine
Nissan Long Life Antifreeze/Coolant
(Blue) or equivalent with the proper
mixture. (Refer to the Owner’s Manual
to determine the proper mixture for
your area.) The recommended ser-
vice interval of the factory-fill coolant
is 125,000 miles (200,000 km) or
15 years, whichever comes first. Sub-
sequent replacement of Genuine
EXPLANATION OF SCHEDULED MAINTENANCE ITEMS
9

Nissan Long Life Antifreeze/Coolant
(Blue) should occur every
75,000 miles (120,000 km) or
5 years whichever comes first.
NOTE: Mixing any other type of cool-
ant or the use of non-distilled water
will reduce the recommended service
interval of the coolant.
Chassis and Body
Maintenance:
Brake Lines and Cables
Visually inspect for proper installa-
tion. Check for chafing, cracks, dete-
rioration, and signs of leaking. Re-
place any deteriorated or damaged
parts immediately.
Brake Pads & Rotors
Check for wear, deterioration and
fluid leaks. Replace any deteriorated
or damaged parts immediately.In-Cabin Microfilter
Replace at specified intervals. When
driving for prolonged periods in dusty
conditions, replace the filter more fre-
quently.
Steering Gear and Linkage, Axle
and Suspension Parts, Drive
Shaft Boots
Check for damage, looseness, and
leakage of oil or grease. Under severe
driving conditions, inspect more fre-
quently.
Tire Rotation
Tires should be rotated every
7,500 miles according to the instruc-
tions in the Owner’s Manual. When
rotating tires, check for damage and
uneven wear. Replace if necessary.
Reduction Gear Oil
Visually inspect for signs of leakage at
specified intervals.Off-Road Maintenance
Check the following items frequently
whenever you drive off-road through
deep sand, mud or water:
●Brake pads and rotors
●Brake lines and hoses
●Reduction gear oil
●Steering linkage
EXPLANATION OF SCHEDULED MAINTENANCE ITEMS
10

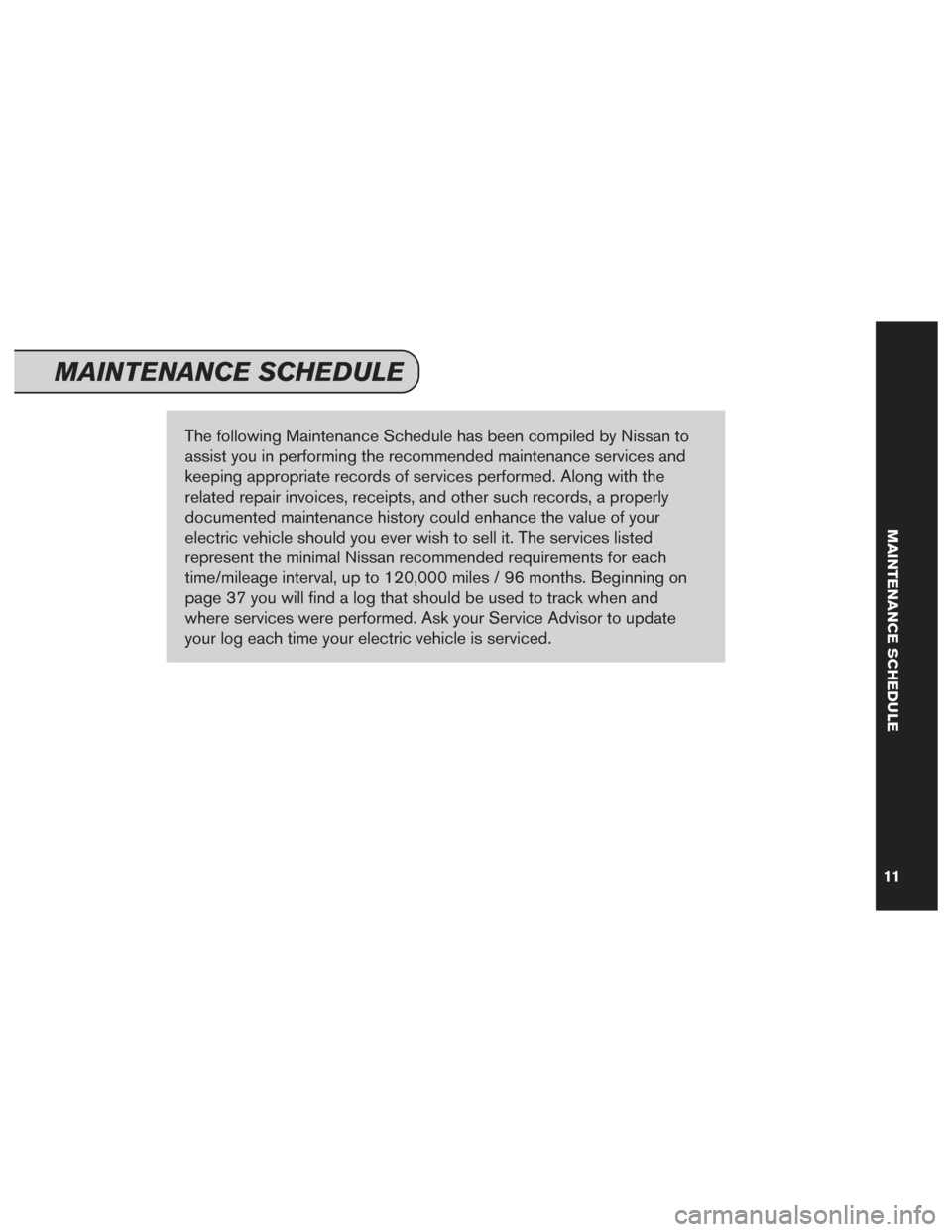

The following Maintenance Schedule has been compiled by Nissan to
assist you in performing the recommended maintenance services and
keeping appropriate records of services performed. Along with the
related repair invoices, receipts, and other such records, a properly
documented maintenance history could enhance the value of your
electric vehicle should you ever wish to sell it. The services listed
represent the minimal Nissan recommended requirements for each
time/mileage interval, up to 120,000 miles / 96 months. Beginning on
page 37 you will find a log that should be used to track when and
where services were performed. Ask your Service Advisor to update
your log each time your electric vehicle is serviced.
MAINTENANCE SCHEDULE
11
MAINTENANCE SCHEDULE

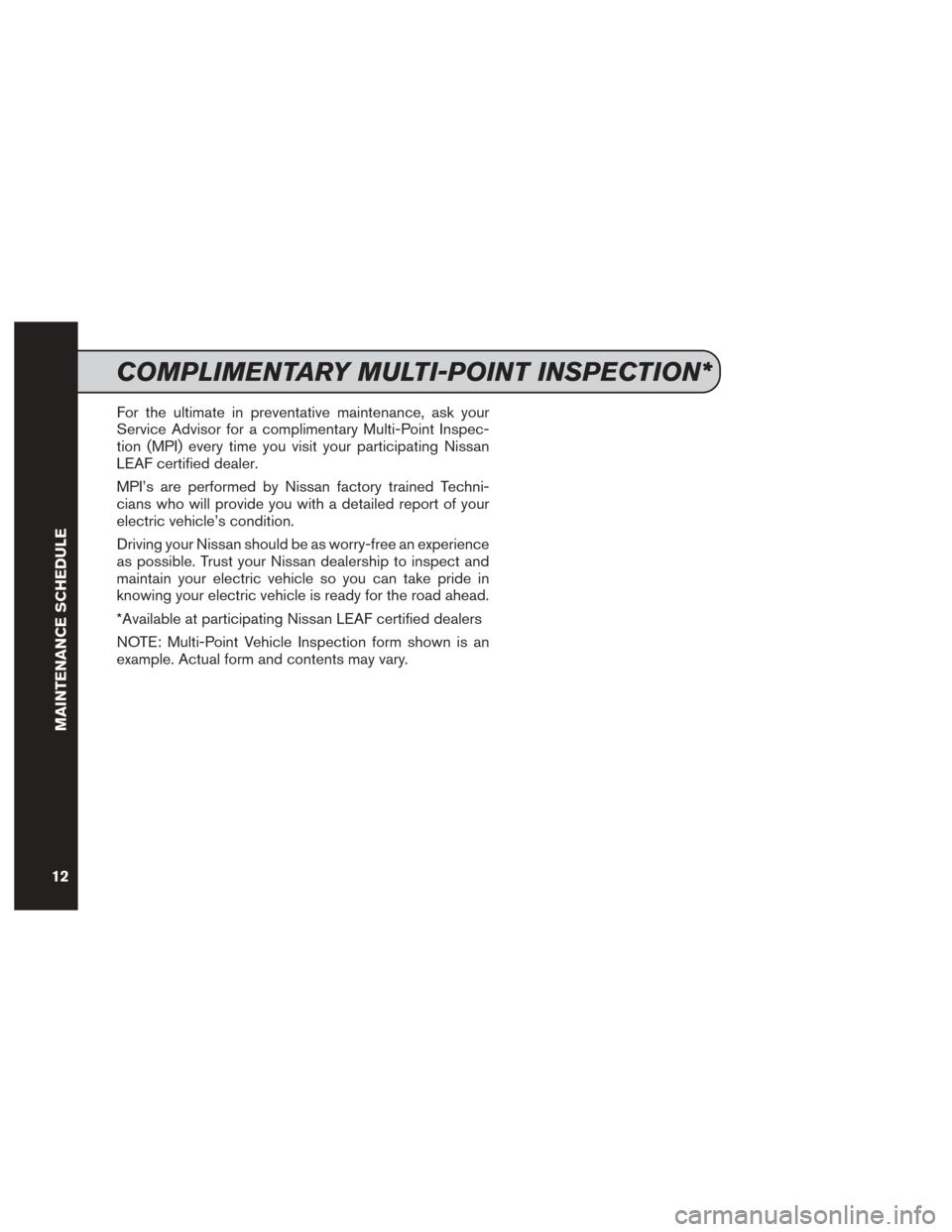

For the ultimate in preventative maintenance, ask your
Service Advisor for a complimentary Multi-Point Inspec-
tion (MPI) every time you visit your participating Nissan
LEAF certified dealer.
MPI’s are performed by Nissan factory trained Techni-
cians who will provide you with a detailed report of your
electric vehicle’s condition.
Driving your Nissan should be as worry-free an experience
as possible. Trust your Nissan dealership to inspect and
maintain your electric vehicle so you can take pride in
knowing your electric vehicle is ready for the road ahead.
*Available at participating Nissan LEAF certified dealers
NOTE: Multi-Point Vehicle Inspection form shown is an
example. Actual form and contents may vary.
COMPLIMENTARY MULTI-POINT INSPECTION*
MAINTENANCE SCHEDULE
12

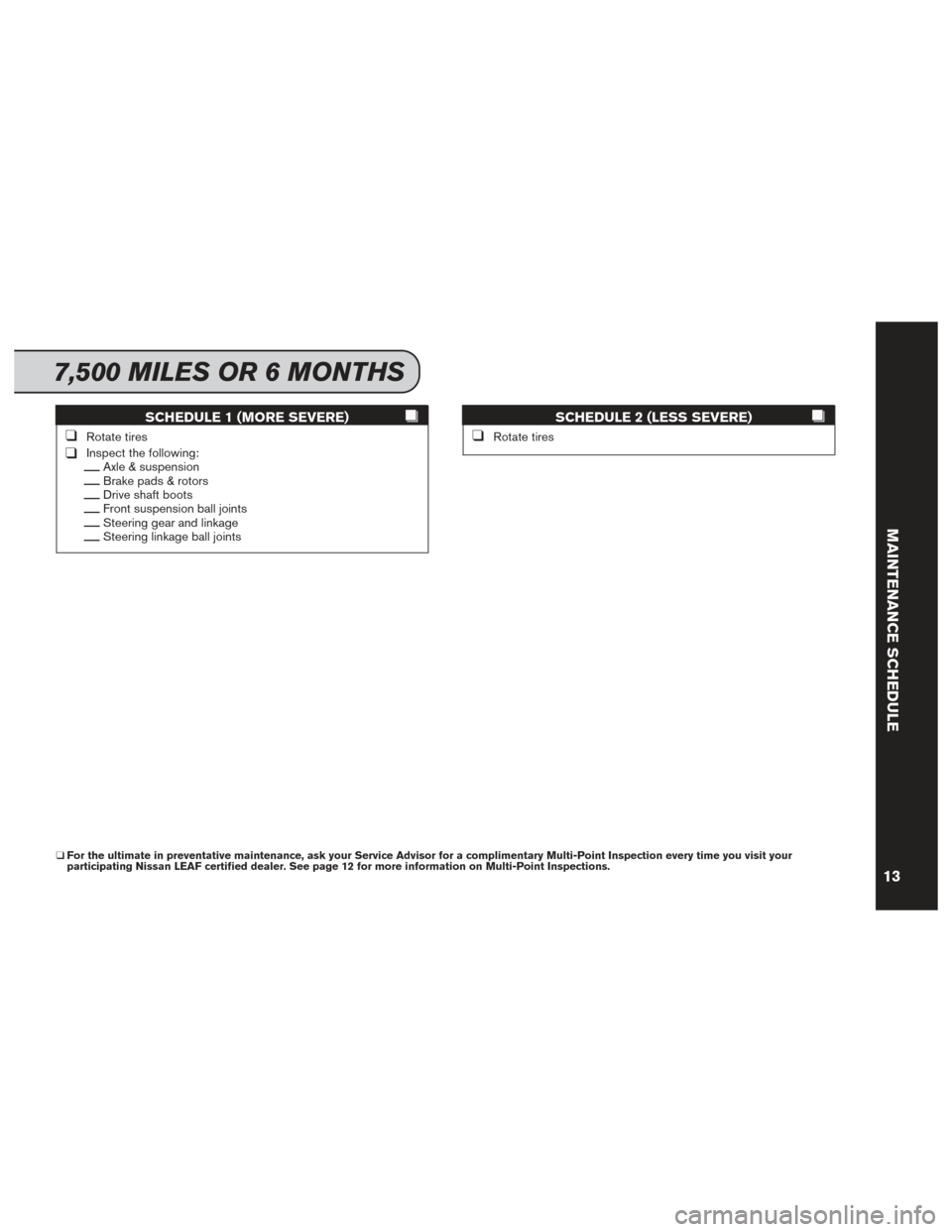

SCHEDULE 1 (MORE SEVERE)
❑Rotate tires
❑Inspect the following:__Axle & suspension__Brake pads & rotors__Drive shaft boots__Front suspension ball joints__Steering gear and linkage__Steering linkage ball joints
SCHEDULE 2 (LESS SEVERE)
❑Rotate tires
❑For the ultimate in preventative maintenance, ask your Service Advisor for a complimentary Multi-Point Inspection every time you visit your
participating Nissan LEAF certified dealer. See page 12 for more information on Multi-Point Inspections.
7,500 MILES OR 6 MONTHS
13
MAINTENANCE SCHEDULE

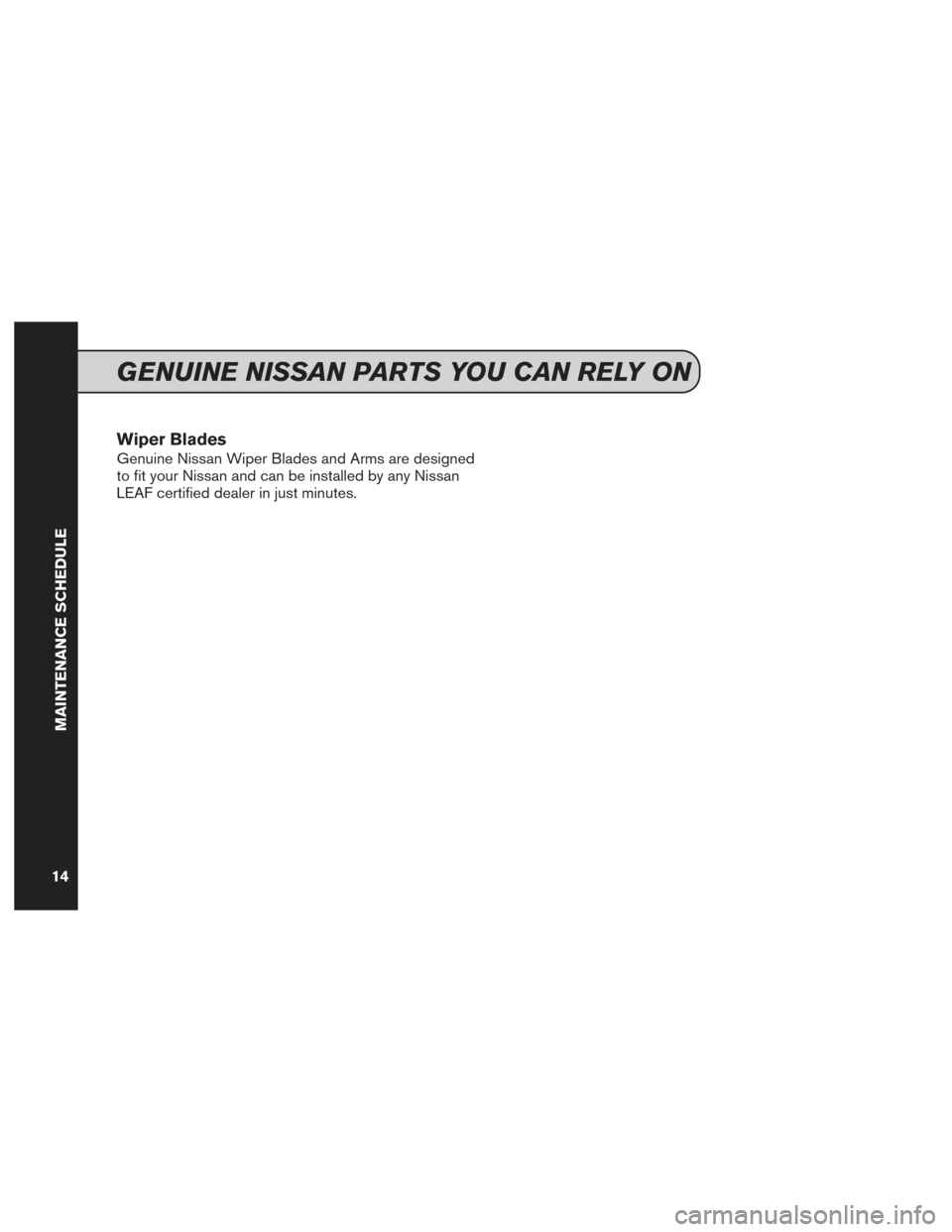

Wiper Blades
Genuine Nissan Wiper Blades and Arms are designed
to fit your Nissan and can be installed by any Nissan
LEAF certified dealer in just minutes.
GENUINE NISSAN PARTS YOU CAN RELY ON
MAINTENANCE SCHEDULE
14
