.Battery status check:
The status of the battery can be checked
using your personal computer or cellular
phone even if you are not in the vehicle.
. Unplugged status, Charge status:
By registering frequently used charging
stations, notifications can be sent to your
personal computer or cellular phone e-mail
address to inform you when the charging
connector is disconnected at those locations
or charging is completed.
. Remote charge, Remote climate con-
trol:
Remote activation of battery charging or
climate control can be set using your
personal computer or cellular phone.
. Li-ion battery warmer status (if so
equipped):
When the ambient temperature is low, the Li-
ion battery warmer operates automatically.
Notifications will be sent to your personal
computer or cellular phone e-mail address
under the following conditions in order to
remind you to connect the charging con-
nector.
Ð Approximately 5 minutes after the Li-ion battery warmer starts operating while the
power switch is in the OFF state and the charging cable is not connected to the
vehicle.
Ð Approximately 5 minutes after the Li-ion battery warmer stops operating due to
low remaining Li-ion battery power while
the power switch is in the OFF state and
the charging cable is not connected to
the vehicle.
NOTE:
. The remaining Li-ion battery power
lowers gradually while the battery war-
mer is operating without connecting the
charging connector.
. When the remaining Li-ion battery
power lowers, the battery warmer stops
operating. When this occurs, the Li-ion
battery temperature lowers gradually,
and as a result the EV system may be
disabled.
Navigation Telematics (NissanConnect
SM
EV) . Automatic update of charging stations:
The information for the charging stations that
is recorded in the map data is automatically
updated. .
All Information Feeds:
Convenient information for driving such as
weather and traffic information, ECO infor-
mation shared with the LEAF users, etc. is
provided.
. Favorites:
When the information of an Internet site is
selected and it is stored in the page that is
specially established in the NissanCon-
nect
SMWebsite, the information is converted
into an appropriate format via the Nissan
Data Center and provided for use in the
vehicle. The content of the information is
automatically read out. For the registration
method of information data, visit the Nissan-
Connect
SMWebsite.
NOTE:
. Completing the NissanConnect
SMEV
registration is necessary before using
this service.
. To check the Li-ion battery charging
status or to use the remote heater and
air conditioner using an internet en-
abled smart phone or personal compu-
ter, the following conditions must be
met:
&RQGLWLRQ
5-5
5. NissanConnectSMEV


> (GLW    0RGHO (1-1 (91$01&*. @
[Charging Availability] Availability of chargingstations can be con-
firmed.
ªConfirming char-
ging station avail-
abilityº (page 2-6)
[NissanConnect Ser-
vices Settings] NissanConnect
SMEV
settings can be chan-
ged.
ªNissanConnect-SMEV settingsº
(page 5-11)
VIEWING INFORMATION FEEDSENJN1502-DD03B117-2CA4-4366-9B71-1D96791C490CContents of the various NissanConnectSMEV
information can be downloaded.
1. Touch [Info] on the Launch Bar.
2. Touch [NissanConnect Services].
3. Touch [All Information Feeds]. A list screen is displayed.
4. Touch a preferred folder. A list of information feeds is displayed. The content is announced
by the system (Text-to-Speech) while the
vehicle is being driven, or if parked, you can
read the content on the display.
INFO:
. Touch [Stop] during communication with the
Nissan Data Center to cancel the connec-
tion.
. A message is displayed when the commu-
nication is disconnected while downloading
information due to a poor communication
status. Select [Yes] to restart the download.
. Laws in some jurisdictions may restrict the
use of ªText-to-Speech.º Check local reg-
ulations before using this feature.
. Some terminology such as personal names,
place names, special terms, symbols, etc.
may not be announced correctly. This is not a
malfunction.
. The system will pause announcements when
interrupted by the voice guidance given by
the navigation system. When the voice
guidance finishes, the system will restart
the announcement.
. The volume can be adjusted when the
system announces the information.
ªVolume and Beeps settingsº
(page 1-16)
. The selected content is read out while the
vehicle is being driven, or if parked, you can
read the content on the display. .
Content settings can be made using the
NissanConnect
SMWebsite. For more de-
tails, refer to the NissanConnectSMWebsite
or contact the NissanConnectSMsupport
line.
NissanConnect
SMWebsite:
For U.S.
www.NissanUSA.com/connect
For Canada
www.Nissan.ca/NissanConnect (English)
www.Nissan.ca/NissanConnect/fr (French)
NissanConnect
SMsupport line:
1-877-664-2738
Screen informationENJN1502-8FEB06C0-A569-4D23-BEF7-9414FB11CEC9When information is downloaded from the
Nissan Data Center, the contents of the informa-
tion are displayed while the vehicle is stopped.
&RQGLWLRQ
5-8
5. NissanConnectSMEV


> (GLW    0RGHO (1-1 (91$01&*. @
INFORMATION MENUENJN1502-120906-5E9B2C85-D229-414A-96FE-2A3389057A2BThe information screen sets or displays various information that is helpful for using the vehicle. Available items include the SiriusXM Travel Link information,
traffic information, vehicle information, current location information, and navigation software version.
5GH0409X
Touch [Info] on the Launch Bar on the screen to display the Information menu.
Menu itemResult
[NissanConnect Apps] A list of NissanConnectSMMobile Apps is displayed.ªNissanConnectSMMobile Appsº (page 6-7)
[NissanConnect Services] Display the NissanConnect Services (NissanConnectSMEV) menu screen.ª5. NissanConnectSMEVº
[SXM Weather][Current Conditions] Display current weather condition information. Touch [Favorite City] to see
conditions for a favorite location. To change the favorite location, touch
[Change City].
[5-Day Forecast] Touch [Favorite City] to see the 5-day weather forecast for a selected location.
To change the selected location, touch [Change City].
&RQGLWLRQ
6-2
6. Viewing information


> (GLW    0RGHO (1-1 (91$01&*. @

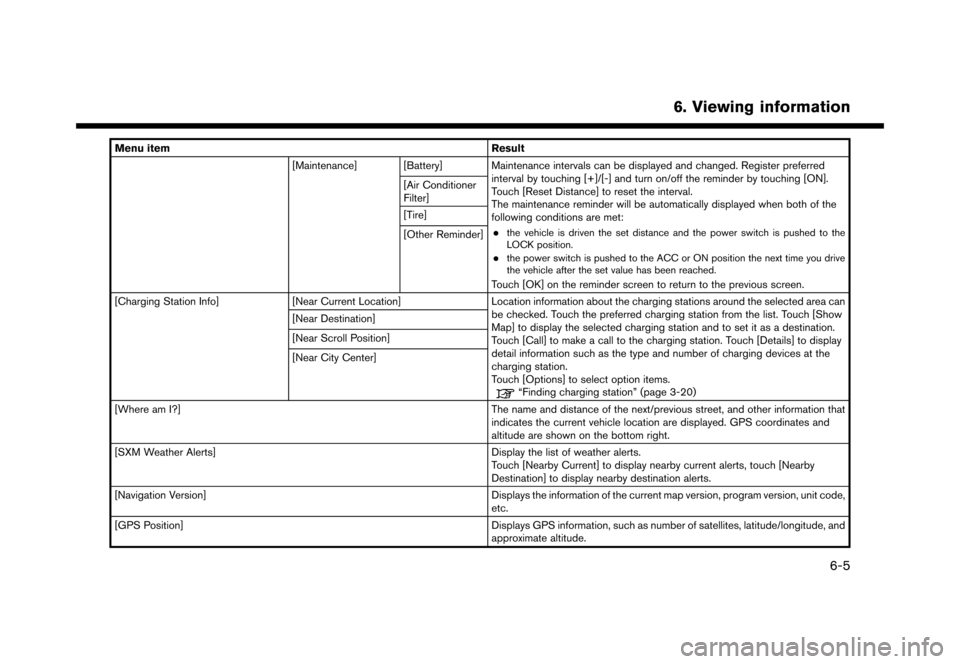

Menu itemResult
[Maintenance] [Battery] Maintenance intervals can be displayed and changed. Register preferred interval by touching [+]/[-] and turn on/off the reminder by touching [ON].
Touch [Reset Distance] to reset the interval.
The maintenance reminder will be automatically displayed when both of the
following conditions are met:
.
the vehicle is driven the set distance and the power switch is pushed to the
LOCK position.
.the power switch is pushed to the ACC or ON position the next time you drive
the vehicle after the set value has been reached.
Touch [OK] on the reminder screen to return to the previous screen.
[Air Conditioner
Filter]
[Tire]
[Other Reminder]
[Charging Station Info] [Near Current Location] Location information about the charging stations around the selected area can
be checked. Touch the preferred charging station from the list. Touch [Show
Map] to display the selected charging station and to set it as a destination.
Touch [Call] to make a call to the charging station. Touch [Details] to display
detail information such as the type and number of charging devices at the
charging station.
Touch [Options] to select option items.
ªFinding charging stationº (page 3-20)
[Near Destination]
[Near Scroll Position]
[Near City Center]
[Where am I?] The name and distance of the next/previous street, and other information that
indicates the current vehicle location are displayed. GPS coordinates and
altitude are shown on the bottom right.
[SXM Weather Alerts] Display the list of weather alerts.
Touch [Nearby Current] to display nearby current alerts, touch [Nearby
Destination] to display nearby destination alerts.
[Navigation Version] Displays the information of the current map version, program version, unit code,
etc.
[GPS Position] Displays GPS information, such as number of satellites, latitude/longitude, and
approximate altitude.
&RQGLWLRQ
6-5
6. Viewing information


> (GLW    0RGHO (1-1 (91$01&*. @

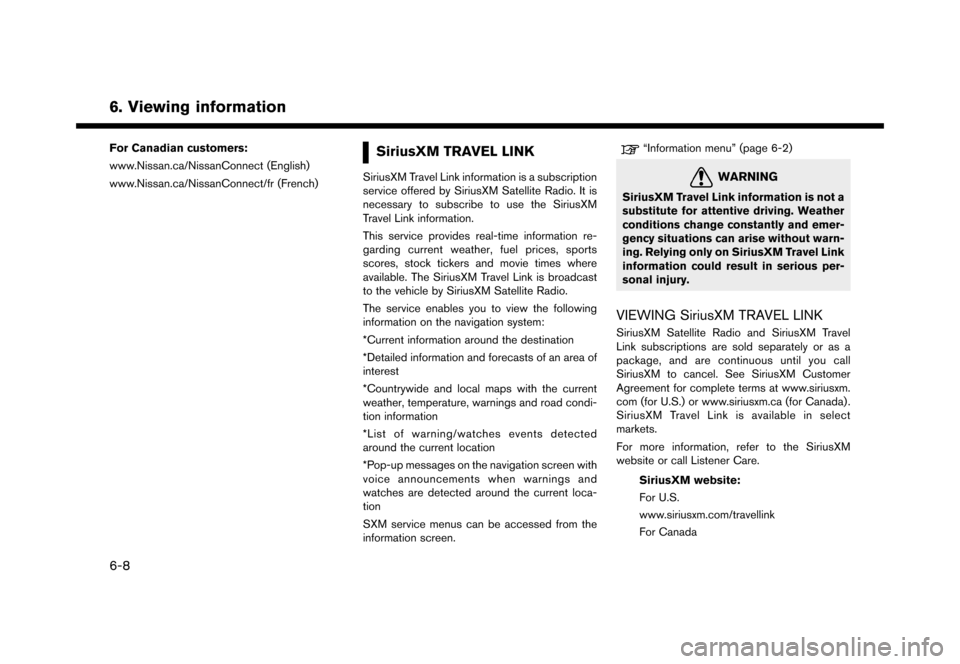

For Canadian customers:
www.Nissan.ca/NissanConnect (English)
www.Nissan.ca/NissanConnect/fr (French)SiriusXM TRAVEL LINKENJN1502-20002703-B1B8-4022-8CC0-3025C4D3EEF9SiriusXM Travel Link information is a subscription
service offered by SiriusXM Satellite Radio. It is
necessary to subscribe to use the SiriusXM
Travel Link information.
This service provides real-time information re-
garding current weather, fuel prices, sports
scores, stock tickers and movie times where
available. The SiriusXM Travel Link is broadcast
to the vehicle by SiriusXM Satellite Radio.
The service enables you to view the following
information on the navigation system:
*Current information around the destination
*Detailed information and forecasts of an area of
interest
*Countrywide and local maps with the current
weather, temperature, warnings and road condi-
tion information
*List of warning/watches events detected
around the current location
*Pop-up messages on the navigation screen with
voice announcements when warnings and
watches are detected around the current loca-
tion
SXM service menus can be accessed from the
information screen.
ªInformation menuº (page 6-2)
WARNING(1-1%'(%(&'%)SiriusXM Travel Link information is not a
substitute for attentive driving. Weather
conditions change constantly and emer-
gency situations can arise without warn-
ing. Relying only on SiriusXM Travel Link
information could result in serious per-
sonal injury.
VIEWING SiriusXM TRAVEL LINKENJN1502-507BB217-A929-4212-B9B5-004348ACB884SiriusXM Satellite Radio and SiriusXM Travel
Link subscriptions are sold separately or as a
package, and are continuous until you call
SiriusXM to cancel. See SiriusXM Customer
Agreement for complete terms at www.siriusxm.
com (for U.S.) or www.siriusxm.ca (for Canada) .
SiriusXM Travel Link is available in select
markets.
For more information, refer to the SiriusXM
website or call Listener Care.SiriusXM website:
For U.S.
www.siriusxm.com/travellink
For Canada
&RQGLWLRQ
6-8
6. Viewing information


> (GLW    0RGHO (1-1 (91$01&*. @
3. Speak ªDial º.
5GE0028X
4. The phone number recognized by the systemis displayed on the screen. If the number is
correct, say ªDialº.
5. The system will make a phone call to the spoken phone number.
Example 2 Setting home as a destination:
1. Push <
>located on the steering wheel.
2. Wait for the indicator change to
. Speak
ªNavigationº.
5GE0029X
3. Speak ªGo Homeº. The navigation system will set home as a destination.
INFO:
. Location of home must be registered to the
Address Book prior to using this command.
. The step of speaking ªNavigationº can be
omitted.
Example 3 Displaying folders in the USB
device:
1. Push <
>located on the steering wheel.
2. Wait for the indicator change to
. Speak
ªAudioº.
3. Speak ªUSB Show Foldersº. The folders in the connected USB device will appear on
the touch screen display.
&RQGLWLRQ
8-5
8. Voice recognition


> (GLW    0RGHO (1-1 (91$01&*. @
Command listENJN1502-F2834C42-3B75-40B0-98AA-9D1DBE4701C9To use the Voice Recognition function, you can speak commands in the order of 1st command, 2nd command and 3rd command. You can also operate the
system by directly speaking the 2nd or 3rd command.
Variable numbers or words such as names can be applied in the < > when speaking a command.
Some navigation commands are only for English.
General Command
CommandAction
Show More Commands Display other commands of the same category.
Go Back Corrects the last recognition result to return to the previous screen.
Exit Cancels Voice Recognition.
Help Announces how to use voice guidance.
Next Skip to the next page.
Previous Skip to the previous page.
General phone command
The following commands can be used during a phone Voice Recognition session.
Command Action
Dial The system makes a call to the spoken phone number.
Change Number Change a spoken phone number.
&RQGLWLRQ
8-6
8. Voice recognition


> (GLW    0RGHO (1-1 (91$01&*. @
General navigation command
The following commands can be used during the Navigation voice recognition session.
CommandAction
Select City Search a destination from the specified city.
Change State Change the state to search.
Calculate Route Calculate a route.
Adjust Location Fine-tune the destination.
Add as waypoint The selected location will be added to the route as a waypoint.
Change Address (English only) Change State After the street address is specified, state, city, street, or house number change changed.
Change City
Change Street
Change House Number
Navigation Command
1st Command 2nd Command 3rd Command Action
Navigation Street Address (English
only) Used to search for a street address.
Select State
Select the state to search.
Street Address (English only) Used to search for a street address.
Points of Interest (English only) Speak a POI name to search for as a destination.
Points of Interest (English only) Used to search for the POI within a specified state, province or city. Follow the prompts to enter the place name.
&RQGLWLRQ
8-9
8. Voice recognition
