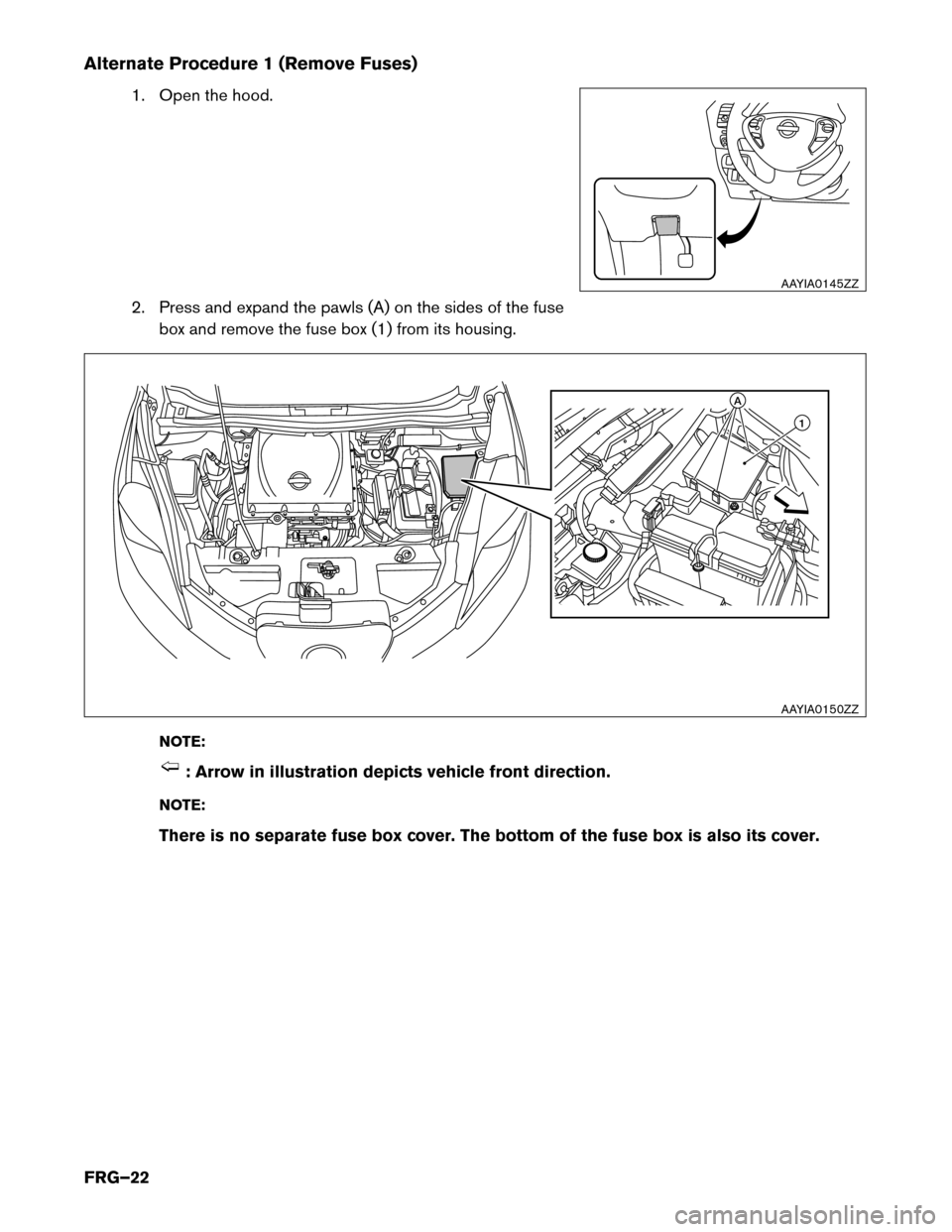

Alternate Procedure 1 (Remove Fuses)
1. Open the hood.
2. Press and expand the pawls (A) on the sides of the fuse box and remove the fuse box (1) from its housing.
NOTE: : Arrow in illustration depicts vehicle front direction.
NO

TE:
There is no separate fuse box cover. The bottom of the fuse box is also its cover. AAYIA0145ZZ
1A
AAYIA0150ZZ
FRG–22

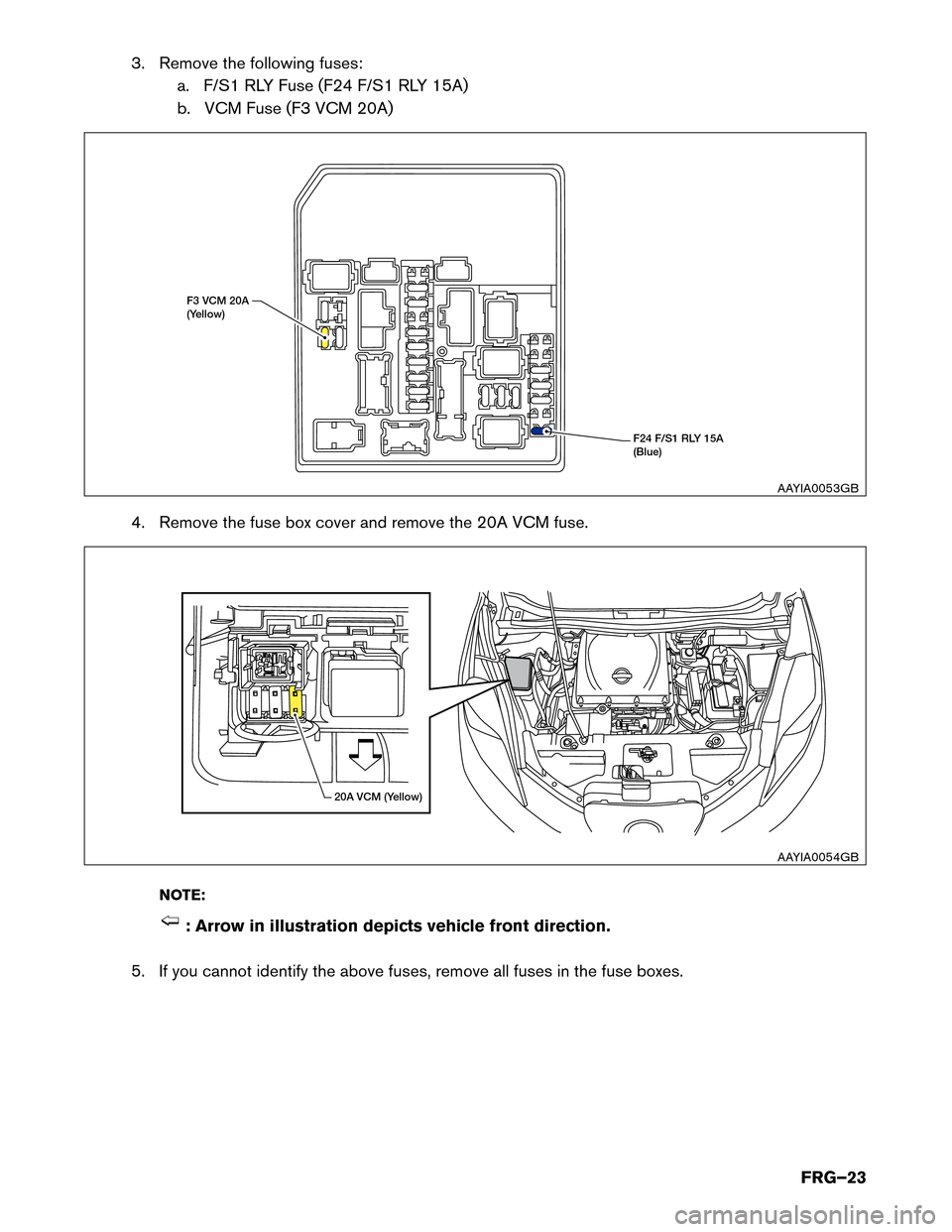

3. Remove the following fuses:
a. F/S1 RLY Fuse (F24 F/S1 RLY 15A)
b. VCM Fuse (F3 VCM 20A)
4. Remove the fuse box cover and remove the 20A VCM fuse. NOTE: : Arrow in illustration depicts vehicle front direction.
5.

If you cannot identify the above fuses, remove all fuses in the fuse boxes. F24 F/S1 RLY 15A
(Blue)F3 VCM 20A
(Y

ellow)
AAYIA0053GB20A VCM (Yellow)
AAYIA0054GB
FRG–23

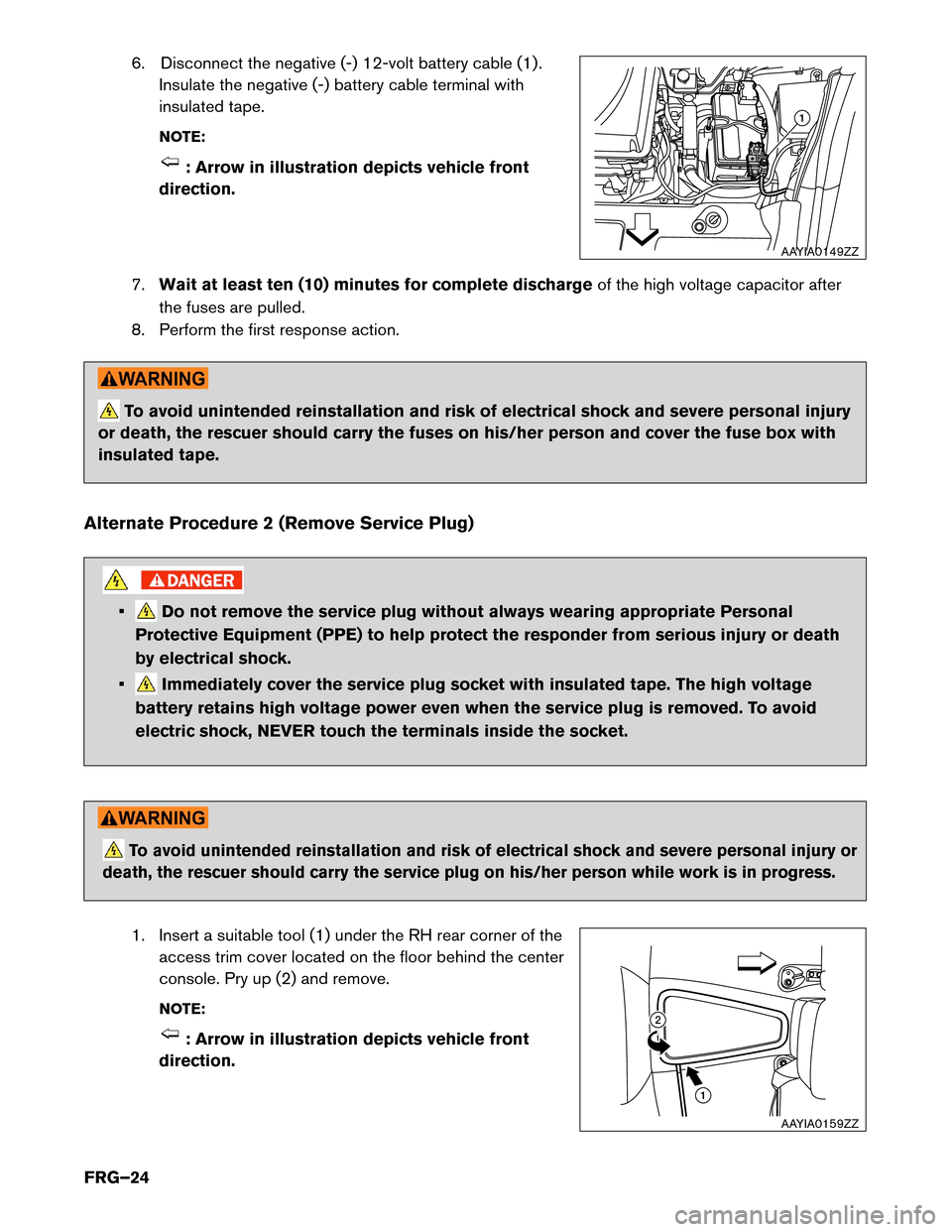

6. Disconnect the negative (-) 12-volt battery cable (1) .
Insulate the negative (-) battery cable terminal with
insulated tape.
NOTE: : Arrow in illustration depicts vehicle front
direction.
7. Wait

at least ten (10) minutes for complete discharge of the high voltage capacitor after
the fuses are pulled.
8. Perform the first response action. To avoid unintended reinstallation and risk of electrical shock and severe personal injury
or

death, the rescuer should carry the fuses on his/her person and cover the fuse box with
insulated tape.
Alternate Procedure 2 (Remove Service Plug) • Do not remove the service plug without always wearing appropriate Personal
Protective
Equipment (PPE) to help protect the responder from serious injury or death
by electrical shock.
• Immediately cover the service plug socket with insulated tape. The high voltage
battery
retains high voltage power even when the service plug is removed. To avoid
electric shock, NEVER touch the terminals inside the socket.
To avoid unintended reinstallation and risk of electrical shock and severe personal injury or
death, the rescuer should carry the service plug on his/her person while work is in progress.
1. Insert a suitable tool (1) under the RH rear corner of the access trim cover located on the floor behind the center
console. Pry up (2) and remove.
NOTE: : Arrow in illustration depicts vehicle front
direction. 1
AAYIA0149ZZ 12
AAYIA0159ZZ
FRG–24
