Page 33 of 40
a. Steering wheel can be adjusted up/down by
pushing the lock lever down (1) , moving the
steering wheel (2) and pulling the lock lever up (3)
to lock the steering wheel in place.
b. Front seat can be adjusted forward/backward manually by pulling up and holding lever (1) and tilted forward/backward manually by pulling up and holding lever (2) .
4. Remove front seat head restraint (if necessary) . The front seat head restraint can be removed by
pressing the lock knob and pulling it up.
5. Unfasten the seat belt. Seat belt can be unfastened by pressing the release
button. If seat belt cannot be unfastened, cut it with
a belt cutter. 1
3 2
AAYIA0122ZZ 21
AAYIA0146ZZ
AAYIA0079ZZ
AAYIA0080ZZ
FRG–33
Page 34 of 40
3-4 Storing The Vehicle
For
vehicle storage information, refer to Roadside Assistance Guide or Dismantling Guide located at
www.nissanusa.com orwww.nissan-techinfo.com.
FRG–34
Page 35 of 40

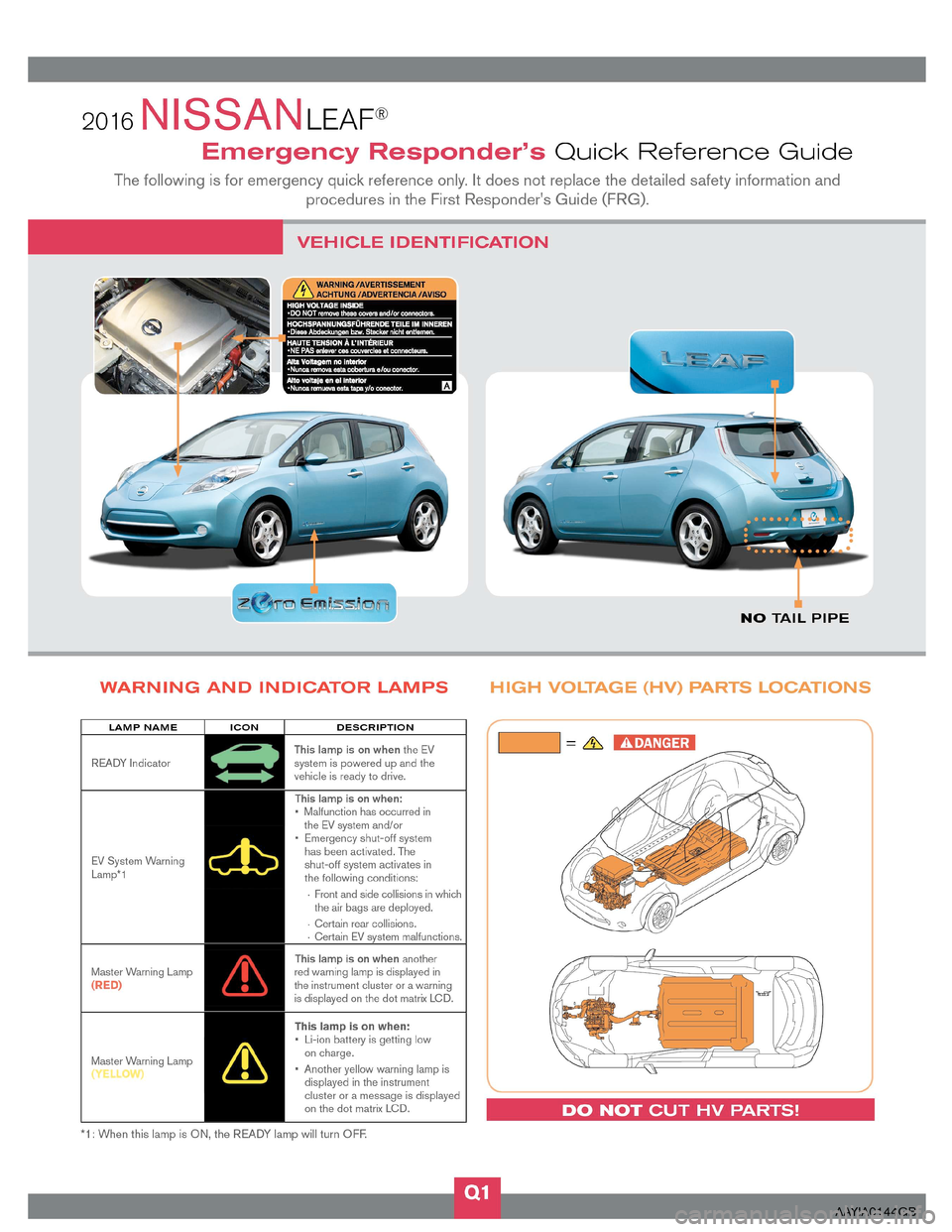

4. Emergency Quick Reference Guide
The
following is for emergency quick reference only. It does not replace the detailed safety information and
procedures in this manual.
FRG–35
Page 36 of 40
Page 37 of 40
Page 38 of 40
Page 39 of 40
Page 40 of 40

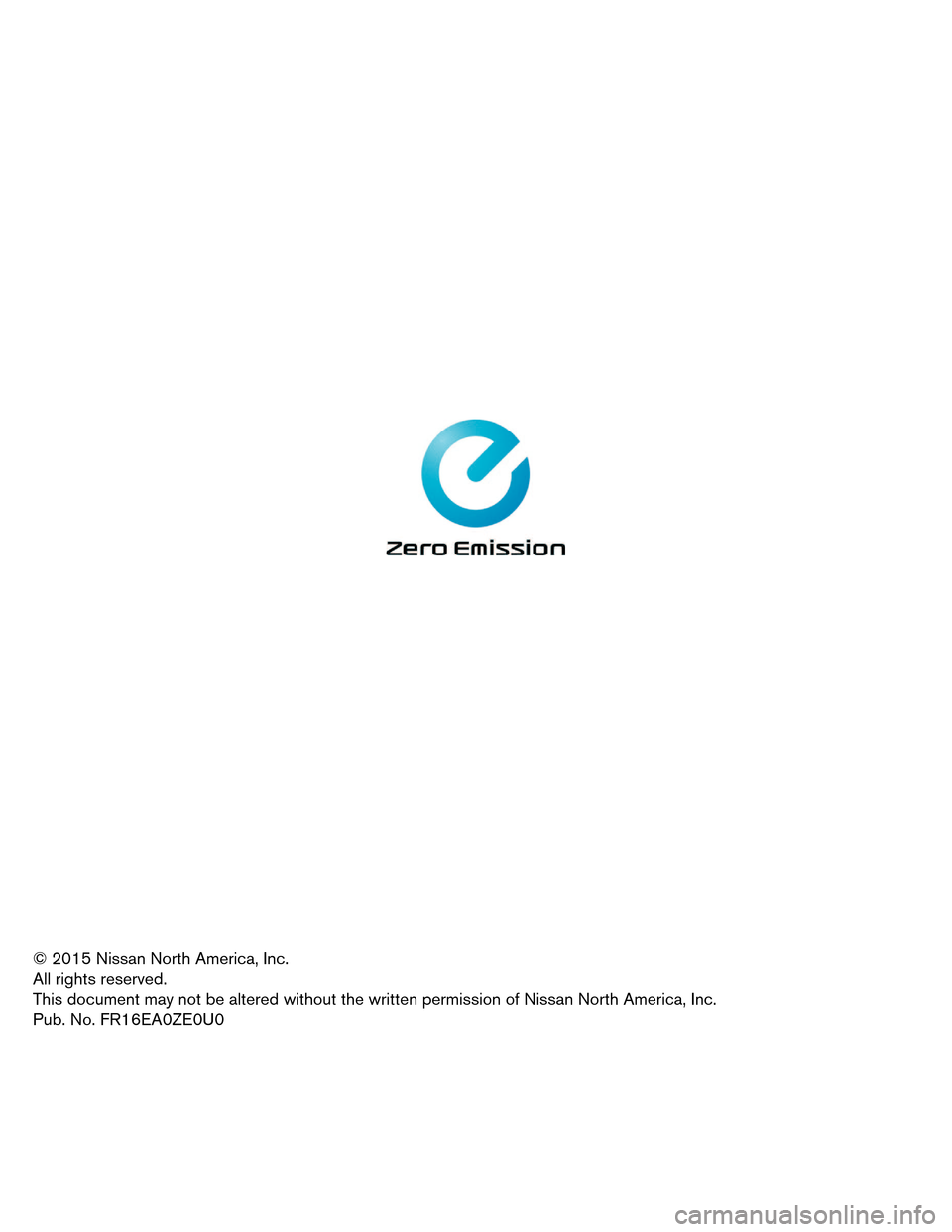

© 2015 Nissan North America, Inc.
All
rights reserved.
This document may not be altered without the written permission of Nissan North America, Inc.
Pub. No. FR16EA0ZE0U0
