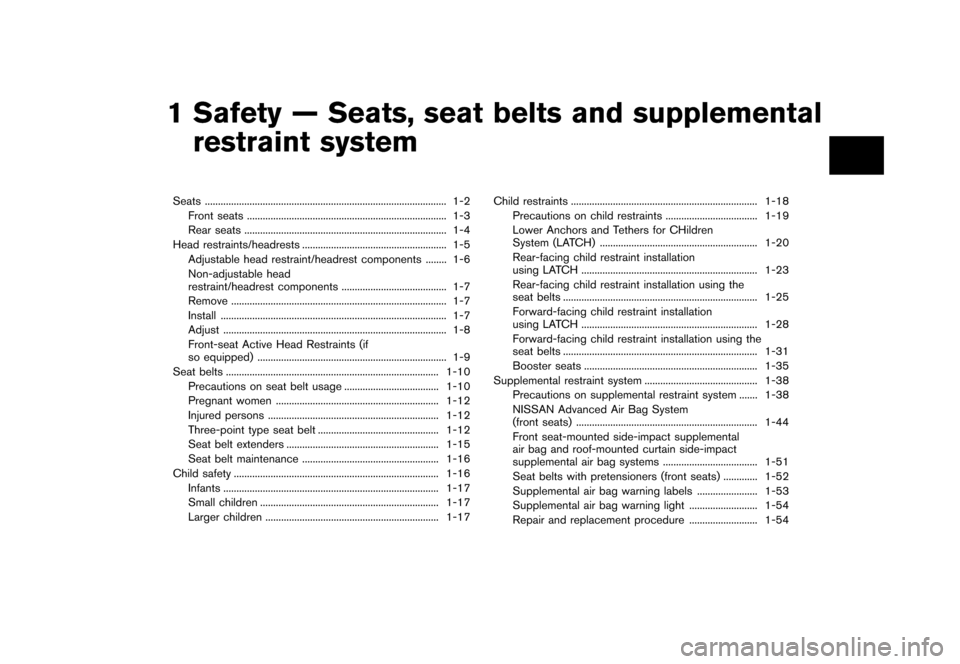

1 Safety Ð Seats, seat belts and supplementalrestraint system
Seats ...
........................................................................\
.................... 1-2
Front seats ...
........................................................................\
.... 1-3
Rear seats ...
........................................................................\
..... 1-4
Head restraints/headrests ...
....................................................... 1-5
Adjustable head restraint/headrest components ...
........ 1-6
Non-adjustable head
restraint/headrest components ...
........................................ 1-7
Remove ...
........................................................................\
.......... 1-7
Install ...
........................................................................\
.............. 1-7
Adjust ...
........................................................................\
............. 1-8
Front-seat Active Head Restraints (if
so equipped) ...
........................................................................\
1-9
Seat belts ...
........................................................................\
......... 1-10
Precautions on seat belt usage ...
.................................... 1-10
Pregnant women ...
.............................................................. 1-12
Injured persons ...
................................................................. 1-12
Three-point type seat belt ...
.............................................. 1-12
Seat belt extenders ...
.......................................................... 1-15
Seat belt maintenance ...
.................................................... 1-16
Child safety ...
........................................................................\
...... 1-16
Infants ...
........................................................................\
.......... 1-17
Small children ...
.................................................................... 1-17
Larger children ...
.................................................................. 1-17 Child restraints
...
....................................................................... 1-18
Precautions on child restraints ...
................................... 1-19
Lower Anchors and Tethers for CHildren
System (LATCH) ...
............................................................ 1-20
Rear-facing child restraint installation
using LATCH ...
................................................................... 1-23
Rear-facing child restraint installation using the
seat belts ...
........................................................................\
.. 1-25
Forward-facing child restraint installation
using LATCH ...
................................................................... 1-28
Forward-facing child restraint installation using the
seat belts ...
........................................................................\
.. 1-31
Booster seats ...
.................................................................. 1-35
Supplemental restraint system ...
........................................... 1-38
Precautions on supplemental restraint system ...
....... 1-38
NISSAN Advanced Air Bag System
(front seats) ...
..................................................................... 1-44
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
supplemental air bag systems ...
.................................... 1-51
Seat belts with pretensioners (front seats) ...
............. 1-52
Supplemental air bag warning labels ...
....................... 1-53
Supplemental air bag warning light ...
.......................... 1-54
Repair and replacement procedure ...
.......................... 1-54
&RQGLWLRQ


> (GLW    0RGHO )' @

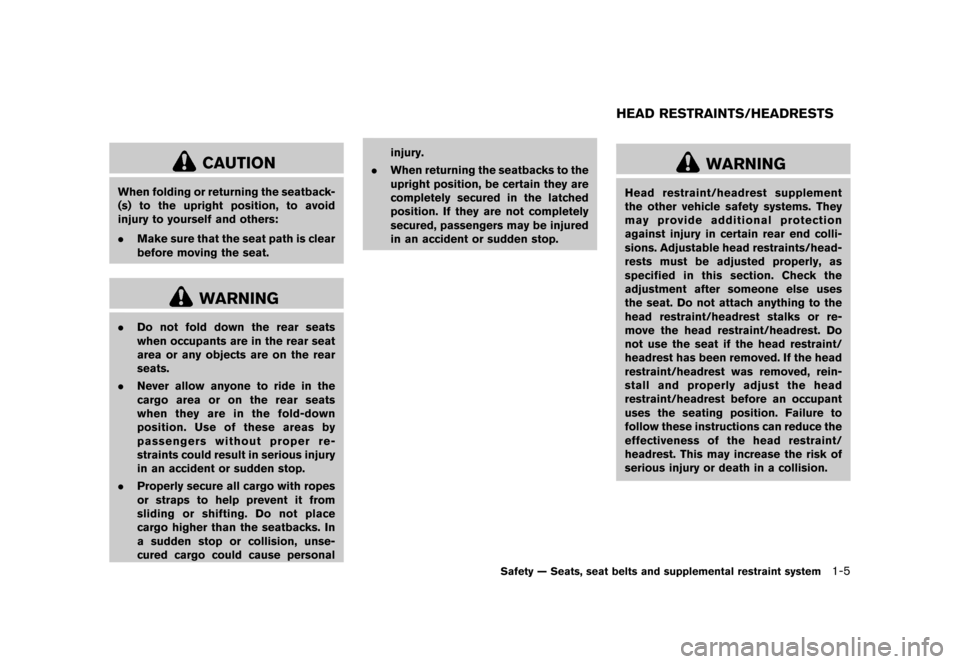

CAUTION
When folding or returning the seatback-
(s) to the upright position, to avoid
injury to yourself and others:
.Make sure that the seat path is clear
before moving the seat.
WARNING
.Do not fold down the rear seats
when occupants are in the rear seat
area or any objects are on the rear
seats.
. Never allow anyone to ride in the
cargo area or on the rear seats
when they are in the fold-down
position. Use of these areas by
passengers without proper re-
straints could result in serious injury
in an accident or sudden stop.
. Properly secure all cargo with ropes
or straps to help prevent it from
sliding or shifting. Do not place
cargo higher than the seatbacks. In
a sudden stop or collision, unse-
cured cargo could cause personal injury.
. When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched
position. If they are not completely
secured, passengers may be injured
in an accident or sudden stop.
GUID-8F6B0940-703A-44EA-9F15-263BA73C554F
WARNING
Head restraint/headrest supplement
the other vehicle safety systems. They
may provide additional protection
against injury in certain rear end colli-
sions. Adjustable head restraints/head-
rests must be adjusted properly, as
specified in this section. Check the
adjustment after someone else uses
the seat. Do not attach anything to the
head restraint/headrest stalks or re-
move the head restraint/headrest. Do
not use the seat if the head restraint/
headrest has been removed. If the head
restraint/headrest was removed, rein-
stall and properly adjust the head
restraint/headrest before an occupant
uses the seating position. Failure to
follow these instructions can reduce the
effectiveness of the head restraint/
headrest. This may increase the risk of
serious injury or death in a collision.
Safety Ð Seats, seat belts and supplemental restraint system1-5
HEAD RESTRAINTS/HEADRESTS
&RQGLWLRQ


> (GLW    0RGHO )' @
1-6Safety Ð Seats, seat belts and supplemental restraint system
JVR0051X

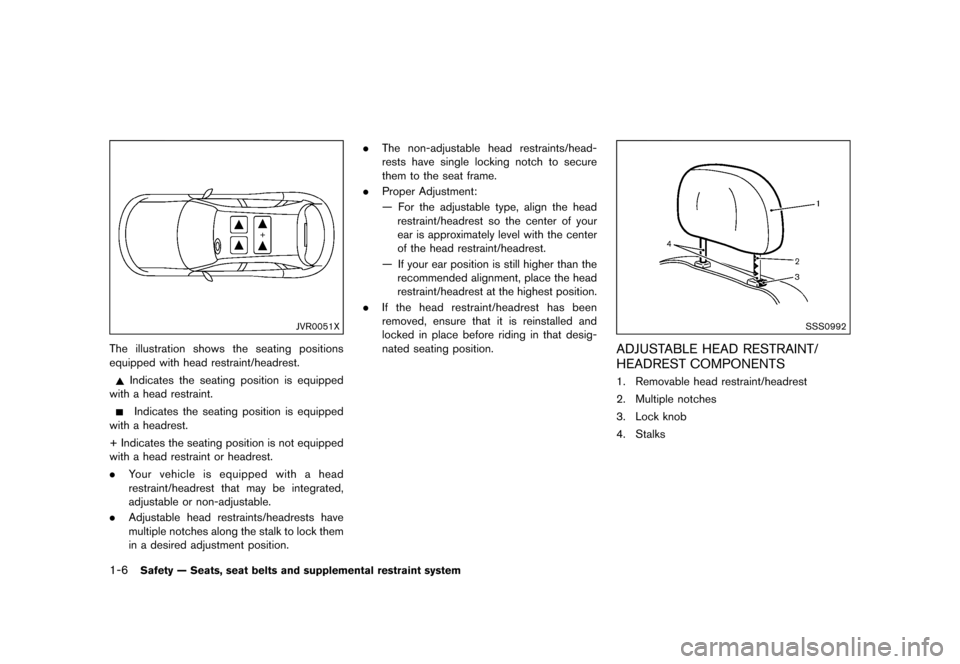

The illustration shows the seating positions
equipped with head restraint/headrest.
Indicates the seating position is equipped
with a head restraint.
Indicates the seating position is equipped
with a headrest.
+ Indicates the seating position is not equipped
with a head restraint or headrest.
. Your vehicle is equipped with a head
restraint/headrest that may be integrated,
adjustable or non-adjustable.
. Adjustable head restraints/headrests have
multiple notches along the stalk to lock them
in a desired adjustment position. .
The non-adjustable head restraints/head-
rests have single locking notch to secure
them to the seat frame.
. Proper Adjustment:
Ð For the adjustable type, align the head
restraint/headrest so the center of your
ear is approximately level with the center
of the head restraint/headrest.
Ð If your ear position is still higher than the recommended alignment, place the head
restraint/headrest at the highest position.
. If the head restraint/headrest has been
removed, ensure that it is reinstalled and
locked in place before riding in that desig-
nated seating position.
SSS0992
ADJUSTABLE HEAD RESTRAINT/
HEADREST COMPONENTS
GUID-DA49A6E4-F1AC-4350-AD51-CAB31A2EB7021. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
&RQGLWLRQ


> (GLW    0RGHO )' @
JVR0203X

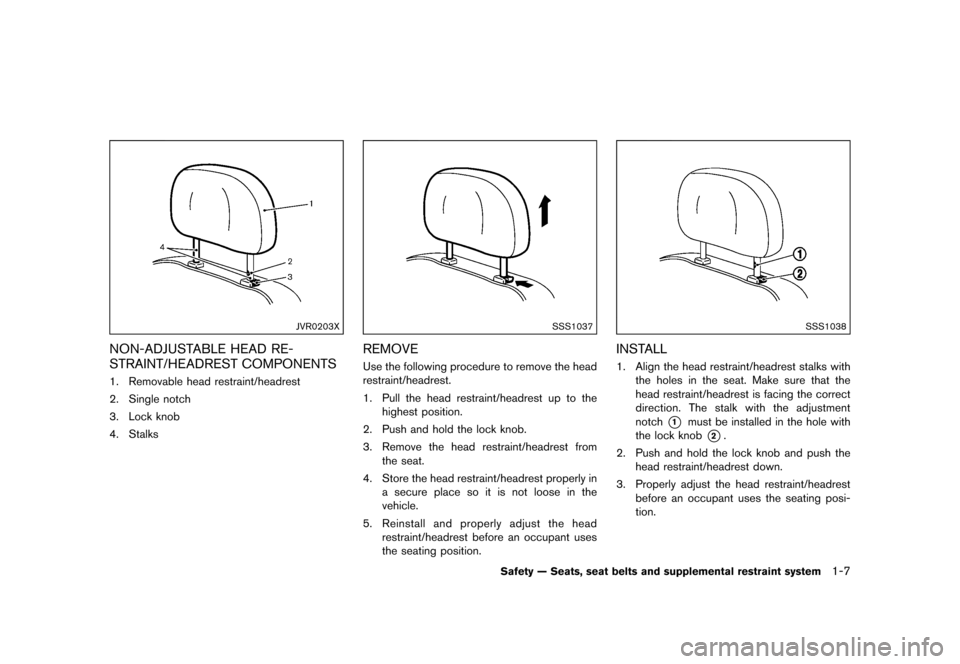

NON-ADJUSTABLE HEAD RE-
STRAINT/HEADREST COMPONENTS
GUID-3498D951-FA0F-4DBF-99C4-6C29C22045431. Removable head restraint/headrest
2. Single notch
3. Lock knob
4. Stalks
SSS1037
REMOVEGUID-DF75CB90-1E53-47F8-83F0-888DDA65151FUse the following procedure to remove the head
restraint/headrest.
1. Pull the head restraint/headrest up to thehighest position.
2. Push and hold the lock knob.
3. Remove the head restraint/headrest from the seat.
4. Store the head restraint/headrest properly in a secure place so it is not loose in the
vehicle.
5. Reinstall and properly adjust the head
restraint/headrest before an occupant uses
the seating position.
SSS1038
INSTALLGUID-C3856631-8898-412D-B440-8420406175F01. Align the head restraint/headrest stalks with
the holes in the seat. Make sure that the
head restraint/headrest is facing the correct
direction. The stalk with the adjustment
notch
*1must be installed in the hole with
the lock knob
*2.
2. Push and hold the lock knob and push the head restraint/headrest down.
3. Properly adjust the head restraint/headrest before an occupant uses the seating posi-
tion.
Safety Ð Seats, seat belts and supplemental restraint system1-7
&RQGLWLRQ


> (GLW    0RGHO )' @
1-22Safety Ð Seats, seat belts and supplemental restraint system
SSS0643

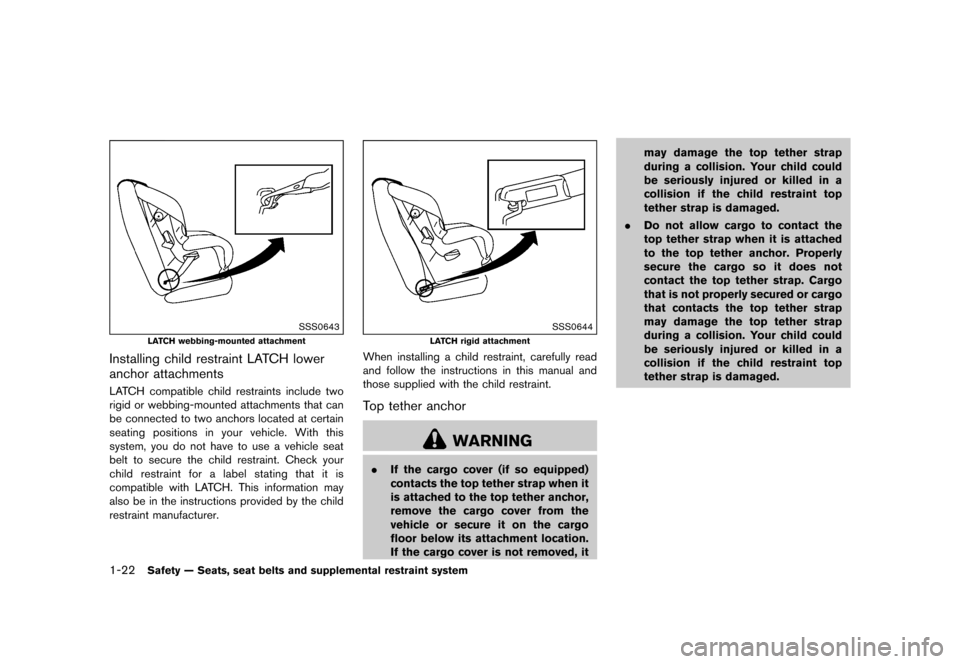

LATCH webbing-mounted attachment
Installing child restraint LATCH lower
anchor attachments
GUID-4EFA1AAF-57A0-4B14-A569-0E96210E7D64LATCH compatible child restraints include two
rigid or webbing-mounted attachments that can
be connected to two anchors located at certain
seating positions in your vehicle. With this
system, you do not have to use a vehicle seat
belt to secure the child restraint. Check your
child restraint for a label stating that it is
compatible with LATCH. This information may
also be in the instructions provided by the child
restraint manufacturer.
SSS0644
LATCH rigid attachment
When installing a child restraint, carefully read
and follow the instructions in this manual and
those supplied with the child restraint.
Top tether anchorGUID-4D667252-E94B-46E4-ADC9-149C6C62D735
WARNING
.If the cargo cover (if so equipped)
contacts the top tether strap when it
is attached to the top tether anchor,
remove the cargo cover from the
vehicle or secure it on the cargo
floor below its attachment location.
If the cargo cover is not removed, it may damage the top tether strap
during a collision. Your child could
be seriously injured or killed in a
collision if the child restraint top
tether strap is damaged.
. Do not allow cargo to contact the
top tether strap when it is attached
to the top tether anchor. Properly
secure the cargo so it does not
contact the top tether strap. Cargo
that is not properly secured or cargo
that contacts the top tether strap
may damage the top tether strap
during a collision. Your child could
be seriously injured or killed in a
collision if the child restraint top
tether strap is damaged.
&RQGLWLRQ


> (GLW    0RGHO )' @
1-24Safety Ð Seats, seat belts and supplemental restraint system

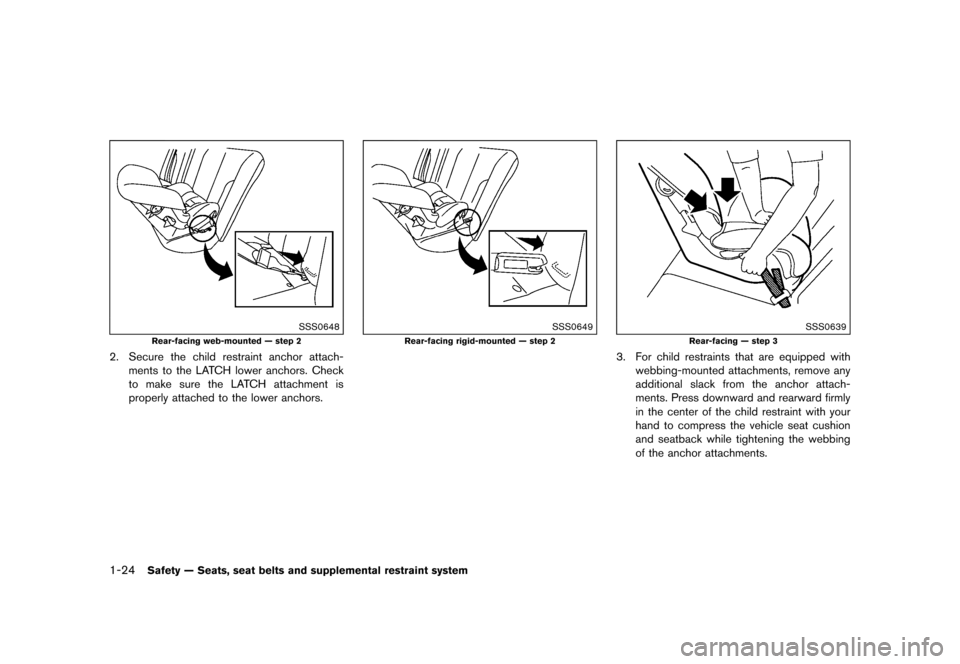

SSS0648
Rear-facing web-mounted Ð step 2
2. Secure the child restraint anchor attach-ments to the LATCH lower anchors. Check
to make sure the LATCH attachment is
properly attached to the lower anchors.
SSS0649
Rear-facing rigid-mounted Ð step 2
SSS0639
Rear-facing Ð step 3
3. For child restraints that are equipped withwebbing-mounted attachments, remove any
additional slack from the anchor attach-
ments. Press downward and rearward firmly
in the center of the child restraint with your
hand to compress the vehicle seat cushion
and seatback while tightening the webbing
of the anchor attachments.
&RQGLWLRQ


> (GLW    0RGHO )' @

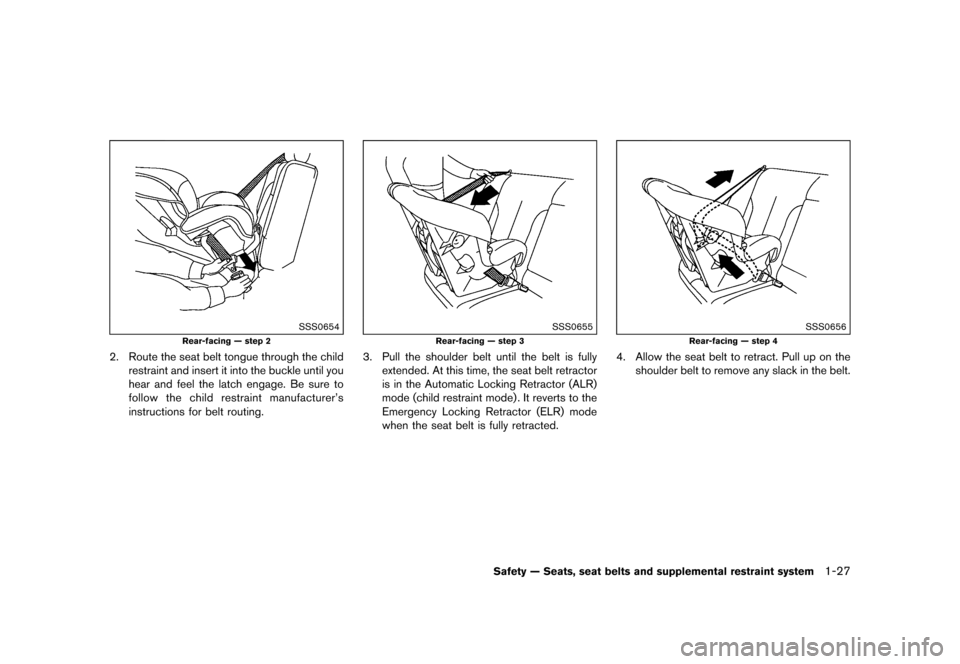

SSS0654
Rear-facing Ð step 2
2. Route the seat belt tongue through the childrestraint and insert it into the buckle until you
hear and feel the latch engage. Be sure to
follow the child restraint manufacturer's
instructions for belt routing.
SSS0655
Rear-facing Ð step 3
3. Pull the shoulder belt until the belt is fullyextended. At this time, the seat belt retractor
is in the Automatic Locking Retractor (ALR)
mode (child restraint mode) . It reverts to the
Emergency Locking Retractor (ELR) mode
when the seat belt is fully retracted.
SSS0656
Rear-facing Ð step 4
4. Allow the seat belt to retract. Pull up on theshoulder belt to remove any slack in the belt.
Safety Ð Seats, seat belts and supplemental restraint system1-27
&RQGLWLRQ


> (GLW    0RGHO )' @
1-28Safety Ð Seats, seat belts and supplemental restraint system

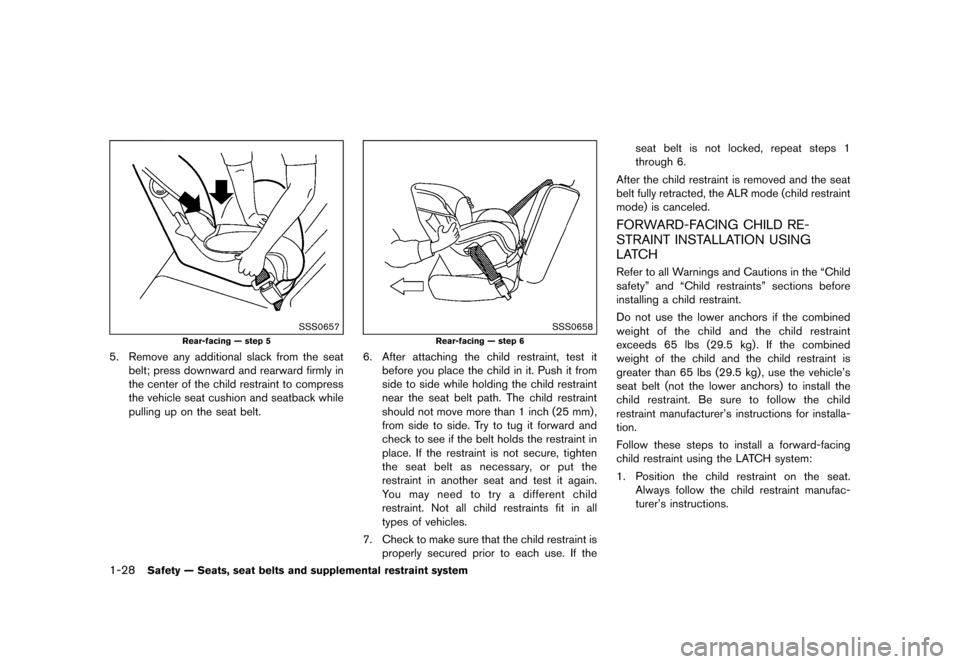

SSS0657
Rear-facing Ð step 5
5. Remove any additional slack from the seatbelt; press downward and rearward firmly in
the center of the child restraint to compress
the vehicle seat cushion and seatback while
pulling up on the seat belt.
SSS0658
Rear-facing Ð step 6
6. After attaching the child restraint, test itbefore you place the child in it. Push it from
side to side while holding the child restraint
near the seat belt path. The child restraint
should not move more than 1 inch (25 mm) ,
from side to side. Try to tug it forward and
check to see if the belt holds the restraint in
place. If the restraint is not secure, tighten
the seat belt as necessary, or put the
restraint in another seat and test it again.
You may need to try a different child
restraint. Not all child restraints fit in all
types of vehicles.
7. Check to make sure that the child restraint is properly secured prior to each use. If the seat belt is not locked, repeat steps 1
through 6.
After the child restraint is removed and the seat
belt fully retracted, the ALR mode (child restraint
mode) is canceled.
FORWARD-FACING CHILD RE-
STRAINT INSTALLATION USING
LATCH
GUID-3E6F0E65-F435-4645-B38E-9EE9239F0DF8Refer to all Warnings and Cautions in the ªChild
safetyº and ªChild restraintsº sections before
installing a child restraint.
Do not use the lower anchors if the combined
weight of the child and the child restraint
exceeds 65 lbs (29.5 kg) . If the combined
weight of the child and the child restraint is
greater than 65 lbs (29.5 kg) , use the vehicle's
seat belt (not the lower anchors) to install the
child restraint. Be sure to follow the child
restraint manufacturer's instructions for installa-
tion.
Follow these steps to install a forward-facing
child restraint using the LATCH system:
1. Position the child restraint on the seat.
Always follow the child restraint manufac-
turer's instructions.
&RQGLWLRQ
