2016 NISSAN GT-R ESP

SPEED SYMBOLS -are shown on the sidewall of
some tires. The following table shows the maximum
speed corresponding to the symbol.SPEED RATINGS †Speed Speed
Maximum Rating mph km/Hr
M 81 130
N 87 140
P 93 150
R 99 160
R 106 170
S 112 180
T 118 190
H 130 210
W 168 270
Y 186 300
V* 149 240
Z** 149 240
*Some V (or VR) rated tires may have a speed
capacity of greater than 149 mph (240 km/h).
Consult your tire manufacturer for maximum speed rat-
ings if your vehicle capability exceeds this speed.
**Z (or ZR) rated tires are designed for use on
cars with maximum speed capabilities in excess
of 149 mph (240 km/h). Consult your tire manufac-
turer for maximum speed capabilities.
†Although a tire may be speed rated, we do not endorse
the operation of any vehicle in an unsafe or unlawful
manner. Speed ratings are based on laboratory tests which relate to performance on the road, but are not
applicable if tires are underinflated, overloaded, worn
out, damaged, altered, improperly repaired, or re-
treaded. Furthermore, tire speed ratings do not imply
that vehicles can be safely driven at the maximum speed
for which the tire is rated, particularly under adverse
road and weather conditions or if the vehicle has un-
usual characteristics. Most highway passenger tires
that do not have a speed symbol in the sidewall have a
maximum speed rating of 105 mph. Light truck highway
tires that do not have a speed symbol on the sidewall of
the tire have a maximum speed of 87 mph. Some light
truck tires may have higher maximum speeds; consult
your tire dealer. The speed and other ratings of re-
treaded tires are assigned by the retreader and voids
the original manufacturer’s ratings.
IMPORTANT:
In order to maintain the speed capability
of the vehicle, replacement tires must have speed rat-
ings equal to or higher than those fitted as original
equipment (as indicated on the vehicle placard or Own-
er’s Manual) . If tires with lower speed ratings are fitted,
the speed capability of the vehicle will be lowered to the
maximum speed capability of the replacement tire as
indicated on the above table.
Remember...High speed driving can be dangerous and
may be damaging to your tires.
And...When driving at highway speeds, correct inflation
pressure is especially important.
Contact the manufacturer of your tires for their position
and assistance on the repair of speed-rated tires. When
you are replacing tires that have a speed rating, you must replace with tires of the same or higher speed
rating if the speed capability of the vehicle is to be
maintained.
VISUAL INSPECTION
INSPECT YOUR TIRES. DO NOT DRIVE ON A
DAMAGED TIRE OR WHEEL.
Check your tires fre-
quently for scrapes, bulges, separations, cuts, snags,
cracks, penetrations or excessive localized wear from
hard braking. Also check for abnormal tire wear, particu-
larly on the edges of the tire tread which may be caused
by misalignment or underinflation. Impacts can damage
the inner portion of the tire without being visible on the
outside. If damage can be seen on the tires or wheels, or
if you suspect that possible impact damage may have
occurred, replace with spare at once and have your tire
store or dealer inspect your tires immediately. Use of a
damaged tire could result in tire destruction. When
inspecting your tires, including the spare, check your air
pressures. If your pressure check indicates that one of
your tires has lost pressure of two pounds or more, look
for signs of penetrations, valve leakage, or wheel dam-
age that may account for the air loss.
All tires will wear out faster when subjected to high
speeds as well as hard cornering, rapid starts, sudden
stops, frequent driving on roads which are in poor
condition, and off-road use. Roads with holes and rocks
or other objects can damage tires and cause misalign-
ment of your vehicle. When you drive on such roads,
drive on them carefully and slowly, and before driving
again at normal or highway speeds, examine your tires
for any damage, such as cuts, bulges, penetrations,
unusual wear patterns, etc.
(Continued on next page)
58 IMPORTANT TIRE SAFETY INFORMATION1

TREAD WEAR INDICATORS (WEAR BARS):Tires
contain Tread Wear Indicators (Wear Bars) in the
grooves of the tire tread which show up when only
2/32nds of an inch (1.6mm) of tread is remaining.
At this stage, your tires must be replaced. Tires
worn beyond this stage are dangerous.
* Provided by and published at the request of the tire
manufacturers/warrantors.
HAZARDS
Objects in the road that threaten a tire should be safely
avoided. These objects are potholes, glass, metal,
rocks, wood debris and the like. Unavoidable contact
should prompt a thorough tire inspection.
You may not always recall hitting an object that can
damage or injure your tires. If while driving your vehicle
experiences any unusual vibrations, ride disturbance or
noise and/or you suspect that possible damage to the
tires or vehicle has occurred, DO NOT JAM OR LOCK
YOUR BRAKES! Rather reduce your speed and drive
with caution until you can safely pull off the road. Stop
and inspect the tires. If the tire is underinflated or
damaged, deflate, remove the tire and rim assembly and
replace it with your spare. If you cannot detect a cause,
have the vehicle towed to the nearest vehicle or tire
dealer to have the vehicle inspected.
REPAIRING, MOUNTING AND
DEMOUNTING OF TIRES
Do not attempt to repair, mount or demount a tire
yourself. Tire changing can be dangerous and must be
done by professionally trained persons using proper
tools and procedures as specified by the Rubber Manu-
facturers Association (RMA) . Follow these mounting
recommendations. Your tires should be mounted on
wheels of correct size and type and which are in good,
clean condition. Bent, chipped or rusted wheels may
cause tire damage. The inside of the tire must be free
from foreign materials. Have your dealer check the
wheels before mounting new tires. Mismatched tires
and rims can explode during mounting. Also, mis-
matched tires and rims can result in dangerous tire
failure on the road. If a tire is mounted by error on the
wrong-sized rim, do not remount it on the proper rim -
scrap it. It may be damaged internally (which is not
externally visible) by being dangerously stretched and
could fail on the highway.
Old valves may leak. When new tubeless tires are
mounted, have new valves of the correct type installed.
Tubeless tires must be mounted only on wheels de-
signed for tubeless tires, i.e., wheels which have safety
humps or ledges.
Never perform a temporary repair, use an innertube or
inject sealant as a permanent substitute for a proper
repair. Only qualified persons should repair tires.
Be sure that all your valves have suitable valve caps.
This will keep valve cores clean and clear and guard
against leakage. REPAIRS - WHENEVER POSSIBLE, SEE A TIRE
DEALER AT ONCE.
Some tire manufacturers do not
warrant any inspection or repair process. The repair is
entirely the responsibility of the repairer. Punctures in
the tread of a passenger tire which do not exceed 1/4 of
an inch (6mm) in diameter can usually be repaired by
following the Rubber Manufacturer’s Association
(RMA) Passenger and Light Truck Repair procedures.
Contact the manufacturer of your tires for its position
and assistance as to the acceptable location for a
proper repair and the repair of speed rated tires. Do not
use plug repairs. They may cause further damage
to the tire. They are not always air tight and the
plug may fail. Do not exceed posted speed limits on
any repaired tire. Certain tire manufacturers speed rat-
ings are voided if the tire is repaired.
Although a tire was properly repaired, internal structural
damage resulting from the puncture may have occurred.
Sometime later the damage may cause the tire to be
removed from service.
If the tire has a puncture in the tread which exceeds
1/4 inch (6mm) , the tire must be replaced. If any tire has
sustained a puncture, have the tire inspected internally
by a tire dealer for possible damage that may have
occurred.
Improper mounting and inflation procedures can cause
an explosion of the tire/rim assembly. Only specially
trained persons should perform these tasks. Contact
your tire store or dealer for assistance.
CAUTION -Never, under any circumstance, intro-
duce a flammable substance into a tire.
(Continued on next page)
IMPORTANT TIRE SAFETY INFORMATION159

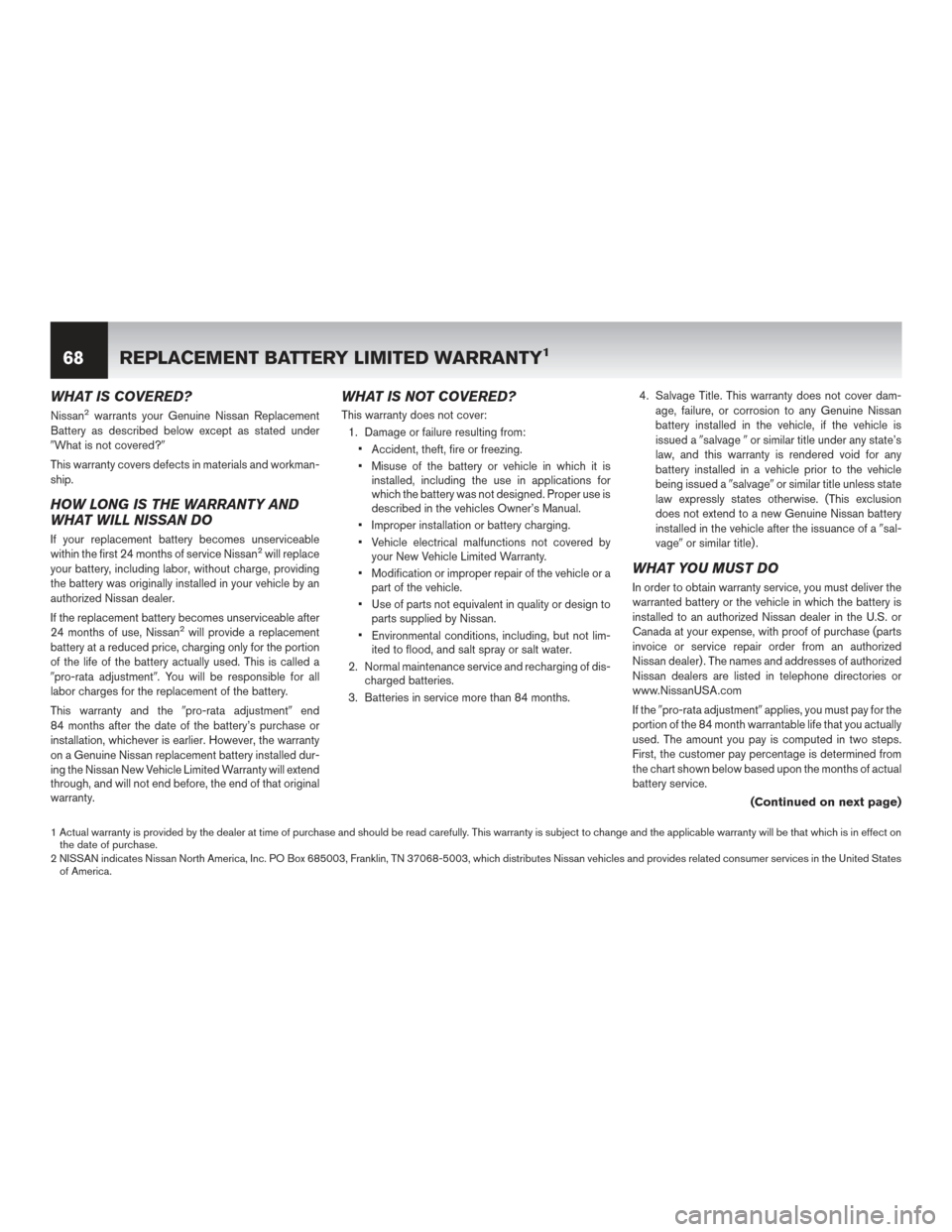

WHAT IS COVERED?
Nissan2warrants your Genuine Nissan Replacement
Battery as described below except as stated under
What is not covered?
This warranty covers defects in materials and workman-
ship.
HOW LONG IS THE WARRANTY AND
WHAT WILL NISSAN DO
If your replacement battery becomes unserviceable
within the first 24 months of service Nissan2will replace
your battery, including labor, without charge, providing
the battery was originally installed in your vehicle by an
authorized Nissan dealer.
If the replacement battery becomes unserviceable after
24 months of use, Nissan
2will provide a replacement
battery at a reduced price, charging only for the portion
of the life of the battery actually used. This is called a
pro-rata adjustment. You will be responsible for all
labor charges for the replacement of the battery.
This warranty and the pro-rata adjustmentend
84 months after the date of the battery’s purchase or
installation, whichever is earlier. However, the warranty
on a Genuine Nissan replacement battery installed dur-
ing the Nissan New Vehicle Limited Warranty will extend
through, and will not end before, the end of that original
warranty.
WHAT IS NOT COVERED?
This warranty does not cover:
1. Damage or failure resulting from:
Accident, theft, fire or freezing.Misuse of the battery or vehicle in which it is
installed, including the use in applications for
which the battery was not designed. Proper use is
described in the vehicles Owner’s Manual.
Improper installation or battery charging.Vehicle electrical malfunctions not covered by
your New Vehicle Limited Warranty.
Modification or improper repair of the vehicle or a
part of the vehicle.
Use of parts not equivalent in quality or design to
parts supplied by Nissan.
Environmental conditions, including, but not lim-
ited to flood, and salt spray or salt water.
2. Normal maintenance service and recharging of dis- charged batteries.
3. Batteries in service more than 84 months. 4. Salvage Title. This warranty does not cover dam-
age, failure, or corrosion to any Genuine Nissan
battery installed in the vehicle, if the vehicle is
issued a salvage or similar title under any state’s
law, and this warranty is rendered void for any
battery installed in a vehicle prior to the vehicle
being issued a salvageor similar title unless state
law expressly states otherwise. (This exclusion
does not extend to a new Genuine Nissan battery
installed in the vehicle after the issuance of a sal-
vage or similar title) .
WHAT YOU MUST DO
In order to obtain warranty service, you must deliver the
warranted battery or the vehicle in which the battery is
installed to an authorized Nissan dealer in the U.S. or
Canada at your expense, with proof of purchase (parts
invoice or service repair order from an authorized
Nissan dealer) . The names and addresses of authorized
Nissan dealers are listed in telephone directories or
www.NissanUSA.com
If thepro-rata adjustment applies, you must pay for the
portion of the 84 month warrantable life that you actually
used. The amount you pay is computed in two steps.
First, the customer pay percentage is determined from
the chart shown below based upon the months of actual
battery service.
(Continued on next page)
1 Actual warranty is provided by the dealer at time of purchase and should be read carefully. This warranty is subject to change and the applicable warranty will be that which is in effect on the date of purchase.
2 NISSAN indicates Nissan North America, Inc. PO Box 685003, Franklin, TN 37068-5003, which distributes Nissan vehicles and provides related consumer services in the United States of America.
68 REPLACEMENT BATTERY LIMITED WARRANTY1

In order to help protect your vehicle against corrosion, it
is important that you care for your vehicle regularly,
following these suggestions:
Wash your vehicle regularly using cold clean water
and a mild vehicle wash soap.
If insects, tar or other similar deposits have accumu-
lated on your vehicle, wash it as soon as possible.
If you drive on salted or dust controlled roads, or if
you drive near the ocean, hose off the under carriage
at least once a month.
It is important that the drain holes in the lower edges
of the doors and rocker panels be kept clear.
If you detect any stone chips or scratches in the
paint, touch them up immediately.
If you do much driving on gravel roads, consider
installing mud or stone shields behind each wheel.
If your Nissan is damaged due to an accident or
similar cause which destroys the paint and protec-
tive coating, have your vehicle repaired as soon as
possible. The cost of such repairs is considered the
responsibility of the owner.
This corrosion warranty does not cover non-genuine
sheet metal parts or damage caused by the installa-
tion of such non-genuine sheet metal parts.
SEE YOUR OWNER’S MANUAL FOR FURTHER DE-
TAILS.
CORROSION PROTECTION GUIDELINES 71

ROADSIDE ASSISTANCE
Included with your Nissan Vehicle purchase, Roadside
Assistance Benefits are available to you, 24 hours a day,
365 days a year, for emergency roadside assistance
should the need arise for any of the following items:
●Mechanical Breakdown
●Flat Tire
●Accident/Collision
(One-way tow, loaner vehicle not included)
●Dead Battery
●Out of Gas
●Lock-out service
HOW TO USE ROADSIDE ASSISTANCE
Should one of the disablements listed above occur,
simply call the toll free number, 1-800-647-7261and
advise the Roadside Assistance Representative of your
name, the vehicle identification number (VIN) of your
car, your location, and the nature of the problem. The
VIN can be found imprinted on a plate affixed to the
upper dashboard on the driver’s side of your vehicle.
ON-SITE AND TOWING SERVICE
Depending on the type of vehicle problem you are
experiencing, the Roadside Assistance Representative
will determine the appropriate roadside assistance ser-
vice to be dispatched. In most cases, minor disablement
services such as lock-out service, out-of-gas delivery,
battery boost, etc., can be performed on-site so that you
can be on the road again as soon as possible. There is
no charge for the dispatch of on-site or towing service.
Any charges for the replacement of keys, or non-
warranty items will be your responsibility at the time of
the repair or service. There is no charge for the towing service. Roadside Assistance will arrange to transport
the vehicle to the nearest Nissan dealer. Warranty cov-
ered repairs will be provided for under the terms of the
applicable Nissan New Vehicle Limited Warranty. How-
ever, any non-warranty or accident/collision repairs will
be your responsibility.
Note: You may be required to sign a receipt at the time
of disablement to acknowledge receipt of the Roadside
Assistance service rendered.
EMERGENCY TRAVEL EXPENSE/TRIP INTER-
RUPTION BENEFITS
If you experience a mechanical breakdown more than
100 miles from your primary residence, you may be
eligible for the following reasonable trip interruption
benefits:
●Meals
●Lodging
●Substitute transportation
●Costs to reunite the vehicle and owner, after war-
ranty repairs have been completed
The Roadside Assistance Representative, (toll free
number 1-800-647-7261will explain Emergency Travel
Expense/Trip Interruption benefits in detail and provide
authorization of appropriate benefits. In some situations
you may be required to pay for these benefits initially. If
so, the representative will provide instructions for reim-
bursement procedures. You must keep records of these
expenses and submit them upon request. Emergency
Travel Expense/Trip Interruption Benefits are not avail-
able for accident/collision and/or other non-warrantable
disablements. COVERAGE
Roadside Assistance is provided for all Nissan
vehicles from the date the vehicle is delivered to
the first retail buyer or otherwise put into use,
whichever is earlier, for a period of
36 months/36,000 miles.
Roadside Assistance is available to anyone operating
the Nissan Commercial vehicle with the authorization of
the owner. (For purpose of Roadside Assistance ben-
efits, “owner” includes the lessee of a leased vehicle.)
These services are transferable with the resale of the
vehicle for the time remaining on the original Nissan
New Vehicle Limited Warranty coverage period. Road-
side Assistance is available throughout the lower 48
States and Hawaii.
TOWING
Roadside Assistance provides towing service for a pe-
riod of 60 months/60,000 miles, (whichever comes
first) .
EXCLUSIONS
Roadside Assistance is not a warranty and is not
provided under any Nissan warranty,
but is a ser-
vice which is provided to you as part of the purchase of
a Nissan Vehicle to minimize any unforeseen vehicle
operation inconvenience. Potential liability is expressly
limited to the cost of the listed benefits and does not
extend to incidental or consequential damages such as
loss of use inconvenience, loss of pay, or commercial
loss.
(Continued on next page)
72 ROADSIDE ASSISTANCE

Roadside Assistance benefits exclude any costs related
to repairs, parts replacement, labor, etc. which are
incurred as a result of accident/collision, vehicle abuse,
racing, vandalism or other items not covered by the
Nissan New Vehicle Limited Warranty. Also excluded
are services for snow tires, repair to studs, mounting or
demounting of snow chains, and any fines, fees or taxes
which are associated with impound towing as a result of
actual or alleged violation of any laws or regulations.
AutoValet (Concierge) Service:Roadside Assis-
tance will assist you in arranging for the following ser-
vices:
●Hotel Reservations
Assistance locating emergency lodging when away
from home at a hotel that best fits your needs.
●Airline Information
Assistance obtaining flight information, e.g. flight
times and fares.
●Alternate Transportation
Assistance obtaining rental vehicles or taxi service
●Enhanced Directory Assistance
Assistance locating nearby service station. ATM,
and/or bank and provide telephone and address
information.
●Message Relay
we will attempt to contact those persons for whom
telephone numbers are provided in order to relay
messages.
All third-party cost associated with these benefits are
the customer’s responsibility.
ROADSIDE ASSISTANCE 73

The following statement is required to be pro-
vided by regulations of the California Air Re-
sources Board.
YOUR WARRANTY RIGHTS AND OBLI-
GATIONS
The California Air Resources Board is pleased to ex-
plain the emission control system warranty on your
2016 vehicle
3. In California, new motor vehicles must
be designed, built and equipped to meet the State’s
stringent anti-smog standards. Nissan
4must warrant
the emission control system on your vehicle for the
periods of time listed below provided there has been no
abuse, neglect or improper maintenance of your vehicle.
Your emission control system may include parts such as
the fuel-injection system, the ignition system, catalytic
converter and engine computer. Also included may be
hoses, belts, connectors and other emission-related
assemblies.
Where a warrantable condition exists, Nissan will repair
your vehicle at no cost to you including diagnosis, parts
and labor.
MANUFACTURER’S WARRANTY COV-
ERAGE
For 3 years or 50,000 miles (whichever occurs first):
1) If your vehicle fails a Smog Check inspec-
tion, all necessary repairs and adjustments
will be made by Nissan to ensure that your
vehicle passes the inspection. This is your
emission control system PERFORMANCE
WARRANTY.
2) If any emission-related part on your vehicle is defective, the part will be repaired or re-
placed by Nissan. This is your short-term
emission control system DEFECTS WAR-
RANTY.
For 7 years or 70,000 miles (whichever occurs first):
If an emission-related part listed in this
warranty booklet specially noted with cov-
erage for 7 years or 70,000 miles is defec-
tive, the part will be repaired or replaced by
Nissan. This is your long-term emission
control system DEFECTS WARRANTY.
OWNER’S WARRANTY RESPONSIBILI-
TIES
As the vehicle owner, you are responsible for the per-
formance of the required maintenance listed in your
Owner’s Manual. Nissan recommends that you retain all
receipts covering maintenance on your vehicle, but
Nissan cannot deny warranty solely for the lack of
receipts or for your failure to ensure the performance of
all scheduled maintenance.
You are responsible for presenting your vehicle to a
Nissan dealer as soon as a problem exists. The warranty
repairs should be completed in a reasonable amount of
time, not to exceed 30 days.
As the vehicle owner, you should also be aware that
Nissan may deny you warranty coverage if your vehicle
or a part has failed due to abuse, neglect, improper
maintenance or unapproved modifications.
If you have any questions regarding your warranty rights
and responsibilities, you should contact Nissan’s Con-
sumer Affairs Department at 1-800-NISSAN-1 (1-800-
647-7261) or the California Air Resources Board at
9528 Telstar Avenue, El Monte CA 91731.
(Continued on next page)
1 These warranties apply to all California and 50-state emission equipped 2016 model year Nissan light-duty vehicles sold for registration as new vehicles in California, Connecticut,
Delaware, Maine, Maryland, Massachusetts, New Jersey, Oregon, Pennsylvania, Rhode Island, Vermont, or Washington only. These warranties apply to all California and 50-state emission
equipped 2016 model year Nissan TITAN Diesels sold for registration as new vehicles in California, Connecticut, Delaware, Maine, Maryland, Massachusetts, Oregon, Rhode Island, and
Vermont.
2 These warranties additionally apply to all Model Year 2016 Zero Emission Vehicles (ZEVs) sold in the state of New York.
3 Throughout this Limited Emission Control Warranty, “vehicle” means a Nissan model vehicle.
4 Nissan indicates Nissan North America, Inc., P.O. Box 685003, Franklin, TN 37068-5003 which manufactures and distributes Nissan vehicles in the United States.
CALIFORNIA VEHICLE EMISSION CONTROL WARRANTIES1, 2

The following statement is required to be pro-
vided by regulations of the California Air Re-
sources Board.
YOUR WARRANTY RIGHTS AND
OBLIGATIONS
The California Air Resources Board is pleased to ex-
plain the emission control system warranty on your
2016 vehicle
3. In California, new motor vehicles must
be designed, built and equipped to meet the State’s
stringent anti-smog standards. Nissan
4must warrant
the emission control system on your vehicle for the
periods of time listed below provided there has been no
abuse, neglect or improper maintenance of your vehicle.
Your emission control system may include parts such as
the fuel-injection system, the ignition system, catalytic
converter and engine computer. Also included may be
hoses, belts, connectors and other emission-related
assemblies.
Where a warrantable condition exists, Nissan will repair
your vehicle at no cost to you including diagnosis, parts
and labor.
MANUFACTURER’S WARRANTY
COVERAGE
For 3 years or 50,000 miles (whichever occurs first):
1) If your vehicle fails a Smog Check inspec-
tion, all necessary repairs and adjustments
will be made by Nissan to ensure that your
vehicle passes the inspection. This is your
emission control system PERFORMANCE
WARRANTY.
2) If any emission-related part on your vehicle
is defective, the part will be repaired or re-
placed by Nissan. This is your short-term
emission control system DEFECTS WAR-
RANTY.
For 7 years or 70,000 miles (whichever occurs first):
If an emission-related part listed in this
warranty booklet specially noted with cov-
erage for 7 years or 70,000 miles is defec-
tive, the part will be repaired or replaced by
Nissan. This is your long-term emission
control system DEFECTS WARRANTY.
OWNER’S WARRANTY RESPONSIBILI-
TIES
As the vehicle owner, you are responsible for the per-
formance of the required maintenance listed in your
Owner’s Manual. Nissan recommends that you retain all
receipts covering maintenance on your vehicle, but
Nissan cannot deny warranty solely for the lack of
receipts or for your failure to ensure the performance of
all scheduled maintenance.
You are responsible for presenting your vehicle to a
Nissan dealer as soon as a problem exists. The warranty
repairs should be completed in a reasonable amount of
time, not to exceed 30 days.
As the vehicle owner, you should also be aware that
Nissan may deny you warranty coverage if your vehicle
or a part has failed due to abuse, neglect, improper
maintenance or unapproved modifications.
If you have any questions regarding your warranty rights
and responsibilities, you should contact Nissan’s Con-
sumer Affairs Department at 1-800-NISSAN-1 (1-800-
647-7261) or the California Air Resources Board at
9528 Telstar Avenue, El Monte CA 91731.
(Continued on next page)
1 These warranties apply to all California and 50-state emission equipped 2016 model year Nissan light-duty vehicles sold for registration as new vehicles in California, Connecticut,
Delaware, Maine, Maryland, Massachusetts, New Jersey, Oregon, Pennsylvania, Rhode Island, Vermont, or Washington only. These warranties apply toall California and 50-state emission
equipped 2016 model year Nissan TITAN XD models (Gas and Diesel) sold for registration as new vehicles in California, Connecticut, Delaware, Maine, Maryland, Massachusetts, Oregon,
Rhode Island, and Vermont.
2 These warranties additionally apply to all Model Year 2016 Zero Emission Vehicles (ZEVs) sold in the state of New York.
3 Throughout this Limited Emission Control Warranty, “vehicle” means a Nissan model vehicle.
4 Nissan indicates Nissan North America, Inc., P.O. Box 685003, Franklin, TN 37068-5003 which manufactures and distributes Nissan vehicles in the United States.
CALIFORNIA VEHICLE EMISSION CONTROL WARRANTIES1, 2
