curbing, impacts or partial bead unseating. Some fit-
ment causes for air loss are (1) incomplete bead seat-
ing, (2) bead tearing caused by a machine tool due to
insufficient lubrication or improper adjustment. Leaking
valve core or rubber valve components should be re-
placed when problems are detected and whenever tires
are replaced.
Always maintain inflation pressure at the level
recommended by the vehicle manufacturer as
shown on the vehicle placard, vehicle certifica-
tion label or in the vehicle owner’s manual:
Underinflation is the leading cause of tire failure and may
result in severe cracking, component separation or
“blowout.” It reduces tire load capacity, allows exces-
sive sidewall flexing and increases rolling resistance,
resulting in heat and mechanical damage. Maintaining
proper inflation pressure is the single most important
thing you can do to promote tire durability and maximize
tread life.
Overinflation increases stiffness, which may deteriorate
ride and generate unwanted vibration. Overinflation also
increases the chances of impact damage.
DON’T OVERLOAD YOUR VEHICLE
Check your vehicle owner’s manual to determine the
load limits. Overloading your vehicle places stress on
your tires and other critical vehicle components. Over-
loading a vehicle can cause poor handling or increased
fuel consumption and may cause tire failure. Overload-
ing your tires can result in severe cracking, component
separation or “blowout.”
Never fit your vehicle with new tires that have less load
capacity than shown on the vehicle tire placard andremember that optimum rim width is important for
proper tire load distribution and function. The maximum
load capacity stamped on the sidewalls of P-Metric &
European Metric tires is reduced by 10% when used on
a light truck, utility vehicle or trailer. Never fit P-Metric or
European Metric tires to light trucks that specify LT-type
replacement tires.
DON’T SPIN YOUR TIRES
EXCESSIVELY
Avoid excessive tire spinning when your vehicle is stuck
in snow, ice, mud or sand. The centrifugal forces gen-
erated by a free-spinning tire/wheel assembly may
cause sudden tire explosion, resulting in vehicle dam-
age and/or serious personal injury to you or a bystander.
Never exceed 35 mph/55 kph, as indicated on your
speedometer. Use a gentle backward and forward rock-
ing motion to free your vehicle for continued driving.
Never stand near or behind a tire spinning at high
speeds, for example, while attempting to push a vehicle
that is stuck or when an on-the-car spin balance ma-
chine is in use.
DO CHECK YOUR TIRES FOR WEAR
Always remove tires from service when they reach two
thirty-seconds of an inch (2/32) remaining tread depth.
All new tires have treadwear indicators which appear as
smooth banks in the tread grooves when they wear to
the two thirty-seconds of an inch (2/32) level. Many wet
weather accidents result from skidding on bald or nearly
bald tires. Excessively worn tires are also more suscep-
tible to penetrations.
DO CHECK YOUR TIRES FOR DAMAGE
Frequent (at least monthly) inspection of your tires for
signs of damage and their general condition is important
for safety. If you have any questions, have your tire
Dealer inspect them. Impacts, penetrations, cracks,
knots, bulges or air loss always require tire removal and
expert inspection. Never perform a temporary repair or
use an inner tube as a substitute for a proper repair.
Only qualified persons should repair tires.
PROPER TIRE REPAIR
NOTE: Goodyear does not warrant any inspection or
repair process. The repair is entirely the responsibility of
the repairer and should be made in accordance with
established Rubber Manufacturers Association (RMA)
procedures.
TIRE PRESSURE MONITORING
SYSTEM ALERT
Refer to your vehicle Owner’s Manual for more informa-
tion on what to do if the tire pressure warning system
activates.
THE CONVENIENCE (TEMPORARY)
SPARE
The Convenience (Temporary) Spare is designed, built
and tested to the high engineering standards set by
North America’s leading car manufacturers and to
Goodyear’s own high standards of quality control. It is
designed to take up a minimum of storage space and, at
the same time, fulfill the function of a spare tire when
needed. The spare is kept in its storage space, fully
(Continued on next page)
28
GOODYEAR/DUNLOP TIRE LIMITED WARRANTY

TIRE SPEED RATINGS
Falken recommends replacing your tire(s) with the same
speed rating as the original tires equipped on your vehicle.
It is okay to use a lower speed rated tire when using
winter tires. However, speeds should be reduced to
match the tires new “maximum” speed capability.
Any tire that is repaired, damaged, abused, altered from
its original state or retreaded voids the speed rating on
that particular tire and should be considered a non-
speed rated tire.
WARNINGSAFETY WARNING
Falken does not recommend the use of
mixing different speed ratings on a ve-
hicle. This can cause poor handling and
unpredictable steering.
HIGH PERFORMANCE, LOW ASPECT RATIO TIRES
Various new vehicles come equipped with high perfor-
mance and/or low aspect ratio tires from the factory.
These tires generally provide increased vehicle handling
characteristics, but may also have engineering perfor-
mance trade-offs related with their designs. Low aspect
ratio tires have reduced sidewall heights and may be
more vulnerable to damage from road hazards, pot-
holes, and other objects, like curbs. Your vehicle’s
wheels are susceptible to these same dangers as well.
Some vehicles may be originally equipped with high
performance tires that are designed for warmer weather
use reducing traction in colder, winter weather condi-
tions. High performance tires also pose the possibility of wearing more quickly, giving a stiffer ride, and produc-
ing louder noise than standard all-season tires during
operation. Refer to your vehicle owner’s manual, tire
information placard, or qualified tire service professional
for more information about these kinds of tires.
WINTER TIRES
Falken recommends all four tires be replaced when
replacing your original equipment tires and installing
winter tires for the winter months.
WARNING
SAFETY WARNING
Never use just two winter tires. It could
lead to adverse handling, loss of control,
which could cause serious injury or death.
STORING YOUR TIRES
When storing your tires for any extended period of time,
be sure to thoroughly clean your tires with a tire brush,
soap, and water to remove any dirt, salt, and brake dust
from the tires. If you are storing your tires still mounted
on the wheels, use a wheel brush and approved wheel
cleaner to clean your wheels. Then dry the wheels and
tires with a towel and allow them to fully dry. DO NOT
apply any tire dressings while storing your tires. Tire
compounds are made to resist weather cracking and
ozone damage. Place each clean and dry tire in an
airtight plastic bag and seal the bag with tape to help
reduce oil evaporation. Store your tires out of direct
sunlight and somewhere that is well shielded from the
elements, like a climate-controlled room or dry base-
ment. Storing the tires in a garage or shed usually
exposes the tires to a wide range of temperatures as well as precipitation and humidity. Keep the tires away
from sources that emit ozone like electric motors that
use contact brushes, furnaces, sump pumps, etc. Al-
though tires will still age regardless of how they are
stored, these precautions will help slow the aging pro-
cess and reduce the damage to your tires.
WARNING
SAFETY WARNING
Operating your vehicle in excess of the
posted speed limit or the maximum speed
allotted by driving conditions has the po-
tential to be dangerous. Higher driving
speeds create excessive heat buildup in a
tire, leading to a possible tire failure.
TIRE SPINNING
WARNING SAFETY WARNING
Spinning a tire to get a stuck vehicle out of
mud, ice, snow, sand, or wet grass can be
potentially dangerous. A spinning tire at a
speedometer reading above 55 km/h
(35 mph) can be capable of disintegrating
a tire with explosive force. In some circum-
stances, a tire may be spinning at twice
the speed displayed on the speedometer.
This can cause serious injury or death to
you, a passenger, or bystander. Never spin
a tire above 55 km/h (35 mph) .
(Continued on next page)
FALKEN TIRE LIMITED WARRANTY 53

WHEEL ALIGNMENT AND BALANCING
Wheel alignment and balancing are important for safety
and maximum mileage from your tires. Check how your
tires are wearing at least once a month. If your tires are
wearing unevenly, such as the inside shoulder of the tire
wearing faster than the rest of the tread, or if you detect
excessive vibration, your vehicle may be out of align-
ment or balance. These conditions not only shorten the
life of your tires, but adversely affect the handling char-
acteristics of your vehicle which could be dangerous. If
you detect irregular wear or vibration, have your align-
ment and balance checked immediately. Tires which
have been run underinflated will show more wear on the
shoulders than in the center of the tread.
HARD BRAKING
You must inspect your tires after any hard braking cir-
cumstances or after tires have slid on the pavement.
This can cause a flat spot in a section of the tire tread.
TIRE SPINNING
Never spin your tires above a speedometer reading of
35 mph (55 km/h) if your vehicle becomes stuck. The
centrifugal force generated by the free spinning
tire/wheel assembly may cause a sudden tire explosion,
resulting in vehicle damage and/or serious personal
injury or death. Never allow anyone to stand near or
behind a tire spinning at high speed while attempting to
push a vehicle that is stuck. When in mud, sand, snow,
ice or other slippery conditions, do not indulge in exces-
sive wheel spin. In such conditions, with automatic
transmission vehicles, by accelerating the engine ex-
cessively, it is possible to spin one of the drive tires
beyond its speed capability. This is also true when
balancing a drive tire/wheel assembly using the engine
of the vehicle to spin the wheel.
TIRE TREAD
Tires must be replaced when the depth of the tread
reaches 2/32 inch (1.6 mm) . Tires are manufactured
with tread wear indicators molded into the tire grooves
which indicate tread wearout. As tires approximate
2/32 inch (1.6 mm) wearout, the tread gauge becomes
thinner and more vulnerable to the effects of road haz-
ards. Also, worn tires are more subject to hydroplaning,
which can cause loss of control. Therefore, visual tire
inspection becomes more crucial as the tires wear out.
WORN TIRES
Never drive on worn tires. Tires should be replaced by
trained personnel when 2/32nds of an inch tread depth
remains, as indicated by the tread wear indicators
molded into the tread grooves. In most states, it is illegal
to drive with less than 2/32nds of an inch of tread
remaining.
TIRE MIXING
For best performance select tires similar in size and load
rating to the original equipment tires. It is recommended
that the same size and type of tire be used on all four wheel
positions. In certain tires, casing ply material and ply
construction may vary as indicated on the sidewall of the
tire. When changing or replacing tires, it is preferred that
all four tires are the same construction type (i.e., High
Performance, All Season, Mud & Snow) and construction
(Radial or Bias Ply) . Before mixing tires of different types
on a vehicle in any configuration, be sure to check the
vehicle Owner’s Manual for its recommendations.
Tires which meet the Rubber Manufacturer’s Associa-
tion (RMA) definition of mud and snow tires are marked
M/S, M+S, M&S. On such tires, this designation ismolded into the sidewall. Tires without this notation are
not recommended for mud and/or snow driving.
If snow tires are needed, it is necessary to select tires
equivalent in size and load rating to the original equip-
ment tires. Always fit performance snow tires in sets of
four (4) for optimum mud & snow traction and mainte-
nance of vehicle handling characteristics. If you do not,
it may adversely affect the safety and handling of your
vehicle. It is also important to check the vehicle Owner’s
Manual before mixing or matching tires on 4-wheel drive
vehicles as this may require special precautions.
Please refer to your Owner’s Manual for more informa-
tion on tire replacement precautions.
TIRE ROTATION
Tires on your Nissan vehicle should be rotated every
7,500 miles or as irregular wear develops. If irregular
wear becomes apparent or if the wear rate on the tires is
perceptibly uneven, the tires should be rotated in such a
way to alleviate the problem. Check your vehicle for any
mechanical problems and correct if necessary. Any
rotation pattern or procedure may be followed including
those indicated in the Owner’s Manual. Some tires have
arrows on the sidewall showing the direction in which
the tire should turn. When rotating this type of tire, care
must be taken to maintain the proper turning direction
as indicated by the arrows. Some vehicles have differ-
ent tire sizes specified for front and rear axles. Tires on
these vehicles should not be rotated side to side (unless
they are non-directional) . Where a temporary type
spare tire is available, it should not be included in the tire
rotation schedule. Such tires are intended for temporary
use only.
(Continued on next page)
60
IMPORTANT TIRE SAFETY INFORMATION1

WHAT IS COVERED
Nissan2warrants to correct defects in materials or
workmanship in all genuine Nissan replacement parts,
Genuine NISMO S-tune parts, and Genuine Nissan
accessories, distributed by Nissan North America in the
United States, installed and used on Nissan (if an ap-
propriate use and application of the part, accessory, or
Genuine NISMO S-tune part) vehicles only, except as
described under the caption below, WHATISNOT
COVERED.
This warranty covers any repairs needed to correct
defects in materials or workmanship. Bedliners will be
repaired to commercially acceptable standards subject
to the conditions and limitations listed in “WHAT IS
NOT COVERED.”
HOW LONG IS THE WARRANTY
Except for replacement audio components, this war-
ranty is for 12 months or 12,000 miles from the date of
installation or purchase, whichever is earlier. However,
the warranty on Genuine Nissan replacement parts,
Genuine NISMO S-tune parts, and Genuine Nissan
accessories installed during the Nissan New Vehicle
Limited Warranty will extend through, and will not end
before, the end of that original warranty. REPLACEMENT AUDIO COMPONENTS
A replacement Radio, Amplifier navigation, Bluetooth®,
control unit, or Compact Disc Player/Auto Changer
supplied by Nissan is covered for 12 months from the
time of installation or the balance of the Basic Vehicle
Warranty as it applies to audio components, whichever
is greater.
WHAT IS NOT COVERED
This warranty does not cover:
1. Tires or replacement batteries. These items are covered by separate warranties.
2. Nissan Motorsports and NISMO R-tune parts, in- cluding NISMO Legacy parts are sold “AS IS”
without warranties, express or implied unless ex-
pressly prohibited from doing so by applicable law,
in which case the warranty provided is the minimum
required by law.
3. Normal maintenance service and parts replace- ment as outlined in the maintenance schedule of
your Nissan Service & Maintenance Guide.
4. Damage or failures of parts resulting from:
Misuse (your Owner’s Manual is your guide to
proper use) .
Accident, theft, fire, driving through water result-
ing in engine water ingestion.
Chemical fallout, tree sap, salt, sand, hail, flood or
other environmental conditions
Modification or improper repair of the part or of
the vehicle in which the part is installed.
Use of parts not equivalent in quality or design to
parts supplied by Nissan.
Lack of performance of required maintenance
services as outlined in your Nissan Service &
Maintenance Guide.
Use of improper or dirty fuel, fluids or lubricants.Normal wear and tear, including dings, dents,
dents, chips or scratches.
5. SALVAGE TITLE. This warranty does not cover damage, failures or corrosion to any Nissan re-
placement part, Genuine NISMO S-Tune Part, or
Genuine Nissan Accessory, installed in the vehicle,
if the vehicle is issued a salvageor similar title
including, but not limited to junk, scrap, rebuilt, or
flood titles, under any state’s law. (This exclusion
does not extend to new Genuine Nissan replace-
ment parts, NISMO S-tune parts or Genuine
Nissan accessories, installed in a Nissan vehicle
after the issuance of a salvageor similar title.)
(Continued on next page)
1 Actual warranty is provided by the dealer at time of purchase and should be read carefully. This warranty is subject to change and the applicable warranty will be that which is in effect on
the date of purchase.
2 Nissan indicates Nissan North America, Inc., P.O. Box 685003, Franklin, TN 37068-5003 which distributes and provides consumer services for Nissan Vehicles in the United States.
LIMITED WARRANTY ON GENUINE NISSAN REPLACEMENT PARTS, GENUINE NISMO S-TUNE PARTS, AND GENUINE NISSAN ACCESSORIES163

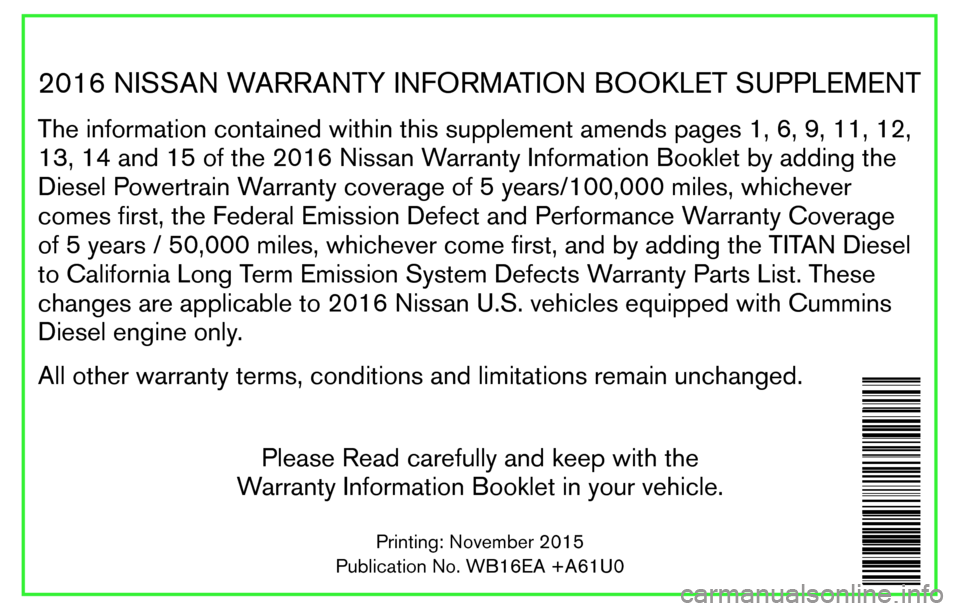

2016 NISSAN WARRANTY INFORMATION BOOKLET SUPPLEMENT
The information contained within this supplement amends pages 1, 6, 9, 11, 12,
13, 14 and 15 of the 2016 Nissan Warranty Information Booklet by adding the
Diesel Powertrain Warranty coverage of 5 years/100,000 miles, whichever
comes first, the Federal Emission Defect and Performance Warranty Coverage
of 5 years / 50,000 miles, whichever come first, and by adding the TITAN Diesel
to California Long Term Emission System Defects Warranty Parts List. These
changes are applicable to 2016 Nissan U.S. vehicles equipped with Cummins
Diesel engine only.
All other warranty terms, conditions and limitations remain unchanged.Please Read carefully and keep with the
Warranty Information Booklet in your vehicle.
Printing: November 2015
Publication No. WB16EA +A61U0

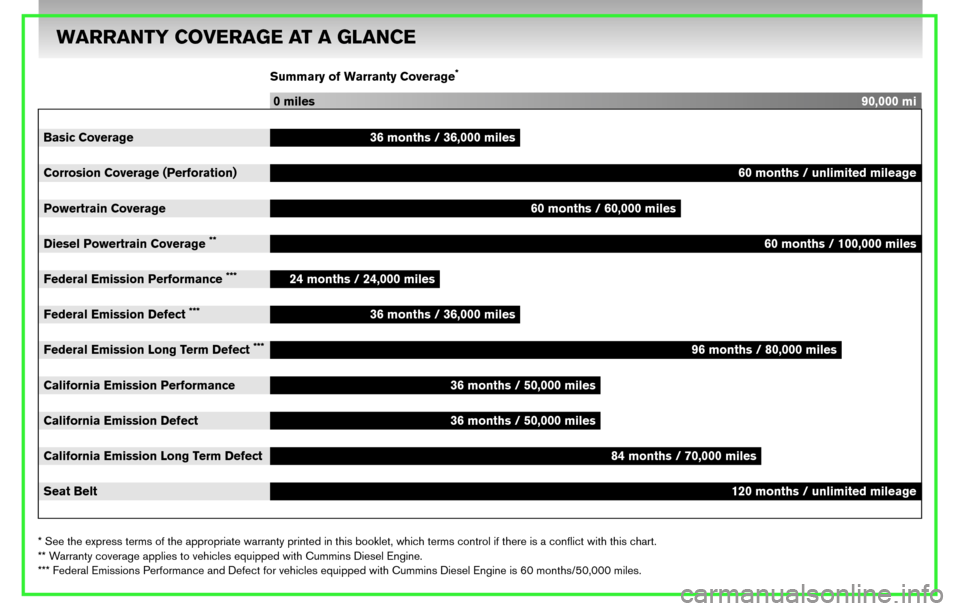

Summary of Warranty Coverage*
0 miles90,000 mi
Basic Coverage 36 months / 36,000 miles
Corrosion Coverage (Perforation) 60 months / unlimited mileage
Powertrain Coverage 60 months / 60,000 miles
Diesel Powertrain Coverage
**60 months / 100,000 miles
Federal Emission Performance
***24 months / 24,000 miles
Federal Emission Defect
***36 months / 36,000 miles
Federal Emission Long Term Defect
***96 months / 80,000 miles
California Emission Performance 36 months / 50,000 miles
California Emission Defect 36 months / 50,000 miles
California Emission Long Term Defect 84 months / 70,000 miles
Seat Belt 120 months / unlimited mileage
* See the express terms of the appropriate warranty printed in this booklet, which terms control if there is a conflict with this chart.
** Warranty coverage applies to vehicles equipped with Cummins Diesel Engine.
*** Federal Emissions Performance and Defect for vehicles equipped with Cummins Diesel Engine is 60 months/50,000 miles.
WARRANTY COVERAGE AT A GLANCE

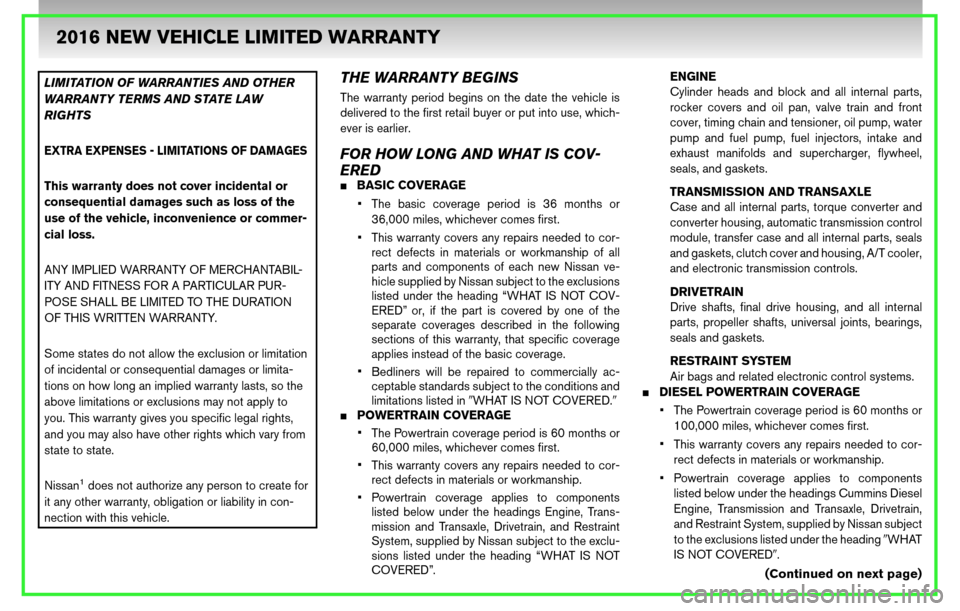

LIMITATION OF WARRANTIES AND OTHER
WARRANTY TERMS AND STATE LAW
RIGHTS
EXTRA EXPENSES - LIMITATIONS OF DAMAGES
This warranty does not cover incidental or
consequential damages such as loss of the
use of the vehicle, inconvenience or commer-
cial loss.
ANY IMPLIED WARRANTY OF MERCHANTABIL-
ITY AND FITNESS FOR A PARTICULAR PUR-
POSE SHALL BE LIMITED TO THE DURATION
OF THIS WRITTEN WARRANTY.
Some states do not allow the exclusion or limitation
of incidental or consequential damages or limita-
tions on how long an implied warranty lasts, so the
above limitations or exclusions may not apply to
you. This warranty gives you specific legal rights,
and you may also have other rights which vary from
state to state.
Nissan
1does not authorize any person to create for
it any other warranty, obligation or liability in con-
nection with this vehicle.
THE WARRANTY BEGINS
The warranty period begins on the date the vehicle is
delivered to the first retail buyer or put into use, which-
ever is earlier.
FOR HOW LONG AND WHAT IS COV-
ERED
BASIC COVERAGEThe basic coverage period is 36 months or
36,000 miles, whichever comes first.
This warranty covers any repairs needed to cor-
rect defects in materials or workmanship of all
parts and components of each new Nissan ve-
hicle supplied by Nissan subject to the exclusions
listed under the heading “WHAT IS NOT COV-
ERED” or, if the part is covered by one of the
separate coverages described in the following
sections of this warranty, that specific coverage
applies instead of the basic coverage.
Bedliners will be repaired to commercially ac-
ceptable standards subject to the conditions and
limitations listed in WHAT IS NOT COVERED.
POWERTRAIN COVERAGEThe Powertrain coverage period is 60 months or
60,000 miles, whichever comes first.
This warranty covers any repairs needed to cor-
rect defects in materials or workmanship.
Powertrain coverage applies to components
listed below under the headings Engine, Trans-
mission and Transaxle, Drivetrain, and Restraint
System, supplied by Nissan subject to the exclu-
sions listed under the heading “WHAT IS NOT
COVERED”. ENGINE
Cylinder heads and block and all internal parts,
rocker covers and oil pan, valve train and front
cover, timing chain and tensioner, oil pump, water
pump and fuel pump, fuel injectors, intake and
exhaust manifolds and supercharger, flywheel,
seals, and gaskets.
TRANSMISSION AND TRANSAXLE
Case and all internal parts, torque converter and
converter housing, automatic transmission control
module, transfer case and all internal parts, seals
and gaskets, clutch cover and housing, A/T cooler,
and electronic transmission controls.
DRIVETRAIN
Drive shafts, final drive housing, and all internal
parts, propeller shafts, universal joints, bearings,
seals and gaskets.
RESTRAINT SYSTEM
Air bags and related electronic control systems.
DIESEL POWERTRAIN COVERAGEThe Powertrain coverage period is 60 months or
100,000 miles, whichever comes first.
This warranty covers any repairs needed to cor-
rect defects in materials or workmanship.
Powertrain coverage applies to components
listed below under the headings Cummins Diesel
Engine, Transmission and Transaxle, Drivetrain,
and Restraint System, supplied by Nissan subject
to the exclusions listed under the heading WHAT
IS NOT COVERED.
(Continued on next page)
2016 NEW VEHICLE LIMITED WARRANTY

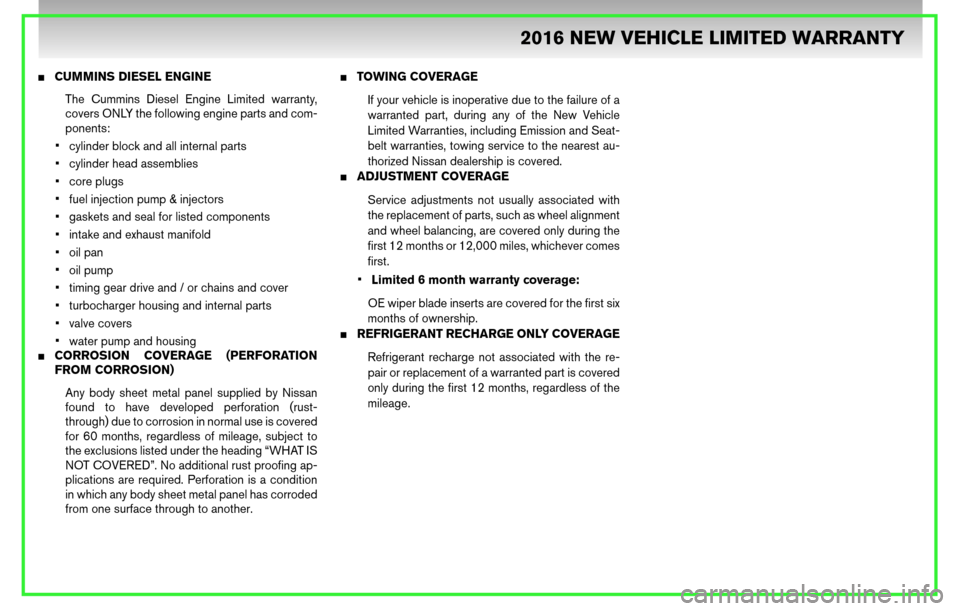

CUMMINS DIESEL ENGINEThe Cummins Diesel Engine Limited warranty,
covers ONLY the following engine parts and com-
ponents:
cylinder block and all internal partscylinder head assembliescore plugsfuel injection pump & injectorsgaskets and seal for listed componentsintake and exhaust manifoldoil panoil pumptiming gear drive and / or chains and coverturbocharger housing and internal partsvalve coverswater pump and housingCORROSION COVERAGE (PERFORATION
FROM CORROSION)
Any body sheet metal panel supplied by Nissan
found to have developed perforation (rust-
through) due to corrosion in normal use is covered
for 60 months, regardless of mileage, subject to
the exclusions listed under the heading “WHAT IS
NOT COVERED”. No additional rust proofing ap-
plications are required. Perforation is a condition
in which any body sheet metal panel has corroded
from one surface through to another.
TOWING COVERAGE
If your vehicle is inoperative due to the failure of a
warranted part, during any of the New Vehicle
Limited Warranties, including Emission and Seat-
belt warranties, towing service to the nearest au-
thorized Nissan dealership is covered.
ADJUSTMENT COVERAGEService adjustments not usually associated with
the replacement of parts, such as wheel alignment
and wheel balancing, are covered only during the
first 12 months or 12,000 miles, whichever comes
first.
Limited 6 month warranty coverage:
OE wiper blade inserts are covered for the first six
months of ownership.
REFRIGERANT RECHARGE ONLY COVERAGE Refrigerant recharge not associated with the re-
pair or replacement of a warranted part is covered
only during the first 12 months, regardless of the
mileage.
2016 NEW VEHICLE LIMITED WARRANTY
