Page 17 of 469

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual QR25DE engine
1. Windshield-washer fluid reservoir(P. 8-16)
2. Fuse/Fusible link box (P. 8-25)
3. Fuse and relay box (P. 8-25)
4. Air cleaner (P. 8-21)
5. Engine oil filler cap (P. 8-11)
6. Engine oil

Page 18 of 469

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual VQ40DE engine
1. Windshield-washer fluid reservoir(P. 8-16)
2. Fuse/Fusible link box (P. 8-25)
3. Fuse and relay box (P. 8-25)
4. Engine oil filler cap (P. 8-11)
5. Engine oil dipstick (P. 8-11)
6. Br

Page 380 of 469

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual QR25DE engine
1. Windshield-washer fluid reservoir
2. Fuse/Fusible link box
3. Fuse and relay box
4. Air cleaner
5. Engine oil filler cap
6. Engine oil dipstick
7. Brake and clutch (if so equipped) fl

Page 381 of 469

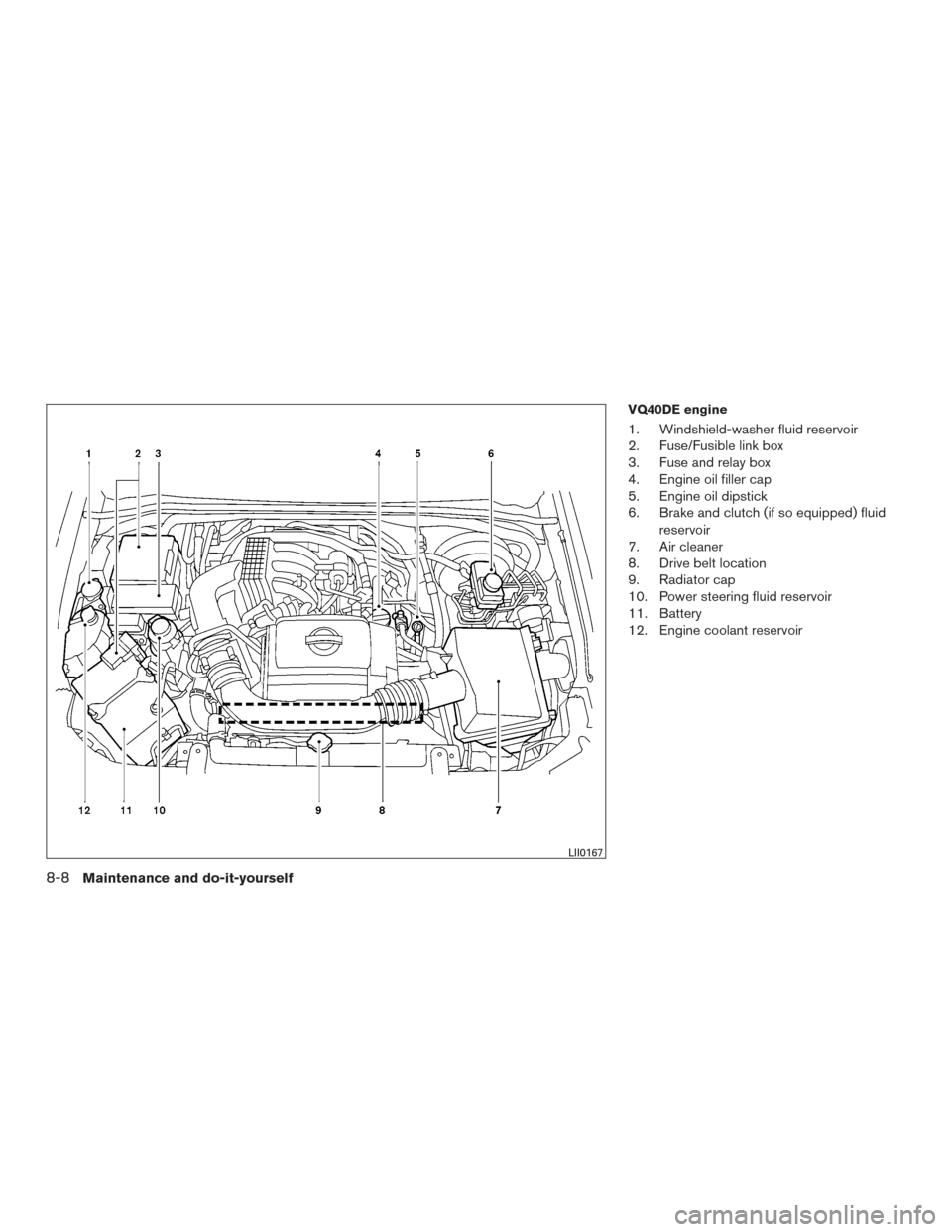

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual VQ40DE engine
1. Windshield-washer fluid reservoir
2. Fuse/Fusible link box
3. Fuse and relay box
4. Engine oil filler cap
5. Engine oil dipstick
6. Brake and clutch (if so equipped) fluidreservoir
7.

Page 398 of 469

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual Proper brake inspection intervals should
be followed.For additional information regard-
ing brake inspections, refer to the appropriate
maintenance schedule information in the
“NISSAN Service and Ma

Page 399 of 469

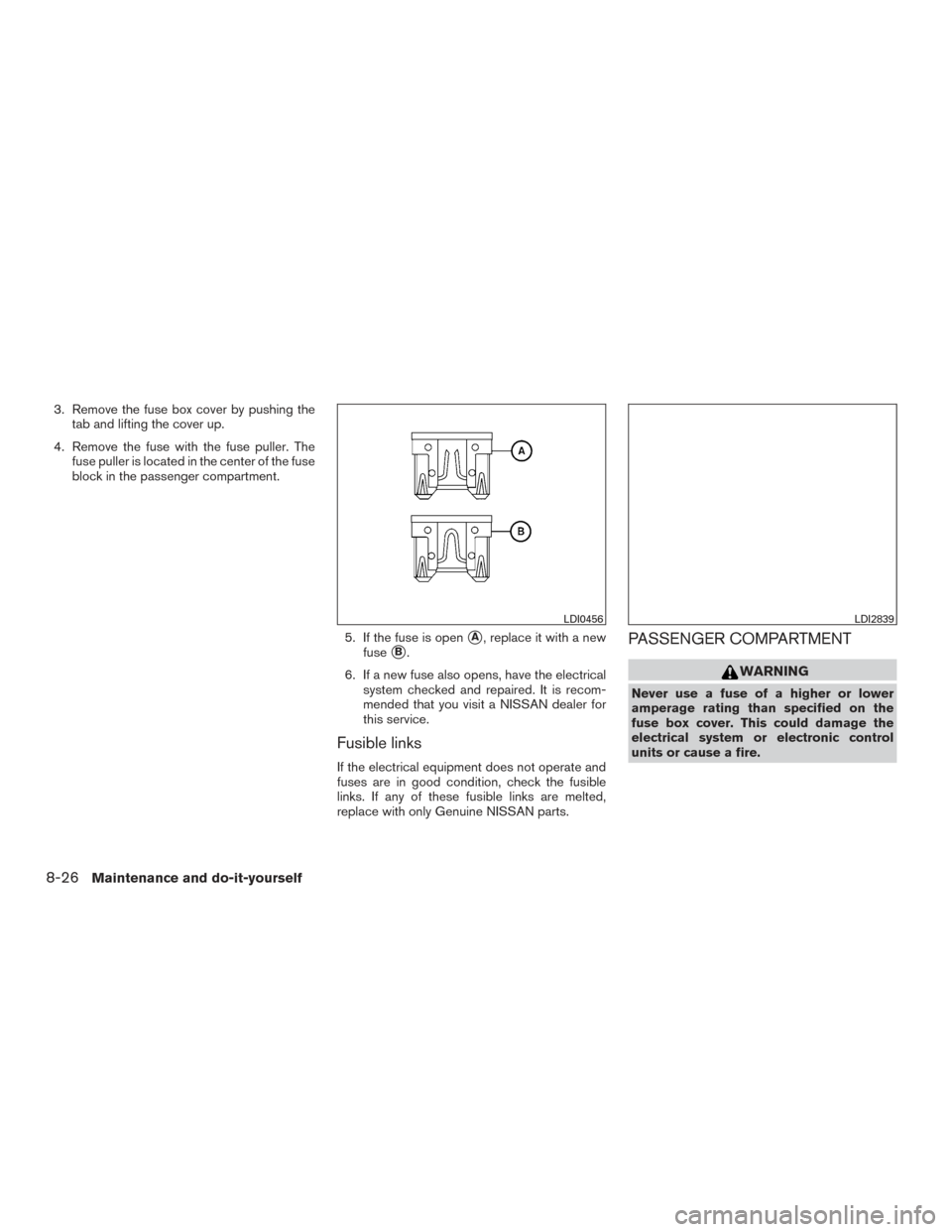

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual 3. Remove the fuse box cover by pushing thetab and lifting the cover up.
4. Remove the fuse with the fuse puller. The fuse puller is located in the center of the fuse
block in the passenger compartmen

Page 400 of 469

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual If any electrical equipment does not operate,
check for an open fuse.1. Be sure the ignition switch and the headlight switch are OFF.
2. Pull the fuse box cover to remove.
3. Remove the fuse with the

Page 401 of 469

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual How to replace the extended storage switch:1. To remove the extended storage switch, be sure the ignition switch is in the OFF or
LOCK position.
2. Be sure the headlight switch is in the OFF position.
