Outside (Front)E001005069531. Engine compartment p. 11-14Bonnet p. 10-03
2. Windscreen wiper and washer p. 5-44
3. Rain sensor* p. 5-45
4. Camera (for Automatic high-beam system)* p. 5-36
5. Sunroof* p. 3-19
6. Electric window control p. 3-16
7. Rear side/quarter window p. 3-18 Antenna p. 7-50
8. Locking and unlocking p. 3-06 Keyless entry system* p. 3-03
9. Outside rear-view mirrors p. 6-09 Approach lamps* p. 3-08
10. Side turn-signal lamps* p. 5-42
11. Front turn-signal lamps p. 5-42, 10-25, 10-28
12. Position lamps* p. 5-34, 10-25, 10-28
13. Headlamps p. 5-34, 10-25, 10-26
14. Front fog lamps* p. 5-43, 10-25, 10-28
15. Position and Daytime running lamps* p. 5-34, 5-35 10-25
16. Headlamp washer* p. 5-48
Outside (Front)
1-09OVWE16E1Overview1

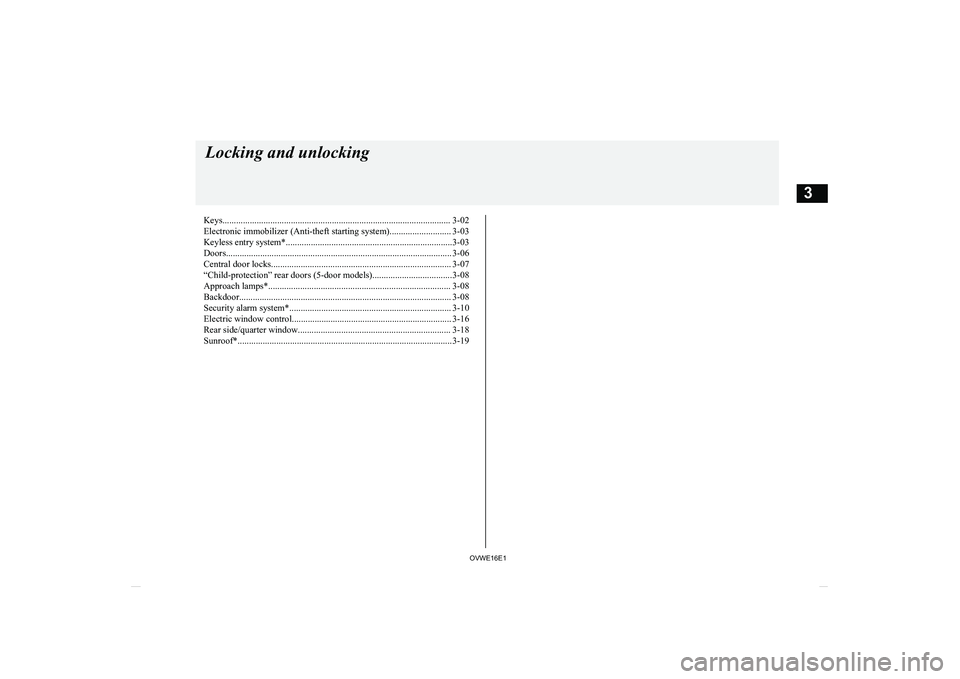

Keys.................................................................................................... 3-02Electronic immobilizer (Anti-theft starting system)........................... 3-03
Keyless entry system*.........................................................................3-03
Doors................................................................................................... 3-06
Central door locks............................................................................... 3-07
“Child-protection” rear doors (5-door models)...................................3-08
Approach lamps*................................................................................ 3-08
Backdoor............................................................................................. 3-08 Security alarm system*....................................................................... 3-10
Electric window control...................................................................... 3-16
Rear side/quarter window................................................................... 3-18
Sunroof*.............................................................................................. 3-19Locking and unlocking
OVWE16E13

Electronic immobilizer(Anti-theft starting system) E00300203111
The electronic immobilizer has been de- signed to significantly reduce the possibility
of vehicle theft. The purpose of the system is to immobilize the vehicle if an invalid start is
attempted. A valid start attempt can only be achieved by using a key “registered” to the immobilizer system.NOTEl In the following cases, the vehicle may not
be able to receive the registered ID code from the registered key and the engine may
not start.
• When the key contacts a key ring or other
metallic or magnetic object.
• When the key grip contacts metal of an-
other key.
• When the key contacts or is close to other
immobilizing keys (including keys of oth-er vehicles).
In cases like these, remove the object or ad-
ditional key from the vehicle key. Then try again to start the engine. If the engine does
not start, we recommend you to contact your MITSUBISHI MOTORS Authorized Serv-
ice Point.
l Electronic immobilizer is not compatible
with remote starting systems. Use of these systems may result in vehicle starting prob-lems and a loss of security protection.NOTEl If you lose your key, order a key from your
MITSUBISHI MOTORS Authorized Serv-
ice Point as soon as possible. To obtain a re- placement or extra spare key, take your vehi-
cle and all remaining keys to your MITSUBISHI MOTORS Authorized Serv-
ice Point. All the keys have to be re-regis- tered in the immobilizer computer unit. The immobilizer can register up to 8 different
keys for use.CAUTIONl Don’t make any alterations or additions to
the immobilizer system; alterations or addi-tions could cause failure of the immobilizer.Keyless entry system*
E00300303789
Press the remote control switch, and all doors (including the backdoor) will be locked or
unlocked as desired. It is also possible to op- erate the outside rear-view mirrors.
1- LOCK switch
2- UNLOCK switch
To lock
Press the LOCK switch (1), and all doors (in- cluding the backdoor) will be locked. Whenthey are locked with the room lamp switch at the middle position (DOOR), the room lamp
and the turn-signal lamps blink once.
Electronic immobilizer (Anti-theft starting system)
3-03OVWE16E1Locking and unlocking3

To unlock
Press the UNLOCK switch (2), and all doors(including the backdoor) will be unlocked.
When they are unlocked with the room lamp
switch at the middle position (DOOR), the room lamp will be turned on for approxi- mately 15 seconds and the turn-signal lamps
will blink twice.
NOTEl If the UNLOCK switch (2) is pressed and no
door (including the backdoor) is opened within approximately 30 seconds: relockingwill automatically occur.
l It is possible to modify functions as follows:
For further information, please contact your
MITSUBISHI MOTORS Authorized Serv-
ice Point.
• The time for automatic relocking can be
changed.
• The confirmation function (blinking of
the turn-signal lamps) can be set to oper-ate only when the doors and backdoor are locked or only when the doors and back-
door are unlocked.
• The confirmation function (this indicates
locking or unlocking of the doors and backdoor with the blink of the turn-signal
lamps) can be deactivated.
• The number of times the turn-signal
lamps are flashed by the confirmation function can be changed.Operation of the outside rear-
view mirrors
To fold
Within 30 seconds of locking the doors and backdoor using the LOCK switch (1), pressthe LOCK switch twice rapidly to fold the
outside rear-view mirrors.
To extend
Within 30 seconds of unlocking the doors
and backdoor using the UNLOCK switch (2), press the UNLOCK switch twice rapidly to
return the outside rear-view mirrors to their
extended positions.
NOTEl The keyless entry system does not operate in
the following conditions:
• The key is left in the key cylinder.
• The door (including the backdoor) is
open.
l The remote control switch will operate with-
in approximately 4 m from the vehicle.
However, the operating range of the remote control switch may change if the vehicle is
located near a power station, or radio/TV broadcasting station.NOTEl If the remote control switch is operated at
the correct distance from the vehicle, but thedoors (including the backdoor) are not
locked/unlocked in response, the battery may be exhausted.
For further information, please consult your
MITSUBISHI MOTORS Authorized Serv-
ice Point.
If you replace the battery yourself, refer to “Procedure for replacing the remote control
switch battery” on page 3-04.
l If your remote control switch is lost or dam-
aged, please contact your MITSUBISHI
MOTORS Authorized Service Point for a re-
placement remote control switch.
l If you wish to add a remote control switch,
we recommend you to contact your
MITSUBISHI MOTORS Authorized Serv-
ice Point.
A maximum of 4 remote control switches
are available for your vehicle.Procedure for replacing the re-
mote control switch battery
E00309501298
WARNINGl Danger of explosion if battery is incor-
rectly replaced.
Replace only with the same battery or an equivalent type.
Keyless entry system*
3-04OVWE16E1Locking and unlocking3

CAUTIONlNever disassemble or remove any inside
parts of the keyless entry key other than de-
scribed below.
Because there is a possibility that it may be-
come impossible to reassemble.
l When the remote control switch case is
opened, be careful to keep water, dust, etc. out.NOTEl You may purchase a replacement battery at
an electric appliance store.
l A
MITSUBISHI MOTORS Authorized
Service Point can replace the battery for you
if you prefer.
1. Before replacing the battery, remove
static electricity from your body by touching a metal part such as doorknob
of the room.
2. With the MITSUBISHI mark facing
you, insert the cloth-covered tip of a
straight blade (or minus) screwdriver in-
to the notch in the remote control switch case and use it to open the case.NOTEl Be sure to perform the procedure with the
MITSUBISHI mark facing you. If the
MITSUBISHI mark is not facing you when
you open the remote control switch case, the switches may come out.3. Remove the remote control transmitter
from the remote control switch case.
4. Open the remote control transmitter by
using a minus screwdriver as shown in the illustration.
5. Remove the old battery.
Keyless entry system*
3-05OVWE16E1Locking and unlocking3

6.Install a new battery with the + side (A)
down.
7. Close the remote control transmitter
firmly.
8. Place the remote control transmitter in
the remote control switch case, then se- curely close the remote control switch case.
9. Check the keyless entry system to see
that it works.
Doors
E00300401177CAUTIONlMake sure the doors are closed: driving with
doors not completely closed is dangerous.
l Never leave children in the vehicle unatten-
ded.CAUTIONl Be careful not to lock the doors while the
key is inside the vehicle.
To lock or unlock with the key
1- Lock
2- Unlock
To lock or unlock from inside
the vehicle
1- Lock
2- Unlock
Pull the inside door handle towards you to
open the door.
To lock without using the key
Front door
Doors
3-06OVWE16E1Locking and unlocking3+ side
- side
Coin type battery
CR1616

Set the inside lock knob (1) to the locked po-
sition, and while pulling the outside handle up (2), close the door (3).
Rear door (5-door models)
Set the inside lock knob (1) to the locked po-
sition, and close the door (2).
“Forgotten-key-prevention”
mechanism
E00300600273
If the key is in the ignition switch when you push the lock knob forward with the driver’s
door open, the lock knob will automatically return to the unlocked position.
Central door locks
E00300801692NOTElEach of the doors can be locked or unlocked
independently by using the inside lock knob.
l Repeated continuous operation between lock
and unlock could activate the central door
locking systems built-in protection circuit
and prevent the system from operating.
If this occurs, wait approximately 1 minute before operating the central door lock switch
or the key.
Driver’s door with key (except
for vehicles with keyless entrysystem)
Using the key on the driver’s door locks or unlocks all doors (including the backdoor).
1- Lock
2- Unlock
Driver’s door with central door
lock switch
Using the central door lock switch locks or unlocks all doors (including the backdoor).
1- Lock
2- Unlock
Central door locks
3-07OVWE16E1Locking and unlocking3

“Child-protection” reardoors (5-door models) E00300900869
1- Lock
2- Unlock
Child protection helps prevent the rear doors
from being opened accidentally from the in- side.
If the lever is set to the locked position, the
rear door cannot be opened using the inside handle, but only with the outside handle.
If the lever is set to the “Unlock” position,
the child protection mechanism does not
function.
CAUTIONl When driving with a child in the rear seat,
please use the child protection to prevent ac-
cidental door opening which may cause an accident.Approach lamps*
E00306100195
The lamps (A) in the bottom of each mirror
come on to illuminate road surface while people are entering or exiting the vehicle.
These lamps turn on/off as follows:
l The lamps come on for approximately
15 seconds when all of the doors (in- cluding the backdoor) are unlocked us-
ing the central door lock function or the keyless entry system (if so equipped).
l When any door or the backdoor is
opened, the lamp comes on for approxi-
mately 2 minutes.
If all of the doors (including the back- door) are closed while the lamps are on,
the lamps go off 30 seconds later.NOTEl The lamps go off immediately if any of the
following actions is taken while the lampsare on.
• The ignition switch is turned to the “ON”
position.
• All of the doors (including the backdoor)
are locked using the central door lock function.
• All of the doors (including the backdoor)
are locked using the keyless entry system
(if so equipped).Backdoor
E00301300424WARNINGlIt is dangerous to drive with the backdoor
open since carbon monoxide (CO) gas can
enter the cabin. You cannot see or smell CO. It can cause unconsciousness and
even death.
“Child-protection” rear doors (5-door models)
3-08OVWE16E1Locking and unlocking3
