Replacement of light bulbs 9-36 Vehicle care and maintenance
9

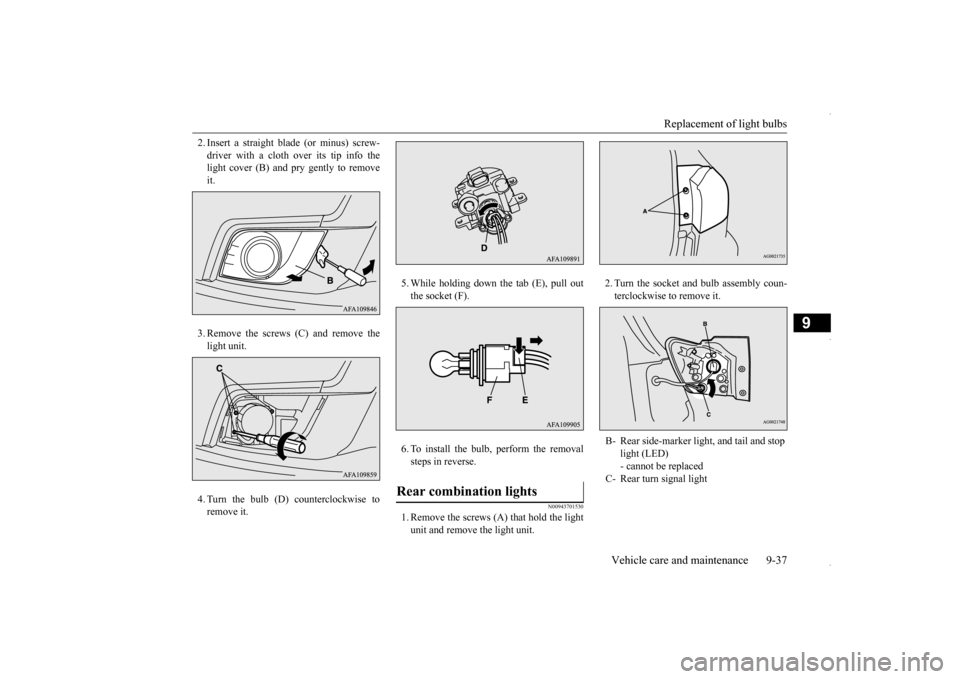

4. While holding down the tab (E), pull out the socket (F).
5. Turn the bulb (G) counterclockwise to remove it. 6. To install the bulb, perform the removal steps in reverse.
N00900301155

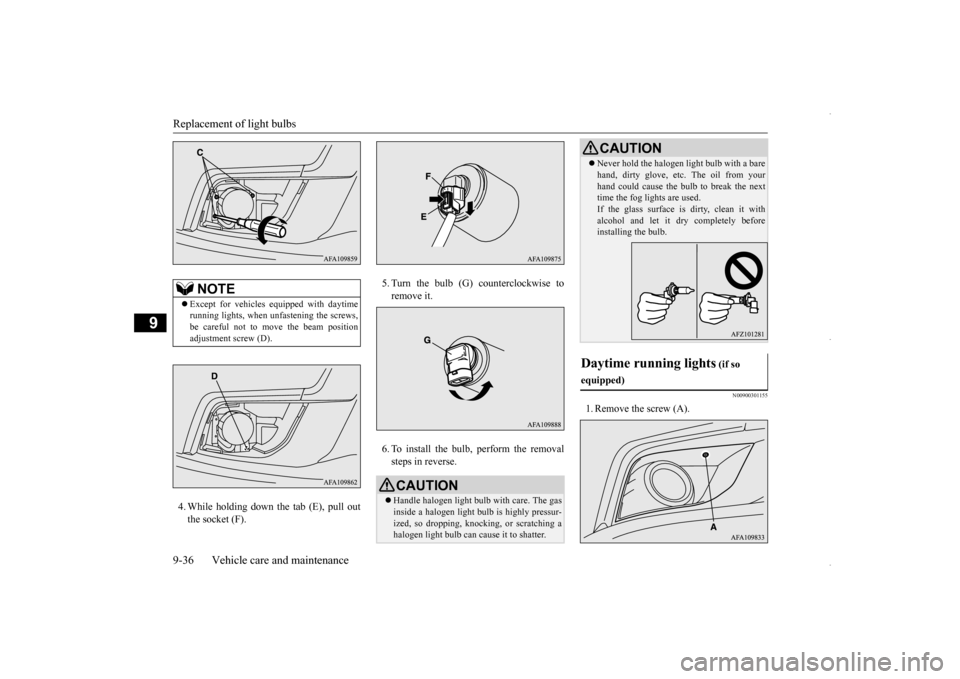

1. Remove the screw (A).
NOTE
 Except for vehicles equipped with daytime running lights, when unfastening the screws, be careful not to move the beam position adjustment screw (D).
CAUTION Handle halogen light bulb with care. The gas inside a halogen light bulb is highly pressur- ized, so dropping, knocking, or scratching ahalogen light bulb can cause it to shatter.
 Never hold the halogen light bulb with a bare hand, dirty glove, etc. The oil from your hand could cause the bulb to break the next time the fog lights are used. If the glass surface is dirty, clean it withalcohol and let it dry completely before installing the bulb.
Daytime running lights
(if so
equipped)
CAUTION
BK0229600US.bo
ok 36 ページ ２０１５年１０月１日　木曜日　午後２時２９分

Replacement of light bulbs
Vehicle care and maintenance 9-37
9
2. Insert a straight blade (or minus) screw- driver with a cloth over its tip info the light cover (B) and pry gently to remove it. 3. Remove the screws (C) and remove the light unit. 4. Turn the bulb (D) counterclockwise to remove it.
5. While holding down the tab (E), pull out the socket (F). 6. To install the bulb, perform the removal steps in reverse.
N00943701530

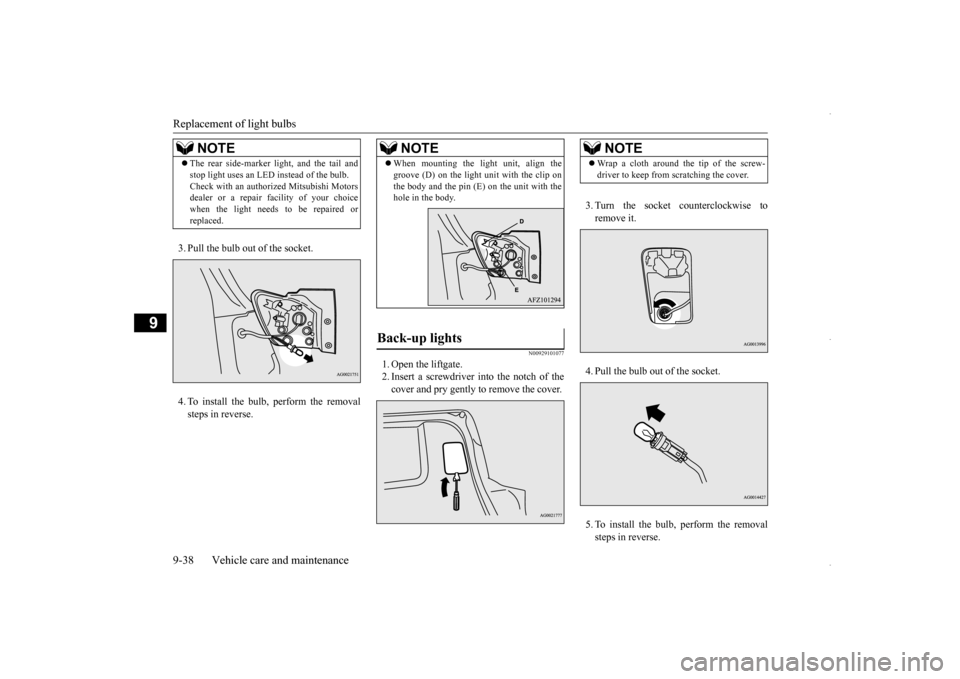

1. Remove the screws (A) that hold the light unit and remove the light unit.
2. Turn the socket and bulb assembly coun- terclockwise to remove it.
Rear combination lights
B- Rear side-marker light, and tail and stop
light (LED) - cannot be replaced
C- Rear turn signal light
BK0229600US.bo
ok 37 ページ ２０１５年１０月１日　木曜日　午後２時２９分

Replacement of light bulbs 9-38 Vehicle care and maintenance
9
3. Pull the bulb out of the socket. 4. To install the bulb, perform the removal steps in reverse.
N00929101077

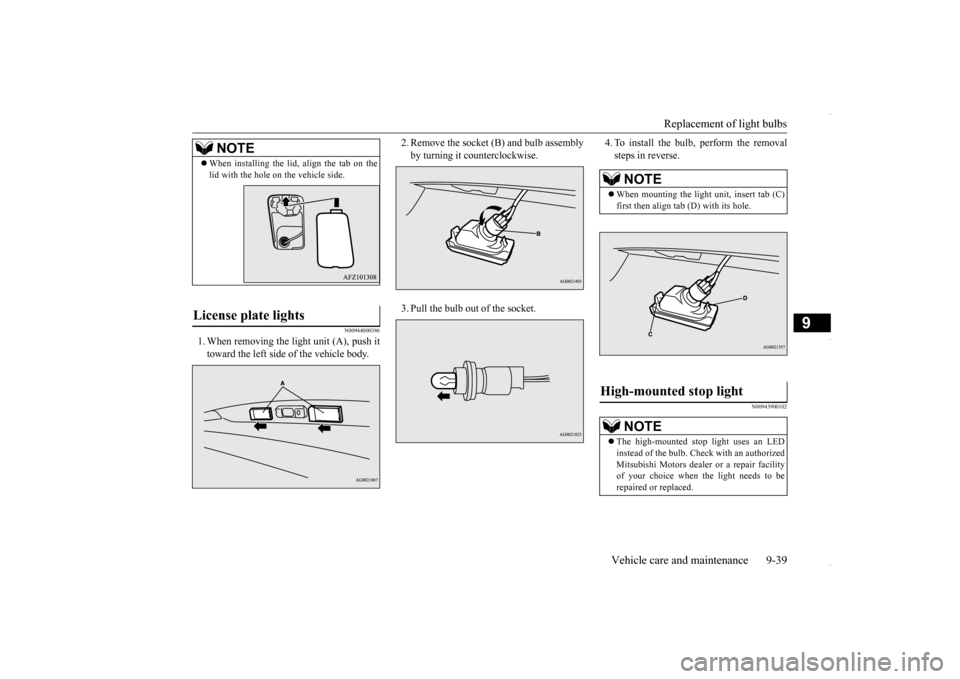

1. Open the liftgate. 2. Insert a screwdriver into the notch of the cover and pry gently to remove the cover.
3. Turn the socket counterclockwise to remove it. 4. Pull the bulb out of the socket. 5. To install the bulb, perform the removal steps in reverse.
NOTE
 The rear side-marker light, and the tail and stop light uses an LED instead of the bulb. Check with an authorized Mitsubishi Motors dealer or a repair facility of your choice when the light needs to be repaired orreplaced.
NOTE
 When mounting the light unit, align the groove (D) on the light unit with the clip on the body and the pin (E) on the unit with the hole in the body.
Back-up lights
NOTE
 Wrap a cloth around the tip of the screw- driver to keep from scratching the cover.
BK0229600US.bo
ok 38 ページ ２０１５年１０月１日　木曜日　午後２時２９分

Replacement of light bulbs
Vehicle care and maintenance 9-39
9
N00944000386
1. When removing the light unit (A), push it toward the left side of the vehicle body.
2. Remove the socket (B) and bulb assembly by turning it counterclockwise. 3. Pull the bulb out of the socket.
4. To install the bulb, perform the removal steps in reverse.
N00943900102
NOTE
 When installing the lid, align the tab on the lid with the hole on the vehicle side.
License plate lights
NOTE
 When mounting the light unit, insert tab (C) first then align tab (D) with its hole.
High-mounted stop light
NOTE
 The high-mounted stop light uses an LED instead of the bulb. Check with an authorized Mitsubishi Motors dealer or a repair facility of your choice when the light needs to berepaired or replaced.
