ScreenCauseSolution (Reference)lCharging was interrupted due to poor con-
nection of the charge cable or power fail- ure.l Connect the charge cable correctly.
Refer to “Normal charging” on page 3-10.
Refer to “Quick charging” on page 3-16.
l If charging is interrupted due to a power
failure, charging will be automatically re-sumed when the power is restored.l The drive battery temperature is too cold.l When the vehicle is under running, stop
the vehicle in a safe place and contact a MITSUBISHI MOTORS Authorized
Service Point.
l When the vehicle is parked during the
daytime, wait for the outside temperature to rise and re-start the Plug-in hybrid sys-tem once the outside temperature has ris-
en.
Refer to “Cautions and actions to deal with intense cold” on page 2-10.l Charging lid is open.l Close the charge lid.
Refer to “Charging from rated AC
220-240 V outlet” on page 3-12.l You have forgotten to turn off the lamps.l Refer to “Lamps (headlamps, fog lamp,
etc.) auto-cutout function” on page 6-47.
Indication lamp, warning lamp, and information screen display list
6-25OGGE16E1Instruments and controls6

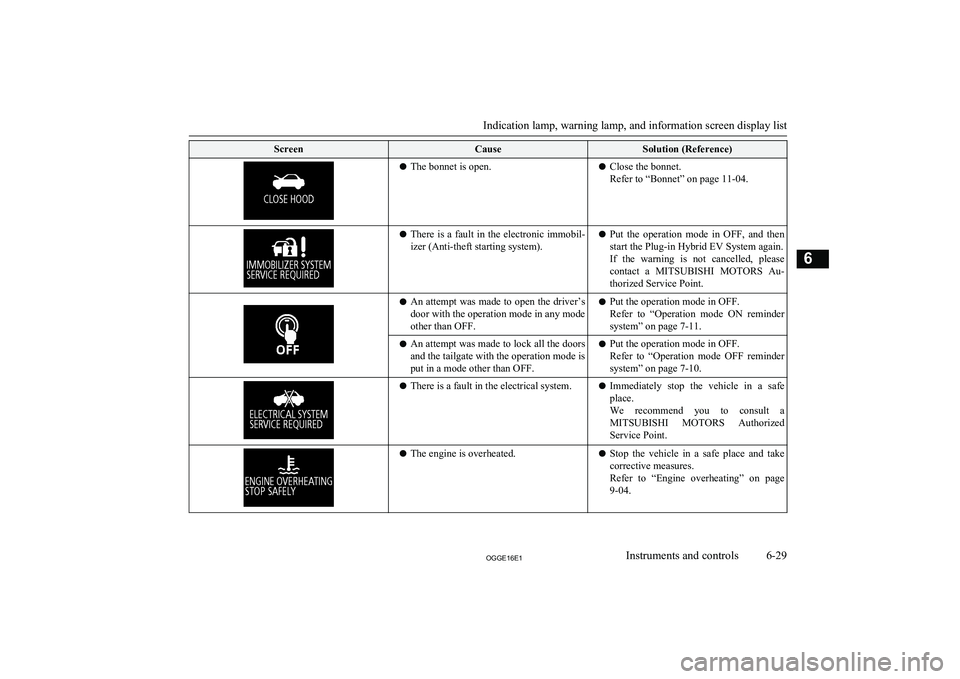

ScreenCauseSolution (Reference)lThe bonnet is open.lClose the bonnet.
Refer to “Bonnet” on page 11-04.l There is a fault in the electronic immobil-
izer (Anti-theft starting system).l Put the operation mode in OFF, and then
start the Plug-in Hybrid EV System again.If the warning is not cancelled, please
contact a MITSUBISHI MOTORS Au-
thorized Service Point.l An attempt was made to open the driver’s
door with the operation mode in any mode
other than OFF.l Put the operation mode in OFF.
Refer to “Operation mode ON reminder system” on page 7-11.l An attempt was made to lock all the doors
and the tailgate with the operation mode is
put in a mode other than OFF.l Put the operation mode in OFF.
Refer to “Operation mode OFF reminder system” on page 7-10.l There is a fault in the electrical system.l Immediately stop the vehicle in a safe
place.
We recommend you to consult a
MITSUBISHI MOTORS Authorized
Service Point.l The engine is overheated.lStop the vehicle in a safe place and take
corrective measures.
Refer to “Engine overheating” on page 9-04.
Indication lamp, warning lamp, and information screen display list
6-29OGGE16E1Instruments and controls6

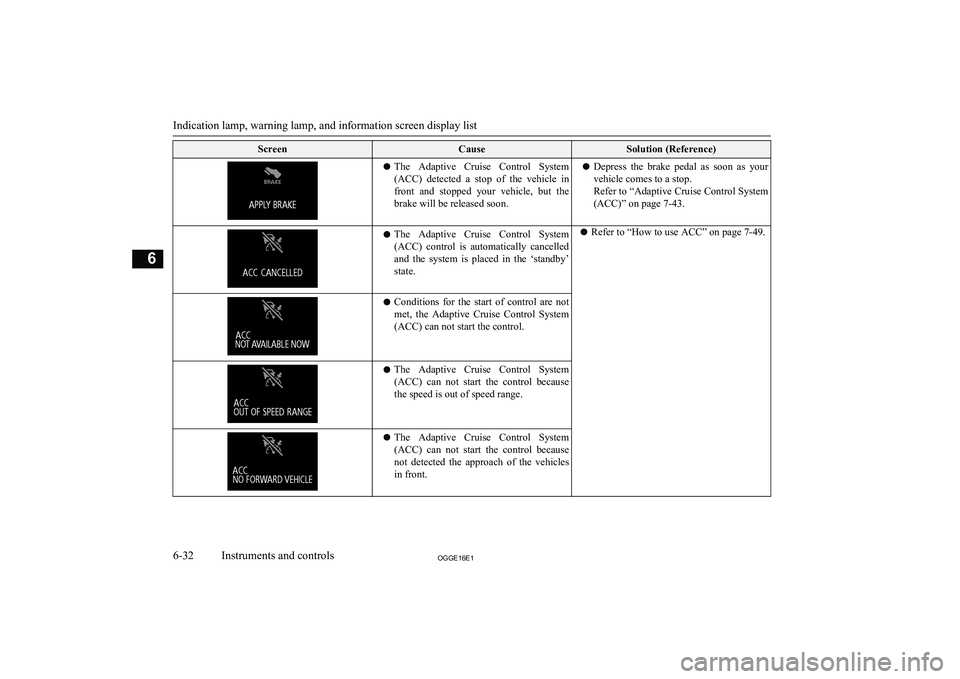

ScreenCauseSolution (Reference)lThe Adaptive Cruise Control System
(ACC) detected a stop of the vehicle infront and stopped your vehicle, but the
brake will be released soon.l Depress the brake pedal as soon as your
vehicle comes to a stop.
Refer to “Adaptive Cruise Control System
(ACC)” on page 7-43.l The Adaptive Cruise Control System
(ACC) control is automatically cancelled
and the system is placed in the ‘standby’
state.l Refer to “How to use ACC” on page 7-49.lConditions for the start of control are not
met, the Adaptive Cruise Control System (ACC) can not start the control.l The Adaptive Cruise Control System
(ACC) can not start the control because
the speed is out of speed range.l The Adaptive Cruise Control System
(ACC) can not start the control because
not detected the approach of the vehicles in front.
Indication lamp, warning lamp, and information screen display list
6-32OGGE16E1Instruments and controls6

Other interrupt displays
E00524202080
ScreenSystem operation statusReferencelWhen you pressed the power switch and
the operation mode become the ACC
without depress the brake pedal, this
screen is displayed.
This screen will be displayed repeatedly at regular intervals while the operation mode of the power switch is put in ACC.l Place the select position in the “P” (PARK)
position, depress the brake pedal more
firmly than usual with the right foot. Then,
press the power switch.
Refer to “Starting and stopping the Plug-in Hybrid EV System” on page 7-11.l When Plug-in Hybrid EV System does
not start even if the operation mode of the power switch is put in ON, this screen is displayed.l When starting the Plug-in Hybrid EV Sys-
tem, you pressed the power switch with- out select position in the “P” (PARK) po-
sition.l Place the select position in the “P”
(PARK) position by pressing the electrical
parking switch, depress the brake pedal more firmly than usual with the right foot.
Then, press the power switch.
Refer to “Starting and stopping the Plug- in Hybrid EV System” on page 6-36.l Driving power is restricted by the safety
system as the Plug-in Hybrid EV System
has become too hot or too cold.l You do not have to take any actions. The
restriction on the driving power will be re- leased when the Plug-in Hybrid EV Sys- tem returns to the normal temperature.
Indication lamp, warning lamp, and information screen display list
6-38OGGE16E1Instruments and controls6

ScreenSystem operation statusReferencelIf the vehicle had not been refueled about
15 litres or more at one time for threemonths, the engine starts automatically
for the maintenance of the engine or the fuel system components.
This display may appear frequently de-
pending on the use conditions of your ve- hicle such as when fuel has been staying
in the fuel tank for a long time.
When the engine is running, this display shows the state where the drive battery is
charged, and the battery charge mode dis-
play (
) is displayed.
But the drive battery will not be full charge.
l Refill the 15 litres more at one time. This
display and battery charge mode display will disappear, and the engine will stop.
If the fuel remaining display will be be-
low half, you can refill the fuel more than 15 litres certainly.
l If you cannot refill the fuel due to large
amount of the remaining fuel, operate the
vehicle without the normal charging or the quick charging.l The accelerator pedal has been depressed
when the select position is in the “N”
(NEUTRAL) position.l When you start the vehicle, be sure to
check the select position indicator and make sure the select position is in the “D”(DRIVE) or “R” (REVERSE) position.
Then, please depress the accelerator ped-
al.
Refer to “Select Position indicator” on page 7-14.l The selector lever has been operated when
the select position is in “P” (PARK) posi-
tion and the brake pedal is not depressed.l Operate the selector lever while depressed
firmly on the brake pedal.
The operation status of each system is displayed on the information screen. Refer to the appropriate page for the system for further details.
Indication lamp, warning lamp, and information screen display list
6-39OGGE16E1Instruments and controls6

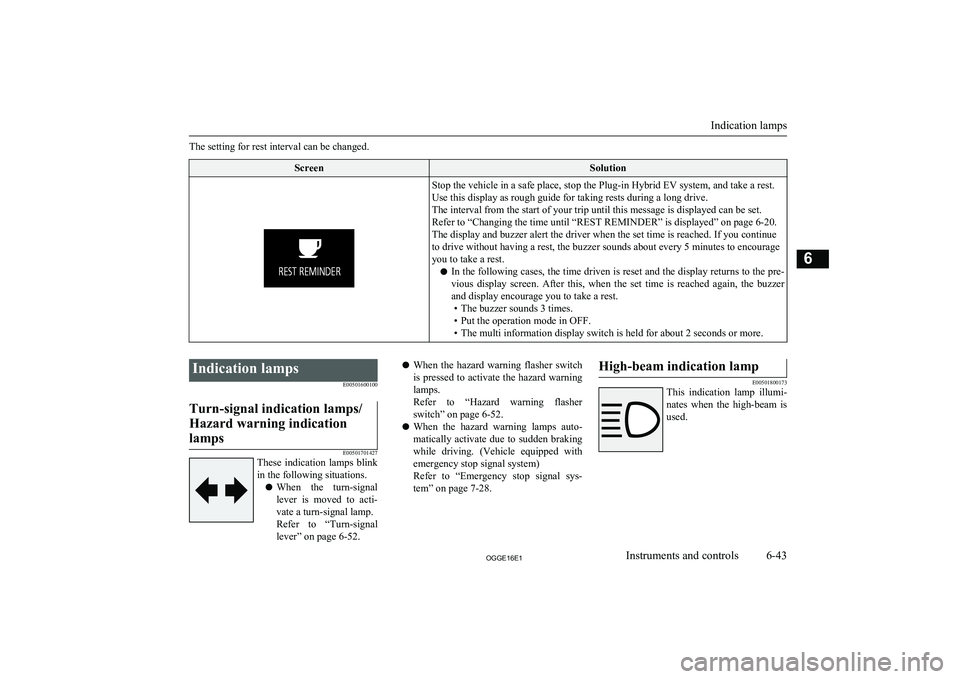

The setting for rest interval can be changed.ScreenSolutionStop the vehicle in a safe place, stop the Plug-in Hybrid EV system, and take a rest.
Use this display as rough guide for taking rests during a long drive.
The interval from the start of your trip until this message is displayed can be set. Refer to “Changing the time until “REST REMINDER” is displayed” on page 6-20.The display and buzzer alert the driver when the set time is reached. If you continue
to drive without having a rest, the buzzer sounds about every 5 minutes to encourage
you to take a rest.
l In the following cases, the time driven is reset and the display returns to the pre-
vious display screen. After this, when the set time is reached again, the buzzer
and display encourage you to take a rest. • The buzzer sounds 3 times.
• Put the operation mode in OFF.
• The multi information display switch is held for about 2 seconds or more.

Indication lamps
E00501600100Turn-signal indication lamps/
Hazard warning indication lamps
E00501701427
These indication lamps blink
in the following situations.
l When the turn-signal
lever is moved to acti-
vate a turn-signal lamp.
Refer to “Turn-signal
lever” on page 6-52.
l When the hazard warning flasher switch
is pressed to activate the hazard warning
lamps.
Refer to “Hazard warning flasher switch” on page 6-52.
l When the hazard warning lamps auto-
matically activate due to sudden braking
while driving. (Vehicle equipped with emergency stop signal system)
Refer to “Emergency stop signal sys-
tem” on page 7-28.High-beam indication lamp
E00501800173
This indication lamp illumi-
nates when the high-beam is used.
Indication lamps
6-43OGGE16E1Instruments and controls6

Front fog lamp indication lamp
E00501901520
This lamp illuminates while
the front fog lamps are on.
Rear fog lamp indication lamp
E00502001241
This lamp illuminates whilethe rear fog lamp is on.
Position lamp indication lamp
E00508900173
This indication lamp illumi-
nates while the position lamps are on.
Ready indicator
E00530101045
The ready indicator keeps
flashing until the Plug-in
Hybrid EV System is activa- ted. When the Plug-in Hy-
brid EV System has activa- ted normally and the vehicle
becomes ready to run, the lamp stops flashing
and stays lit. Refer to “Starting the Plug-in
Hybrid EV System” on page 7-11.
If the indicator keeps flashing, the vehicles cannot drive.
Charging indicator
E00530201059
This indicator flashes when the normal charging cable or
quick charging cable are connected.
After that, the lamp switches to being illuminated when
charging starts and goes out when charging is
completed.
NOTEl Although it is possible to start the Plug-in
Hybrid EV System if quick charging has notfinished normally, the charging indicator is
continuously blinking.
Refer to “Charging troubleshooting guide” on page 3-20.Warning lamps
E00502400147Brake warning lamp
E00502503673
This lamp illuminates whenthe operation mode of thepower switch is put in ON,
and goes off after a few sec- onds.
Always make sure that the
lamp goes off before driving.
With the operation mode in ON, the brake
warning lamp illuminates under the following conditions:
l When the parking brake lever has been
engaged.
l When the brake fluid level in the reser-
voir falls to a low level.
l When the braking system is an abnor-
mality.
With the operation mode in ON, a buzzer sounds under the following condition:
Warning lamps
6-44OGGE16E1Instruments and controls6

lThe vehicle speed exceeds 8 km/h
(5 mph) with the parking brake applied.CAUTIONl In the situations listed below, brake perform-
ance may be compromised or the vehicle may become unstable if brakes are applied
suddenly; consequently, avoid driving at
high speeds or applying the brakes suddenly. Furthermore, the vehicle should be brought
to a stop in a safe location and to have it
checked.
• The brake warning lamp does not illumi-
nate when the parking brake is applied ordoes not turn off when the parking brake is released.
• The ABS warning lamp and brake warn-
ing lamp illuminate at the same time
For details, refer to “ABS warning lamp”
on page 7-29.
• The brake warning lamp remains illumi-
nated during driving.
l The vehicle should be brought to a halt in
the following manner when brake perform- ance has deteriorated.
• Depress the brake pedal harder than usual.
Even if the brake pedal moves down to
the very end of its possible stroke, keep it
pressed down hard.
• Should the brakes fail, use regenerative
braking to reduce your speed and careful- ly pull the parking brake lever.
Depress the brake pedal to operate the
stop lamp to alert the vehicles behind you.Check engine warning lamp
E00502602938
This lamp is a part of an on-
board diagnostic system
which monitors the emis-
sions, engine control system. If a problem is detected in one of these systems, this
lamp illuminates or flashes.
Although your vehicle will usually be driva-
ble and not need towing, we recommend you
to have the system checked as soon as possi- ble.
This lamp will also illuminate when the oper-
ation mode of the power switch is put in ON,
and goes off after the Plug-in Hybrid EV
System has started. If it does not go off after the Plug-in Hybrid EV System has started,
we recommend you to have the vehicle checked.
CAUTIONl Prolonged driving with this lamp on may
cause further damage to the emission control
system. It could also affect fuel economy and drivability.
l If the lamp does not illuminate when the op-
eration mode is put in ON, we recommend
you to have the system checked.CAUTIONl If the lamp illuminates while the Plug-in Hy-
brid EV System is operating, avoid driving
at high speeds and have the system inspected by a MITSUBISHI MOTORS Authorized
Service Point as soon as possible.NOTEl The engine electronic control module ac-
commodating the onboard diagnostic system has various fault data (especially about the
exhaust emission) stored.
This data will be erased if a auxiliary battery
cable is disconnected which will make a rap- id diagnosis difficult. Do not disconnect a
auxiliary battery cable when the check engine
warning lamp is ON.
Auxiliary battery charge warn-
ing lamp
E00502702287
This warning lamp will illu- minate when there is a fault with the charging system of
the auxiliary battery.
Warning lamps
6-45OGGE16E1Instruments and controls6
