▷Pressing the Start/Stop button.▷Releasing the parking brake.▷Opening and closing of doors or windows.▷Shifting the selector lever into neutral.▷Using vehicle equipment.
There is risk of accidents or injuries. Do not
leave children or animals unattended in the ve‐
hicle. Carry remote control along when exiting
and lock the vehicle. ◀
WARNING
An unsecured vehicle can put itself into
motion and roll away. There is risk of an acci‐
dent. Before exiting, secure the vehicle against
rolling.
In order to ensure that the vehicle is secured
against rolling away, observe the following:
▷Set the parking brake.▷On uphill grades or on a slope, turn the
front wheels in the direction of the curb.▷On uphill grades or on a slope, also secure
the vehicle, e.g. with a wheel chock. ◀
Before driving into a car wash
So that the vehicle can roll into a car wash ob‐
serve instructions for going into an automatic
car wash, refer to page 220.
Steptronic transmission
Switching off the engine
1.Engage selector lever position P with the
vehicle stopped.2.Press the Start/Stop button.
The engine is switched off.
The radio-ready state is switched on.3.Set the parking brake.Manual transmission
Switching off the engine1.With the vehicle at a standstill, press the
Start/Stop button.
The engine is switched off.
The radio-ready state is switched on.2.Shift into first gear or reverse.3.Set the parking brake.
Auto Start/Stop function
The concept
The Auto Start/Stop function helps save fuel.
The system switches off the engine during a
stop, e.g., in traffic congestion or at traffic
lights. The ignition remains switched on. The
engine starts again automatically for driving off.
Automatic operation
After every start of the engine using the Start/
Stop button, the Auto Start/Stop function is in
the last selected state, refer to page 66. When
the Auto Start/Stop function is active, it is avail‐
able when the vehicle is traveling faster than
about 3 mph, approx. 5 km/h.
Engine stop
The engine is switched off automatically during
a stop under the following conditions:
Manual transmission:
▷Neutral is engaged and the clutch pedal is
not pressed.▷The driver's safety belt is buckled or the
driver's door is closed.
Steptronic transmission:
▷The selector lever is in selector lever posi‐
tion D.▷Brake pedal remains depressed while the
vehicle is stopped.Seite 64CONTROLSDriving64
Online Edition for Part no. 01 40 2 963 334 - VI/15

on the interior rearview mirror flashes. This
erases all programming of the buttons on
the interior rearview mirror.3.Hold the hand-held transmitter for the sys‐
tem to be controlled approx. 1 to 3 in/2.5
to 8 cm away from the buttons of the inte‐
rior rearview mirror. The required distance
depends on the manual transmitter.4.Simultaneously press and hold the button
of the desired function on the hand-held
transmitter and the button to be program‐
med on the interior rearview mirror. The
LED on the interior rearview mirror will be‐
gin flashing slowly.5.Release both buttons as soon as the LED
flashes more rapidly. The LED flashing
faster indicates that the button on the inte‐
rior rearview mirror has been programmed.
If the LED does not flash faster after at least
60 seconds, change the distance between
the interior rearview mirror and the hand-
held transmitter and repeat the step. Sev‐
eral more attempts at different distances
may be necessary. Wait at least 15 seconds
between attempts.
Canada: if programming with the hand-
held transmitter was interrupted, hold
down the interior rearview mirror button
and repeatedly press and release the hand-
held transmitter button for 2 seconds.6.To program other functions on other but‐
tons, repeat steps 3 to 5.
The systems can be controlled using the interior
rearview mirror buttons.
Special feature of the alternating-code
wireless system
If you are unable to operate the system after
repeated programming, please check if the sys‐
tem to be controlled features an alternating-
code system.
Read the system's operating manual, or press
the programmed button on the interior rear‐
view mirror longer. If the LED on the interior
rearview mirror starts flashing rapidly and then
stays lit constantly for 2 seconds, the system
features an alternating-code system. Flashing
and continuous illumination of the LED will re‐
peat for approximately 20 seconds.
For systems with an alternating-code system,
the Universal Integrated Remote Control and
the system also have to be synchronized.
Please read the operating manual to find out
how to synchronize the system.
Synchronizing is easier with the aid of a second
person.
To synchronize:1.Park the vehicle within range of the re‐
mote-controlled system.2.Program the relevant button on the interior
rearview mirror as described.3.Locate and press the synchronizing button
on the system being programmed. You
have approx. 30 seconds for the next step.4.Hold down the programmed button on the
interior rearview mirror for approximately
3 seconds and then release it. If necessary,
repeat this step up to three times in order
to finish synchronization. Once synchroni‐
zation is complete, the programmed func‐
tion will be carried out.
Reprogramming individual buttons
1.Switch on the ignition.2.Press and hold the interior rearview mirror
button to be programmed.3.As soon as the interior rearview mirror LED
starts flashing slowly, hold the hand-held
transmitter for the system to be controlled
approx. 1 to 3 in/2.5 to 8 cm away from the
buttons of the interior rearview mirror. The
required distance depends on the manual
transmitter.Seite 144CONTROLSInterior equipment144
Online Edition for Part no. 01 40 2 963 334 - VI/15

4.Likewise, press and hold the button of the
desired function on the hand-held trans‐
mitter.5.Release both buttons as soon as the interior
rearview mirror LED flashes more rapidly.
The LED flashing faster indicates that the
button on the interior rearview mirror has
been programmed. The system can then be
controlled by the button on the interior
rearview mirror.
If the LED does not flash faster after at least
60 seconds, change the distance and re‐
peat the step. Several more attempts at dif‐
ferent distances may be necessary. Wait at
least 15 seconds between attempts.
Canada: if programming with the hand-
held transmitter was interrupted, hold
down the interior rearview mirror button
and repeatedly press and release the hand-
held transmitter button for 2 seconds.
Controls
WARNING
Body parts can be jammed when operat‐
ing remote-controlled systems, e.g. the garage
door, using the universal garage door opener.
There is risk of injuries or risk of property dam‐
age. Make sure that the area of movement of
the respective system is clear during program‐
ming and operation. Also follow the safety in‐
structions of the hand-held transmitter. ◀
The system, such as the garage door, can be
operated using the button on the interior rear‐
view mirror while the engine is running or
when the ignition is started. To do this, hold
down the button within receiving range of the
system until the function is activated. The inte‐
rior rearview mirror LED stays lit while the wire‐
less signal is being transmitted.
Deleting stored functions
Press and hold the left and right button on the
interior rearview mirror simultaneously for ap‐
proximately 20 seconds until the LED flashes
rapidly. All stored functions are deleted. The
functions cannot be deleted individually.
Digital compass
Overview1Control button2Mirror display
Mirror display The point of the compass is displayed in the
mirror when driving straight.
Operating concept Various functions can be called up by pressing
the control button with a pointed object, such
as the tip of a ballpoint pen or similar object.
The following setting options are displayed in
succession, depending on how long the control
button is pressed:
▷Pressed briefly: turns display on/off.▷3 to 6 seconds: compass zone setting.▷6 to 9 seconds: compass calibration.▷9 to 12 seconds: left/right-hand steering
setting.▷12 to 15 seconds: language setting.
Setting the compass zones
Sets the particular compass zones on the vehi‐
cle so that the compass operates correctly; re‐
fer to World map with compass zones.
Seite 145Interior equipmentCONTROLS145
Online Edition for Part no. 01 40 2 963 334 - VI/15

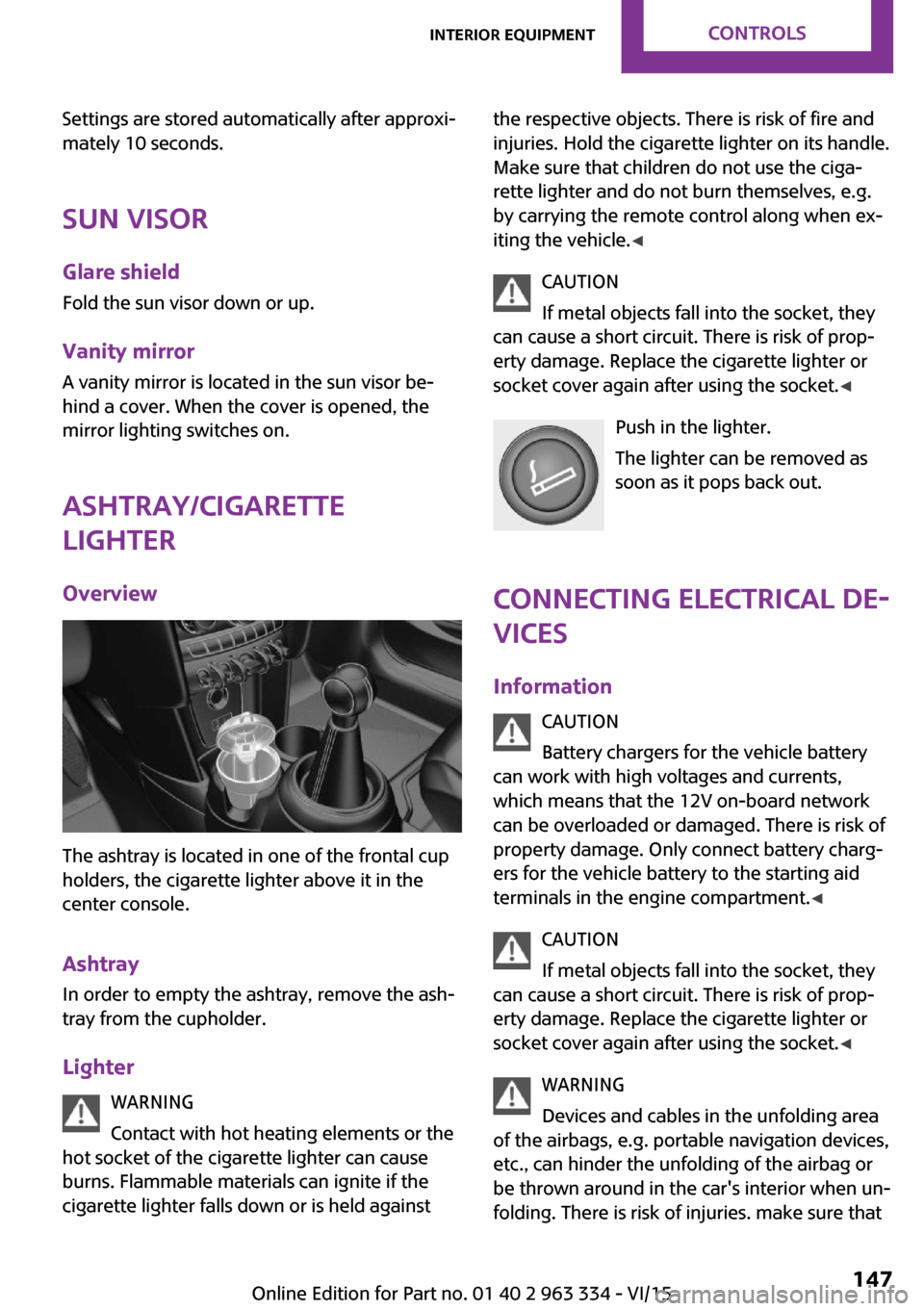

Settings are stored automatically after approxi‐
mately 10 seconds.
Sun visor
Glare shield
Fold the sun visor down or up.
Vanity mirror
A vanity mirror is located in the sun visor be‐
hind a cover. When the cover is opened, the
mirror lighting switches on.
Ashtray/cigarette
lighter
Overview
The ashtray is located in one of the frontal cup
holders, the cigarette lighter above it in the
center console.
Ashtray In order to empty the ashtray, remove the ash‐
tray from the cupholder.
Lighter WARNING
Contact with hot heating elements or the
hot socket of the cigarette lighter can cause
burns. Flammable materials can ignite if the
cigarette lighter falls down or is held against
the respective objects. There is risk of fire and
injuries. Hold the cigarette lighter on its handle.
Make sure that children do not use the ciga‐
rette lighter and do not burn themselves, e.g.
by carrying the remote control along when ex‐
iting the vehicle. ◀
CAUTION
If metal objects fall into the socket, they
can cause a short circuit. There is risk of prop‐
erty damage. Replace the cigarette lighter or
socket cover again after using the socket. ◀
Push in the lighter.
The lighter can be removed as
soon as it pops back out.
Connecting electrical de‐ vices
Information CAUTION
Battery chargers for the vehicle battery
can work with high voltages and currents,
which means that the 12V on-board network
can be overloaded or damaged. There is risk of
property damage. Only connect battery charg‐
ers for the vehicle battery to the starting aid
terminals in the engine compartment. ◀
CAUTION
If metal objects fall into the socket, they
can cause a short circuit. There is risk of prop‐
erty damage. Replace the cigarette lighter or
socket cover again after using the socket. ◀
WARNING
Devices and cables in the unfolding area
of the airbags, e.g. portable navigation devices,
etc., can hinder the unfolding of the airbag or
be thrown around in the car's interior when un‐
folding. There is risk of injuries. make sure thatSeite 147Interior equipmentCONTROLS147
Online Edition for Part no. 01 40 2 963 334 - VI/15

Direction indicator, see Turnsignals 67
Display, electronic, instrument cluster 76
Display, engine tempera‐ ture 85
Display lighting, see Instru‐ ment lighting 97
Displays 75
Displays, cleaning 223
Disposal, coolant 199
Disposal, vehicle battery 213
Distance control, see PDC 126
Distance to destination 85
Divided screen view, split screen 23
Door lock, see Remote con‐ trol 34
Drive mode, GREEN mode 165
Drive-off assistant 118
Drive-off assistant, see DSC 115
Driving Dynamics Control 117
Driving Excitement, SPORT 86
Driving instruction, GREEN mode 167
Driving instructions, break- in 158
Driving mode 117
Driving notes, general 158
Driving stability control sys‐ tems 115
Driving style analysis 169
Driving tips 158
DSC Dynamic Stability Con‐ trol 115
DTC Dynamic Traction Con‐ trol 116
Dynamic Damping Con‐ trol 117
Dynamic Stability Control DSC 115
Dynamic Traction Control DTC 116 E
Electronic displays, instrument cluster 76
Electronic oil measure‐ ment 195
Electronic Stability Program ESP, see DSC 115
Emergency detection, remote control 35
Emergency release, fuel filler flap 174
Emergency start function, en‐ gine start 35
Emergency wheel, compact wheel, refer to Emergency
wheel 210
Energy Control 81
Engine, automatic Start/Stop function 64
Engine, automatic switch- off 64
Engine compartment 193
Engine compartment, working in 194
Engine coolant 198
Engine idling when driving, coasting 168
Engine oil 195
Engine oil, adding 196
Engine oil additives 197
Engine oil change 197
Engine oil filler neck 196
Engine oil types, alterna‐ tive 197
Engine oil types, suitable 197
Engine start during malfunc‐ tion 35
Engine start, jump-start‐ ing 214
Engine start, refer to Starting the engine 63
Engine stop 63
Engine temperature, dis‐ play 85
Entering a car wash 220 Equipment, interior 143
Error displays, see Check Con‐ trol 76
ESP Electronic Stability Pro‐ gram, see DSC 115
Exchanging wheels/tires 186
Exhaust system 159
Exterior mirror, automatic dimming feature 56
Exterior mirrors 55
External start 214
External temperature dis‐ play 80
External temperature warn‐ ing 80
Eyes for securing cargo 162
F
Failure message, see Check Control 76
False alarm, refer to Uninten‐ tional alarm 44
Fan, refer to Air flow 137
Fan, see Air flow 140
Favorites buttons, onboard monitor 24
Filler neck for engine oil 196
Fine wood, care 222
First-aid kit 214
Fitting for towing, see tow fit‐ ting 218
Flat tire, changing wheels 210
Flat Tire Monitor FTM 106
Flat tire, repairing 188
Flat tire, Tire Pressure Monitor TPM 102
Flat tire, warning lamp 103, 106
Flooding 159
Floor carpet, care 223
Floor mats, care 223
Fogged up windows 137
Folding back rear seat back‐ rests 149 Seite 238REFERENCEEverything from A to Z238
Online Edition for Part no. 01 40 2 963 334 - VI/15

Fold-out position, windshieldwipers 70
Foot brake 159
Front airbags 99
Front-end collision warning with City Braking func‐
tion 109
Front fog lights 97
Front-seat passenger airbags, automatic deactivation 101
Front-seat passenger airbags, indicator lamp 101
FTM Flat Tire Monitor 106
Fuel 176
Fuel consumption, see Aver‐ age fuel consumption 85
Fuel filler flap 174
Fuel gauge 80
Fuel lid 174
Fuel quality 176
Fuel recommendation 176
Fuel, tank capacity 230
Fuse 213
G Garage door opener, see Uni‐ versal Integrated Remote
Control 143
Gasoline 176
Gear change, Steptronic trans‐ mission 71
Gear shift indicator 82
General driving notes 158
Glare shield 147
Glass sunroof, refer to Panor‐ amic glass sunroof 46
Glove compartment 151
GREEN mode 165
GREEN mode, bonus range 167
GREEN mode driving style analysis 169
GREEN mode indicator 165
GREEN - program, driving dy‐ namics 117 GREEN tip 167
Gross vehicle weight, ap‐ proved 227
Ground clearance 160
H
Halogen headlights 204
Handbrake, refer to parking brake 66
Hand-held transmitter, alter‐ nating code 144
Hazard warning flashers 214
Head airbag 99
Headlight control, auto‐ matic 95
Headlight courtesy delay fea‐ ture 95
Headlight flasher 67
Headlight glass 204
Headlights, care 221
Head restraints 49
Head restraints, front 53
Head restraints, rear 54
Head-up Display 89
Head-Up Display, Shift point indicator 91
Head-up Display, sport dis‐ plays 91
Head-up Display, standard view 90
Heavy cargo, stowing 162
High-beam Assistant 96
High beams 67
High beams/low beams, see High-beam Assistant 96
Hills 160
Hill start assistant, see Drive- off assistant 118
Holder for beverages 152
Homepage 6
Hood 194
Horn 14
Hot exhaust system 159
HUD Head-up Display 89
Hydroplaning 159 I
Ice warning, see External tem‐ perature warning 80
Icy roads, see External tem‐ perature warning 80
Identification marks, tires 184
Identification number, see ve‐ hicle identification num‐
ber 10
Ignition key, see Remote con‐ trol 34
Ignition off 62
Ignition on 62
Illuminated ring, central in‐ strument cluster 88
Indication of a flat tire 103 , 106
Indicator lamp, see Check Control 76
Individual air distribu‐ tion 137, 140
Individual settings, see Per‐ sonal Profile 36
Inflation pressure, tires 178
Inflation pressure warning, tires 106
Info display, refer to On-Board computer 84
Information 6
Initialize, Tire Pressure Moni‐ tor TPM 103
Initializing, Flat Tire Monitor FTM 106
Instrument cluster 75
Instrument cluster, electronic displays 76
Instrument lighting 97
Integrated key 34
Integrated Owner's Manual in the vehicle 29
Intelligent Safety 108
Intensity, AUTO program 139
Interior equipment 143
Interior lights 98 Seite 239Everything from A to ZREFERENCE239
Online Edition for Part no. 01 40 2 963 334 - VI/15

Interior lights during unlock‐ing 37
Interior lights with the vehicle locked 38
Interior motion sensor 44
Interior rearview mirror, auto‐ matic dimming feature 56
Interior rearview mirror, com‐ pass 145
Interior rearview mirror, man‐ ually dimmable 56
Internet site 6
Interval display, service re‐ quirements 81
Interval mode 68
J Jacking points for the vehicle jack 210
Joystick, Steptronic transmis‐ sion 71
Jump-starting 214
K
Key/remote control 34
Keyless Go, see Comfort Ac‐ cess 41
Key Memory, see Personal Profile 36
Kickdown, Steptronic trans‐ mission 71
Knee airbag 100
L
Label on recommended tires 186
Lamp replacement 203
Lamp replacement, front 204
Lamp replacement, rear 206
Lamp replacement, side 209
Language on Control Dis‐ play 88 Lashing eyes, securing
cargo 162
LATCH child restraint sys‐ tem 60
Launch Control 74
Leather, care 221
LED bug light 204
LED headlights 204
LED ring, central instrument cluster 88
LEDs, light-emitting di‐ odes 203
Letters and numbers, enter‐ ing 25
Light 94
Light-alloy wheels, care 222
Light-emitting diodes, LEDs 203
Lighter 147
Lighting 94
Lights and bulbs 203
Light switch 94
Load 162
Loading 161
Lock, door 39
Locking/unlocking via door lock 39
Locking/unlocking with re‐ mote control 37
Locking, automatic 43
Locking, settings 42
Lock, power window 46
Locks, doors, and windows 61
Low beams 94
Low beams, automatic, see High-beam Assistant 96
Lower back support, mechani‐ cal 50
Luggage rack, refer to Roof- mounted luggage rack 162
Lumbar support, mechani‐ cal 50
M
Maintenance 200 Maintenance require‐
ments 200
Maintenance, service require‐ ments 81
Maintenance system, MINI 200
Make-up mirror 147
Malfunction displays, see Check Control 76
Manual air distribu‐ tion 137, 140
Manual air flow 137, 140
Manual mode, transmis‐ sion 72
Manual operation, door lock 39
Manual operation, exterior mirrors 55
Manual operation, fuel filler flap 174
Manual operation, Park Dis‐ tance Control PDC 128
Manual operation, rearview camera 130
Manual transmission 71
Manufacturer of the MINI 7
Marking, run-flat tires 187
Master key, see Remote con‐ trol 34
Maximum cooling 139
Maximum speed, display 82
Maximum speed, winter tires 187
Measurement, units of 88
Medical kit 214
Menu in instrument cluster 84
Menus, refer to onboard mon‐ itor operating concept 20
Messages, see Check Con‐ trol 76
Microfilter 138, 141
MID - program, driving dy‐ namics 117
MINI Connected, refer to Integrated Owner's Manual Seite 240REFERENCEEverything from A to Z240
Online Edition for Part no. 01 40 2 963 334 - VI/15

MINI maintenance sys‐tem 200
MINIMALISM Analyser 169
MINIMALISM info 168
Minimum tread, tires 185
Mirrors 55
Mobile communication devi‐ ces in the vehicle 159
Mobility System 188
Mode, GREEN Mode 165
Modifications, technical, refer to Own Safety 7
Moisture in headlight 204
Monitor, refer to Control Dis‐ play 18
Mounting of child restraint systems 59
Multifunction steering wheel, buttons 14
Multimedia, refer to Integrated Owner's Manual
N Navigation, refer to Integrated Owner's Manual
Neck restraints, front, see Head restraints 53
Neck restraints, rear, see Head restraints 54
New wheels and tires 186
Nylon rope for tow-starting/ towing 217
O
OBD Onboard Diagnos‐ tics 201
Obstacle marking, rearview camera 131
Octane rating, see Recom‐ mended fuel grade 176
Odometer 80
Office, refer to Integrated Owner's Manual
Oil 195 Oil, adding 196
Oil additives 197
Oil change 197
Oil change interval, service re‐ quirements 81
Oil filler neck 196
Oil types, alternative 197
Oil types, suitable 197
Old batteries, disposal 213
On-board computer 84
On-board computer, refer to On-board computer 84
Onboard Diagnostics OBD 201
Onboard monitor 18
Onboard monitor operating concept 18
Onboard vehicle tool kit 202
Opening/closing via door lock 39
Opening/closing with remote control 37
Operating menus, onboard monitor 18
Optional equipment, standard equipment 6
Outside air, refer to Automatic recirculated-air control 140
Own safety 7
P
Paint, vehicle 221
Panoramic glass sunroof 46
Parallel parking assistant 132
Park Distance Control PDC 126
Parked-car ventilation 141
Parked vehicle, condensa‐ tion 160
Parking aid, see PDC 126
Parking assistant 132
Parking brake 66
Parking lights 94
Passenger side mirror, tilting downward 55 Pathway lines, rearview cam‐
era 130
PDC Park Distance Con‐ trol 126
Pedestrian warning with city braking function 112
Performance Control 116
Personal Profile 36
Phone, refer to Integrated Owner's Manual
Pinch protection system, glass sunroof 47
Pinch protection system, win‐ dows 45
Plastic, care 222
PostCrash 114
Power failure 213
Power windows 44
Prescribed engine oil types 197
Pressure, tire air pressure 178
Pressure warning, tires 106
Profile, see Personal Pro‐ file 36
Protective function, glass sun‐ roof 47
Protective function, win‐ dows 45
Push-and-turn switch, see Controller 19
R Radiator fluid 198
Radio-operated key, see Re‐ mote control 34
Radio ready state 62
Radio, refer to Integrated Owner's Manual
Rain sensor 68
Rear fog lights 97
Rear lights 206
Rear luggage rack 163
Rearview camera 129
Rearview mirror 55 Seite 241Everything from A to ZREFERENCE241
Online Edition for Part no. 01 40 2 963 334 - VI/15
