ant during operation is approximately 266 ‡
(130 †).
The antifreeze/corrosion inhibitor concentra-
tion in the engine cooling system should:
Rbe at least 50%. This will protect the engine
cooling system against freezing down to
approximately -35 ‡ (-37 †).
Rnot exceed 55% (antifreeze protection
down to -49 ‡ [-45 †]). Otherwise, heat
will not be dissipated as effectively.
If the vehicle has lost coolant, add equal
amounts of water and antifreeze/corrosion
inhibitor.
Mercedes-Benz recommends an antifreeze/
corrosion inhibitor concentrate in accord-
ance with MB Specifications for Service Prod-
ucts 310.1.
iWhen the vehicle is first delivered, it is fil-
led with a coolant mixture that ensures
adequate antifreeze and corrosion protec-
tion.
iThe coolant is checked with every main-
tenance interval at a qualified specialist
workshop.
Filling capacities
ModelCapacity
SL 400Approx. 12.3 US qt (11.6 l)
SL 550Approx. 13.0 US qt(12.3 l)
Mercedes ‑AMG
SL 63Approx. 11.6 US qt (11.0 l)
Mercedes ‑AMG
SL 65Approx. 13.5 US qt (12.8 l)
Windshield washer system and head-
lamp cleaning system
Important safety notes
GWARNING
Windshield washer concentrate could ignite if it comes into contact with hot engine compo-
nents or the exhaust system. There is a risk of
fire and injury.
Make sure that no windshield washer con-
centrate is spilled next to the filler neck.
!Only use washer fluid that is suitable for
plastic lamp lenses, e.g. MB SummerFit or
MB WinterFit. Unsuitable washer fluid
could damage the plastic lenses of the
headlamps.
!Do not add distilled or de-ionized water to
the washer fluid container. Otherwise, the
level sensor may be damaged.
!Only MB SummerFit and MB WinterFit
washer fluid should be mixed together. The spray nozzles may otherwise become
blocked.
When handling washer fluid, observe the
important safety notes on service products
(
Ypage 603).
At temperatures above freezing:
XFill the washer fluid reservoir with a mixture of water and windshield washer fluid, e.g.
MB SummerFit.
XAdd 1 part MB SummerFit to 100 parts
water.
At temperatures below freezing:
XFill the washer fluid reservoir with a mixture of water and washer fluid, e.g. MB Winter-
Fit.
For the correct mixing ratio refer to the
information on the antifreeze reservoir.
iAdd windshield washer fluid, e.g. MB
SummerFit or MB WinterFit, to the washer
fluid all year round.
Service products and filling capacities607
Technical data
Z

Climate control system refrigerant
Important safety notes
The climate control system of your vehicle is
filled with refrigerant R‑ 134a.
The instruction label regarding the refrigerant
type used can be found on the radiator cross
member.
!Only the refrigerant R‑ 134a and the PAG
oil approved by Mercedes-Benz may be
used. The approved PAG oil may not be
mixed with any other PAG oil that is not
approved for R-134a refrigerant. Other-
wise, the climate control system may be
damaged.
Service work, such as topping up refrigerant
or replacing components, may only be carried out by a qualified specialist workshop. All
applicable regulations must be adhered to,
SAE standard J639 included.
Always have work on the climate control sys-
tem carried out at a qualified specialist work-
shop.
Refrigerant instruction label
Example :refrigeran tinstruction label
:
Warning symbol
;Refrigerant filling capacity
=Applicable standards
?PAG oil part number
AType of refrigerant Warning symbol
:advises you about:
Rpossible dangers
Rhaving service work carried out at a quali-
fied specialist workshop
Filling capacities
ModelRefrigerant
Mercedes ‑AMG
vehicles22.2 ± 0.4 oz
(630 ± 10 g)
All other models19.4 ± 0.4 oz(550 ± 10 g)
ModelPAG oil
Mercedes ‑AMG
vehicles2.8 oz
(80 g)
All other models4.2 oz
(12 0g)
Vehicle data
General notes
Please note that for the specified vehicle
data:
Rthe heights specified may vary as a result
of:
-tires
-load
-condition of the suspension
-optional equipment
Roptional equipment reduces the maximum
payload.
608Vehicle data
Technical data

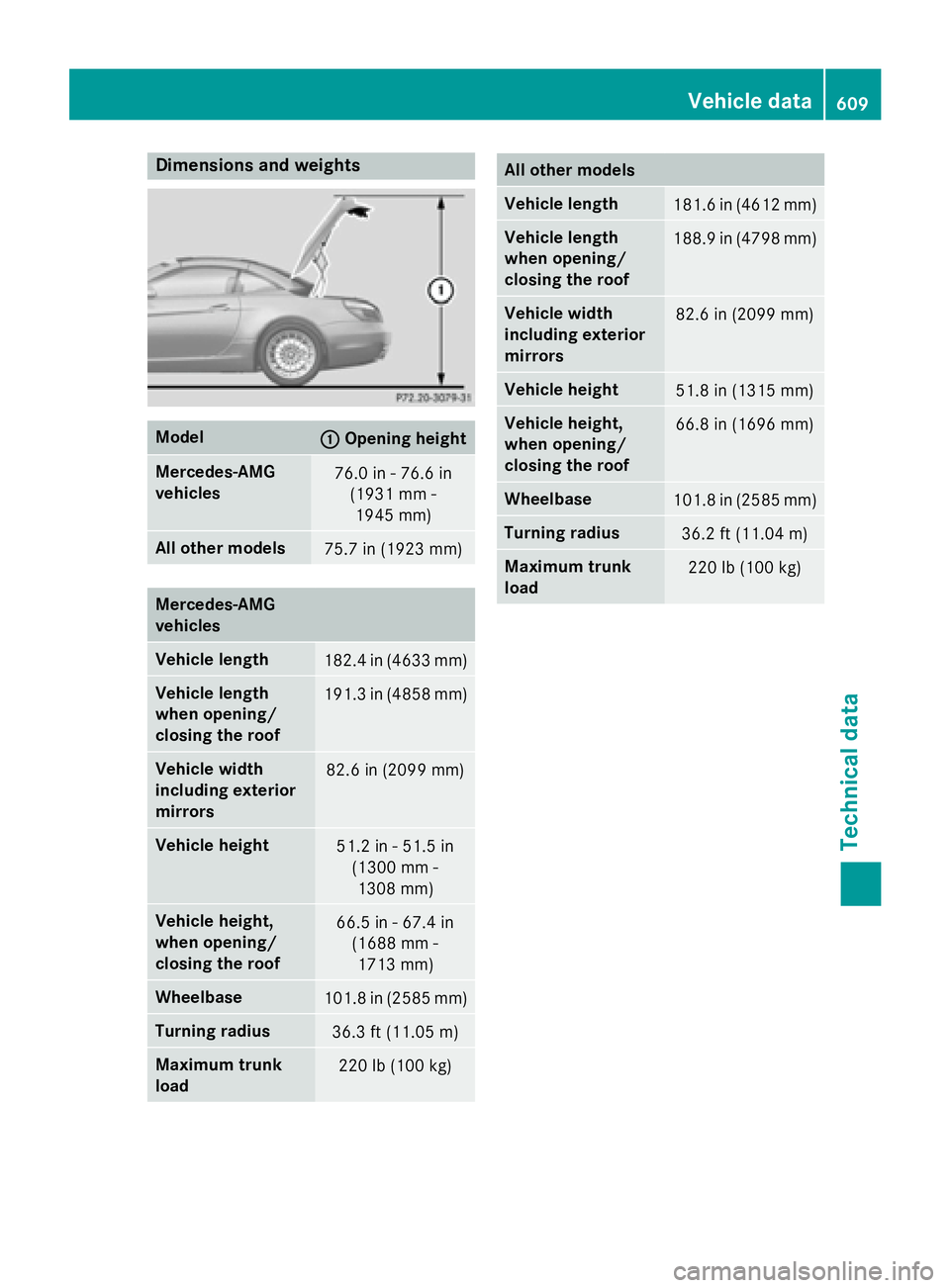

Dimensions andweights
Model:Openin gheight
Mercedes ‑AMG
vehicles76.0 in -76.6 in
(1931 mm -
1945 mm )
All other models75.7 in(1923 mm)
Mercedes ‑AMG
vehicles
Vehicle length182.4 in (4633 mm)
Vehicle length
when opening/
closing the roof191.3 in (4858 mm)
Vehicle width
including exteri or
mirrors82.6 in(2099 mm)
Vehicle height51.2 in- 51.5 in
(1300 mm - 1308 mm)
Vehicle height,
when opening/
closing the roof66.5 in- 67.4 in
(1688 mm - 1713 mm)
Wh eelbase101.8 in (2585 mm)
Turning radius36.3 ft (11.05 m)
Maximum trunk
load220 lb (100 kg)
All other models
Vehicle length181.6 in (4612 mm)
Vehicle length
when opening/
closing the roof188.9 in (4798 mm)
Vehicle width
including exterior
mirrors82.6 in (2099 mm)
Vehicle height51.8 in (1315 mm)
Vehicle height,
when opening/
closing the roof66.8 in (1696 mm)
Wheelbase101.8 in (2585 mm)
Turning radius36.2 ft (11.04m)
Maximum trunk
load220 lb (100 kg)
Vehicle data609
Technical data
Z
