XCallup the maps.google.com website and
enter the destination address inthe
addr ess entry field.
XClick the corresponding button to send the
destination address to the e-mail address
registered with mbrace.
XEnter the e-mail address you specified
when setting up your mbrace account into
the corresponding field in the "Send" dialog
window.
XClick "Se nd".
Calling up destination addresses
XPress the ïmbrace information button.
Downloading of the destination address to
the navigation system of your vehicle
begins.
iIf you have sent more than one destina-
tion addr ess to your vehicle's navigation
system, you willneed to call up the infor-
mation ind ividually for every address to be
down loaded.
XSelect Yeswhen the prompt for starting the
navigation system is shown. The window for starting the navigation system appears
(
Ypage 329).
XSe
lect Start.
or
XSe lect Noto store the downloaded desti-
nation inthe destination memory for later
use.
iThe destination addresses are downloa-
ded inthe same order as they are sent.
If you own several Mercedes-Benz vehicles
equipp ed with mbrace and a valid sub-
scriber account: each destination address
can bedownloaded byeach vehicle. This
requires each vehicle to beregistered with
an e-mail address inyour mbrace account.
Route guidance
Important notes
COMAND calculates the route to the destina-
tion without taking account of the following,
for example:
Rtraff iclights
Rstop and yield signs
Rmerging lanes
Rparking or stopping ina no parking /no
stopping zone
Rother road and traff icrules and regulations
Rnarrow bridges
COMAND may give differing navigation com-
man ds if the actual street/traff icsituation
does not correspond with the digital map's
data. For example, ifthe road layout or the
direction of a one-way street has been
changed.
For th isreason, you must always observe
road and traff icrules and regulations during
your journey. Road and traff icrules and reg-
ulations always have priority over the sys-
tem's driving recommendations.
Route guidance begins once a route has been
calculated (
Ypage 329).
COMAND guides you to your destination by
means of navigation announcements inthe
346Navigation
COMAND

XTo close the destination information:
slideXVY the COMAND controller or press
the k back button.
iYou can display destination information
for the destination, for both way points and
for the intermediate stop, if they are part of
the route.
If a mobile phone is connected to COMAND
and a phone number is included in the des-
tination information, you can call it
(
Ypage 383).
Route overview
You can use the route overview to move along
the active route section by section and view
information and details about each section of
the route.
You can see information relevant to the sec-
tion of the route, such as the length of the
road section you will be driving along and the
road name. The highlighted route section is
marked in white with a red border on the map.
XTo switch to navigation mode: press the
Ø button.
XTo show the menu: pressWthe COMAND
controller.
XSelect Routein the navigation system
menu bar by turning cVdthe COMAND
controller and press Wto confirm.
XSelect Route Browserand press Wto
confirm.
XTo view the next or previous route sec-
tion: select Next
orPreviousand press W
to confirm.
iIf the first or last route section is high-
lighted, you cannot select Previous
or
Next
.
XTo zoom in or out of the map: selectNor
M and press Wto confirm.
XTo close the route overview: selectBack
and press Wto confirm. Route demonstration
You can see the route before starting your
journey. This function is only available when
the vehicle is stationary.
XTo switch to navigation mode:
press the
Ø button.
XTo show the menu: pressWthe COMAND
controller.
XSelect Routein the navigation system
menu bar by turning cVdthe COMAND
controller and press Wto confirm.
XSelect Route Demonstrationand press
W to confirm.
The map with the crosshair appears.
XTo get to the destination: pressWto
confirm the highlighted symbol.
XTo stop the route demonstration: con-
firm the Ësymbol by pressing W.
Navigation353
COMAND
Z

Example: route display stopped
:
Road name and city display when route
display has been stopped
;Distance of the crosshair from current
vehicle position
XTo get to the current vehicle position:
pressWto confirm the symbol for the cur-
rent vehicle position.
XTo change the map scale: selectScale
and press Wto confirm.
The scale bar appears.
XTurn cVd the COMAND controller and
press Wto confirm.
Recording the route
Notes
If you have activated COMAND and the SD
memory card has been inserted, you should
not take it out of the slot.
You can store up to 100 routes.
When you record a route, COMAND uses so-
called support points and displays the route
as a series of lines. If the route is then calcu-
lated, COMAND attempts to align the recor-
ded route with the digital map.
The support points of the route may not be on
a digitized road.
This is often the case for routes that have
been calculated using map data from other
sources. Calling up the Routes menu
XInsert the SD memory card (Ypage 447).
XTo switch to navigation mode:
press the
Ø button.
XTo show the menu: pressWthe COMAND
controller.
XSelect Destinationin the navigation sys-
tem menu bar by turning cVdthe
COMAND controller and press Wto con-
firm.
XSelect Routes.
Starting/ending recording
XCall up the Routes menu (Ypage 354).
XTo start recording : selectStart
Recordingin the Routes menu by turning
cVd the COMAND controller and press W
to confirm.
During the recording, the recorded route is shown behind the current vehicle position
with gray strokes (symbol for tire tracks).
XTo end recording: selectStopRecording
in the Routes menu by turning cVdthe
354Navigation
COMAND

EChannel preset list
FSatellit e radio menu
Channel information Acan beviewed in
detail (
Ypage 445).
XSe lect Audiointhe main function bar by
slidi ngZV and turning cVdthe COMAND
controller and press Wto confirm.
If satellit e radio mode was the last mode
selected, itwill now beactive.
If another audio mode isswitched on, you
can now switch to satellite radio mode in
the audio menu.
XSe lect Audiobysliding ZVthe COMAND
controller and press Wto confirm.
The audio menu appears.
XSe lect Satand press Wto confirm.
The No Servicemessage appears when
starting up or ifno signal isbeing rec eived.
If the satellit e receiveris not installed or isnot
installed correctly, the Device
Unavailable
messagewillappear.
Changing the category
Sat ellit e radio channels are sorted into vari-
ous categories. You can choose between var-
ious categories such as News/Discussions,
Spo rts and Country (if available). The cate-
gory list is sorted alphabetically.
XTo call up the category list: selectCat.
byturning cVdthe COMAND controller
and press Wto confirm.
The category listappears.
XTo select a category: select a categoryby
turning cVdthe COMAND controller and
press Wto confirm.
The category selected isshown in thedis-
play. You hear the station last selected for
th is category.
The All
Channelscategory isat the top of
the category list. This category issorted by
channel number and allows you to browse
all availab lechannels.
Selecting a channel
Channel search
XTurn cVd or slide XVYthe COMAND con-
troller whilethedisp lay/selection window
in the SatRadio displayisact ive.
or
XPress the EorF button.
COMAND searches inboth directions
(ascending and descending) and stops at
the next channel found inthe selected cat-
egory.
Satellite radio menu
XSe lect Satinthe submenu bar byturning
cVd the COMAND controller and press W
to confirm.
The satellite radio menu appears.
Audio443
COMAND
Z

Switching to Bluetooth®audio mode
The Bluetooth®audio basic display
Example: Bluetooth®audio basic display
:
Track name
;Current playback settings (no symbol for
"Normal track sequence")
=Album name
?Sound settings
AMedia list
BArtist
CTo stop Éor start Ìplayback
DTo connect a Bluetooth®audio device, to
increase the volume on COMAND
EBluetooth®audio data medium type
FData medium position in the media list
iIf the Bluetooth®audio device connected
supports metadata and corresponding data
is available, then the artist, track and album
name can be displayed.
Using the Bluetooth
®audio basic display
XConnect Bluetooth®audio devices
(
Ypage 461)
or
XReconnect the Bluetooth®audio device
(
Ypage 463).
COMAND activates the Bluetooth®audio
device. The basic display appears and the
device starts playing. Using the DISC button
XPress the
hbutton one or more times.
By pressing the hbutton repeatedly, you
can switch modes in the following order:
RCD/MP3 (disc)
RMemory card mode
RMUSIC REGISTER
RUSB storage device
RMedia Interface or audio AUX mode
RBluetooth®audio mode
Using the media list
XSelect Bluetooth Audioin the media list
by turning cVdthe COMAND controller
and press Wto confirm (
Ypage 449).
COMAND activates the connected device.
You will see a message to this effect. The
basic display then appears.
Starting/stopping playback
XTo start playback: selectÌby sliding
VÆ and turning cVdthe COMAND con-
troller and press Wto confirm.
Playback starts. Éis selected.
XTo stop playback: selectÉby turning
cVd the COMAND controller and press W
to confirm.
A message appears. Ìis selected.
XTo continue playback: selectÌby
turning cVdthe COMAND controller and
press Wto confirm.
A message appears. Éis selected.
Audio465
COMAND
Z

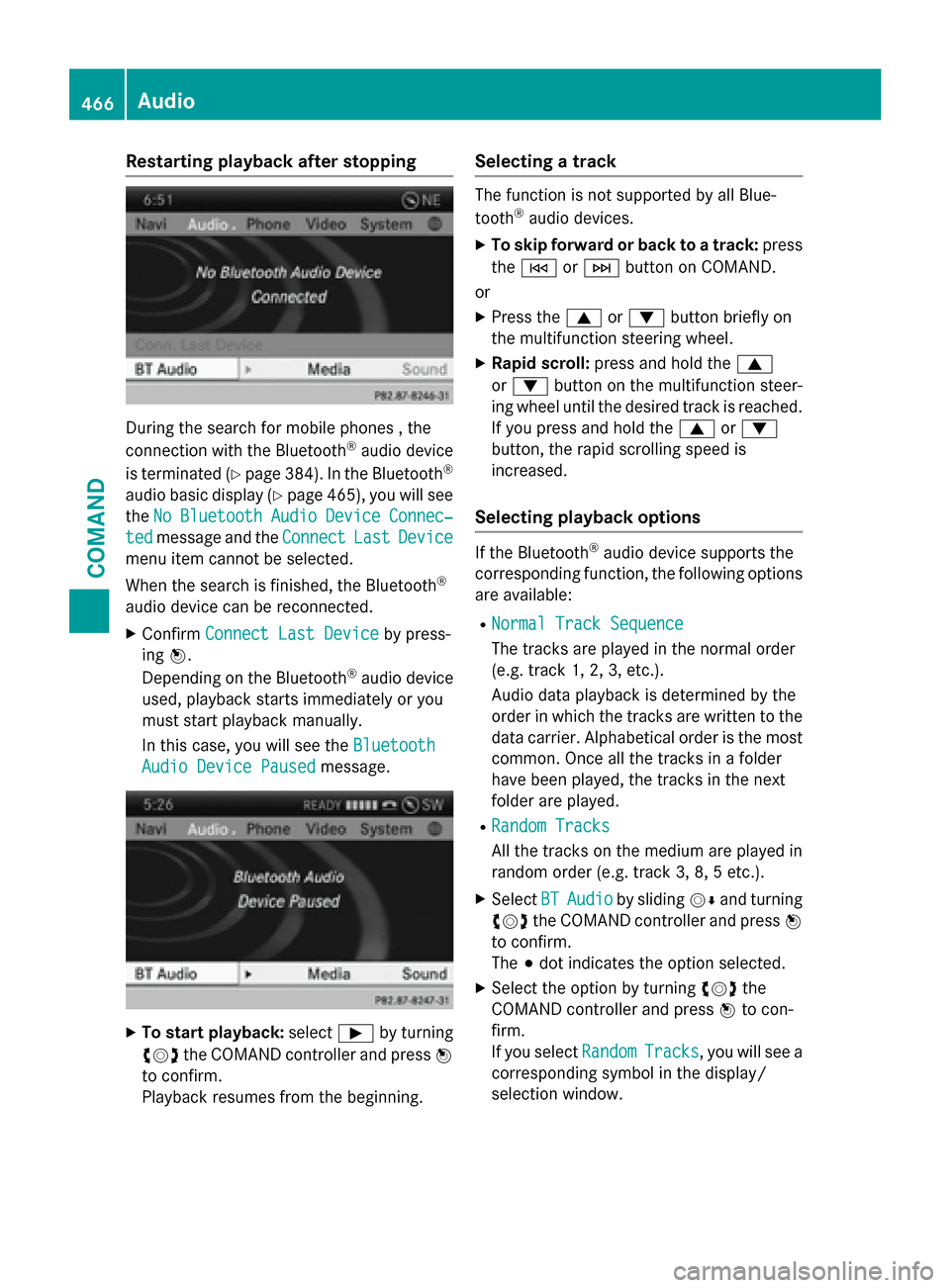

Restarting playback after stopping
During the search for mobile phones , the
connection with the Bluetooth®audio device
is terminated (
Ypage 384). In the Bluetooth®
audio basic display (Ypage 465), you will see
the No
BluetoothAudioDeviceConnec‐
tedmessage and the ConnectLastDevice
menu item cannot be selected.
When the search is finished, the Bluetooth
®
audio device can be reconnected.
XConfirmConnect Last Deviceby press-
ing W.
Depending on the Bluetooth
®audio device
used, playback starts immediately or you
must start playback manually.
In this case, you will see the Bluetooth
Audio Device Pausedmessage.
XTo start playback:selectÌby turning
cVd the COMAND controller and press W
to confirm.
Playback resumes from the beginning.
Selecting a track
The function is not supported by all Blue-
tooth®audio devices.
XTo skip forward or back to a track: press
the E orF button on COMAND.
or
XPress the 9or: button briefly on
the multifunction steering wheel.
XRapid scroll: press and hold the 9
or : button on the multifunction steer-
ing wheel until the desired track is reached.
If you press and hold the 9or:
button, the rapid scrolling speed is
increased.
Selecting playback options
If the Bluetooth®audio device supports the
corresponding function, the following options
are available:
RNormal Track Sequence
The tracks are played in the normal order
(e.g. track 1, 2, 3, etc.).
Audio data playback is determined by the
order in which the tracks are written to the
data carrier. Alphabetical order is the most
common. Once all the tracks in a folder
have been played, the tracks in the next
folder are played.
RRandom Tracks
All the tracks on the medium are played in
random order (e.g. track 3, 8, 5 etc.).
XSelect BTAudioby sliding VÆand turning
cVd the COMAND controller and press W
to confirm.
The #dot indicates the option selected.
XSelect the option by turning cVdthe
COMAND controller and press Wto con-
firm.
If you select Random
Tracks, you will see a
corresponding symbol in the display/
selection window.
466Audio
COMAND

Control menu displayed
:
Type of data medium
;Current title
=Current scene
?Track time
AShows the menu
iThis function is not available while the
DVD's own menu is being displayed.
Showing/hiding the menu
XTo show: in full-screen DVD video mode,
press Wthe COMAND controller.
or
XSelect Menuwhile the control menu is
shown and press Wto confirm.
XTo hide: slideZVthe COMAND controller
and confirm Full Screen
by pressingW.
Menu shown
:
Video DVD options
;Pause function
=Stop function
?Media selection
ASound settings
iThis function is not available while the
DVD's own menu is being displayed.
Fast forwarding/rewinding
XIn full-screen DVD video mode, slide XVY
and hold the COMAND controller until the
desired position is reached.
or
XPress and hold the EorF button
until the desired position is reached.
You see the control menu.
Stop function
XShow the menu (Ypage 477).
XTo interrupt playback: selectÉby
turning cVdthe COMAND controller and
press Wto confirm.
The Ë display changes to Ì. The
video image is hidden.
XTo continue playback: selectÌand
press Wto confirm.
Playback continues from the point where it was interrupted.
XTo stop playback: while playback is inter-
rupted, select Éagain and press Wto
confirm.
or
XDuring playback, confirm Éby pressing
W twice in rapid succession.
Ì is selected.
XTo restart playback: confirmÌby
pressing W.
Playback restarts from the beginning.
Video477
COMAND
Z

:Folder selection symbol
;Current folder name
=Track symbol
XTo switch to the superordinate folder:
select symbol:using the 9: but-
tons on the remote control and press the
9 button to confirm.
The display shows the next folder up.
:Folder selection symbol
;Folder symbol
XSelect a folder using the 9:buttons
and press the 9button to confirm.
You will see the tracks in the folder.
XSelect a track using the 9:buttons
and press the 9button to confirm.
The track is played and the corresponding
folder is now the active folder.
Pause function
This function is only available in audio DVD
mode.
XTo pause playback: selectËusing
the :=; buttons on the remote
control and press the 9button to confirm.
The Ë display changes to Ì.
XTo continue playback: selectÌand
press the 9button to confirm.
The Ì display changes to Ë.
Stop function
This function is only available in audio DVD
mode.
XTo interrupt playback: selectÉusing
the :=; buttons on the remote
control and press the 9button to confirm.
The Ë display changes to Ì.
XTo continue playback: selectÌand
press the 9button to confirm.
Playback continues from the point where it
was interrupted.
XTo stop playback: while playback is inter-
rupted, select Éagain and press the 9
button to confirm.
Playback stops and returns to the begin-
ning of the DVD. Ìis highlighted.
XTo restart playback: selectÌand
press the 9button to confirm.
Playback starts from the beginning of the
DVD.
Setting the audio format
The content of an audio DVD can be divided
into up to 9 groups. The availability and type
of group depends on the respective DVD. A
group can contain music in different sound
qualities (stereo and multichannel formats,
for example), or bonus tracks.
XSelect DVD-Audiousing
the :=; buttons on the remote
control and press 9to confirm.
XSelect Groupusing the 9: buttons
and press the 9button to confirm.
The list of available audio formats appears.
The #dot indicates the format currently
selected.
Rear Seat Entertainment System493
COMAND
Z
