2016 MERCEDES-BENZ GL display

Display messages
Possible causes/consequences and P Solutions

Display messages
Possible causes/consequences and P Solutions
I (USA
only)
$ (Canada
only)

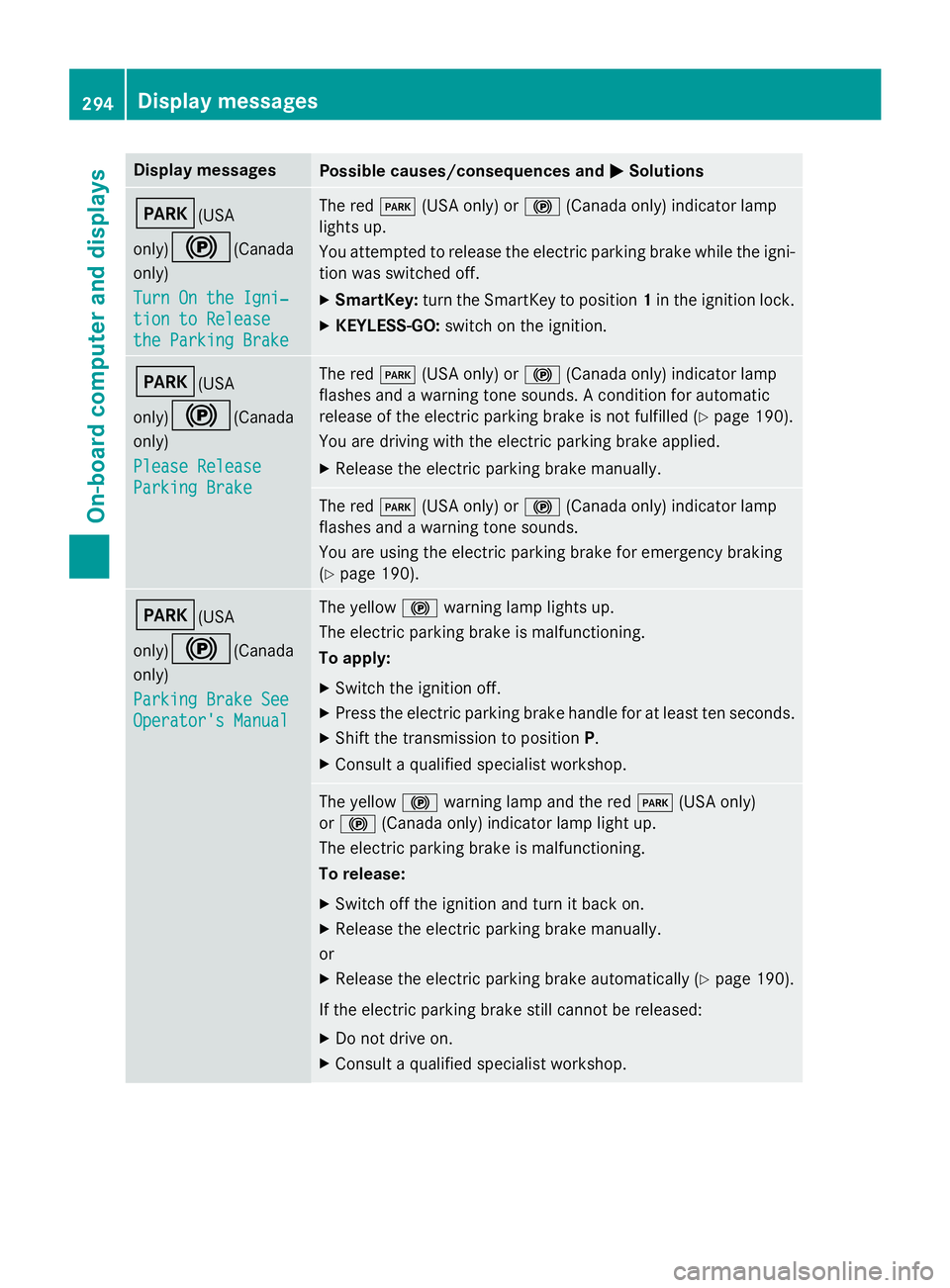

Tur n On the Igni‐
tio n to Releas e
the Parkin g Brake The red I (US A only) or $ (Canada only) indicato r lamp
lights up.
You attempte d to release th e electric parkin g brak e while th e igni-
tion was switched off. X
SmartKey: tur n th e SmartKey to position 1 in th e ignition lock.X
KEYLESS-GO: switch on th e ignition .
I (USA
only)
$ (Canada
only)
Please Releas e
Parkin g Brake The red I (US A only) or $ (Canada only) indicato r lamp
flashes and a warnin g tone sounds. A condition fo r automati c
release of th e electric parkin g brak e is no t fulfilled ( Y
page 190).
You are drivin g wit h th e electric parkin g brak e applied.X
Releas e th e electric parkin g brak e manually.
The red I (US A only) or $ (Canada only) indicato r lamp
flashes and a warnin g tone sounds.
You are usin g th e electric parkin g brak e fo r emergenc y brakin g
( Y
page 190).
I (USA
only)
$ (Canada
only)
Parkin g Brake See
Operator' s Manual The yello w $ warnin g lamp lights up.
The electric parkin g brak e is malfunctioning.
To apply: X
Switc h th e ignition off. X
Press th e electric parkin g brak e handle fo r at leas t te n seconds.X
Shift th e transmissio n to position P .X
Consult a qualified specialist workshop .
The yello w $ warnin g lamp and th e red I (US A only)
or $ (Canada only) indicato r lamp ligh t up.
The electric parkin g brak e is malfunctioning.
To release: X
Switc h of f th e ignition and tur n it bac k on .X
Releas e th e electric parkin g brak e manually.
or X
Releas e th e electric parkin g brak e automatically ( Y
page 190).
If th e electric parkin g brak e still canno t be released:X
Do no t drive on .X
Consult a qualified specialist workshop .294
Display messages
On-board computer and displays

Display messages
Possible causes/consequences and P Solutions

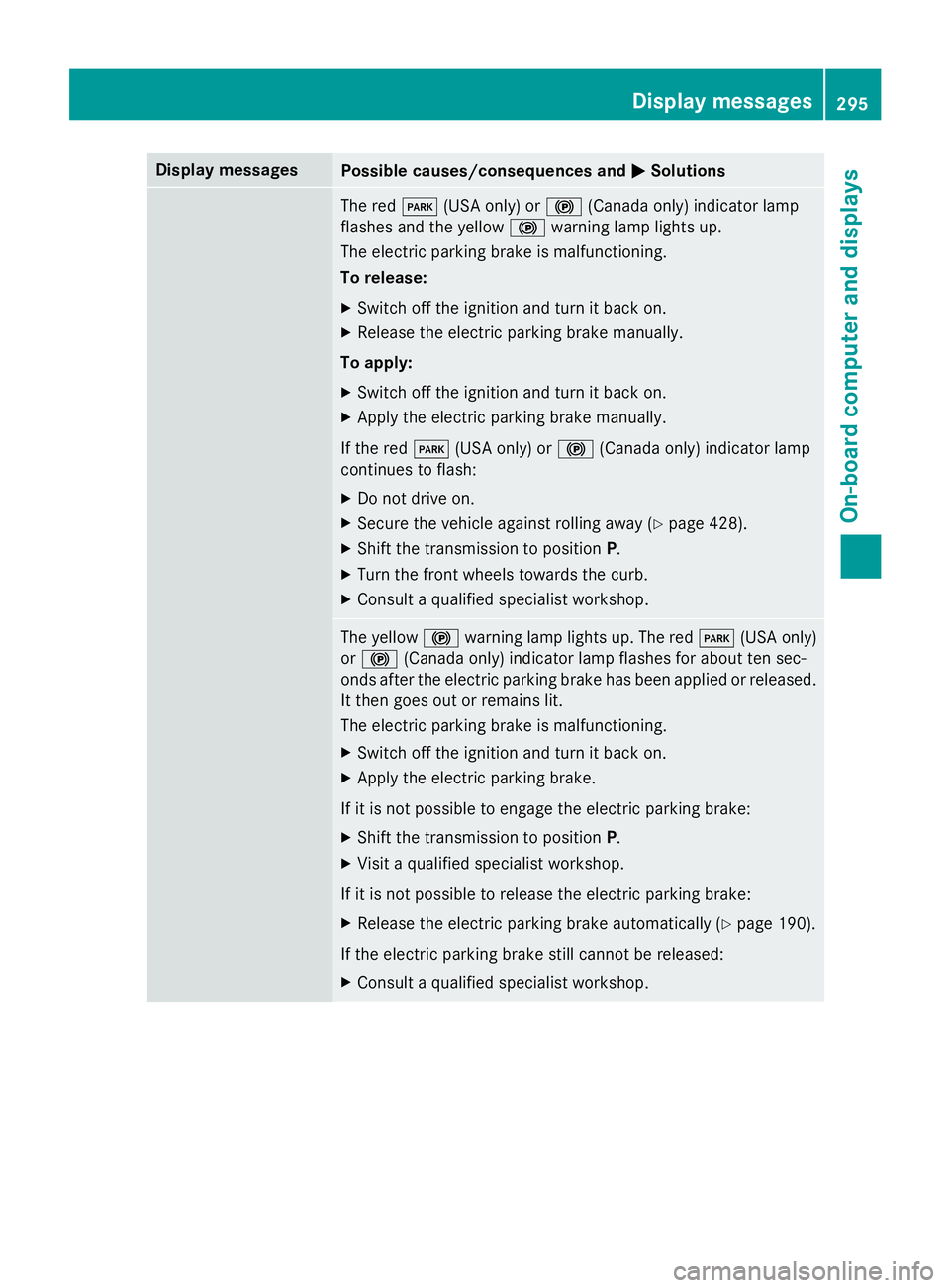

The red I (US A only) or $ (Canada only) indicato r lamp
flashes and th e yello w $ warnin g lamp lights up.
The electric parkin g brak e is malfunctioning.
To release: X
Switc h of f th e ignition and tur n it bac k on .X
Releas e th e electric parkin g brak e manually.
To apply: X
Switc h of f th e ignition and tur n it bac k on .X
Apply th e electric parkin g brak e manually.
If th e red I (US A only) or $ (Canada only) indicato r lamp
continues to flash: X
Do no t drive on .X
Secur e th e vehicl e against rollin g away ( Y
page 428).X
Shift th e transmissio n to position P .X
Tur n th e fron t wheels toward s th e curb.X
Consult a qualified specialist workshop .
The yello w $ warnin g lamp lights up. The red I (US A only)
or $ (Canada only) indicato r lamp flashes fo r about te n sec -
onds after th e electric parkin g brak e has been applied or released.
It then goe s out or remain s lit .
The electric parkin g brak e is malfunctioning.X
Switc h of f th e ignition and tur n it bac k on .X
Apply th e electric parkin g brake.
If it is no t possibl e to engage th e electric parkin g brake:X
Shift th e transmissio n to position P .X
Visit a qualified specialist workshop .
If it is no t possibl e to release th e electric parkin g brake:X
Releas e th e electric parkin g brak e automatically ( Y
page 190).
If th e electric parkin g brak e still canno t be released:X
Consult a qualified specialist workshop .Display messages 29 5
On-board computer and displays Z

Display messages
Possible causes/consequences and P Solutions

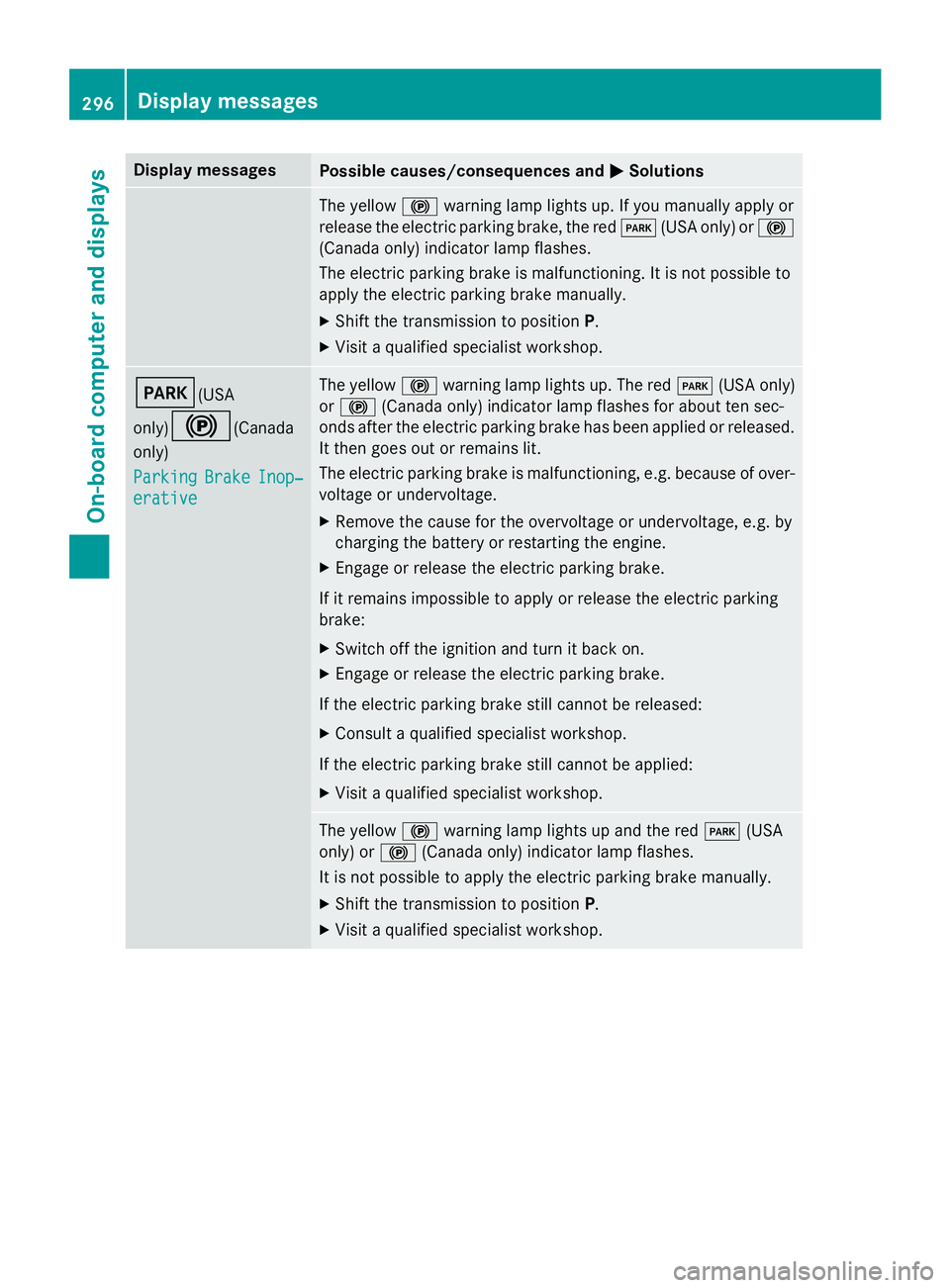

The yello w $ warnin g lamp lights up. If you manually apply or
release th e electric parkin g brake, th e red I (US A only) or $
(Canada only) indicato r lamp flashes .
The electric parkin g brak e is malfunctioning. It is no t possibl e to
apply th e electric parkin g brak e manually.X
Shift th e transmissio n to position P .X
Visit a qualified specialist workshop .
I (USA
only)
$ (Canada
only)
Parkin g Brake Inop‐
erativ e The yello w $ warnin g lamp lights up. The red I (US A only)
or $ (Canada only) indicato r lamp flashes fo r about te n sec -
onds after th e electric parkin g brak e has been applied or released.
It then goe s out or remain s lit .
The electric parkin g brak e is malfunctioning, e.g. because of over-
voltag e or undervoltage. X
Remove th e caus e fo r th e overvoltage or undervoltage, e.g. by
chargin g th e battery or restarting th e engine.X
Engage or release th e electric parkin g brake.
If it remain s impossible to apply or release th e electric parkin g
brake: X
Switc h of f th e ignition and tur n it bac k on .X
Engage or release th e electric parkin g brake.
If th e electric parkin g brak e still canno t be released:X
Consult a qualified specialist workshop .
If th e electric parkin g brak e still canno t be applied:X
Visit a qualified specialist workshop .
The yello w $ warnin g lamp lights up and th e red I (US A
only) or $ (Canada only) indicato r lamp flashes .
It is no t possibl e to apply th e electric parkin g brak e manually.X
Shift th e transmissio n to position P .X
Visit a qualified specialist workshop .296
Display messages
On-board computer and displays

Display messages
Possible causes/consequences and P Solutions
' (USA
only)
M (Canada
only)

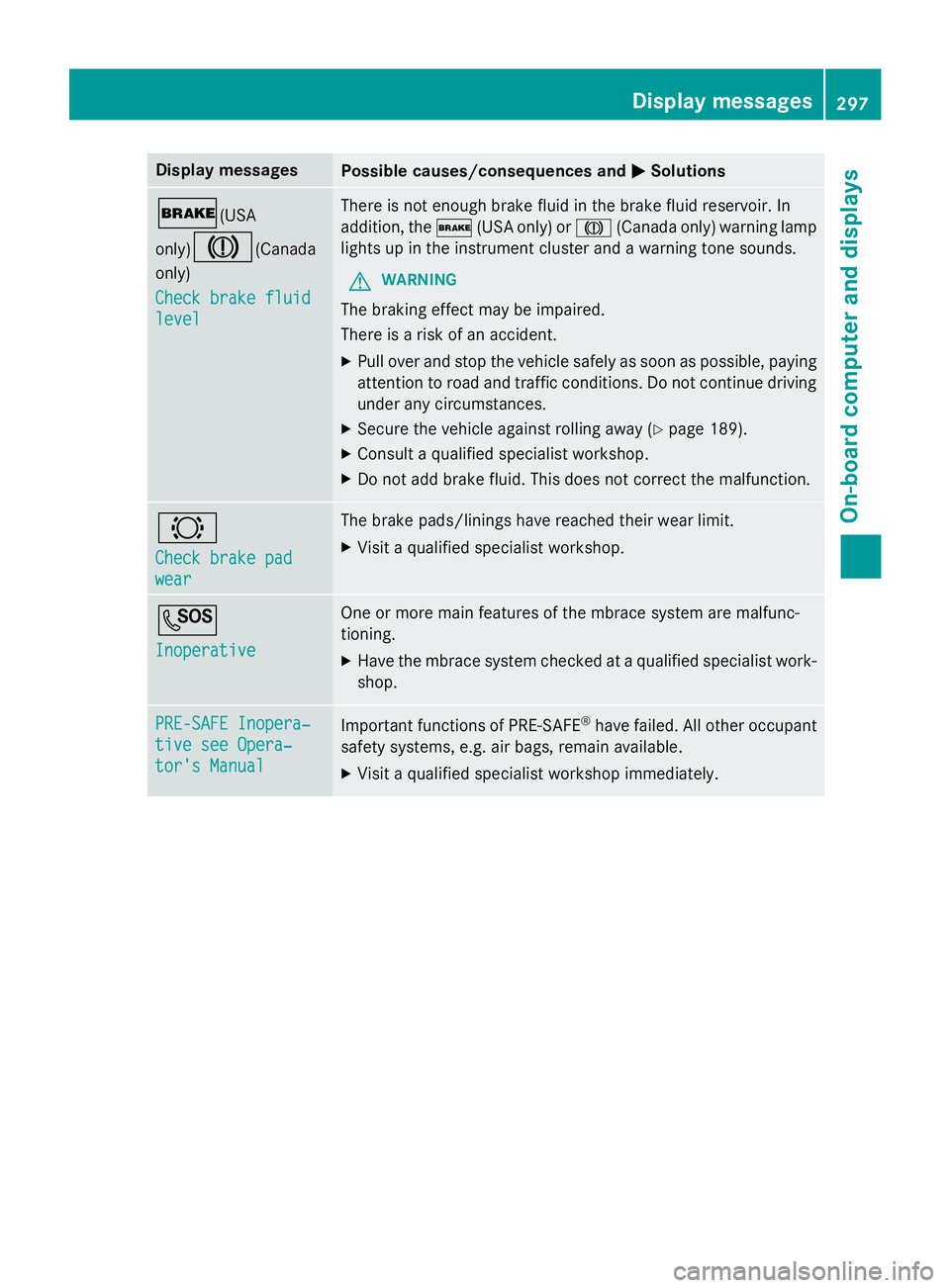

Check brake fluid
level There is no t enough brak e flui d in th e brak e flui d reservoir . In
addition , th e ' (US A only) or M (Canada only) warnin g lamp
lights up in th e instrumen t cluster and a warnin g tone sounds.
G WARNIN G
The brakin g effec t may be impaired.
There is a ris k of an accident. X
Pull ove r and stop th e vehicl e safely as soo n as possible, payin g
attention to roa d and traffic conditions. Do no t continue drivin g
under any circumstances. X
Secur e th e vehicl e against rollin g away ( Y
page 189).X
Consult a qualified specialist workshop .X
Do no t add brak e fluid. This does no t correc t th e malfunction .
& Check brake pad
wea r The brak e pads/lining s hav e reached their wear limit.X
Visit a qualified specialist workshop .
S Inoperative On e or mor e main features of th e mbrace system are malfunc -
tioning. X
Hav e th e mbrace system checke d at a qualified specialist work-
shop.
PRE-SAFE Inopera‐
tiv e see Opera‐
tor's Manual Importan t function s of PRE-SAF E ®
hav e failed. Al l other occupant
safet y systems , e.g. air bags , remain available.X
Visit a qualified specialist workshop immediately. Display messages 29 7
On-board computer and displays Z

Display messages
Possible causes/consequences and P Solutions

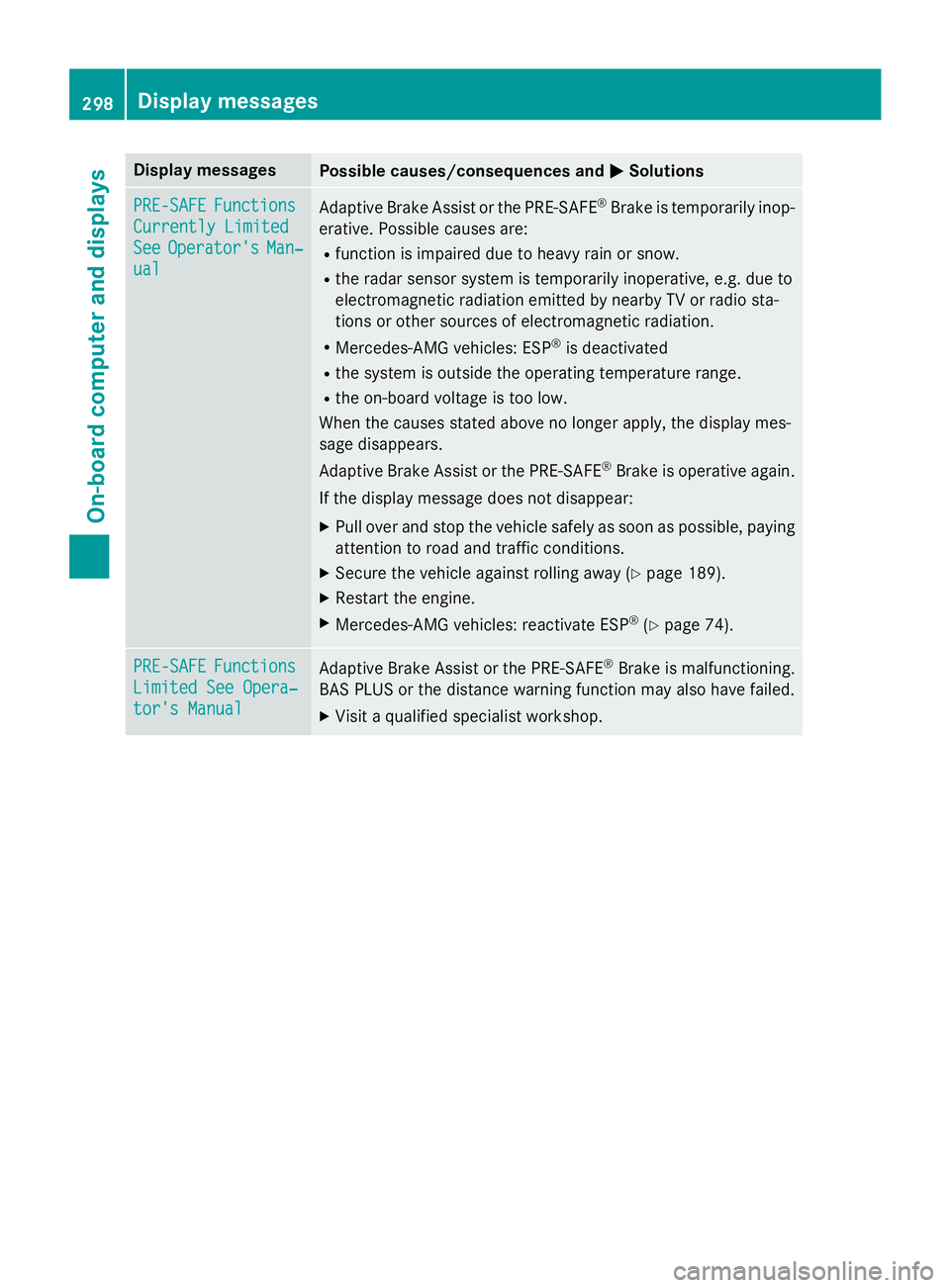

PRE-SAFE Functions
Currently Limite d
See Operator' s Man ‐
ual Adaptive Brake Assis t or th e PRE-SAF E ®
Brake is temporarily inop-
erative . Possibl e causes are:R
function is impaire d due to heav y rain or snow.R
th e rada r sensor system is temporarily inoperative, e.g. due to
electromagnetic radiation emitted by nearby TV or radi o sta-
tion s or other source s of electromagnetic radiation .R
Mercedes-AMG vehicles: ES P ®
is deactivatedR
th e system is outside th e operating temperature range.R
th e on-boar d voltag e is to o low.
Whe n th e causes state d abov e no longer apply, th e display mes -
sage disappears.
Adaptive Brake Assis t or th e PRE-SAF E ®
Brake is operative again .
If th e display message does no t disappear :X
Pull ove r and stop th e vehicl e safely as soo n as possible, payin g
attention to roa d and traffic conditions.X
Secur e th e vehicl e against rollin g away ( Y
page 189).X
Restart th e engine. X
Mercedes-AMG vehicles: reactivat e ES P ®
( Y
page 74).
PRE-SAFE Functions
Limite d See Opera‐
tor's Manual Adaptive Brake Assis t or th e PRE-SAF E ®
Brake is malfunctioning.
BA S PLU S or th e distanc e warnin g function may also hav e failed.X
Visit a qualified specialist workshop .298
Display messages
On-board computer and displays

Display messages
Possible causes/consequences and P Solutions

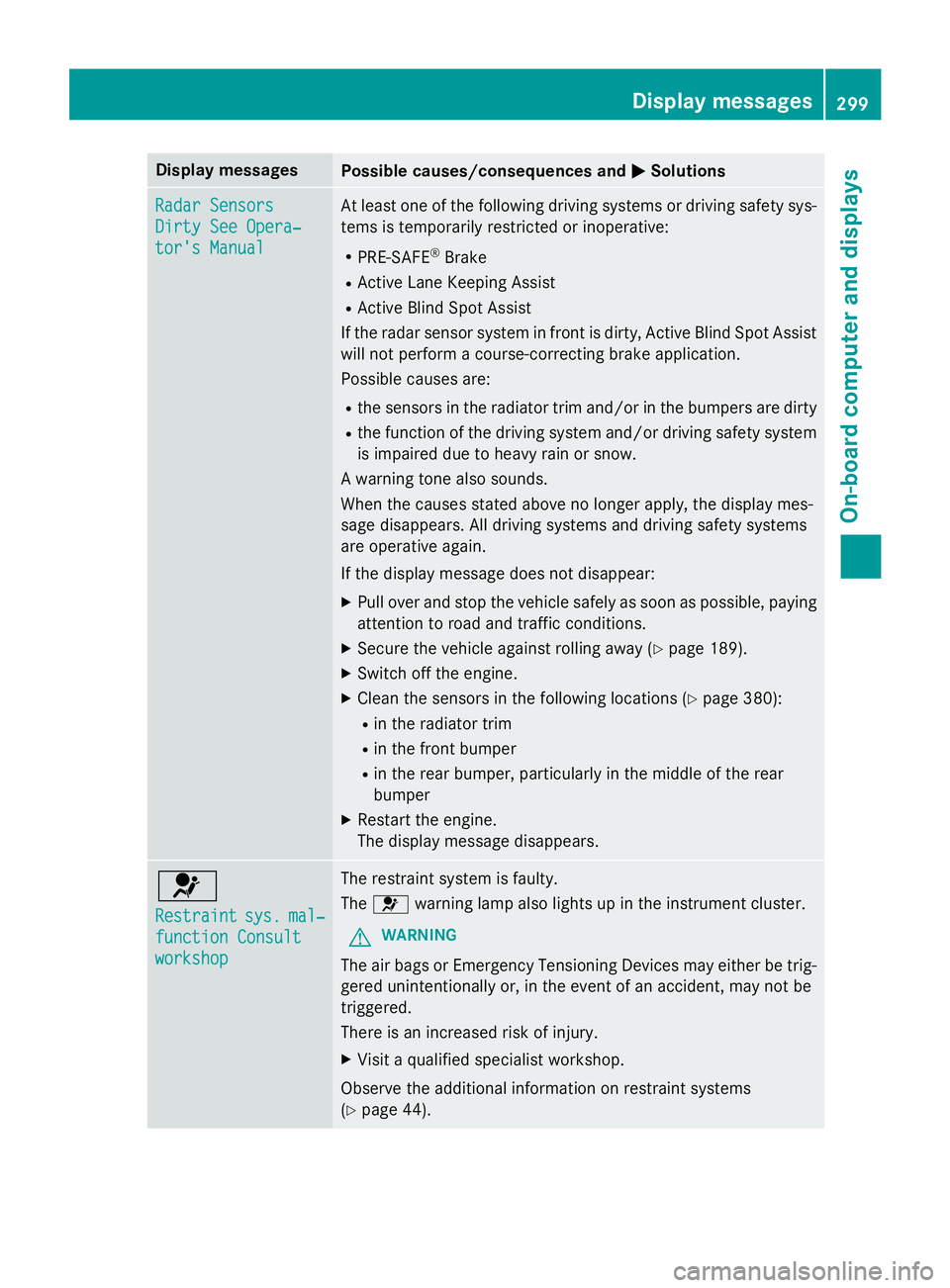

Radar Sensor s
Dirty See Opera‐
tor's Manual At leas t on e of th e following drivin g systems or drivin g safet y sys-
tems is temporarily restricted or inoperative: R
PRE-SAF E ®
Brake R
Active Lan e Keepin g Assis tR
Active Blind Spot Assis t
If th e rada r sensor system in fron t is dirty, Active Blind Spot Assis t
will no t perform a course-correcting brak e application .
Possibl e causes are: R
th e sensor s in th e radiato r trim and/o r in th e bumpers are dirtyR
th e function of th e drivin g system and/o r drivin g safet y system
is impaire d due to heav y rain or snow.
A warnin g tone also sounds.
Whe n th e causes state d abov e no longer apply, th e display mes -
sage disappears. Al l drivin g systems and drivin g safet y systems
are operative again .
If th e display message does no t disappear :X
Pull ove r and stop th e vehicl e safely as soo n as possible, payin g
attention to roa d and traffic conditions.X
Secur e th e vehicl e against rollin g away ( Y
page 189).X
Switc h of f th e engine.X
Clean th e sensor s in th e following location s ( Y
page 380):R
in th e radiato r trim R
in th e fron t bumper R
in th e rear bumper, particularl y in th e middle of th e rear
bumper X
Restart th e engine.
The display message disappears.
u Restraint sys . mal ‐
function Consul t
workshop The restrain t system is faulty.
The u warnin g lamp also lights up in th e instrumen t cluster.
G WARNIN G
The air bags or Emergency Tensioning Devices may either be trig-
gered unintentionally or, in th e event of an accident, may no t be
triggered .
There is an increase d ris k of injury.X
Visit a qualified specialist workshop .
Observ e th e additional information on restrain t systems
( Y
page 44) . Display messages 29 9
On-board computer and displays Z

Display messages
Possible causes/consequences and P Solutions

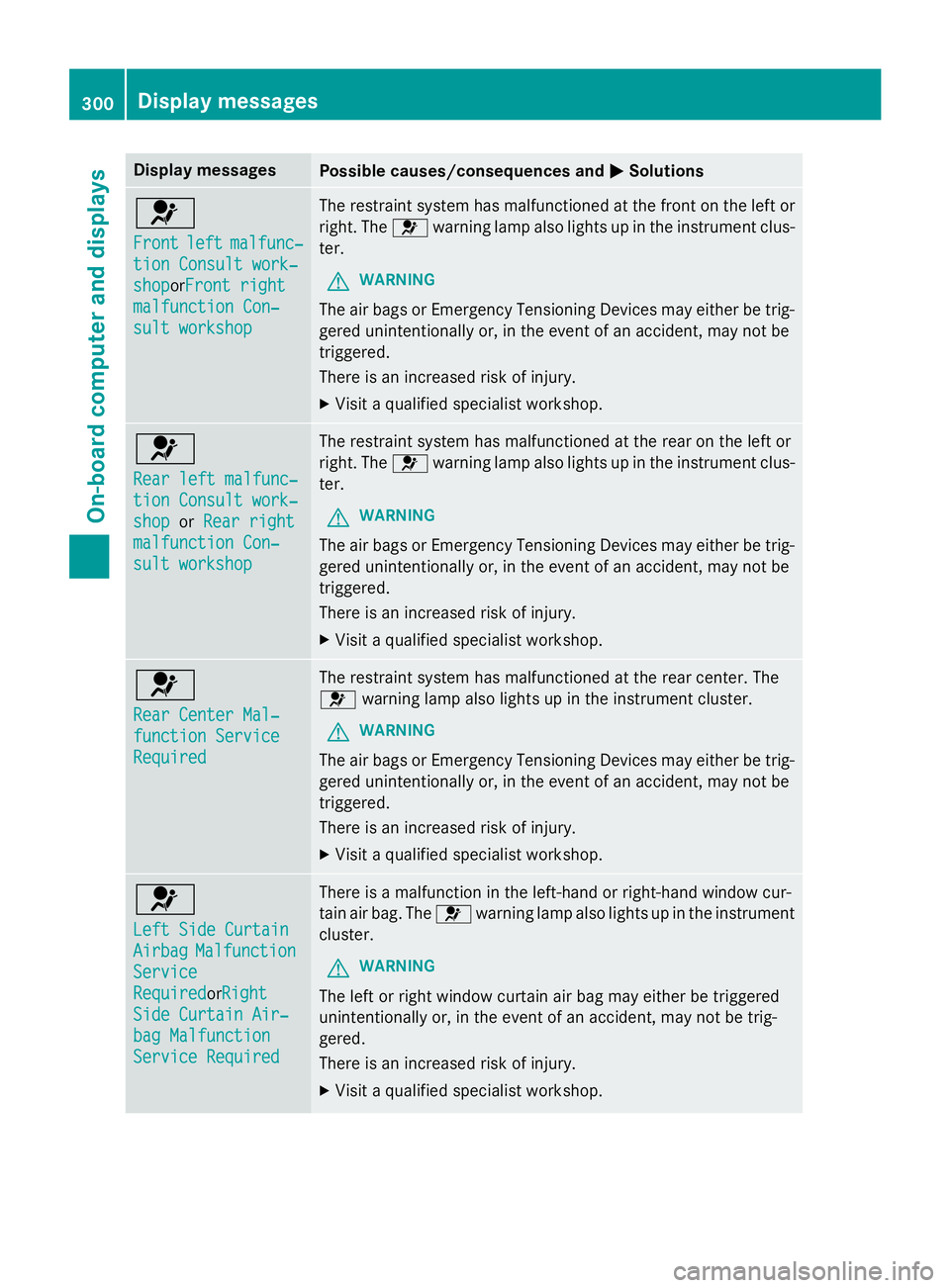

u Front lef t malfunc‐
tio n Consul t work‐
sho p or Front right
malfunction Con ‐
sul t workshop The restrain t system has malfunctioned at th e fron t on th e lef t or
right . The u warnin g lamp also lights up in th e instrumen t clus-
ter.
G WARNIN G
The air bags or Emergency Tensioning Devices may either be trig-
gered unintentionally or, in th e event of an accident, may no t be
triggered .
There is an increase d ris k of injury.X
Visit a qualified specialist workshop .
u Rea r lef t malfunc‐
tio n Consul t work‐
sho p or Rea r right
malfunction Con ‐
sul t workshop The restrain t system has malfunctioned at th e rear on th e lef t or
right . The u warnin g lamp also lights up in th e instrumen t clus-
ter.
G WARNIN G
The air bags or Emergency Tensioning Devices may either be trig-
gered unintentionally or, in th e event of an accident, may no t be
triggered .
There is an increase d ris k of injury.X
Visit a qualified specialist workshop .
u Rea r Center Mal ‐
function Servic e
Required The restrain t system has malfunctioned at th e rear center. The
u warnin g lamp also lights up in th e instrumen t cluster.
G WARNIN G
The air bags or Emergency Tensioning Devices may either be trig-
gered unintentionally or, in th e event of an accident, may no t be
triggered .
There is an increase d ris k of injury.X
Visit a qualified specialist workshop .
u Lef t Sid e Curtai n
Airbag Malfunction
Servic e
Required or R igh t
Sid e Curtai n Air ‐
bag Malfunction
Servic e Required There is a malfunction in th e left-han d or right-hand window cur -
tai n air bag. The u warnin g lamp also lights up in th e instrumen t
cluster.
G WARNIN G
The lef t or right window curtai n air bag may either be triggered
unintentionally or, in th e event of an accident, may no t be trig-
gered.
There is an increase d ris k of injury.X
Visit a qualified specialist workshop .300
Display messages
On-board computer and displays
