SPORT program
Select the SPORT program for sporty,
dynamic handling.
Your selection remains stored even if you
remove the SmartKey from the ignition lock.
XSelector wheel:engaged:briefly press
selector wheel :.
Selector wheel :extends.
XTo select: turn selector wheel :until indi-
cator lamp ;comes on.
SPORT indicator =appears in the multi-
function display.
RHigh-speed level, –15 mm compared to
highway level, is set.
RADS (Adaptive Damping System) adapts
sporty damping characteristics to the
current operating and driving conditions.
RThe automatic transmission selects the
automatic drive program for a sporty
driving style.
RThe sporty accelerator pedal curve is
selected, e.g. the accelerator pedal no longer has to be pressed as far to accel-
erate.
RThe sporty steering curve is selected,
e.g. greater force is required when steer-
ing.
iYou cannot select the SPORT program if
LOW RANGE has been selected. The
Drive Program SPORT Not in LOW
RANGEmessage then appears in the multi-
function display.
Snow program
Select the snow program for driving in snow
with or without snow chains.
XSelector wheel :engaged:briefly press
selector wheel :.
Selector wheel :extends.
XTo select: turn selector wheel :until indi-
cator lamp ;comes on.
Snow indicator =appears in the multi-
function display.
Driving systems255
Driving and parking
Z

!A function or performance test should
only be carried out on a two-axle dyna-
mometer. Before you operate the vehicle
on such a dynamometer, please consult a
qualified workshop. You could otherwise
damage the drive train or the brake system.
iIn wintry driving conditions, the maximum
effect of 4MATIC can only be achieved if
you use winter tires (M+S tires), with snow
chains if necessary.
Further information about "Driving off-road"
(
Ypage 198).
DSR (Downhill Speed Regulation)
General notes
DSR is an aid to assist you when driving down-
hill. It keeps the speed of travel at the speed
selected on the on-board computer. The
steeper the downhill gradient, the greater the
DSR braking effect on the vehicle. When driv-
ing on flat stretches of road or on an uphill
gradient, the DSR braking effect is minimal or
nonexistent.
DSR controls the vehicle’s speed when it is
activated and the transmission is in position
D ,R or N. You can drive at a higher or a lower
speed than that set on the on-board computer
at any time by accelerating or braking.
Important safety notes
GWARNING
If the speed driven and the set speed deviate and you activate DSR on a slippery road sur-
face, the wheels may lose traction. There is an
increased danger of skidding and accidents.
Before switching DSR on, please take into
consideration the road surface and the differ- ence between driving speed and the set
speed.
If you fail to adapt your driving style, DSR can
neither reduce the risk of accident nor over-
ride the laws of physics. DSR cannot take
account of road, weather and traffic condi-
tions. DSR is only an aid. You are responsible for the distance to the vehicle in front, for
vehicle speed, for braking in good time and for
staying in your lane.
You are always responsible for keeping con-
trol of the vehicle and for assessing whether
the downhill gradient can be managed. DSR
may not always be able to keep to the set
speed, depending on road surface and tire
conditions. Select a set speed suitable for the
prevailing conditions and when necessary,
apply the brakes manually.
Activating DSR
XPress button
:.
Indicator lamp ;lights up.
The à DSR symbol appears in the mul-
tifunction display.
You can only activate DSR when driving at
speeds at or below 28 mph (40 km/h).
If the current vehicle speed is too high, the
à DSR symbol appears in the multifunc-
tion display with the Max. Speed 28 mph
message (Canada:40 km/h).
If you have activated DSR and you change the drive program, DSR is deactivated. If you
switch between the Offroad and Offroad Plus
drive programs, DSR remains activated.
Deactivating DSR
XPress button :.
Indicator lamp ;goes out.
The à DSR symbol appears in the mul-
tifunction display with the Off
message.
DSR switches off automatically if you drive
faster than 28 mph (Canada: 45 km/h). The
Driving systems257
Driving and parking
Z

ÃDSR symbol appears in the multifunc-
tion display with the Off
message. The status
indicator in the multifunction display goes
out. You also hear a warning. On vehicles with
the ON&OFFROAD package, if you select a
different on-road/off-road program, DSR is
also deactivated.
Changing the set speed
XTo increase or decrease in 1 mph incre- ments (Canada: 1 km/h increments):
briefly press the cruise control lever up :
for a higher set speed or down ;for a
lower set speed.
The set speed appears in the multifunction
display with the ÃDSR symbol.
When DSR is activated, you can change the
set speed to a value between 1 mph and
11 mph (Canada: between 2 km/h and
18 km/h).
iThe DSR set speed is always changed in
1 mph increments (Canada: 1 km/h incre-
ments). This is regardless of whether you
press the cruise control lever to or beyond
the pressure point.
Off-road programs (vehicles with the
ON&OFFROAD package)
General notes
The off-road programs assist you in driving
off-road. The engine's performance charac-
teristics and the gearshifting characteristics
of the automatic transmission are adapted for
this purpose. ABS, ESP
®and 4ETS programs
especially adapted to off-road driving are acti- vated. An accelerator pedal curve suitable for
the terrain is selected, i.e. the accelerator
pedal must be depressed further to acceler-
ate.
Do not use the off-road programs on roads
that are snow-covered or icy or if you have
mounted snow chains on your vehicle.
For information on driving off-road, see
(
Ypage 198).
The following program messages are shown
in the multifunction display until the applica-
ble vehicle level is set. Up to off-road level 2,
you can hide the program messages using the
% or the abutton on the multifunction
steering wheel.
Off-road program 1
XSelector wheel :engaged:briefly press
selector wheel :.
Selector wheel :extends.
XTo select: turn selector wheel :until indi-
cator lamp ;comes on.
Off-road indicator =appears in the multi-
function display.
258Driving system s
Driving an d parking

vehicle rolling away unintentionally. There is a
risk of an accident.
Wait until the transfer case shift process is
completed.
Do not turn off the engine while changing gear
and do not shift the automatic transmission
to another position.
General notes
:LOW RANGE off-road gear button
;LOW RANGE off-road gear indicator lamp
HIGH RANGEPosition for all normal on-
road driving conditions
LOW RANGEOff-road position for driv-
ing off-road and fording
The transmission ratio
between the engine and
wheels is only approx-
imately one third of that in
the HIGH RANGE road
position. Drive torque is
thus proportionately
higher.
Do not use LOW RANGE:
Ron slippery road surfa-
ces, e.g. in the case of
slush
Ron snow or ice-covered
roads
Rif you have mounted
snow chains to your
vehicle
The LOW RANGE off-road gear assists you in
driving off-road and when fording. When LOW
RANGE is engaged, the engine’s performance
characteristics and the gearshifting charac-
teristics of the automatic transmission are
adapted for this purpose.
Further information about "Driving off-road"
(
Ypage 198). You will find information about
driving safety systems in conjunction with
LOW RANGE in the "Safety" section
(
Ypage 68).
From HIGH RANGE to LOW RANGE
!Only change from LOW RANGE to HIGH
RANGE if:
Rthe engine is running.
Rthe transmission is in position N
Ryou are driving at a speed below
40 km/h
XPress LOW RANGE button:.
Indicator lamp ;flashes.
When the gear change is complete, indica- tor lamp ;lights up. LOW RANGE indica-
tor appears in the multifunction display and
in the status indicator.
While indicator lamp ;is flashing, you can
cancel the gear change by pressing LOW
RANGE button :again.
iYou cannot activate LOW RANGE if the
SPORT drive program is activated. The
LOW RANGE Not in Drive Program
"Sport"message then appears in the mul-
tifunction display.
From LOW RANGE to HIGH RANGE
!Only change from LOW RANGE to HIGH
RANGE if:
Rthe engine is running.
Rthe transmission is in position N
Ryou are driving at a speed below
70 km/h
260Driving systems
Driving and parking

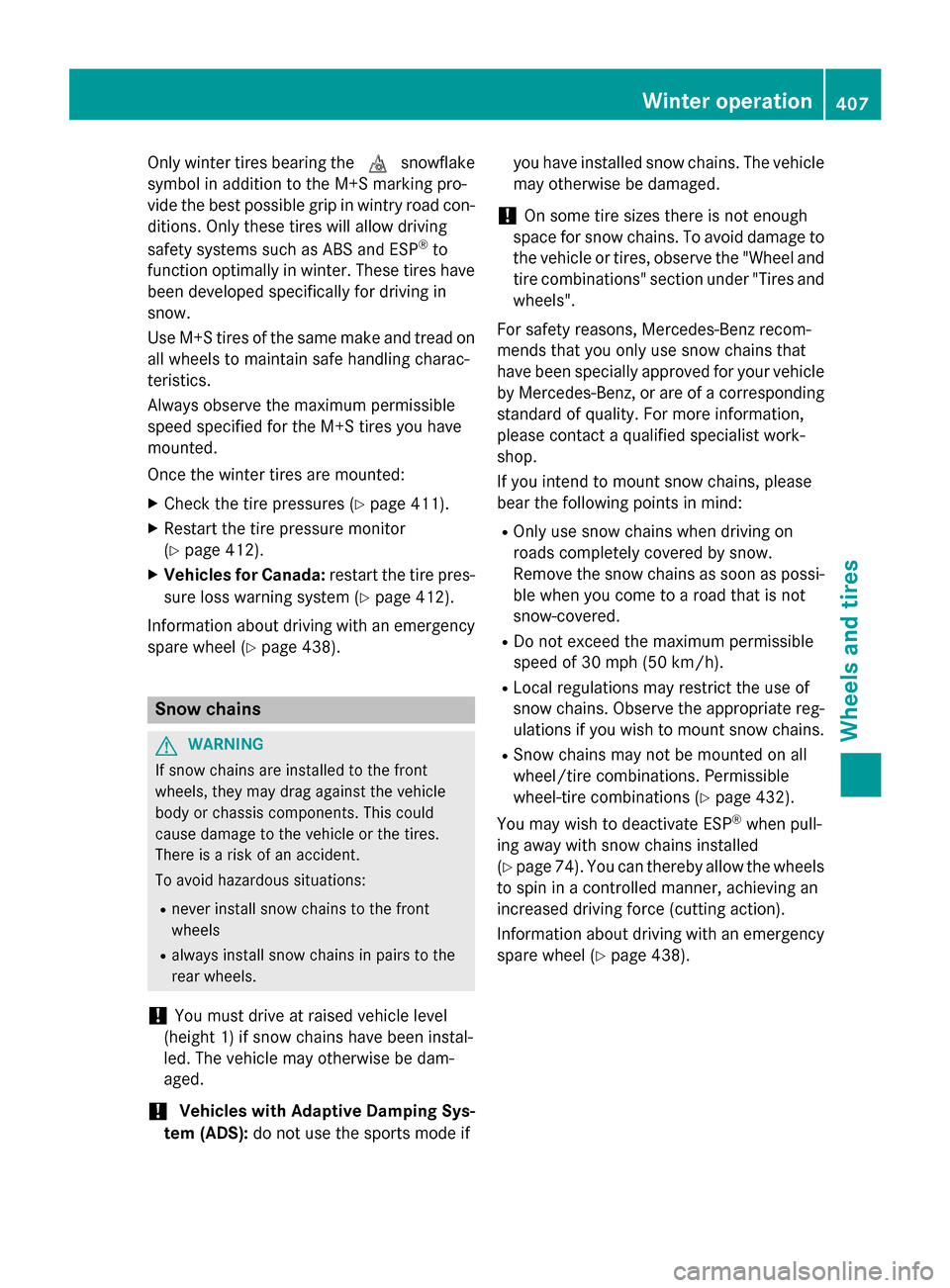

Only winter tires bearing theisnowflake
symbol in addition to the M+S marking pro-
vide the best possible grip in wintry road con-
ditions. Only these tires will allow driving
safety systems such as ABS and ESP
®to
function optimally in winter. These tires have
been developed specifically for driving in
snow.
Use M+S tires of the same make and tread on
all wheels to maintain safe handling charac-
teristics.
Always observe the maximum permissible
speed specified for the M+S tires you have
mounted.
Once the winter tires are mounted:
XCheck the tire pressures (Ypage 411).
XRestart the tire pressure monitor
(
Ypage 412).
XVehicles for Canada: restart the tire pres-
sure loss warning system (
Ypage 412).
Information about driving with an emergency
spare wheel (
Ypage 438).
Snow chains
GWARNING
If snow chains are installed to the front
wheels, they may drag against the vehicle
body or chassis components. This could
cause damage to the vehicle or the tires.
There is a risk of an accident.
To avoid hazardous situations:
Rnever install snow chains to the front
wheels
Ralways install snow chains in pairs to the
rear wheels.
!You must drive at raised vehicle level
(height 1) if snow chains have been instal-
led. The vehicle may otherwise be dam-
aged.
!Vehicles with Adaptive Damping Sys-
tem (ADS): do not use the sports mode if you have installed snow chains. The vehicle
may otherwise be damaged.
!On some tire sizes there is not enough
space for snow chains. To avoid damage to
the vehicle or tires, observe the "Wheel and tire combinations" section under "Tires and
wheels".
For safety reasons, Mercedes-Benz recom-
mends that you only use snow chains that
have been specially approved for your vehicle
by Mercedes-Benz, or are of a corresponding
standard of quality. For more information,
please contact a qualified specialist work-
shop.
If you intend to mount snow chains, please
bear the following points in mind:
ROnly use snow chains when driving on
roads completely covered by snow.
Remove the snow chains as soon as possi-
ble when you come to a road that is not
snow-covered.
RDo not exceed the maximum permissible
speed of 30 mph (50 km/h).
RLocal regulations may restrict the use of
snow chains. Observe the appropriate reg-
ulations if you wish to mount snow chains.

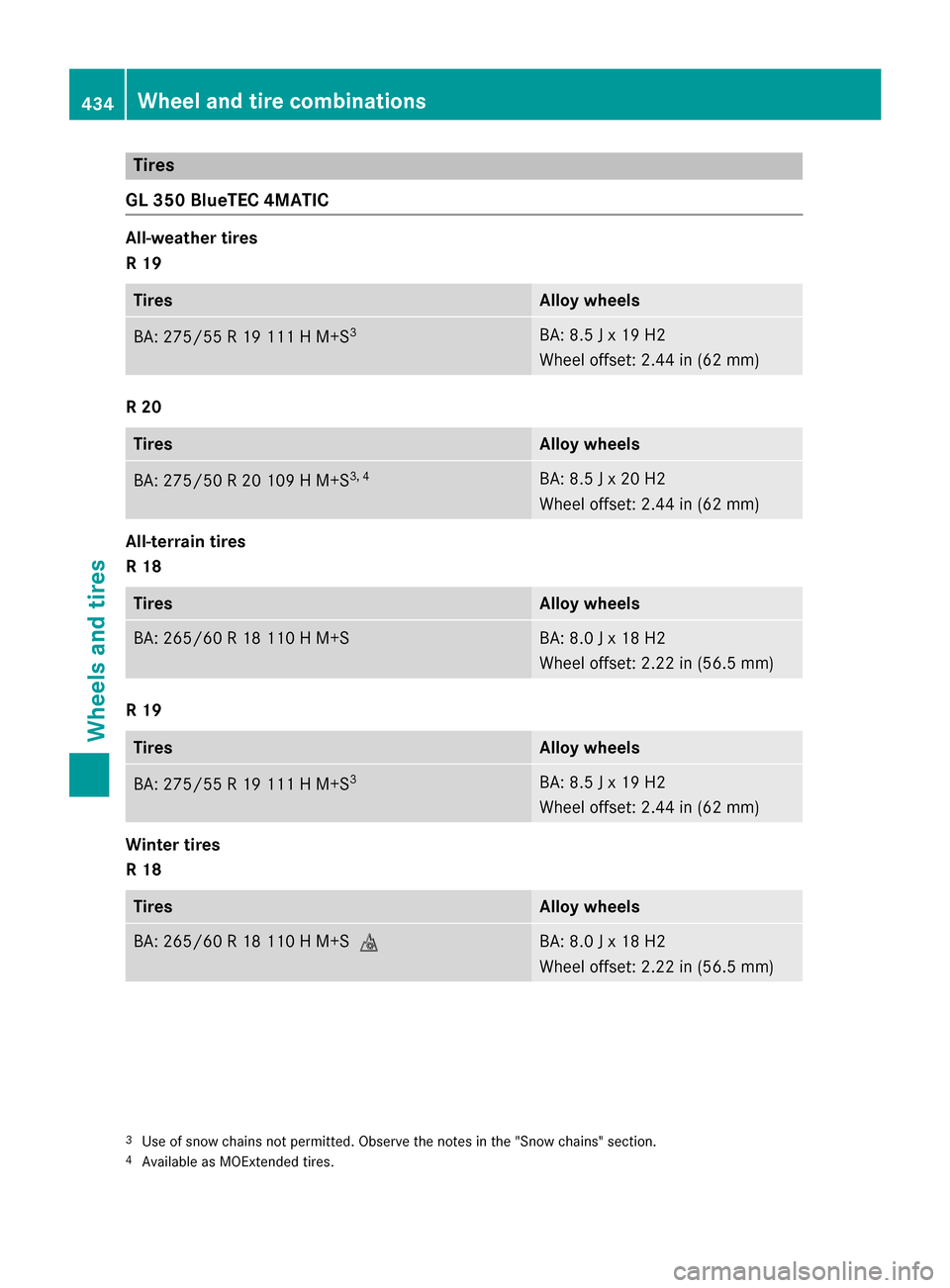

RSnow chains may not be mounted on all
wheel/tire combinations. Permissible
wheel-tire combinations (
Ypage 432).
You may wish to deactivate ESP
®when pull-
ing away with snow chains installed
(
Ypage 74). You can thereby allow the wheels
to spin in a controlled manner, achieving an
increased driving force (cutting action).
Information about driving with an emergency
spare wheel (
Ypage 438).
Winter operation407
Wheels and tires
Z

The tire pressure monitor is not able to warn
you of a sudden loss of pressure, e.g. if the
tire is penetrated by a foreign object. In the
event of a sudden loss of pressure, bring the
vehicle to a halt by braking carefully. Avoid
abrupt steering maneuvers.
The function of the tire pressure loss warning
system is limited or delayed if:
Rsnow chains are mounted on your vehicle's
tires.
Rroad conditions are wintry.
Ryou are driving on sand or gravel.
Ryou adopt a very sporty driving style (cor-
nering at high speeds or driving with high
rates of acceleration).
Ryou are towing a very heavy or large trailer.
Ryou are driving with a heavy load (in the
vehicle or on the roof).
Restarting the tire pressure loss warn-
ing system
Restart the tire pressure loss warning system
if you have:
Rchanged the tire pressure
Rchanged the wheels or tires
Rmounted new wheels or tires
XBefore restarting, make sure that the tire
pressures are set properly on all four tires
for the respective operating conditions.
The recommended tire pressures can be
found on the Tire and Loading Information
placard on the B-pillar on the driver's side
or the tire pressure table on the fuel filler
flap.
The tire pressure loss warning system can
only give reliable warnings if you have set
the correct tire pressure. If an incorrect tire
pressure is set, these incorrect values will
be monitored.
XAlso observe the notes in the section on tire
pressures (
Ypage 408).
XMake sure that the SmartKey is in position
2in the ignition lock (
Ypage 165).
XPress the =or; button on the steer-
ing wheel to select the Service
menu.
XPress the9or: button to select
Tire Pressure
.
XPress the abutton.
The Run Flat Indicator Active
Press 'OK' to Restartmessage
appears in the multifunction display.
If you wish to confirm the restart:
XPress the abutton.
The Tire Pressure Now OK?
message
appears in the multifunction display.
XPress the 9or: button to select
Yes
.
XPress the abutton.
The Run Flat Indicator Restarted
message appears in the multifunction dis-
play.
After a teach-in period, the tire pressure
loss warning system will monitor the set
tire pressures of all four tires.
If you wish to cancel the restart:
XPress the %button.
or
XWhen the Tire Pressure Now OK?mes-
sage appears, press the 9or: but-
ton to select Cancel
.
XPress theabutton.
The tire pressure values stored at the last
restart will continue to be monitored.
Tire pressure monitor
General notes
If a tire pressure monitor is installed, the vehi-
cle's wheels have sensors that monitor the
tire pressures in all four tires. The tire pres-
sure monitor warns you if the pressure drops
in one or more of the tires. The tire pressure
monitor only functions if the corresponding
sensors are installed in all wheels.
Information on tire pressures is displayed in
the multifunction display. After a few minutes
412Tire pressure
Wheels and tires

Tires
GL 350 BlueTEC 4MATIC
All-weather tires
R 19
TiresAlloy wheels
BA: 275/55 R 19 111 H M+S3BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
R 20
TiresAlloy wheels
BA: 275/50 R 20 109 H M+S3, 4BA: 8.5 J x 20 H2
Wheel offset: 2.44 in (62 mm)
All-terrain tires
R 18
TiresAlloy wheels
BA: 265/60 R 18 110 H M+SBA: 8.0 J x 18 H2
Wheel offset: 2.22 in (56.5 mm)
R 19
TiresAlloy wheels
BA: 275/55 R 19 111 H M+S3BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
Winter tires
R 18
TiresAlloy wheels
BA: 265/60 R 18 110 H M+S iBA: 8.0 J x 18 H2
Wheel offset: 2.22 in (56.5 mm)
3Use of snow chains not permitted. Observe the notes in the "Snow chains" section.4Available as MOExtended tires.
434Wheel and tire combinations
Wheels and tires

R 19
TiresAlloy wheels
BA: 265/55 R 19 109 H M+SiBA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
R 20
TiresAlloy wheels
BA: 275/50 R 20 109 H M+S iBA: 8.5 J x 20 H2
Wheel offset: 2.44 in (62 mm)
GL 450
All-weather tires
R 19
TiresAlloy wheels
BA: 275/55 R 19 111 H M+S3BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
R 20
TiresAlloy wheels
BA: 275/50 R 20 109 H M+S3, 4BA: 8.5 J x 20 H2
Wheel offset: 2.44 in (62 mm)
All-terrain tires
R 19
TiresAlloy wheels
BA: 275/55 R 19 111 H M+S3BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
Winter tires
R 19
TiresAlloy wheels
BA: 265/55 R 19 109 H M+SiBA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
3Use of snow chains not permitted. Observe the notes in the "Snow chains" section.4Available as MOExtended tires.
Wheel and tire combinations435
Wheels and tires
Z
