2016 MERCEDES-BENZ CLA-Class Owner's Manual

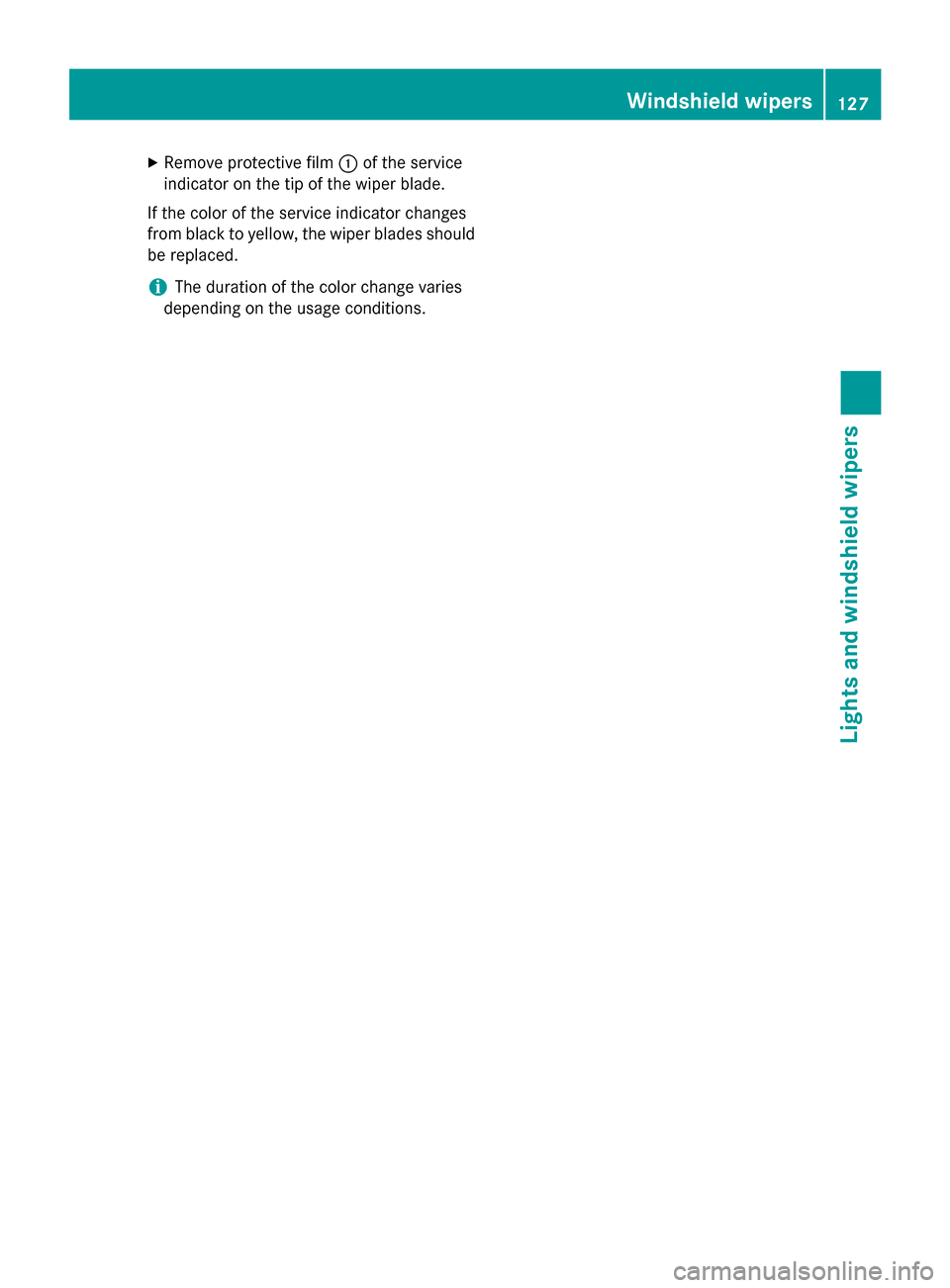

XRemove protective film:of th eservic e
indicato ron th etip of th ewiper blade .
If th ecolor of th eservic eindicato rchanges
from blac kto yellow ,th ewiper blade sshould
be replaced.
iThe duration of th ecolor chang evaries
dependin gon th eusage conditions.
Windshield wipers127
Lights and windshield wipers
Z

Problems with the windshield wipers
ProblemPossible causes/consequences andMSolutions
The windshield wipers
are jammed.Leaves or snow, for example, may be obstructing the windshield
wiper movement. The wiper motor has been deactivated.
XFor safety reasons, you should remove the SmartKey from the
ignition lock.
XRemove the cause of the obstruction.
XSwitch the windshield wipers back on.
The windshield wipers
fail completely.The windshield wiper drive is malfunctioning.
XSelect another wiper speed on the combination switch.
XHave the windshield wipers checked at a qualified specialist
workshop.
The windshield washer
fluid from the spray
nozzles no longer hits
the center of the wind-
shield.The spray nozzles are misaligned.
XHave the spray nozzles adjusted at a qualified specialist work-
shop.
128Windshield wipers
Lights and windshield wipers

Useful information............................130
Overview of climate control sys-
tems ................................................... 130
Operating the climate control sys-
tems ................................................... 135
Air vents ............................................ 142
129
Climate control

Useful information
i
This Operator's Manual describes all
models and all standard and optional equip-
ment of your vehicle available at the time of
publication of the Operator's Manual.
Country-specific differences are possible.
Please note that your vehicle may not be
equipped with all features described. This
also applies to safety-related systems and
functions.
iRead the information on qualified special-
ist workshops (
Ypage 25).
Overview of climate control systems
General notes
Observe the settings recommended on the
following pages. The windows could other-
wise fog up.
To prevent the windows from fogging up:
Rswitch off climate control only briefly
Rswitch on air-recirculation mode only
briefly
Rswitch on the cooling with air dehumidifi-
cation function
Rswitch on the defrost windshield function
briefly, if required
The air-conditioning system/dual-zone auto-
matic climate control regulates the tempera- ture and the humidity of the vehicle interior
and filters out undesirable substances from
the air.
The air-conditioning system/dual-zone auto-
matic climate control can only be operated
when the engine is running. Optimum opera-
tion is only achieved with the side windows
and panorama roof with power tilt/sliding
panel closed.
If you start the engine using your smartphone,
the last selected climate control setting is
reactivated (
Ypage 169). The residual heat function can only be acti-
vated or deactivated with the ignition
switched off (
Ypage 141).
Always keep the ventilation flaps behind the
side trim panel in the cargo compartment
clear (
Ypage 123). Otherwise the vehicle will
not be ventilated correctly.
iVentilate the vehicle for a brief period
during warm weather, e.g. using the con-
venience opening feature (
Ypage 89). This
will speed up the cooling process and the
desired interior temperature will be
reached more quickly.
iThe integrated filter filters out most par-
ticles of dust and soot and completely fil-
ters out pollen. It also reduces gaseous pol- lutants and odors. A clogged filter reduces
the amount of air supplied to the vehicle
interior. For this reason, you should always
observe the interval for replacing the filter,
which is specified in the Maintenance
Booklet. As it depends on environmental
conditions, e.g. heavy air pollution, the
interval may be shorter than stated in t
he
Maintenance Booklet.
iIt is possible that under certain circum-
stances the residual heat function may be
activated automatically an hour after the
SmartKey has been removed in order to dry the automatic climate control. The vehicle
is then ventilated for 30 minutes.
130Overview of climate control systems
Climate control

Air-conditioning system controlpanel
USAonly
:
Sets th etemperature (Ypage 137)
;Defroststh ewindshield (Ypage 139)
=Sets theair distribution (Ypage 138)
?Activates/deactivates air-recirculation mod e (Ypage 141)
ASets theairflow (Ypage 138)
BSwitches coolin gwit hair dehumidification on/off (Ypage 136)
CSwitches therear window defroste ron/off (Ypage 140)
Canada only
:
Sets thetemperature (Ypage 137)
;Defroststh ewindshield (Ypage 139)
=Sets theair distribution (Ypage 138)
Overview of climate control systems131
Climate control

?Activates/deactivates air-recirculation mode (Ypage 141)
ASets the airflow (Ypage 138)
BSwitches cooling with air dehumidification on/off (Ypage 136)
CSwitches the rear window defroster on/off (Ypage 140)
Notes on using the air-conditioning
system
Air-conditioning system
Below, you can find a number of notes and
recommendations to help you use the air-
conditioning system optimally.
RSwitch on the air-conditioning system by
turning control knob Aclockwise to the
desired position (except position 0).
RSet the temperature to 72 ‡ (22 †).
RRecommendation for avoiding misted
windows at low exterior temperatures
or in rain:switch on the ¿cooling with
dehumidification function (
Ypage 136).
Set air distribution to ¯and if possible
switch off PandO (
Ypage 138).
Deactivate air-recirculation mode e
(
Ypage 141).
Set airflow control Ato a setting between
3 and 6(
Ypage 138).
RRecommendation for rapid cooling or
heating of the vehicle interior: briefly set
airflow control Ato a setting between 3
and 6(
Ypage 138).
RRecommendation for a constant vehi-
cle interior temperature: set airflow con-
trol Ato a setting between 1and 3
(
Ypage 138).
RRecommendation for air distribution in winter: select the Oand¯ settings
(
Ypage 138).
Recommendation for air distribution in
summer: select the PorP and
¯ settings (
Ypage 138).
ROnly use the "Windshield defrosting" func-
tion briefly until the windshield is clear
again.
ROnly use air-recirculation mode briefly, e.g.
if there are unpleasant outsid e od
ors or
when in a tunnel. The windows could oth-
erwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
RIf you change the settings of the climate
control system, the climate status display
appears for approximately three seconds
at the bottom of the screen in the Audio/
COMAND display (see separate operating
instructions). You will see the current set-
tings of the various climate control func-
tions.
DYNAMIC SELECT button (except
Mercedes-AMG vehicles)
You can choose between various drive pro-
grams with the DYNAMIC SELECT button
(
Ypage 155).
If you have selected drive program E:
Rwhen heating, the electrical heater booster
is deactivated and in the warming-up phase
heat output is reduced
Rthe rear window defroster running time is
reduced
Depending on the configuration, the climate
settings can also be influenced in drive pro-
gram I.
If you have selected drive program Cor S, the
climate settings are not affected.
ECO start/stop function
During automatic engine switch-off, the cli-
mate control system only operates at a
reduced capacity. If you require the full cli-
mate control output, you can switch off the
ECO start/stop function by pressing the ECO
button (
Ypage 153).
132Overview of climate control systems
Climate control

Control panel for dual-zone automatic climate control
USAonly
:
Sets the temperature, left (Ypage 137)
;Sets climate control to automatic (Ypage 137)
=Defrosts the windshield (Ypage 139)
?Increases the airflow (Ypage 138)
ASets the air distribution (Ypage 138)
BDisplay
CActivates/deactivates air-recirculation mode (Ypage 141)
DSwitches climate control on/off (Ypage 135)
ESets the temperature, right (Ypage 137)
FActivates/deactivates maximum cooling (Ypage 139)
GSwitches cooling with air dehumidification on/off (Ypage 136)
HReduces the airflow (Ypage 138)
ISwitches the rear window defroster on/off (Ypage 140)
JSwitches the ZONE function on/off (Ypage 138)
Overview of climate control systems133
Climate control

Canada only
:
Sets the temperature, left (Ypage 137)
;Sets climate control to automatic (Ypage 137)
=Defrosts the windshield (Ypage 139)
?Increases the airflow (Ypage 138)
ASets the air distribution (Ypage 138)
BDisplay
CActivates/deactivates air-recirculation mode (Ypage 141)
DSwitches climate control on/off (Ypage 135)
ESets the temperature, right (Ypage 137)
FSwitches the residual heat function on/off (Ypage 141)
GSwitches cooling with air dehumidification on/off (Ypage 136)
HReduces the airflow (Ypage 138)
ISwitches the rear window defroster on/off (Ypage 140)
JSwitches the ZONE function on/off (Ypage 138)
Optimum use of dual-zone automatic
climate control
Climate control system
The following contains instructions and rec-
ommendations to enable you to get the most
out of your 3-zone automatic climate control.
RActivate climate control using the Ãand
¿ buttons. The indicator lamps in the
à and¿ buttons light up.
RSet the temperature to 72 ‡ (22 †).
ROnly use the "Windshield defrosting" func-
tion briefly until the windshield is clear
again.
ROnly use air-recirculation mode briefly, e.g.
if there are unpleasant outside odors or
when in a tunnel. The windows could oth-
erwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
RUse the ZONE function to adopt the tem-
perature settings on the driver's side for
the front-passenger side as well. The indi-
cator lamp in the ábutton goes out.
134Overview of climate control systems
Climate control
