7–9
If Trouble Arises
Flat Tire
NOTE
 Check the tire inflation pressure label
driver's door frame for the correct tire
inflation pressure.
 Do not operate the air compressor
for a continuous 10 minutes or longer
because using it for long periods could
cause a malfunction.
 If the tire inflation pressure does
not increase, repair of the tire is not
possible. If the tire does not reach the
specified tire inflation pressure within
10 minutes, it may have received
extensive damage. In this case, the
repair using the emergency flat tire
repair kit was not successful. Contact
an Authorized Mazda Dealer.
13. Adhere the speed restriction sticker to
an area where it can be viewed easily
by the driver.
14. Adhere the repaired tire sticker to the
wheel of the flat tire.
WARNING
Do not adhere the speed restriction
sticker to the padded area on the
steering wheel: Adhering the speed restriction sticker
to the padded area on the steering
wheel is dangerous because the
air bag may not operate (deploy)
normally resulting in serious injury.
In addition, do not adhere the sticker
to areas where warning lights or the
speedometer cannot be viewed.
15. When the tire inflates to the specified
tire inflation pressure, turn the air
compressor switch off, turn the sleeve
of the injection hose to the left, and pull
it out of the tire valve.
MX-5_8EU4-EA-15D_Edition3.indb 92015/10/21 16:55:40

7–10
If Trouble Arises
Flat Tire
16. Remove the air compressor hose from
the injection valve of the bottle. After
that, install the injection hose to the
injection valve of the bottle to prevent
leakage of any remaining sealant.
CAUTION
The remaining sealant in the hose may
spray out when the hose is removed.
Remove the hose carefully because you
may not be able to remove the sealant
contacting clothing or other objects.
17. Install the tire valve cap.
18. Put the emergency flat tire repair kit
into the trunk.
19. Start driving immediately to spread the
sealant in the tire.
CAUTION
Carefully drive the vehicle at a speed of
80 km/h (50 mph) or less. If the vehicle
is driven at a speed of 80 km/h (50
mph) or more, the vehicle may vibrate.
NOTE
(With Tire Pressure Monitoring System)
If the tire is not properly inflated, the tire
pressure monitoring system warning light
will illuminate (page 4-16).
20. After driving the vehicle for about 10
minutes or 5 km (3 miles), connect the
air compressor to the tire using Step
9 of the procedure, and check the tire
inflation pressure using the tire pressure
gauge on the air compressor. If the
tire inflation pressure is lower than the
specified tire inflation pressure, turn
the air compressor on and wait until
it reaches the specified tire inflation
pressure.
WARNING
If the tire inflation pressure has
decreased below 130 kPa (1.3 kgf/cm2 or
bar, 18.9 psi), stop driving and contact
an Authorized Mazda Dealer: The repair using the emergency flat tire
repair kit was not successful.
If you see a decrease in the tire inflation
pressure, even if Steps 9 to 20 of the
procedure are performed repeatedly,
stop driving: Contact an Authorized Mazda Dealer.
CAUTION
Before checking the tire inflation
pressure using the tire pressure gauge,
turn the air compressor switch off.
21. The emergency flat tire repair is
completed successfully if the tire
inflation pressure does not decrease.
Carefully drive the vehicle to the
nearest Authorized Mazda Dealer
immediately and have the flat tire
replaced. Replacement with a new
tire is recommended. If the tire is
to be repaired or reused, consult an
Authorized Mazda Dealer.
MX-5_8EU4-EA-15D_Edition3.indb 102015/10/21 16:55:41

7–11
If Trouble Arises
Flat Tire
NOTE
 If an emergency flat tire repair has been
performed using the emergency flat tire
repair kit, Mazda recommends that the
tire be replaced with a new one as soon
as possible. If the tire is to be repaired
or reused, consult an Authorized Mazda
Dealer.
 The wheel can be reused if the sealant
adhering to it is removed. However,
replace the valve with a new one.
Mexico
1. Move the vehicle off the right-of-way
to a safe place on a level and hard
surface where the vehicle does not
obstruct traffic.
2. Shift the shift lever to the 1 or Reverse
(R) position for a manual transmission,
and shift the selector lever to the P
position for an automatic transmission.
3. Apply the parking brake with the brake
pedal depressed and turn off the engine.
4. If necessary, flash the hazard warning
lights and set up the roadside
emergency triangle.
5. Unload passengers and cargo and
remove the emergency flat tire repair
kit.
6. Shake the tire sealant well.
CAUTION
If the bottle is shaken after the
injection hose is screwed on, tire
sealant could spray out from the
injection hose. Tire sealant contacting
clothing or other objects may be
impossible to remove. Shake the bottle
before screwing on the injection hose.
NOTE
The sealant hardens easily and injecting
it will be difficult under cold weather
conditions (0 °C (32 °F) or below). Warm
the sealant inside the vehicle to facilitate
injection.
7. Remove the cap from the bottle. Screw
on the injection hose with the bottle's
inner cap left on to break the inner cap.
Cap
Injection hose
Tire sealant
MX-5_8EU4-EA-15D_Edition3.indb 112015/10/21 16:55:42

7–12
If Trouble Arises
Flat Tire
8. Remove the valve cap from the flat tire.
Press the back of a valve core tool to
the core of the tire valve and bleed all
the remaining air.
Valve core tool
Valve
Valve cap
CAUTION
If there is air remaining in the tire when
the valve core is removed, the valve
core could fly out. Remove the valve
core carefully.
9. Turn the valve core counterclockwise
with the valve core tool and remove the
valve core.
Valve Valve core
NOTE
Store the valve core in a place where it
will not get dirty.
10. Insert the injection hose into the valve.
Valve
Injection hose
11. Hold the bottom of the bottle upright,
squeeze the bottle with your hands, and
inject the entire amount of tire sealant
into the tire.
Valve
12. Pull out the injection hose from the
valve.
NOTE
The tire sealant cannot be reused.
Purchase a new tire sealant kit at an
Authorized Mazda Dealer.
MX-5_8EU4-EA-15D_Edition3.indb 122015/10/21 16:55:43

7–13
If Trouble Arises
Flat Tire
13. Reinsert the valve core into the valve
and turn it clockwise to install it.
Injection hoseValve core tool
Valve
Valve core
NOTE
Do not throw away the empty tire sealant
bottle after use. Return the empty tire
sealant bottle to an Authorized Mazda
Dealer when replacing the tire. The empty
tire sealant bottle will need to be used to
extract and dispose of the used sealant
from the tire.
14. After that, install the injection hose to
the tab of the bottle to prevent leakage
of any remaining sealant.
Tab
15. Adhere the speed restriction sticker to
an area where it can be viewed easily
by the driver.
WARNING
Do not adhere the speed restriction
sticker to the padded area on the
steering wheel:
Adhering the speed restriction sticker
to the padded area on the steering
wheel is dangerous because the
air bag may not operate (deploy)
normally resulting in serious injury.
In addition, do not adhere the sticker
to areas where warning lights or the
speedometer cannot be viewed.
16. Pull out the air compressor hose and
the air compressor plug from the air
compressor.
Compressor hose
MX-5_8EU4-EA-15D_Edition3.indb 132015/10/21 16:55:43

7–14
If Trouble Arises
Flat Tire

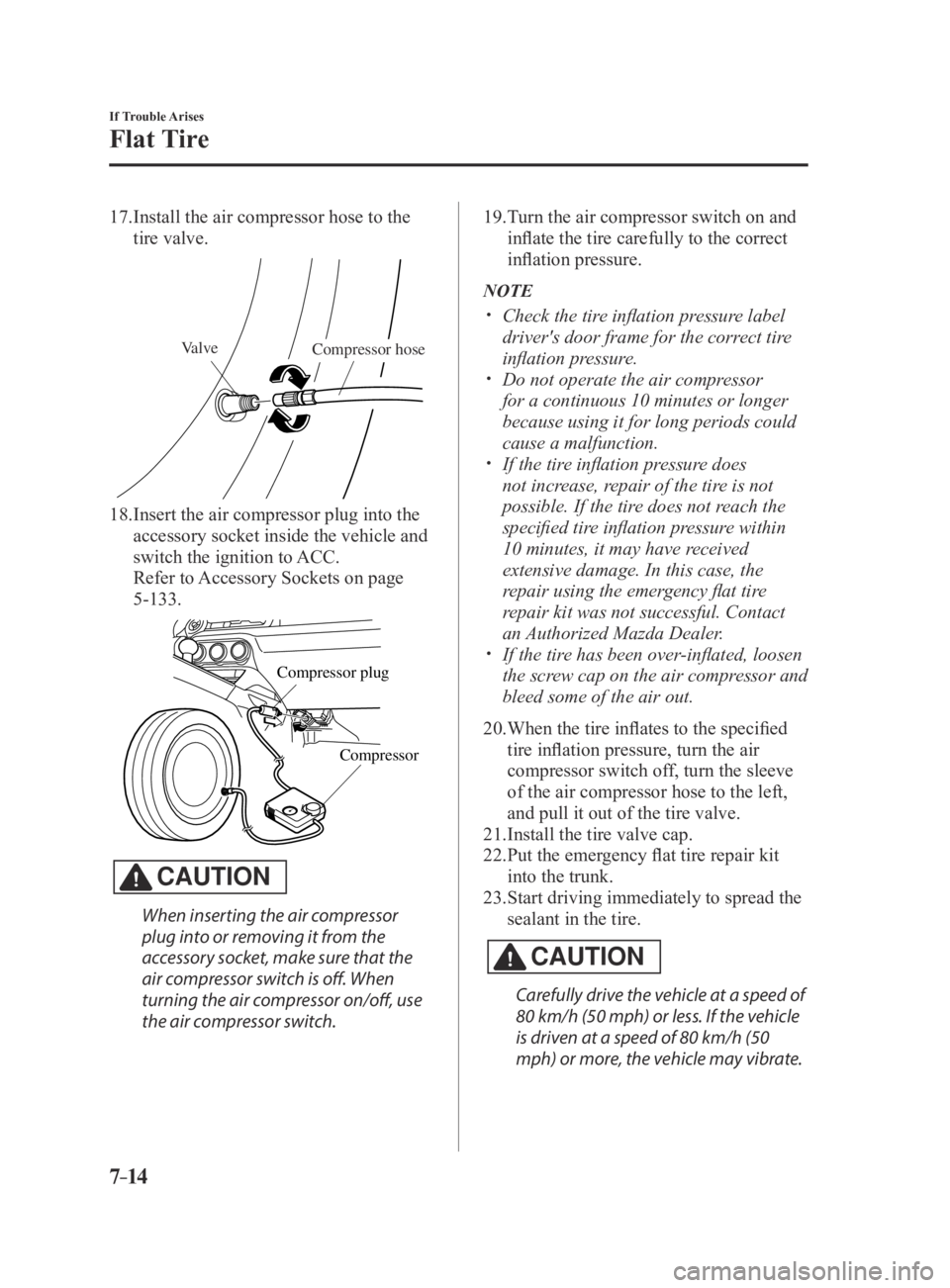

17. Install the air compressor hose to the
tire valve.
ValveCompressor hose
18. Insert the air compressor plug into the
accessory socket inside the vehicle and
switch the ignition to ACC.
Refer to Accessory Sockets on page
5-133.
Compressor
Compressor plug
CAUTION
When inserting the air compressor
plug into or removing it from the
accessory socket, make sure that the
air compressor switch is off. When
turning the air compressor on/off, use
the air compressor switch.
19. Turn the air compressor switch on and
inflate the tire carefully to the correct
inflation pressure.
NOTE
 Check the tire inflation pressure label
driver's door frame for the correct tire
inflation pressure.
 Do not operate the air compressor
for a continuous 10 minutes or longer
because using it for long periods could
cause a malfunction.
 If the tire inflation pressure does
not increase, repair of the tire is not
possible. If the tire does not reach the
specified tire inflation pressure within
10 minutes, it may have received
extensive damage. In this case, the
repair using the emergency flat tire
repair kit was not successful. Contact
an Authorized Mazda Dealer.
 If the tire has been over-inflated, loosen
the screw cap on the air compressor and
bleed some of the air out.
20. When the tire inflates to the specified
tire inflation pressure, turn the air
compressor switch off, turn the sleeve
of the air compressor hose to the left,
and pull it out of the tire valve.
21. Install the tire valve cap.
22. Put the emergency flat tire repair kit
into the trunk.
23. Start driving immediately to spread the
sealant in the tire.
CAUTION
Carefully drive the vehicle at a speed of
80 km/h (50 mph) or less. If the vehicle
is driven at a speed of 80 km/h (50
mph) or more, the vehicle may vibrate.
MX-5_8EU4-EA-15D_Edition3.indb 142015/10/21 16:55:44

7–15
If Trouble Arises
Flat Tire
24. After driving the vehicle for about 10
minutes or 5 km (3 miles), connect the
air compressor to the tire using Step
17 of the procedure, and check the tire
inflation pressure using the tire pressure
gauge on the air compressor. If the
tire inflation pressure is lower than the
specified tire inflation pressure, turn
the air compressor on and wait until
it reaches the specified tire inflation
pressure.
WARNING
If the tire inflation pressure has
decreased below 130 kPa (1.3 kgf/cm2 or
bar, 18.9 psi), stop driving and contact
an Authorized Mazda Dealer: The repair using the emergency flat tire
repair kit was not successful.
If you see a decrease in the tire inflation
pressure, even if Steps 17 to 24 of the
procedure are performed repeatedly,
stop driving: Contact an Authorized Mazda Dealer.
CAUTION
Before checking the tire inflation
pressure using the tire pressure gauge,
turn the air compressor switch off.
25. The emergency flat tire repair is
completed successfully if the tire
inflation pressure does not decrease.
Carefully drive the vehicle to the
nearest Authorized Mazda Dealer
immediately and have the flat tire
replaced. Replacement with a new
tire is recommended. If the tire is
to be repaired or reused, consult an
Authorized Mazda Dealer.
NOTE
 If an emergency flat tire repair has been
performed using the emergency flat tire
repair kit, Mazda recommends that the
tire be replaced with a new one as soon
as possible. If the tire is to be repaired
or reused, consult an Authorized Mazda
Dealer.
 The wheel can be reused if the sealant
adhering to it is removed. However,
replace the valve with a new one.
Inspecting the Emergency Flat
Tire Repair Kit
Inspect the emergency flat tire repair kit at
regular intervals.
 Check the tire sealant period of effective
use. Check the operation of the tire
compressor.
NOTE
The tire sealant has a period of effective
use. Check the period of effective use
indicated on the bottle label and do not
use it if it has expired. Have the tire
sealant replaced at an Authorized Mazda
Dealer before the period of effective use
has expired.
MX-5_8EU4-EA-15D_Edition3.indb 152015/10/21 16:55:44

7–16
If Trouble Arises
Flat Tire
Changing a Tire
WARNING
Be sure to follow the directions for
changing a tire:Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure someone.
No person should place any portion
of their body under a vehicle that is
supported by a jack.
Never allow anyone inside a vehicle
supported by a jack: Allowing someone to remain in
a vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury.
NOTE
Make sure the jack is well lubricated
before using it.
1. Park on a level surface off the right-of-
way and firmly set the parking brake.
2. Put a vehicle with an automatic
transmission in Park (P), a manual
transmission in Reverse (R) or 1, and
turn off the engine.
3. Turn on the hazard warning flasher.
4. Have everyone get out of the vehicle
and away from the vehicle and traffic.
5. Remove the jack and tool (page
7-3).
6. Block the wheel diagonally opposite
the tire to be changed. When blocking
a wheel, place a tire block both in front
and behind the tire.
NOTE
When blocking a tire, use rocks or wood
blocks of sufficient size if possible to hold
the tire in place.
Removing a Tire
1. Loosen the lug nuts by turning them
counterclockwise one turn each, but do
not remove any lug nuts until the tire
has been raised off the ground.

2. Place the jack on the ground.
MX-5_8EU4-EA-15D_Edition3.indb 162015/10/21 16:55:45
