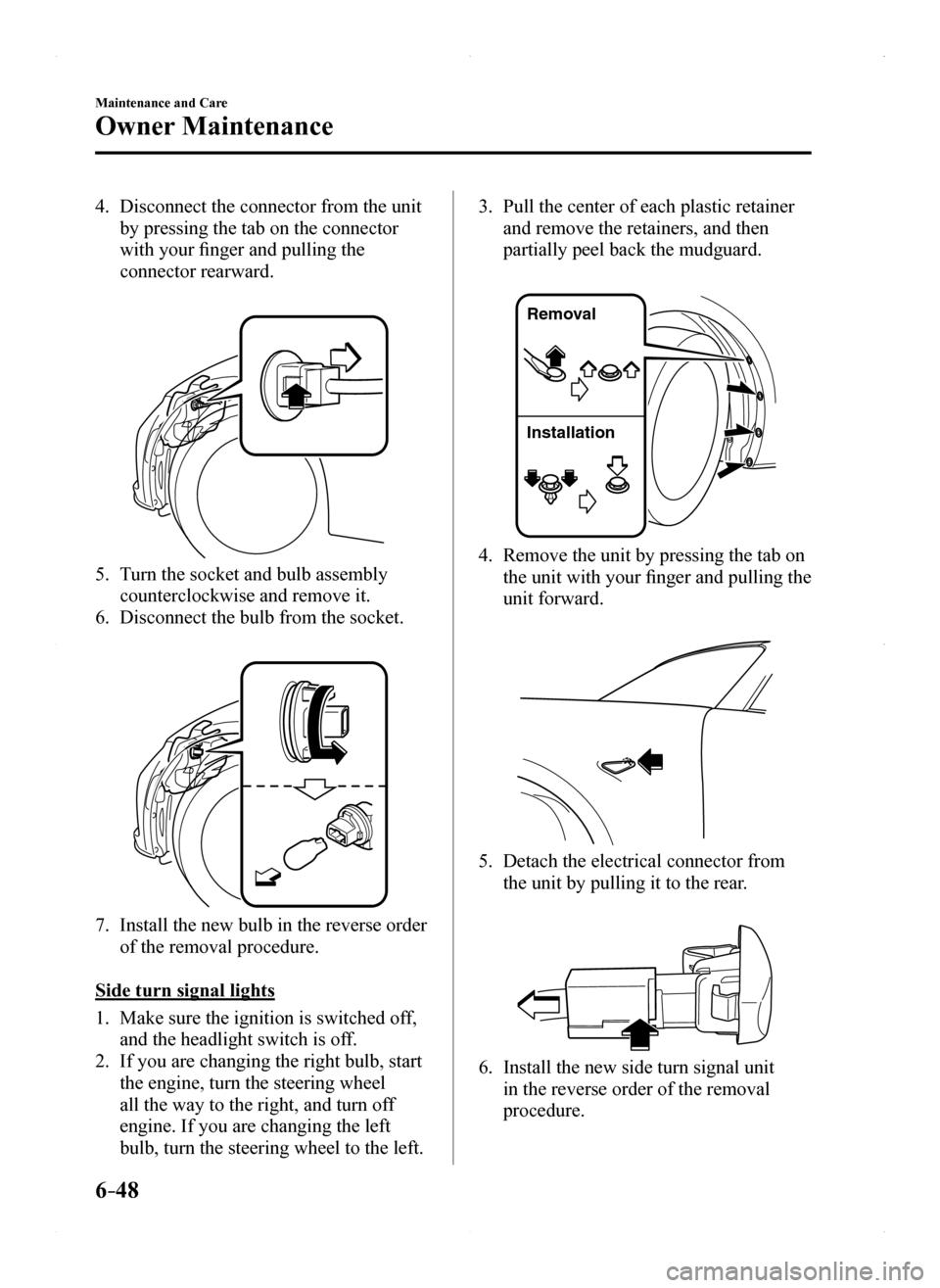

2016 MAZDA MODEL MX-5 engine

6–48
Maintenance and Care
Owner Maintenance
4. Disconnect the connector from the unit
by pressing the tab on the connector
with your finger and pulling the
connector rearward.

5. Turn the socket and bulb assembly
counterclockwise and remove it.
6. Disconnect the bulb from the socket.

7. Install the new bulb in the reverse order
of the removal procedure.
Side turn signal lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. If you are changing the right bulb, start
the engine, turn the steering wheel
all the way to the right, and turn off
engine. If you are changing the left
bulb, turn the steering wheel to the left.
3. Pull the center of each plastic retainer
and remove the retainers, and then
partially peel back the mudguard.

Remova l
Installation
4. Remove the unit by pressing the tab on
the unit with your finger and pulling the
unit forward.

5. Detach the electrical connector from
the unit by pulling it to the rear.

6. Install the new side turn signal unit
in the reverse order of the removal
procedure.
MX-5_8EU4-EA-15D_Edition1.indb 482015/03/10 9:56:14

6–52
Maintenance and Care
Owner Maintenance
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls do
not work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
Fuse Replacement
Replacing the fuses on the vehicle's left
side
If the electrical system does not work, first
inspect the fuses on the vehicle's left side.
1. Make sure the ignition is switched off,
and other switches are off.
2. Open the fuse panel cover.
3. Pull the fuse straight out with the
fuse puller provided on the fuse block
located in the engine compartment.
4. Inspect the fuse and replace it if it is
blown.
Normal Blo
wn
5. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If
it does not fit tightly, have an expert
install it. We recommend an Authorized
Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or OUTLET circuit.
CAUTION
Always replace a fuse with a genuine
Mazda fuse or equivalent of the same
rating. Otherwise you may damage
the electric system.
6. Reinstall the cover and make sure that
it is securely installed.
MX-5_8EU4-EA-15D_Edition1.indb 522015/03/10 9:56:16

6–54
Maintenance and Care
Owner Maintenance
Fuse Panel Description
Fuse block (Engine compartment)
DESCRIPTIONFUSE RATINGPROTECTED COMPONENT
1ENG IG35 A—
2ENG IG25 A—
3HORN27.5 AHorn
4C/U IG115 AFor protection of various circuits
5ENG IG17.5 AEngine control system
6———
7INTERIOR15 AOverhead light
8ENGB7.5 AEngine control system
9AUDIO215 AAudio system
10METER110 AInstrument cluster
11SRS17.5 AAir bag
12———
13RADIO7.5 AAudio system
14ENGINE320 AEngine control system
15ENGINE110 AEngine control system
16ENGINE215 AEngine control system
17AUDIO125 AAudio system
MX-5_8EU4-EA-15D_Edition1.indb 542015/03/10 9:56:17

6–55
Maintenance and Care
Owner Maintenance
*Some models.
DESCRIPTIONFUSE RATINGPROTECTED COMPONENT
18A/C MAG7.5 AAir conditioner
19AT PUMP20 ATransmission control system*
20AT15 ATransmission control system*
21D LOCK25 APower door locks
22H/L RH20 AHeadlight (RH)
23ENGB27.5 AEngine control system
24TAIL20 ATaillights, License plate lights, Parking lights
25DRL15 A—
26ROOM25 AOverhead light
27FOG15 A—
28H/CLEAN20 A—
29STOP10 ABrake lights
30HORN15 AHorn
31H/L LH20 AHeadlight (LH)
32ABS/DSC S30 AABS, Dynamic stability control system
33HAZARD15 AHazard warning flashers, Turn signal lights
34FUEL PUMP15 AFuel system
35ENGB35 A—
36WIPER20 AWindshield wipers
37CABINB50 AFor protection of various circuits
38———
39———
40ABS/DSC M50 AABS, Dynamic stability control system
41EVVTA/R PUMP20 AEngine control system
42EVPS30 ABrake control system
43FAN130 ACooling fan
44FAN240 A—
45ENG.MAIN40 AEngine control system
46EPS60 APower steering system
47DEFOG30 ARear window defogger
48IG230 AFor protection of various circuits
49INJECTOR30 AEngine control system
50HEATER40 AAir conditioner
51———
52———
MX-5_8EU4-EA-15D_Edition1.indb 552015/03/10 9:56:17

6–59
Maintenance and Care
Appearance Care
Maintaining the Finish
Washing
CAUTION
 When the wiper lever is in the
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:
 If the windshield above the rain
sensor is touched or wiped with a
cloth. If the windshield is struck with a hand
or other object from either outside or
inside the vehicle.
Keep hands and scrapers clear of the
windshield when the wiper lever is in the
position and the ignition is
switched ON as fingers could be pinched
or the wipers and wiper blades damaged
when the wipers activate automatically.
If you are going to clean the windshield,
be sure the wipers are turned off
completely (when it is most likely
that the engine is left running) this is
particularly important when clearing ice
and snow.
 Do not spray water in the engine
compartment. Otherwise, it could result
in engine-starting problems or damage
to electrical parts. When washing and waxing the vehicle,
be careful not to apply excessive force
to any single area of the vehicle hood.
Otherwise, you could dent the vehicle.
 Do not use automatic car washing
machines and car washing devices using
high water pressure. Make sure that the fuel lid is closed
and lock the doors. Otherwise, the fuel
lid may be forcefully opened by water
pressure causing damage to the vehicle
or fuel lid.
To help protect the finish from rust
and deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.
Scratches occur on the paint surface when:
 The vehicle is washed without first
rinsing off dirt and other foreign matter. The vehicle is washed with a rough, dry,
or dirty cloth. The vehicle is washed at a car wash that
uses brushes that are dirty or too stiff. Cleansers or wax containing abrasives
are used.
NOTE
 Mazda is not responsible for scratches
caused by automatic car washes or
improper washing. Scratches are more noticeable on
vehicles with darker paint finishes.
MX-5_8EU4-EA-15D_Edition1.indb 592015/03/10 9:56:17

6–64
Maintenance and Care
Appearance Care
Plastic Part Maintenance
 When cleaning the plastic lenses of the
lights, do not use gasoline, kerosene,
rectified spirit, paint, thinner, highly
acidic detergents, or strongly alkaline
detergents. Otherwise, these chemical
agents can discolor or damage the
surfaces resulting in a significant loss
in functionality. If plastic parts become
inadvertently exposed to any of these
chemical agents, flush with water
immediately. If plastic parts such as the bumpers
become inadvertently exposed to
chemical agents or fluids such as
gasoline, oil, engine coolant, or battery
fluid, it could cause discoloration,
staining, or paint peeling. Wipe off any
such chemical agents or fluids using a
soft cloth immediately. High water temperature and high water
pressure car washers are available
depending on the type of high pressure
car washer device. If the car washer
nozzle is put too close to the vehicle or
aimed at one area for an extended period
of time, it could deform plastic parts or
damage the paint. Do not use wax containing compounds
(polish). Otherwise, it could result in
paint damage. In addition, do not use an electrical or
air tool to apply wax. Otherwise, the
frictional heat generated could result
in deformation of plastic parts or paint
damage.
Interior Care
WARNING
Do not spray water in the cabin:
Splashing water on electrical parts
such as the audio unit and switches
is dangerous as it could cause a
malfunction or a fire.
Dashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They will damage and discolor
the dashboard. If these solutions get on the
dashboard, wipe them off immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
Instrument panel top
 When cleaning, it is recommended that
you use a clean towel dampened in a
mild detergent to remove soiling. If the surface is rubbed harshly, it could
result in the surface being damaged
leaving white scratch marks.
MX-5_8EU4-EA-15D_Edition1.indb 642015/03/10 9:56:19

7–1*Some models.
7If Trouble Arises
Helpful information on what to do if a problem arises with the vehicle.
Parking in an Emergency ..................................................................7-2
Parking in an Emergency ..............................................................7-2
Flat Tire........................................................................\
.......................7-3
Tool Storage ........................................................................\
..........7-3
Emergency Flat Tire Repair Kit ....................................................7-5
Changing a Tire ........................................................................\
...7-16
Battery Runs Out ........................................................................\
.....7-23
Jump-Starting ........................................................................\
......7-23
Emergency Starting ........................................................................\
.7-26
Starting a Flooded Engine ...........................................................7-26
Push-Starting ........................................................................\
.......7-26
Overheating ........................................................................\
..............7-27
Overheating ........................................................................\
.........7-27
When Fuel-Filler Lid Cannot be Opened ......................................7-29
When Fuel-Filler Lid Cannot be Opened ....................................7-29
Emergency Towing ........................................................................\
...7-30
Towing Description .....................................................................7-30
Tiedown Hooks* ........................................................................\
..7-31
Warning/Indicator Lights and Warning Sounds ...........................7-33
If a Warning Light Turns On or Flashes......................................7-33
Message Indicated on Display ....................................................7-43
Warning Sound is Activated ........................................................7-45
When Trunk Lid Cannot be Opened ..............................................7-49
When Trunk Lid Cannot be Opened ...........................................7-49
MX-5_8EU4-EA-15D_Edition1.indb 12015/03/10 9:56:19

7–6
If Trouble Arises
Flat Tire
WARNING
Do not allow children to touch the tire
sealant:
 Ingestion of tire sealant is
dangerous. In the event tire
sealant is accidentally swallowed,
drink large amounts of water
immediately and seek medical
assistance. Tire sealant that comes into contact
with the eyes and skin is dangerous.
If tire sealant enters the eyes or
contacts the skin, flush immediately
with large amounts of water and
seek medical assistance.
NOTE
 The tire sealant cannot be reused.
Purchase new tire sealant at an
Authorized Mazda Dealer. The emergency flat tire repair kit cannot
be used in the following cases.
Consult an Authorized Mazda Dealer.
 The period of effective use for the
tire sealant has expired. (The period
of effectiveness is indicated on the
bottle label.) The tear or puncture exceeds about 4
mm (0.16 in). The damage has occurred to an area
of the tire other than the tread. The vehicle has been driven with
nearly no air remaining in the tire. The tire has come off the wheel rim. Damage to the wheel rim has
occurred. The tire has two or more punctures.
Using the Emergency Flat Tire
Repair Kit
U.S.A. and Canada
1. Move the vehicle off the right-of-way
to a safe place on a level and hard
surface where the vehicle does not
obstruct traffic.
2. Shift the shift lever to the 1 or Reverse
(R) position for a manual transmission,
and shift the selector lever to the P
position for an automatic transmission.
3. Apply the parking brake with the brake
pedal depressed and turn off the engine.
4. If necessary, flash the hazard warning
lights and set up the roadside
emergency triangle.
5. Unload passengers and cargo and
remove the emergency flat tire repair
kit.
MX-5_8EU4-EA-15D_Edition1.indb 62015/03/10 9:56:21
