2016 MAZDA MODEL CX-9 engine

6–17

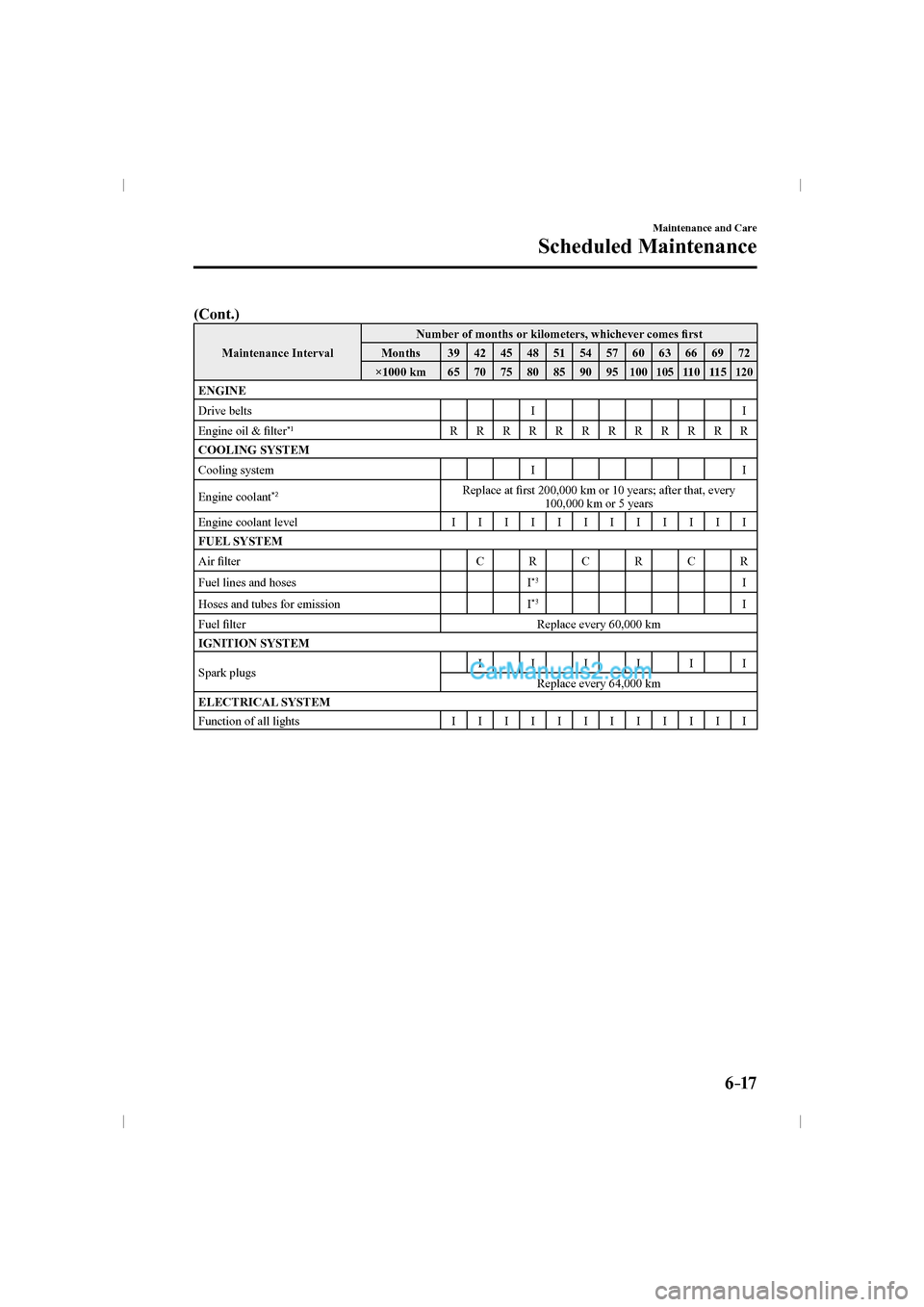

Maintenance and Care
Scheduled Maintenance

(Cont.)
Maintenance Interval Number of months or kilometers, whichever comes ¿ rst
Months 39
42 45 48 51 54 57 60 63 66 69 72
×1000 km 65
70 75 80 85 90 95
100 105 110 115 120
ENGINE
Drive belts I I
Engine oil & ¿ lter
*1 R
R R R R R R R R R R R
COOLING SYSTEM
Cooling system I I
Engine coolant
*2 Replace at ¿ rst 200,000 km or 10 years; after that, every
100,000 km or 5 years
Engine coolant level I
I I I I I I I I I I I
FUEL SYSTEM
Air ¿ lter C R C R C R
Fuel lines and hoses I
*3 I
Hoses and tubes for emission I
*3 I
Fuel ¿ lter Replace every 60,000 km
IGNITION SYSTEM
Spark plugs I I I I I I
Replace every 64,000 km
ELECTRICAL SYSTEM
Function of all lights I
I I I I I I I I I I I
$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










6–18
Maintenance and Care
Scheduled Maintenance
Maintenance Interval Number of months or kilometers, whichever comes ¿ rst
Months 39 42 45 48 51 54 57 60 63 66 69 72
×1000 km 65
70 75 80 85 90 95
100 105 110 115 120
CHASSIS and BODY
Brake lines, hoses and connections I I I
Brake and clutch À uid level I I I I
Brake À uid R R
Disc brakes I I I I I I
Tire (Rotation)
*4 Rotate every 10,000 km
Tire inÀ ation pressure and tire wear
*4 I I I I I I
Steering operation and linkages I I I I I I
Front and rear suspension, ball joints and wheel
bearing axial play I I I
Rear differential oil
*5
Transfer oil *5
Driveshaft dust boots I I I
Bolts and nuts on chassis and body T T T
Exhaust system and heat shields I I I
A l l l o c k s a n d h i n g e s L L L L L L
Wa s h e r À uid level I I I I I I
Emergency À at tire repair kit (if installed)
*6 Inspect annually.
AIR CONDITIONER SYSTEM
Cabin air ¿ lter R R R
Chart symbols:
I : Inspect: Inspect and clean, repair, adjust, ¿ ll up, or replace if necessary.
R : Replace
L : Lubricate
C : Clean
T : Tighten
Remarks:
*1 Reset the engine oil data after replacing the engine oil.
*2 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*3 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or kilometer period to ensure long-term reliability.
*4 The Tire Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*5 If this component has been submerged in water, the oil should be replaced.
*6 Check the tire repair À uid expiration date every year when performing the periodic maintenance. Replace the
tire repair À uid bottle with new one before the expiration date.


$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










6–19
Maintenance and Care
Scheduled Maintenance
Maintenance Monitor
1. Select the icon on the home screen to display the “Applications” screen.
2. Select “Vehicle Status Monitor” to display the current warnings.
3. Select “Maintenance” to display the maintenance list screen.
4. Switch the tab and select the setting item you want to change.

You can customize settings in the setup display as follows:
Tab Item Explanation
Scheduled Setting Noti¿ cation can be switched on/off.
Time (months) Displays the time or distance until maintenance is due.
Select this item to set the maintenance period.
The wrench indication/indicator light in the instrument cluster
will be illuminated when the remaining distance is less than 1,000
km or 600 mile, or the remaining number of days is less than 15
(whichever comes ¿ rst). Distance (mile or km)
Reset Resets the time and distance to the initial values.
Once the system turns on, it needs to be reset whenever carrying
out maintenance.
Tire Rotation Setting Noti¿ cation can be switched on/off.
Distance (mile or km) Displays the distance until tire rotation is due.
Select this item to set the tire rotation distance.
The wrench indication/indicator light in the instrument cluster will
be illuminated when the remaining distance is less than 1,000 km
or 600 mile.
Reset Resets the remaining distance to the initial value.
Once the system turns on, it needs to be reset whenever rotating
the tires.
Oil Change Setting Interval Oil replacement period can be selected from the À exible setting or
¿ xed setting, or it can be set to non-display.
The À exible setting is available only in the United States and
Puerto Rico. Once engine oil À exible maintenance is selected,
the vehicle calculates the remaining oil life based on the engine
operating conditions.
The vehicle lets you know when an oil change is due by
illuminating the wrench indication/indicator light in the instrument
cluster.
Distance (mile or km)
(Displays only in ¿ xed
setting) Displays the distance until the oil replacement is due.
Select this item to set the oil replacement distance.
The wrench indication/indicator light in the instrument cluster will
be illuminated when the remaining distance is less than 1,000 km
or 600 mile.
Distance (mile or km)
(Displays only in À exible
setting) Displays the distance until the oil replacement is due.
The wrench indication/indicator light in the instrument cluster
will be illuminated when the remaining oil life distance is less
than 1,000 km or 600 mile, or remaining days are less than 15
(whichever comes ¿ rst).
$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










6–20
Maintenance and Care
Scheduled Maintenance
Tab Item Explanation
Oil Change Reset
In À exible setting
Resets the remaining distance until oil replacement is due to the
initial value.
In ¿ xed setting
Resets the remaining distance until oil replacement is due to the
initial value. In addition, a vehicle engine control unit reset is
required as follows:
Press and hold the dashboard illumination knob with the ignition
switched OFF, then switch it ON. Keep pressing the dashboard
illumination knob for more than 7 seconds.
Dashboard illumination knob
In OFF setting
Press and hold the dashboard illumination knob with the ignition
switched OFF, then switch it ON. Keep pressing the dashboard
illumination knob for more than 7 seconds.
Dashboard illumination knob

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










6–21
Maintenance and Care
Owner Maintenance
Owner Maintenance Precautions
The owner or a quali¿ ed service technician should make these vehicle inspections at the
indicated intervals to ensure safe and dependable operation.


Bring any problem to the attention of an Authorized Mazda Dealer or quali¿ ed service
technician as soon as possible.
When Refueling





y Brake À uid level (page 6-31 )



y Engine coolant level (page 6-29 )



y Engine oil level (page 6-29 )



y Wa s h e r À uid level (page 6-31 )
At Least Monthly
T i r e i nÀ ation pressures (page 6-43 )

At Least Twice a Year (For Example, Every Spring and Fall)
You can do the following scheduled maintenance items if you have some mechanical ability
and a few basic tools and if you closely follow the directions in this manual.



y Engine coolant (page 6-29 )



y Engine oil (page 6-26 )

Improper or incomplete service may result in problems. This section gives instructions only
for items that are easy to perform.

As explained in the Introduction (page 6-2 ), several procedures can be done only by a
quali¿ ed service technician with special tools.

Improper owner maintenance during the warranty period may affect warranty coverage.
Refer to Introduction (page 6-2 ) for owner's responsibility in protecting your investment.
For details, read the separate Mazda Warranty statement provided with the vehicle. If you
are unsure about any servicing or maintenance procedure, have it done by an Authorized
Mazda Dealer.

There are strict environmental laws regarding the disposal of waste oil and À uids. Please
dispose of your waste properly and with due regard to the environment.

We recommend that you entrust the oil and À uid changes of your vehicle to an Authorized
Mazda Dealer.
$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










6–22
Maintenance and Care
Owner Maintenance
WARNING
Do not perform maintenance work if you lack suffi cient knowledge and experience
or the proper tools and equipment to do the work. Have maintenance work done by a
qualifi ed technician:
Performing maintenance work on a vehicle is dangerous if not done properly. You can be
seriously injured while performing some maintenance procedures.

If you must run the engine while working under the hood, make certain that you
remove all jewelry (especially rings, bracelets, watches, and necklaces) and all
neckties, scarves, and similar loose clothing before getting near the engine or cooling
fan which may turn on unexpectedly:
Working under the hood with the engine running is dangerous. It becomes even more
dangerous when you wear jewelry or loose clothing.
Either can become entangled in moving parts and result in injury.

Pull over to a safe location, then switch the ignition off and make sure the fan is not
running before attempting to work near the cooling fan:
Working near the cooling fan when it is running is dangerous. The fan could continue
running indefi nitely even if the engine has stopped and the engine compartment
temperature is high. You could be hit by the fan and seriously injured.

Do not leave items in the engine compartment:
After you have fi nished checking or doing servicing in the engine compartment, do not
forget and leave items such as tools or rags in the engine compartment.
Tools or other items left in the engine compartment could cause engine damage or a fi re
leading to an unexpected accident.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










6–25
Maintenance and Care
Owner Maintenance
Engine Compartment Overview

Engine oil dipstick
Brake fluid reservoir
Engine oil-filler cap
Fuse blockBattery
Cooling system capEngine coolant reservoir
Windshield washer fluid reservoir

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










6–26
Maintenance and Care
Owner Maintenance
Engine Oil
N O T E
Changing the engine oil should be
performed by an Authorized Mazda
Dealer.
Refer to Introduction (page 6-2 ) for
owner's responsibility in protecting your
investment.

Recommended Oil
U.S.A., Canada, and Puerto Rico
Use SAE 5W-30 engine oil.
Mazda Genuine Oil is used in your
Mazda vehicle. Mazda Genuine 5W-30
Oil is required to achieve optimum fuel
economy.

For maintenance service, Mazda
recommends Mazda Genuine Parts and
Castrol
® (U.S.A. only).





(ILSAC)
Only use SAE 5W-30 oil “Certi¿ ed For
Gasoline Engines” by the American
Petroleum Institute (API).
Oil with this trademark symbol conforms
to the current engine and emission system
protection standards and fuel economy
requirements of the International Lubricant
Standardization and Approval Committee
(ILSAC), comprised of U.S. and Japanese
automobile manufacturers.


80
60
40 20
0 –40 –20
30
100
40 20
10 0
–10 –20
–30 –40

$9@'%&"#@&EJUJPOJOEC
