2016 MAZDA MODEL CX-5 engine

Black plate (164,1)
CAUTION
Do not continue driving when the
charging system warning light is
illuminated because the engine could
stop unexpectedly.
qEngine Oil Warning Indication/
Warning Light
The warning light stays on for a few
seconds when the ignition is switched
ON.
This warning light indicates low engine
oil pressure.
CAUTION
Do not run the engine if the oil
pressure is low. Otherwise, it could
result in extensive engine damage.
If the light illuminates while driving:
1. Drive to the side of the road and park
off the right-of-way on level ground.
2. Turn off the engine and wait 5 minutes
for the oil to drain back into the oil
pan.
3. Inspect the engine oil level (page 6-28).
If it's low, add the appropriate amount
of engine oil while being careful not to
overfill.
CAUTION
Do not run the engine if the oil level
is low. Otherwise, it could result in
extensive engine damage.
4. Start the engine and check the warning
light.
If the light remains illuminated even
though the oil level is normal or after
adding oil, stop the engine immediately
and have your vehicle towed to an
Authorized Mazda Dealer.
qCheck Engine Light
This indicator light illuminates when the
ignition is switched ON and turns off
when the engine is started.
If this light illuminates while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light illuminated and consult an
Authorized Mazda Dealer.
The check engine light may illuminate in
the following cases:
lThe fuel tank level being very low or
approaching empty.
lThe engine's electrical system has a
problem.
lThe emission control system has a
problem.
l(U.S.A. and Canada)
The fuel-filler cap is missing or not
tightened securely.
4-30
When Driving
Instrument Cluster and Display
CX-5_8DV2-EA-14K_Edition3 Page164
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (165,1)
If the check engine light remains on, do
not drive at high speeds and consult an
Authorized Mazda Dealer as soon as
possible.
qHigh Engine Coolant Temperature
Warning Light (Red)
When the ignition is switched ON, the
light illuminates momentarily and then
turns off.
The light flashes when the engine coolant
temperature is extremely high, and
illuminates when the engine coolant
temperature increases further.
Handling Procedure
Flashing light
Drive slowly to reduce engine load until
you can find a safe place to stop the
vehicle and wait for the engine to cool
down.
Illuminated light
This indicates the possibility of
overheating. Park the vehicle in a safe
place immediately and stop the engine.
Refer to Overheating (page 7-18).
CAUTION
Do not drive the vehicle with the high
engine coolant temperature warning
light illuminated. Otherwise, it could
result in damage to the engine.
qLane Departure Warning System
(LDWS) Indication (Type A)í
When the Lane Departure Warning
System (LDWS) is turned on the LDWS
indication is displayed.
qLane Departure Warning System
(LDWS) Warning Light (Type B)í
This warning light illuminates for a few
seconds when the ignition is switched
ON.
The indicator flashes when the system
determines that the vehicle may be
deviating from its lane.
When Driving
Instrument Cluster and Display
4-31íSome models. CX-5_8DV2-EA-14K_Edition3 Page165
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (167,1)
When“4WD system malfunction”is
indicated
Contact an Authorized Mazda Dealer.
When“4WD system high-load”is
indicated
Park the vehicle in a safe place. After a
few moments, if the indication disappears,
you can resume driving. If the indication
does not disappear, contact an Authorized
Mazda Dealer.
Type B
This warning light stays on for a few
seconds when the ignition is switched
ON.
The warning light will illuminate or flash
under the following conditions:
lIlluminates when there is an
abnormality with the AWD system.
lIlluminates if there is too much
difference in tire radius between the
front and rear wheels.
lFlashes when the differential oil
temperature is abnormally high.
lFlashes when there is a continuous
large difference between front and rear
wheel rotation, such as when trying to
pull away from an icy surface or when
trying to remove the vehicle from mud,
sand or similar conditions.
When illuminated
If the AWD warning light illuminates,
contact an Authorized Mazda Dealer.
When flashing
Park the vehicle in a safe place. After a
few moments, if the warning light stops
flashing, you can resume driving. If the
light does not stop flashing, contact an
Authorized Mazda Dealer.
qAutomatic Transaxle Warning
Indication/Warning Light
Type B
This warning light stays on for a few
seconds when the ignition is switched
ON.
Type A/Type B
The light/indication illuminates when the
transaxle has a problem.
CAUTION
If the automatic transaxle warning
light/warning indication illuminates,
the transaxle has an electrical
problem. Continuing to drive your
Mazda in this condition could cause
damage to your transaxle. Consult
an Authorized Mazda Dealer as soon
as possible.
qPower Steering Malfunction
Warning Indication/Indicator Light
Type B
This indicator light illuminates when the
ignition is switched ON, and turns off
when the engine is started.
When Driving
Instrument Cluster and Display
4-33
CX-5_8DV2-EA-14K_Edition3 Page167
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (168,1)
Type A/Type B
The power steering malfunction indicator
light/warning indication illuminates or
flashes if there is a malfunction with the
power steering while the engine is
running.
If the indicator light/warning indication
illuminates or flashes, park the vehicle in
a safe place immediately and stop the
engine.
If the indicator light/warning indication
does not turn off even if the engine is
restarted afterwards, consult an
Authorized Mazda Dealer.
NOTE
lIf the indicator light/warning indication
illuminates or flashes, the power steering
will not operate normally. If this happens,
the steering wheel can still be operated,
however, the operation may feel heavy
compared to normal, and the steering
wheel could vibrate when turning.
lRepeatedly jerking the steering wheel left
and right while the vehicle is stopped or
moving extremely slowly will cause the
power steering system to go into protective
mode which will make the steering feel
heavy, but this does not indicate a problem.
If this occurs, park the vehicle safely and
wait several minutes for the system to
return to normal.
qAir Bag/Front Seat Belt
Pretensioner System Warning Light
If the air bag/front seat belt pretensioner
system is working properly, the warning
light illuminates when the ignition is
switched ON or after the engine is
cranked. The warning light turns off after
a specified period of time.
A system malfunction is indicated if the
warning light constantly flashes,
constantly illuminates or does not
illuminate at all when the ignition is
switched ON. If any of these occur,
consult an Authorized Mazda Dealer as
soon as possible. The system may not
operate in an accident.
WARNING
Never tamper with the air bag/
pretensioner systems and always have
an Authorized Mazda Dealer perform
all servicing and repairs:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.
4-34
When Driving
Instrument Cluster and Display
CX-5_8DV2-EA-14K_Edition3 Page168
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (169,1)
qLow Fuel Warning Light
This warning light signals that the fuel
tank will soon be empty.
Refuel as soon as possible.
qCheck Fuel Cap Warning
Indication/Indicator Lightí
Type B
This warning light illuminates for a few
seconds when the ignition is switched
ON.
Type A/Type B
If the check fuel cap warning light
illuminates/indication while driving, the
fuel-filler cap may not be installed
properly. Stop the engine and reinstall the
fuel-filler cap.
Refer to Fuel-Filler Cap on page 3-26.
qSeat Belt Warning Light
Driver's seat
Front passenger's seat
Climate control
Fully Automatic
Type
Manual Type
Except Mexico
The seat belt warning light turns on if the
driver or front passenger's seat is occupied
and the seat belt is not fastened with the
ignition switched ON.
If the driver or front passenger's seat belt
is unfastened (only when the front
passenger's seat is occupied) and the
vehicle is driven at a speed faster than
about 20 km/h (12 mph), the warning
light flashes. After a short time, the
warning light stops flashing, but remains
illuminated.
When Driving
Instrument Cluster and Display
4-35íSome models. CX-5_8DV2-EA-14K_Edition3 Page169
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (173,1)

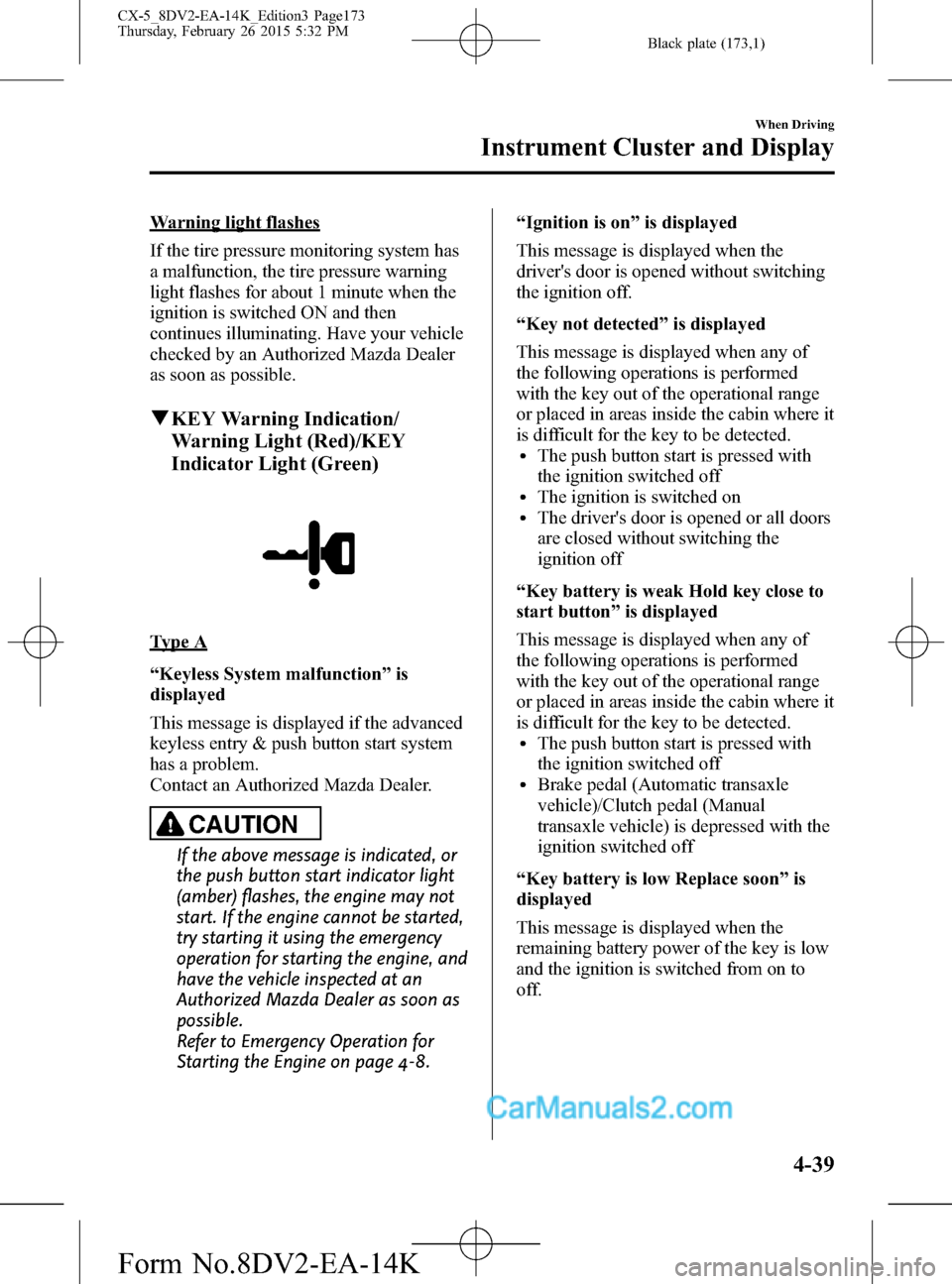

Warning light flashes
If the tire pressure monitoring system has
a malfunction, the tire pressure warning
light flashes for about 1 minute when the
ignition is switched ON and then
continues illuminating. Have your vehicle
checked by an Authorized Mazda Dealer
as soon as possible.
qKEY Warning Indication/
Warning Light (Red)/KEY
Indicator Light (Green)
Type A
“Keyless System malfunction”is
displayed
This message is displayed if the advanced
keyless entry & push button start system
has a problem.
Contact an Authorized Mazda Dealer.
CAUTION
If the above message is indicated, or
the push button start indicator light
(amber) flashes, the engine may not
start. If the engine cannot be started,
try starting it using the emergency
operation for starting the engine, and
have the vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
Refer to Emergency Operation for
Starting the Engine on page 4-8.“Ignition is on”is displayed
This message is displayed when the
driver's door is opened without switching
the ignition off.
“Key not detected”is displayed
This message is displayed when any of
the following operations is performed
with the key out of the operational range
or placed in areas inside the cabin where it
is difficult for the key to be detected.
lThe push button start is pressed with
the ignition switched off
lThe ignition is switched onlThe driver's door is opened or all doors
are closed without switching the
ignition off
“Key battery is weak Hold key close to
start button”is displayed
This message is displayed when any of
the following operations is performed
with the key out of the operational range
or placed in areas inside the cabin where it
is difficult for the key to be detected.
lThe push button start is pressed with
the ignition switched off
lBrake pedal (Automatic transaxle
vehicle)/Clutch pedal (Manual
transaxle vehicle) is depressed with the
ignition switched off
“Key battery is low Replace soon”is
displayed
This message is displayed when the
remaining battery power of the key is low
and the ignition is switched from on to
off.
When Driving
Instrument Cluster and Display
4-39
CX-5_8DV2-EA-14K_Edition3 Page173
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (174,1)
NOTE
Because the key utilizes low-intensity radio
waves, the Key Removed From Vehicle
Warning may activate if the key is carried
together with a metal object or it is placed in a
poor signal reception area.
Type B
This indicator has two colors.
KEY Warning Light (Red)
When illuminated
If any malfunction occurs in the keyless
entry system, it illuminates continuously.
CAUTION
If the key warning indicator light
illuminates or the push button start
indicator light (amber) flashes, the
engine may not start. If the engine
cannot be started, try starting it
using the emergency operation for
starting the engine, and have the
vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
Refer to Emergency Operation for
Starting the Engine on page 4-8.
When flashing
lUnder the following conditions, the
KEY warning light (red) flashes to
notify the driver that the ignition
cannot be switched from off.
lThe key battery is dead.lThe key is not within operational
range.
lThe key is placed in areas where it is
difficult for the system to detect the
signal (page 3-7).
lA key from another manufacturer
similar to the key is in the
operational range.
lUnder the following conditions, the
KEY warning light (red) will flash
continuously when the ignition has not
been switched off to notify the driver
that the key has been removed from the
vehicle. The KEY warning light (red)
will stop flashing when the key is back
inside the vehicle:
The ignition has not been switched off
and all the doors and the liftgate are
closed after removing the key from the
vehicle.
NOTE
Because the key utilizes low-intensity radio
waves, the Key Removed From Vehicle
Warning may activate if the key is carried
together with a metal object or it is placed in a
poor signal reception area.
KEY Indicator Light (Green)
When illuminated
When the brake pedal is depressed with
an automatic transaxle or the clutch pedal
is depressed with a manual transaxle, the
system confirms that the correct key is
inside the vehicle, the KEY indicator light
(green) illuminates, and the engine can be
started (page 4-3).
When flashing
When the ignition is switched from ON to
off, the KEY indicator light (green)
flashes for approximately 30 seconds
indicating that the remaining battery
power is low. Replace with a new battery
before the key becomes unusable.
Refer to Key Battery Replacement on
page 6-39.
4-40
When Driving
Instrument Cluster and Display
CX-5_8DV2-EA-14K_Edition3 Page174
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (175,1)
qHBC Warning Light (Amber)/
HBC Indicator Light (Green)í
HBC warning light (Amber)
When illuminated
When the ignition is switched ON, this
warning light illuminates and then turns
off after a few seconds. The warning light
illuminates if the area of the windshield in
front of the forward sensing camera (FSC)
is fogged or obstructed.
This light turns on if there is a
malfunction in the high beam control
system (HBC). Have your vehicle
inspected by an Authorized Mazda
Dealer.
HBC indicator light (Green)
This indicator light illuminates when the
system is operating and turns off when the
system operation is canceled.
qWrench Indication/Indicator Light
Type A
Perform maintenance in accordance with
the message.
Type B
This indicator light stays on for a few
seconds when the ignition is switched
ON.
The wrench indicator light illuminates
when the engine oil replacement period is
reached.
If the light is illuminated, replace the
engine oil.
Refer to Engine Oil on page 6-27.
qTCS/DSC Indicator Light
This indicator light stays on for a few
seconds when the ignition is switched
ON. If the TCS or DSC is operating, the
indicator light flashes.
If the light stays on, the TCS, DSC or the
brake assist system may have a
malfunction and they may not operate
correctly. Take your vehicle to an
Authorized Mazda Dealer.
NOTE
lIn addition to the indicator light flashing, a
slight lugging sound will come from the
engine. This indicates that the TCS/DSC is
operating properly.
lOn slippery surfaces, such as fresh snow, it
will be impossible to achieve high rpm
when the TCS is on.
When Driving
Instrument Cluster and Display
4-41íSome models. CX-5_8DV2-EA-14K_Edition3 Page175
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K
