2016 MAZDA MODEL CX-5 headlights

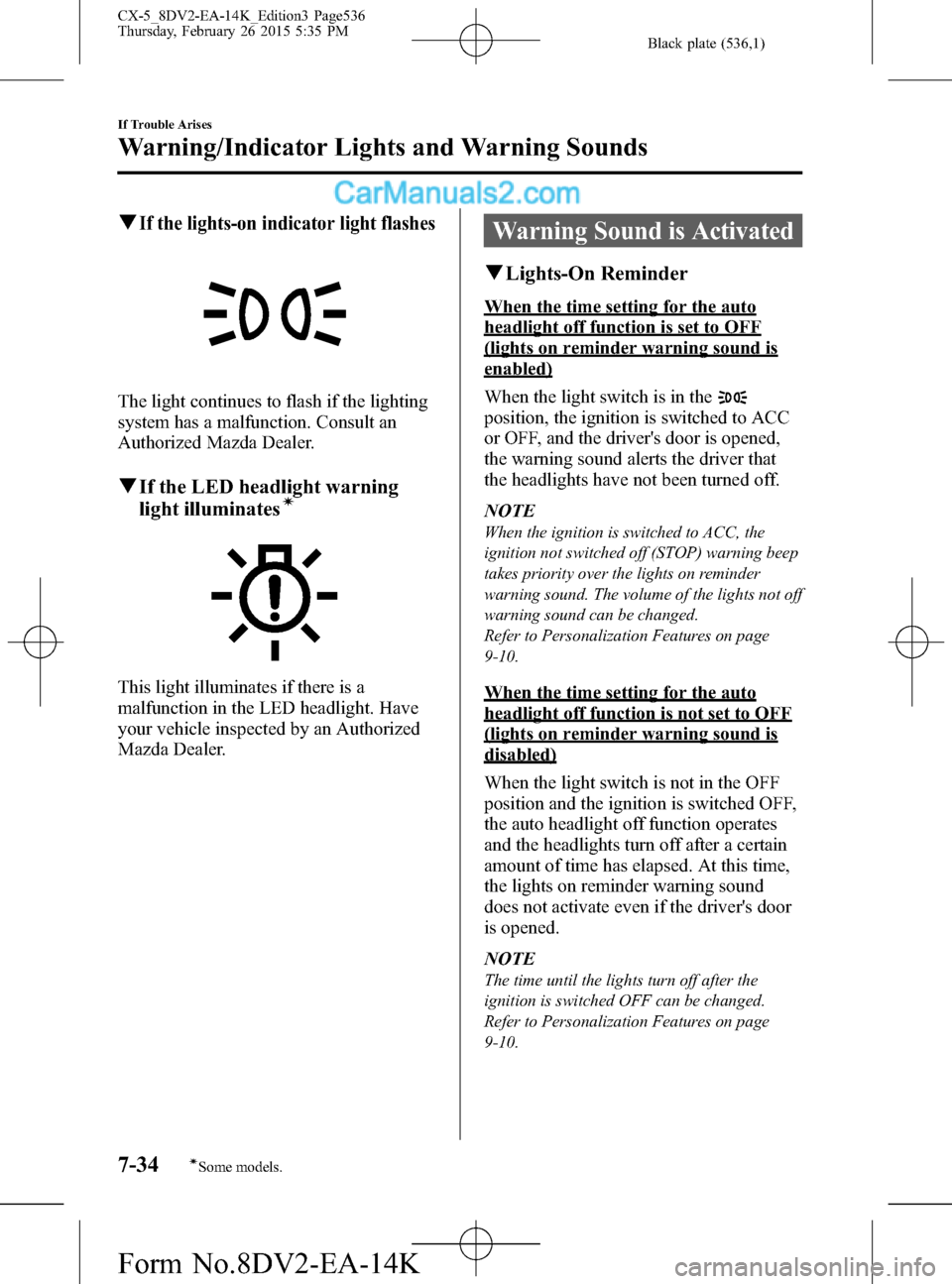

Black plate (536,1)
qIf the lights-on indicator light flashes
The light continues to flash if the lighting
system has a malfunction. Consult an
Authorized Mazda Dealer.
qIf the LED headlight warning
light illuminatesí
This light illuminates if there is a
malfunction in the LED headlight. Have
your vehicle inspected by an Authorized
Mazda Dealer.
Warning Sound is Activated
qLights-On Reminder
When the time setting for the auto
headlight off function is set to OFF
(lights on reminder warning sound is
enabled)
When the light switch is in the
position, the ignition is switched to ACC
or OFF, and the driver's door is opened,
the warning sound alerts the driver that
the headlights have not been turned off.
NOTE
When the ignition is switched to ACC, the
ignition not switched off (STOP) warning beep
takes priority over the lights on reminder
warning sound. The volume of the lights not off
warning sound can be changed.
Refer to Personalization Features on page
9-10.
When the time setting for the auto
headlight off function is not set to OFF
(lights on reminder warning sound is
disabled)
When the light switch is not in the OFF
position and the ignition is switched OFF,
the auto headlight off function operates
and the headlights turn off after a certain
amount of time has elapsed. At this time,
the lights on reminder warning sound
does not activate even if the driver's door
is opened.
NOTE
The time until the lights turn off after the
ignition is switched OFF can be changed.
Refer to Personalization Features on page
9-10.
7-34
If Trouble Arises
íSome models.
Warning/Indicator Lights and Warning Sounds
CX-5_8DV2-EA-14K_Edition3 Page536
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (605,1)
qAir Conditioner
The type of refrigerant used is indicated on a label attached to the inside of the engine compartment. Check the
label before recharging the refrigerant. Refer to Climate Control System on page 5-2.
Item Classification
Refrigerant Type HFC134a (R-134a)
qLight Bulbs
Exterior light
Light bulbCategory
Wattage UNECE
*1(SAE)
HeadlightsHalogen
headlightsHigh beam 60 HB3 (9005)
Low beam 55 H11 (H11)
LED headlightsHigh beam LED
*2―(―)
Low beam LED*2―(―)
Daytime running lightsWith halogen
headlights60 HB3 (9005)
Daytime running lights/Parking
lightsWith LED headlights LED
*2―(―)
Front turn signal lights/Parking
lights (Front side-marker lights)With halogen
headlights27/8―(1157NA)
Front turn signal lights/Front
side-marker lightsWith LED headlights 28/8―(7444NA)
Fog lights
íWith halogen
headlights55 H11 (H11)
With LED headlights LED
*2―(―)
Side turn signal lights LED*2―(―)
High-mount brake light LED*2―(―)
Rear turn signal lights 21 WY21W (7443NA)
Brake lights/TaillightsWith halogen
headlights21/5 W21/5W (7443)
With LED headlights LED
*2―(―)
Taillights (Liftgate side)With halogen
headlights5 W5W (―)
With LED headlights LED
*2―(―)
Rear side-marker lightsWith halogen
headlights5 W5W (―)
With LED headlights LED
*2―(―)
Reverse lights 18 W16W (921)
License plate lights 5 W5W (―)
*1 UNECE stands for United Nations Economic Commission for Europe.
*2 LED is the abbreviation for Light Emitting Diode.
Specifications
9-7íSome models. CX-5_8DV2-EA-14K_Edition3 Page605
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (613,1)
Item FeatureFactory
SettingAvailable
SettingsSettings change method
VehicleIllumination
entry
Refer to
Illuminated
Entry
System on
page 5-129.The time required for the
interior lamp to turn off
automatically can be changed
(prevents battery depletion
when a door is open/ajar).30
minutes60
minutes/
30
minutes/
10
minutes
Refer to
Settings
on page
5-49.―
The time required for the
interior lamp to turn off
automatically after all doors are
closed can be changed.15
seconds60
seconds/
30
seconds/
15
seconds/
7.5
secondsRefer to
Settings
on page
5-49.―
Auto-wiper
control
Refer to
Windshield
Wipers and
Washer on
page 4-64.The auto-wiper control function
can be changed.On On/Off
*4Refer to
Settings
on page
5-49.―
Daytime
running
lights
Refer to
Daytime
Running
Lights on
page 4-62.The function of the daytime
running lights can be changed.OnOn/
Off――
Auto
headlight off
Refer to
Headlights
on page
4-58.The time required for headlights
to turn off after ignition is
switched off can be changed.30
seconds120
seconds/
90
seconds/
60
seconds/
30
seconds/
Off
*5
Refer to
Settings
on page
5-49.―
Auto-light
control
Refer to
Headlights
on page
4-58.The headlight illumination
on/off sensitivity based on
surrounding lightness/darkness
can be changed.MediumHigh/
Med.
High/
Medium/
Med.
Low/
Low
Refer to
Settings
on page
5-49.―
Personalization Features
9-15
CX-5_8DV2-EA-14K_Edition3 Page613
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (614,1)
Item FeatureFactory
SettingAvailable
SettingsSettings change method
VehicleHigh Beam
Control
System
(HBC)
Refer to
High Beam
Control
System
(HBC) on
page 4-93.The High Beam Control System
(HBC) function can be
changed.
*1On On/OffRefer to
Settings
on page
5-49.―
Adaptive
Front
Lighting
System
(AFS)
Refer to
Adaptive
Front
Lighting
System
(AFS) on
page 4-92.The adaptive front lighting
system (AFS) function can be
changed.
*1On On/OffRefer to
Settings
on page
5-49.―
Lights-on
reminder*6
Refer to
Lights-On
Reminder on
page 7-34.The volume of the lights-on
reminder warning alarm can be
changed.OffHigh/Low/OffRefer to
Settings
on page
5-49.―
Coming
home light
system
Refer to
Coming
Home Light
System on
page 4-61.The time required for the
headlights to turn off after
closing all of the doors can be
changed.30
seconds120
seconds/
90
seconds/
60
seconds/
30
seconds/
Off
Refer to
Settings
on page
5-49.―
9-16
Personalization Features
CX-5_8DV2-EA-14K_Edition3 Page614
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (620,1)
E
Engine
Coolant ....................................... 6-29
Engine Compartment
Overview .................................... 6-26
Exhaust gas ................................ 3-25
Hood release .............................. 6-24
Oil .............................................. 6-27
Starting ......................................... 4-3
Essential information .......................... 6-2
Event Data Recorder ......................... 8-21
Exhaust Gas ...................................... 3-25
Exterior Care ..................................... 6-62
Aluminum Wheel
Maintenance ............................... 6-66
Bright-Metal Maintenance ......... 6-65
Maintaining the Finish ............... 6-63
Plastic Part Maintenance ............ 6-67
F
Flasher
Hazard warning .......................... 4-70
Headlights .................................. 4-58
Flat Tire ............................................... 7-3
Mounting the Spare Tire ............ 7-12
Floor Mat .......................................... 3-43
Fluid
Brake/Clutch .............................. 6-31
Washer ........................................ 6-31
Fluids
Classification ................................ 9-4
Fog Lights ......................................... 4-63
Foot Brake ........................................ 4-74
Forward Sensing Camera (FSC) ..... 4-134
Front Seat ............................................ 2-5
F
Fuel
Filler lid and cap ........................ 3-26
Gauge ......................................... 4-13
Requirements ............................. 3-23
Tank capacity ............................... 9-5
Fuel Consumption Display ................ 4-85
Fuel Economy Monitor ..................... 4-84
Ending Screen Display ............... 4-85
Fuel Consumption Display ......... 4-85
Fuses ................................................. 6-56
Panel description ........................ 6-58
Replacement ............................... 6-56
G
Gauges .............................................. 4-10
Glove Compartment ........................ 5-134
H
Hazard Warning Flasher .................... 4-70
Hazardous Driving ............................ 3-42
Head Restraint .................................. 2-14
Headlights
Coming Home Light System ..... 4-61
Control ....................................... 4-58
Flashing ...................................... 4-61
High-low beam .......................... 4-61
Leaving Home Light System ..... 4-62
Leveling ..................................... 4-62
High Beam Control System (HBC) ... 4-93
Hill Launch Assist (HLA) ................. 4-78
HomeLink Wireless Control
System .............................................. 4-71
Hood Release .................................... 6-24
Horn .................................................. 4-70
10-4
