2016 MAZDA MODEL 6 engine

Black plate (16,1)
CAUTION
ØWhen operating a seat, be careful not to put your hands or fingers near the
moving parts of the seat or on the side trim to prevent injury.
ØWhen moving the seats, make sure there is no cargo in the surrounding area. If
the cargo gets caught it could damage the cargo.
Ø(Manual Seat)
When returning a rear-reclined seatback to its upright position, make sure you
hold onto the seatback with your other hand while operating the lever. If the
seatback is not supported, it will flip forward suddenly and could cause injury.
Ø(Power Seat)
The seat-bottom power adjustment is operated by motors. Avoid extended
operation because excessive use can damage the motors.
ØTo prevent the battery from running down, avoid using the power adjustment
when the engine is stopped. The adjuster uses a large amount of electrical
power.
ØDo not use the switch to make more than one adjustment at a time.
NOTE
When returning a rear seat to its original position, also replace the seat belt to its normal position.
Verify that the seat belt pulls out and retracts.
2-4
Essential Safety Equipment
Seats
Mazda6_8EA2-EA-14K_Edition2 Page16
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K

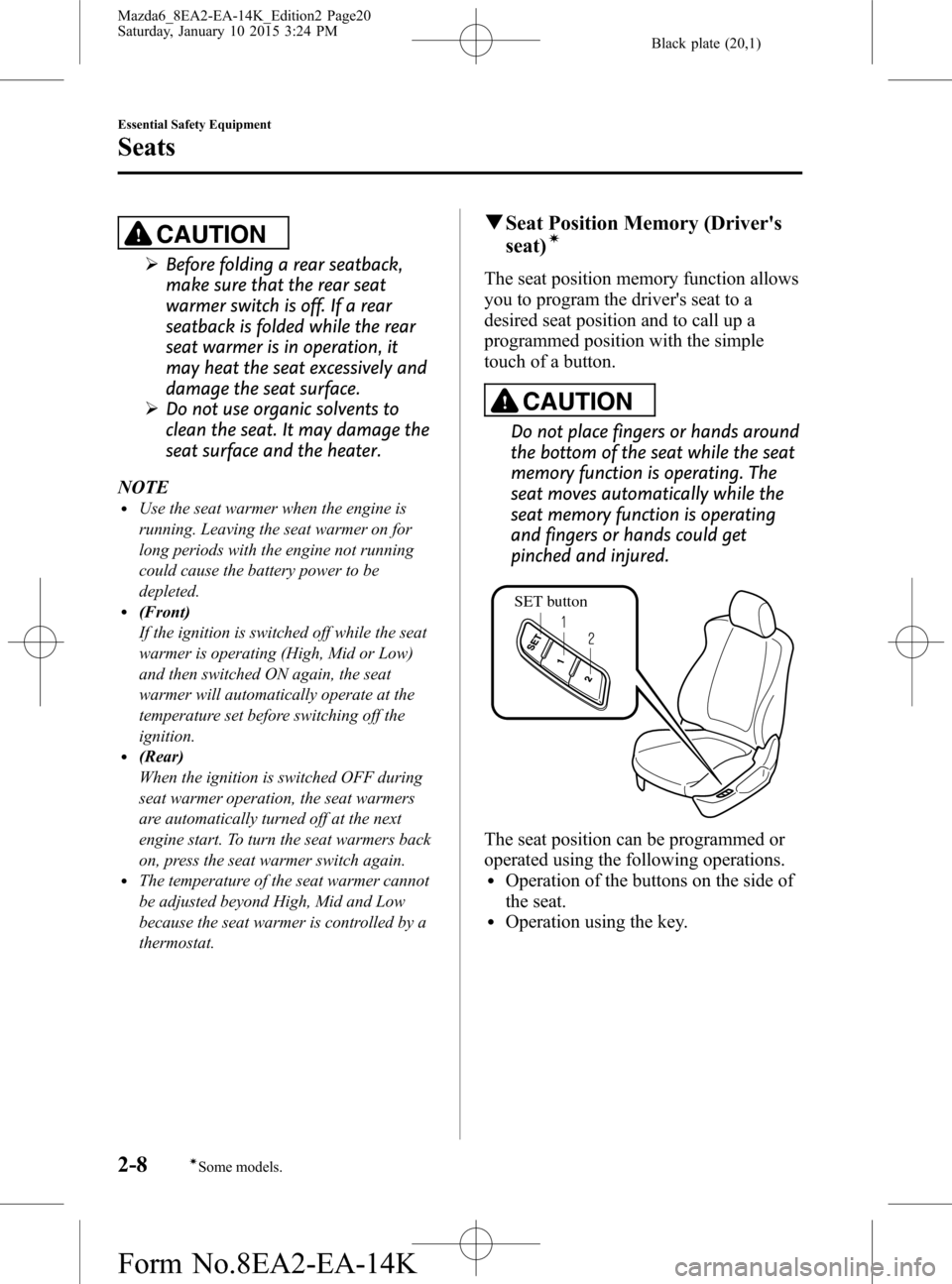

Black plate (20,1)
CAUTION
ØBefore folding a rear seatback,
make sure that the rear seat
warmer switch is off. If a rear
seatback is folded while the rear
seat warmer is in operation, it
may heat the seat excessively and
damage the seat surface.
ØDo not use organic solvents to
clean the seat. It may damage the
seat surface and the heater.
NOTE
lUse the seat warmer when the engine is
running. Leaving the seat warmer on for
long periods with the engine not running
could cause the battery power to be
depleted.
l(Front)
If the ignition is switched off while the seat
warmer is operating (High, Mid or Low)
and then switched ON again, the seat
warmer will automatically operate at the
temperature set before switching off the
ignition.
l(Rear)
When the ignition is switched OFF during
seat warmer operation, the seat warmers
are automatically turned off at the next
engine start. To turn the seat warmers back
on, press the seat warmer switch again.
lThe temperature of the seat warmer cannot
be adjusted beyond High, Mid and Low
because the seat warmer is controlled by a
thermostat.
qSeat Position Memory (Driver's
seat)í
The seat position memory function allows
you to program the driver's seat to a
desired seat position and to call up a
programmed position with the simple
touch of a button.
CAUTION
Do not place fingers or hands around
the bottom of the seat while the seat
memory function is operating. The
seat moves automatically while the
seat memory function is operating
and fingers or hands could get
pinched and injured.
SET button
The seat position can be programmed or
operated using the following operations.
lOperation of the buttons on the side of
the seat.
lOperation using the key.
2-8
Essential Safety Equipment
íSome models.
Seats
Mazda6_8EA2-EA-14K_Edition2 Page20
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K

Black plate (75,1)
3Before Driving
Use of various features, including keys, doors, mirrors and windows.
Keys .......................................................... 3-2
Keys .................................................... 3-2
Keyless Entry System ......................... 3-4
Advanced Keyless Entry System ............ 3-9
Advanced Keyless Entry System ........ 3-9
Operational Range ............................ 3-10
Doors and Locks .................................... 3-11
Door Locks ....................................... 3-11
Trunk Lid .......................................... 3-19
Inside Trunk Release Lever
í............ 3-22
Fuel and Emission ................................. 3-24
Fuel and Engine Exhaust
Precautions ........................................ 3-24
Fuel-Filler Lid and Cap ..................... 3-27
Steering Wheel ....................................... 3-29
Steering Wheel .................................. 3-29
Mirrors ................................................... 3-30
Mirrors .............................................. 3-30
Windows ................................................. 3-33
Power Windows ................................ 3-33
Moonroof
í....................................... 3-36
Security System ..................................... 3-39
Modification and Add-On
Equipment ......................................... 3-39
Immobilizer System .......................... 3-39
Theft-Deterrent System
í.................. 3-41Driving Tips ........................................... 3-43
Break-In Period ................................. 3-43
Saving Fuel and Protection of the
Environment ...................................... 3-43
Hazardous Driving ............................ 3-44
Floor Mat .......................................... 3-44
Rocking the Vehicle .......................... 3-45
Winter Driving .................................. 3-45
Driving In Flooded Area ................... 3-47
Overloading ...................................... 3-47
Driving on Uneven Road .................. 3-48
Towing .................................................... 3-49
Trailer Towing ................................... 3-49
Recreational Towing ......................... 3-49
3-1íSome models.
Mazda6_8EA2-EA-14K_Edition2 Page75
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K

Black plate (78,1)
Keyless Entry System
This system uses the key buttons to
remotely lock and unlock the doors, and
opens the trunk lid.
The system can start the engine without
having to take the key out of your purse
or pocket.
It can also help you signal for attention.
Operating the theft-deterrent system is
also possible on theft-deterrent system-
equipped vehicles.
Press the buttons slowly and carefully.
System malfunctions or warnings are
indicated by the following warning lights
or beeps.
For vehicles with the type A instrument
cluster, check the displayed message for
more information and, if necessary, have
the vehicle inspected at an Authorized
Mazda Dealer, according to the indication.
lKEY Warning Light (Red)
Refer to Warning/Indicator Lights on
page 4-22.
lIgnition Not Switched Off (STOP)
Warning Beep
Refer to Ignition Not Switched Off
(STOP) Warning Beep on page 7-35.
lKey Removed from Vehicle Warning
Beep
Refer to Key Removed from Vehicle
Warning Beep on page 7-35.
If you have a problem with the key,
consult an Authorized Mazda Dealer.
If your key is lost or stolen, consult an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen key inoperative.
CAUTION
Radio equipment like this is governed
by laws.
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
NOTE
lThe keyless entry system operation may
vary due to local conditions.
lThe keyless entry system is fully operational
(door lock/unlock) when the push button
start is switched off. The system does not
operate if the push button start is switched
to any position other than off.
lIf the key does not operate when pressing a
button or the operational range becomes
too small, the battery may be dead. To
install a new battery, refer to Replace
Electrical Battery(page 6-38).
lBattery life is about one year. Replace the
battery with a new one if the KEY indicator
light (green) flashes in the instrument
cluster. Replacing the battery about once a
year is recommended because the KEY
warning light/indicator light may not
illuminate or flash depending on the rate of
battery depletion.
lAdditional keys can be obtained at an
Authorized Mazda Dealer. Up to 6 keys can
be used with the keyless functions per
vehicle. Bring all keys to an Authorized
Mazda Dealer when additional keys are
required.
3-4
Before Driving
Keys
Mazda6_8EA2-EA-14K_Edition2 Page78
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K

Black plate (81,1)
l(With theft-deterrent system)
When the doors are unlocked by pressing
the unlock button on the key while the theft-
deterrent system is turned off, the hazard
warning lights will flash twice to indicate
that the system is turned off.
Trunk button
To open the trunk lid, press and hold the
trunk button until the trunk lid opens.
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, press and hold the panic button to
activate the vehicle's alarm.
NOTE
The panic button will work whether any door
or the trunk lid is open or closed.
(Turning on the alarm)
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:
lThe horn sounds intermittently.lThe hazard warning lights flash.(Turning off the alarm)
The alarm stops by pressing any button on
the key.
qOperational Range
The system operates only when the driver
is in the vehicle or within operational
range while the key is being carried.
Starting the Engine
NOTE
lStarting the engine may be possible even if
the key is outside of the vehicle and
extremely close to a door and window,
however, always start the engine from the
driver's seat.
If the vehicle is started and the key is not in
the vehicle, the vehicle will not restart after
it is shut off and the push button start is
switched to off.
lThe trunk is out of the assured operational
range, however, if the key (transmitter) is
operable the engine will start.
With the advanced keyless function
Interior antenna
Operational range
Before Driving
Keys
3-7
Mazda6_8EA2-EA-14K_Edition2 Page81
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K

Black plate (82,1)
Without the advanced keyless function
Interior antenna
Operational range
NOTE
The engine may not start if the key is placed in
the following areas:
lAround the dashboardlIn the storage compartments such as the
glove compartment
lOn the rear parcel shelf
qKey Suspend Function
If a key is left in the vehicle, the functions
of the key left in the vehicle are
temporarily suspended to prevent theft of
the vehicle.
To restore the functions, press the unlock
button on the functions-suspended key in
the vehicle.
3-8
Before Driving
Keys
Mazda6_8EA2-EA-14K_Edition2 Page82
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K

Black plate (83,1)
Advanced Keyless Entry
System
WARNING
Radio waves from the key may affect
medical devices such as pacemakers:
Before using the key near people who
use medical devices, ask the medical
device manufacturer or your
physician if radio waves from the key
will affect the device.
The advanced keyless function allows you
to lock/unlock the doors, or open the
trunk lid while carrying the key without
using the key.
System malfunctions or warnings are
indicated by the following warning beeps.
lRequest switch Inoperable Warning
Beep
Refer to Request Switch Inoperable
Warning Beep (With the advanced
keyless function) on page 7-35.
lKey Left-in-Trunk Warning Beep
Refer to Key Left-in-trunk Warning
Beep (With the advanced keyless
function) on page 7-36.
lKey Left-in-vehicle Warning Beep
Refer to Key Left-in-vehicle Warning
Beep (With the advanced keyless
function) on page 7-36.NOTE
The advanced keyless entry system functions
can be deactivated to prevent any possible
adverse effect on a user wearing a pacemaker
or other medical device. If the system is
deactivated, you will be unable to start the
engine by carrying the key. Consult an
Authorized Mazda Dealer for details. If the
advanced keyless entry system has been
deactivated, you can start the engine by
following the procedure indicated when the key
battery goes dead.
Refer to Engine Start Function When Key
Battery is Dead on page 4-6.
Before Driving
Advanced Keyless Entry System
3-9
Mazda6_8EA2-EA-14K_Edition2 Page83
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K

Black plate (94,1)
CAUTION
ØBefore opening the trunk lid,
remove any snow and ice
accumulation on it. Otherwise, the
trunk lid could close under the
weight of the snow and ice
resulting in injury.
ØBe careful when opening/closing
the trunk lid during strong winds.
If a strong gust blows against the
trunk lid, it could close suddenly
resulting in injury.
ØFully open the trunk lid and make
sure that it stays open. If the trunk
lid is only opened partially, it
could slam shut by vibration or
wind gusts resulting in injury.
ØWhen loading or unloading
luggage in the trunk, turn off the
engine. Otherwise, you could get
burned by the heat of the exhaust
gas.
qOpening and Closing the Trunk Lid
Opening the trunk lid with Electric
trunk lid opener (With the advanced
keyless function)
A locked trunk lid can also be opened
while the key is being carried.
Press the electric trunk lid opener on the
trunk lid, and then raise the trunk lid when
the latch releases.
Electric trunk lid
opener
NOTElWhen opening the trunk lid with the doors
and the trunk lid locked, it may require a
few seconds for the trunk lid latch to
release after the electric trunk lid opener is
pressed.
lThe trunk lid can be closed when the doors
are locked with the key left in the vehicle.
However, to prevent leaving the key in the
vehicle, the trunk lid can be opened by
pressing the electric trunk lid opener. If the
trunk lid cannot be opened despite doing
this procedure, press the electric trunk lid
opener to fully open the trunk lid after
pushing the trunk lid completely closed.
3-20
Before Driving
Doors and Locks
Mazda6_8EA2-EA-14K_Edition2 Page94
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K
