2016 MAZDA MODEL 3 5-DOOR rear view mirror

1–5
Pictorial Index
Interior Overview
Interior Equipment (View C)
Seat belts ........................................................................\
.......................................page 2-13
SRS air bag........................................................................\
....................................page 2-40
Bottle holder ........................................................................\
................................page 5-139
Overhead lights ........................................................................\
...........................page 5-135
Moonroof switch ........................................................................\
...........................page 3-38
Sunvisor ........................................................................\
......................................page 5-134
Vanity mirror ........................................................................\
...............................page 5-134
Rearview mirror ........................................................................\
............................page 3-33
Glove compartment ........................................................................\
.....................page 5-140
Parking brake ........................................................................\
................................page 4-59
Cup holders ........................................................................\
.................................page 5-138
Front seat ........................................................................\
.........................................page 2-5
Center console ........................................................................\
.............................page 5-141
Rear seat ........................................................................\
..........................................page 2-8
The equipment and installation position varies by vehicle
Mazda3_8FA4-EA-15G_Edition1.indb 52015/05/11 13:59:58

1–7
Pictorial Index
Exterior Overview
(5-Door)
Hood ........................................................................\
..............................................page 6-24
Windshield wiper blades ........................................................................\
...............page 6-34
Moonroof ........................................................................\
......................................page 3-38
Doors and keys ........................................................................\
..............................page 3-13
Fuel-filler lid ........................................................................\
.................................page 3-29
Wheels and Tires ........................................................................\
...........................page 6-43
Exterior lights ........................................................................\
................................page 6-47
Rear window wiper blade ........................................................................\
.............page 6-35
Liftgate ........................................................................\
..........................................page 3-21
Antenna ........................................................................\
.........................................page 5-16
Child safety locks ........................................................................\
..........................page 3-19
Outside mirror ........................................................................\
...............................page 3-32
The equipment and installation position varies by vehicle
Mazda3_8FA4-EA-15G_Edition1.indb 72015/05/11 13:59:59

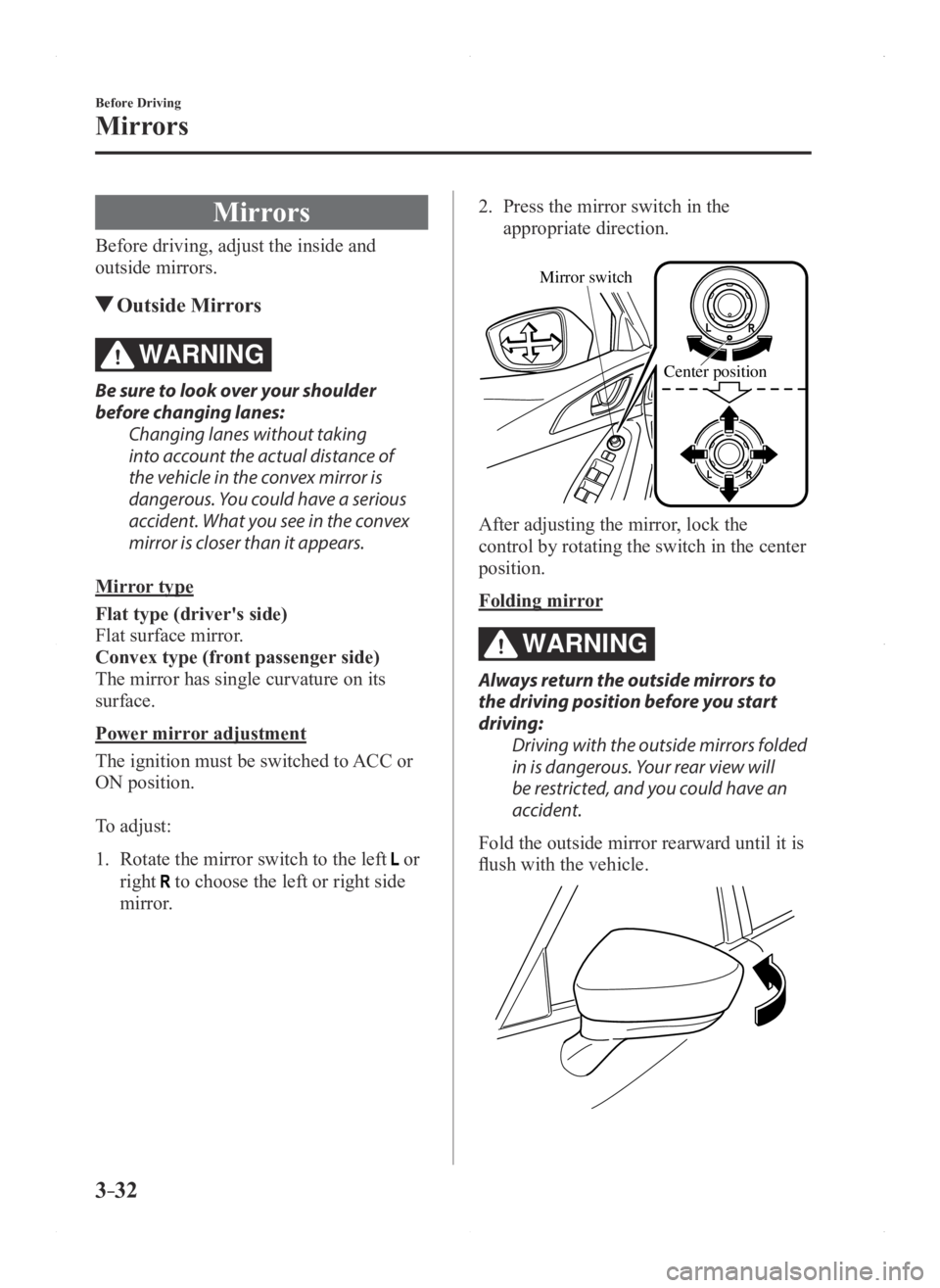

3–32
Before Driving
Mirrors
Mirrors
Before driving, adjust the inside and
outside mirrors.
Outside Mirrors
WARNING
Be sure to look over your shoulder
before changing lanes:Changing lanes without taking
into account the actual distance of
the vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears.
Mirror type
Flat type (driver's side)
Flat surface mirror.
Convex type (front passenger side)
The mirror has single curvature on its
surface.
Power mirror adjustment
The ignition must be switched to ACC or
ON position.
To adjust:
1. Rotate the mirror switch to the left or
right
to choose the left or right side
mirror.
2. Press the mirror switch in the
appropriate direction.
Mirror switch
Center position
After adjusting the mirror, lock the
control by rotating the switch in the center
position.
Folding mirror
WARNING
Always return the outside mirrors to
the driving position before you start
driving: Driving with the outside mirrors folded
in is dangerous. Your rear view will
be restricted, and you could have an
accident.
Fold the outside mirror rearward until it is
flush with the vehicle.
Mazda3_8FA4-EA-15G_Edition1.indb 322015/05/11 14:00:25

3–33
Before Driving
Mirrors
Rearview Mirror
WARNING
Do not stack cargo or objects higher
than the seatbacks: Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror, which
might cause you to hit another car
when changing lanes.
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
NOTE
For the manual day/night mirror, perform
the adjustment with the day/night lever in
the day position.
Reducing glare from headlights
Manual day/night mirror
Push the day/night lever forward for day
driving. Pull it back to reduce glare of
headlights from vehicles at the rear.
Night
Day Day/Night le
ver
Auto-dimming mirror
The auto-dimming mirror automatically
reduces glare of headlights from vehicles
at the rear when the ignition is switched
ON.
(With Homelink wireless control
system)
Press the OFF button (
) to cancel the
automatic dimming function. The indicator
light will turn off.
To reactivate the automatic dimming
function, press the ON button (
). The
indicator light will illuminate.
Indicator lightOFF button
ON button
Mazda3_8FA4-EA-15G_Edition1.indb 332015/05/11 14:00:26

4–75
When Driving
i-ACTIVSENSE
Camera and Sensors
Forward sensing camera (FSC)
The Forward Sensing Camera (FSC) determines the conditions ahead of th\
e vehicle while
traveling at night and detects traffic lanes. The following systems also use the Forward
Sensing Camera (FSC).
 High Beam Control system (HBC) Lane Departure Warning System (LDWS)
The Forward Sensing Camera (FSC) is installed at the top of the windsh\
ield near the
rearview mirror.
Refer to Forward Sensing Camera (FSC) on page 4-111.
Radar sensor (front)
The radar sensor (front) functions by detecting the radio waves reflected off a vehicle ahead
sent from the radar sensor. The following systems also use the radar sensor (front).
 Mazda Radar Cruise Control (MRCC) Forward Obstruction Warning (FOW)
The radar sensor (front) is mounted behind the radiator grille.
Refer to Radar Sensor (Front) on page 4-113.
Laser sensor (front)
The laser sensor (front) emits a near-infrared laser beam and receives the beam reflected
off the reflective surface of a vehicle in front, and the detected beam is then used for
measurement. The following systems also use the laser sensor (front).
 Smart City Brake Support (SCBS)
The laser sensor (front) is installed at the top of the windshield nea\
r the rearview mirror.
Refer to Laser Sensor (Front) on page 4-116.
Radar sensors (rear)
The radar sensors (rear) function by detecting the radio waves reflected off a vehicle
approaching from the rear or an obstruction sent from the radar sensors.\
The following
systems also use the radar sensors (rear).
 Blind Spot Monitoring (BSM) System Rear Cross Traffic Alert (RCTA)
The radar sensors (rear) are installed inside the rear bumper, one each on the left and right
sides.
Refer to Radar Sensors (Rear) on page 4-118.
Mazda3_8FA4-EA-15G_Edition1.indb 752015/05/11 14:01:00

4–88
When Driving
i-ACTIVSENSE
 If the road width is extremely narrow, vehicles two lanes over may be detected.
The detection area of the radar sensors (rear) is set according to the road width of
expressways.
 The Blind Spot Monitoring (BSM) warning lights may turn on in reaction to stationary
objects on the road or the roadside such as guardrails, tunnels, sidewalls, and parked
vehicles.
The walls at the entrance and exits of tunnels, turnouts.
Objects such as guardrails and concrete walls running alongside the vehicle.Places where the width between guardrails or walls on each side of the vehicle narrows.
 A Blind Spot Monitoring (BSM) warning light may flash or the warning beep may be
activated several times when making a turn at a city intersection. Turn off the Blind Spot Monitoring (BSM) system while pulling a trailer\
or while an
accessory such as a bicycle carrier is installed to the rear of the vehicle. Otherwise, the
radar’s radio waves will be blocked causing the system to not operate normally\
.
 In the following cases, it may be difficult to view the illumination/flashing of the Blind
Spot Monitoring (BSM) warning lights equipped on the door mirrors.
 Snow or ice is adhering to the door mirrors. The front door glass is fogged or covered in snow, frost or dirt.
 The system switches to the Rear Cross Traffic Alert function when the shift lever (manual
transaxle) or the selector lever (automatic transaxle) is shifted to \
the reverse (R) position.
Refer to Rear Cross Traffic Alert (RCTA) on page 4-92.
Mazda3_8FA4-EA-15G_Edition1.indb 882015/05/11 14:01:03

4–94
When Driving
i-ACTIVSENSE
 Under the following conditions, the radar sensors (rear) cannot detect target objects or it
may be difficult to detect them.
 The vehicle speed when reversing is about 10 km/h (6.3 mph) or faster. The radar sensor (rear) detection area is obstructed by a nearby wall or parked
vehicle. (Reverse the vehicle to a position where the radar sensor detection area is no
longer obstructed.)
Your vehicle
 A vehicle is approaching directly from the rear of your vehicle.
Your vehicle
 The vehicle is parked on a slant.
Your vehicle
 Directly after pressing the BSM OFF switch and the system becomes operable.
 In the following cases, it may be difficult to view the illumina tion/flashing of the Blind
Spot Monitoring (BSM) warning lights equipped on the door mirrors.
 Snow or ice adheres to the door mirrors. The front door glass is fogged or covered in snow, frost or dirt.
 Turn off the Rear Cross Traffic Alert (RCTA) system while pulling a trailer or while an
accessory such as a bicycle carrier is installed to the rear of the vehicle. Otherwise,
the radio waves emitted by the radar will be blocked causing the system \
to not operate
normally.
Mazda3_8FA4-EA-15G_Edition3.indb 942015/12/04 19:23:19

4–107
When Driving
i-ACTIVSENSE
Do not rely completely on the Smart City Brake Support (SCBS) system:
 The Smart City Brake Support (SCBS) system is only designed to reduce damage in the
event of a collision. Over reliance on the system leading to the accelerator pedal or
brake pedal being mistakenly operated could result in an accident.
 The Smart City Brake Support (SCBS) is a system which operates in response to a
vehicle ahead. The system may not be able to detect or react to 2-wheeled vehicles or
pedestrians.
 The laser sensor (front) for the Smart City Brake Support (SCBS) system is installed near
the rearview mirror. To assure the correct operation of the Smart City Brake Support
(SCBS), heed the following cautions.
 Do not apply stickers to the surface of the windshield near the laser sensor (front)
(including transparent stickers). Otherwise, the laser sensor (front) may not be able
to detect vehicles ahead which could result in an accident.
 Do not apply coating agent to the windshield. Otherwise, the laser sensor (front)
may not be able to detect vehicles or obstructions in front which could result in an
accident.
 Do not disassemble the laser sensor (front). If cracks or damage caused by flying gravel or debris is visible near the laser sensor
(front), stop using the Smart City Brake Support (SCBS) system immediately and
have your vehicle inspected by an Authorized Mazda Dealer. If the vehicle continues
to be driven with cracks or scratch marks left on the windshield near the laser sensor
(front), the system may operate unnecessarily and cause an unexpected accident.
Refer to Stopping The Smart City Brake Support (SCBS) System Operation on page
4-110. When replacing the windshield wipers or windshield, consult an Authorized Mazda
Dealer.
Do not modify the suspension: If the vehicle height or inclination is changed, the system will not be able to correctly
detect vehicles ahead. This will result in the Smart City Brake Support (SCBS) system not
operating normally or mistakenly operating, which could cause a serious accident.
Turn off the Smart City Brake Support (SCBS) when the vehicle is running on a chassis
roller or being towed: Turn off the Smart City Brake Support (SCBS) system to prevent mistaken operation when
the vehicle is running on a chassis roller or being towed. See the next page on how to turn
off the Smart City Brake Support (SCBS).
Refer to Stopping The Smart City Brake Support (SCBS) System Operation on page 4-110.
Mazda3_8FA4-EA-15G_Edition1.indb 1072015/05/11 14:01:08
