2016 MAZDA MODEL 3 5-DOOR key

Table of Contents
PictorialIndex
Interior,exteriorviews and part identification of your Mazda.1
EssentialSafety Equipment
Importanti nformationabout safety equipment, including seats, seatb elt
system, child-restrain tsystemsa nd SRSa ir bags.2
BeforeDriving
Use of various features, including keys,d oors,mirrors andw indows.3
WhenDriving
Informationconcerning safed riving and stopping.4
InteriorFeatures
Use of various feature sfor ridec omfort,i ncluding air-conditioning and audio
system.5
MaintenanceandC are
Howtokeep your Mazda in top condition.6
IfTrouble Arises
Helpful informatio nonw hatt odoifa problem arises with thev ehicle.7
CustomerInformation andReporting Safety Defects
Importantconsumer informatio nincluding warranties anda dd-on equipment.8
Specifications
Technicalinformatio nabout your Mazda.9
Index10
Mazda3_8FA4-EA-15G_Edition1.indb 52015/05/11 13:59:54

1–6
Pictorial Index

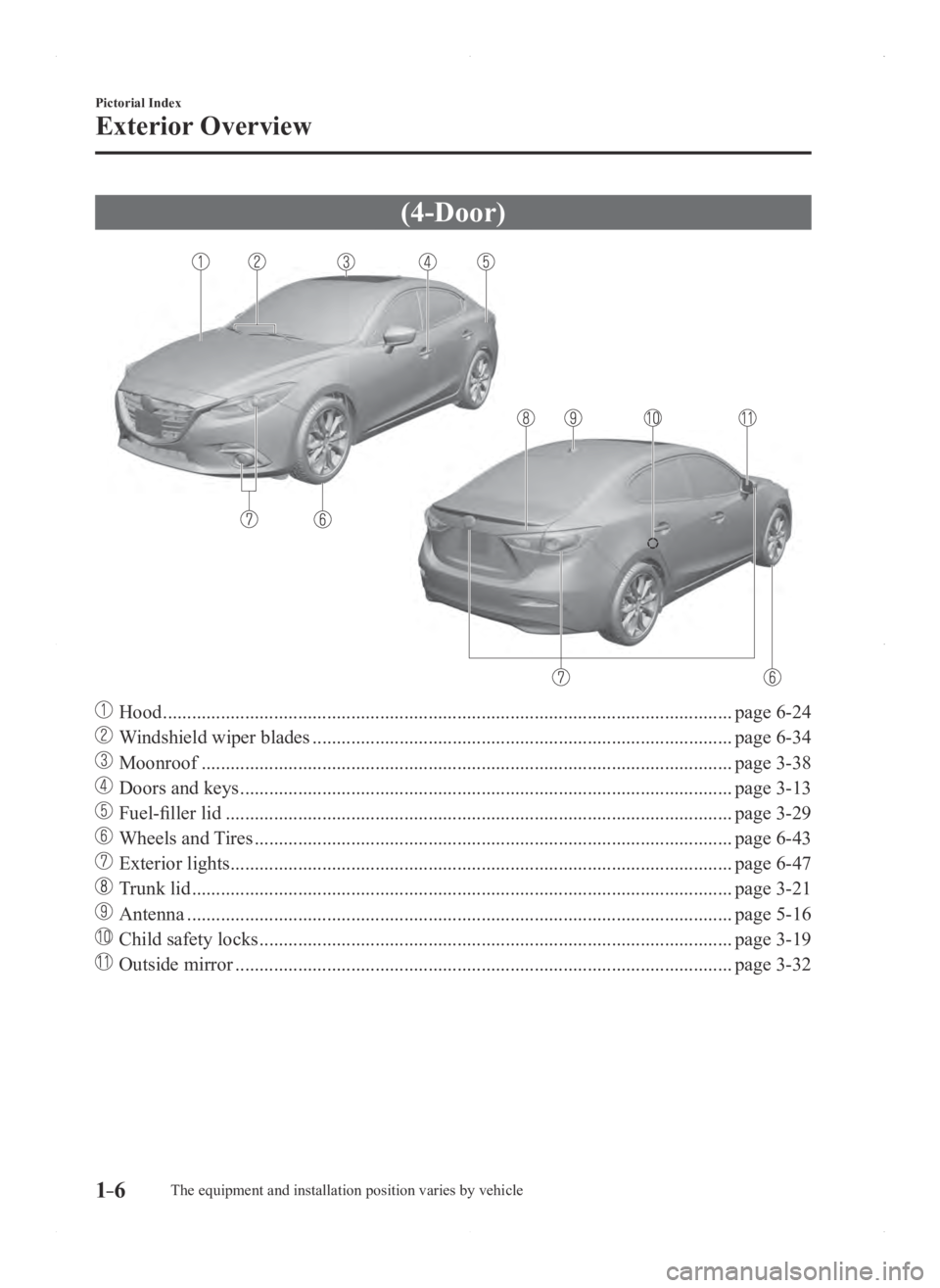

Exterior Overview
(4-Door)
Hood ........................................................................\
..............................................page 6-24
Windshield wiper blades ........................................................................\
...............page 6-34
Moonroof ........................................................................\
......................................page 3-38
Doors and keys ........................................................................\
..............................page 3-13
Fuel-filler lid ........................................................................\
.................................page 3-29
Wheels and Tires ........................................................................\
...........................page 6-43
Exterior lights ........................................................................\
................................page 6-47
Trunk lid ........................................................................\
........................................page 3-21
Antenna ........................................................................\
.........................................page 5-16
Child safety locks ........................................................................\
..........................page 3-19
Outside mirror ........................................................................\
...............................page 3-32
The equipment and installation position varies by vehicle
Mazda3_8FA4-EA-15G_Edition1.indb 62015/05/11 13:59:59

1–7
Pictorial Index
Exterior Overview
(5-Door)
Hood ........................................................................\
..............................................page 6-24
Windshield wiper blades ........................................................................\
...............page 6-34
Moonroof ........................................................................\
......................................page 3-38
Doors and keys ........................................................................\
..............................page 3-13
Fuel-filler lid ........................................................................\
.................................page 3-29
Wheels and Tires ........................................................................\
...........................page 6-43
Exterior lights ........................................................................\
................................page 6-47
Rear window wiper blade ........................................................................\
.............page 6-35
Liftgate ........................................................................\
..........................................page 3-21
Antenna ........................................................................\
.........................................page 5-16
Child safety locks ........................................................................\
..........................page 3-19
Outside mirror ........................................................................\
...............................page 3-32
The equipment and installation position varies by vehicle
Mazda3_8FA4-EA-15G_Edition1.indb 72015/05/11 13:59:59

2–3
Essential Safety Equipment
Seats
Do not drive with either front seats reclined:Sitting in a reclined position while the vehicle is moving is dangerous because you do not
get the full protection from seat belts. During sudden braking or a collision, you can slide
under the lap belt and suffer serious internal injuries. For maximum protection, sit well
back and upright.
Do not place an object such as a cushion between the seatback and your back: Putting an object such as a cushion between the seatback and your back is dangerous
because you will be unable to maintain a safe driving posture and the seat belt cannot
function at its full capacity in a collision, which could result in a serious accident, injury or
death.
Do not place objects under the seat: The object could get stuck and cause the seat to not be fixed securely, and result in an
accident.
Do not stack cargo higher than the seatbacks: Stacking luggage or other cargo higher than the seatbacks is dangerous. During sudden
braking or a collision, objects can fly around and become projectiles that may hit and
injure passengers.
Make sure luggage and cargo is secured before driving: Not securing cargo while driving is dangerous as it could move or be crushed during
sudden braking or a collision and cause injury.
Never allow a passenger to sit or stand on the folded seatback while the vehicle is
moving: Driving with a passenger on the folded seatback is dangerous. Allowing a child to sit up
on the folded seatback while the vehicle is moving is particularly dangerous. In a sudden
stop or even a minor collision, a child not in a proper seat or child-restraint system and
seat belt could be thrown forward, back or even out of the vehicle resulting in serious
injuries or death. The child in the baggage area could be thrown into other occupants
and cause serious injury.
Never give the car keys to children and do not allow them to play in the vehicle (4–
Door): Playing with the folding rear seats is dangerous. Once the seatbacks are back up, a child
in the trunk would not be able to get out the way they had entered. If you have small
children, keep the seatbacks locked.
Mazda3_8FA4-EA-15G_Edition1.indb 32015/05/11 14:00:00

2–4
Essential Safety Equipment
Seats
Always leave your car locked and keep the car keys safely away from children (4–
Door):Leaving your car unlocked or the keys in reach of children is dangerous. Children who find
their way into the trunk through an unlocked rear seatback or an open trunk can become
accidentally locked in the trunk. This could result in death or brain damage from heat
prostration, particularly in the summer. Always lock the doors and the trunk, and as an
added measure, keep the rear seatbacks locked, whether you have children in your home
or not.
CAUTION
 When operating a seat, be careful not to put your hands or fingers near the moving parts of
the seat or on the side trim to prevent injury. When moving the seats, make sure there is no cargo in the surrounding area. If the cargo
gets caught it could damage the cargo. (Manual Seat)
When moving the seats forward and rearward or returning a rear-reclined seatback to its
upright position, make sure you hold onto the seatback with your hand while operating. If
the seatback is not held, the seat will move suddenly and could cause injury.
NOTE
 When returning a rear seat to its original position, place the seat belt in its normal
position. Verify that the seat belt pulls out and retracts.
 (Power Seat)
The seat-bottom power adjustment is operated by motors. Avoid extended operation
because excessive use can damage the motors.
 To prevent the battery from running down, avoid using the power adjustment when the
engine is stopped. The adjuster uses a large amount of electrical power. Do not use the switch to make more than one adjustment at a time.
Mazda3_8FA4-EA-15G_Edition3.indb 42015/12/04 19:21:41

3–1*Some models.
3Before Driving
Use of various features, including keys, doors, mirrors and windows.
Keys ......................................................3-2
Keys
...............................................3-2
Keyless Entry System
....................3-3
Advanced Keyless Entry System
.......3-9
Advanced Keyless Entry
System
* ...........................................3-9
Operational Range
.......................3-10
Doors and Locks
................................3-11
Door Locks
...................................3-11
Liftgate/Trunk Lid
........................3-20
Inside Trunk Release Lever
(4-Door)
* ......................................3-24
Fuel and Emission
.............................3-26
Fuel and Engine Exhaust
Precautions
...................................3-26
Fuel-Filler Lid and Cap
................3-29
Steering Wheel ................................... 3-31
Steering Wheel
.............................3-31
Mirrors
...............................................3-32
Mirrors
.........................................3-32
Windows
.............................................3-35
Power Windows
...........................3-35
Moonroof * ...................................3-38 Security System
.................................3-40
Modification and Add-On
Equipment
....................................3-40
Immobilizer System
.....................3-40
Theft-Deterrent System* ...............3-42
Driving Tips
.......................................3-44
Break-In Period
............................3-44
Saving Fuel and Protection of the
Environment
.................................3-44
Hazardous Driving
.......................3-45
Floor Mat
.....................................3-45
Rocking the Vehicle
.....................3-46
Winter Driving
.............................3-46
Driving In Flooded Area
..............3-48
Overloading
..................................3-49
Driving on Uneven Road
.............3-50
Towing
................................................3-51
Trailer Towing
..............................3-51
Recreational Towing
....................3-51
Mazda3_8FA4-EA-15G_Edition1.indb 12015/05/11 14:00:16

3–2
Before Driving
Keys
Keys
WARNING
Do not leave the key in your vehicle with
children and keep them in a place where
your children will not find or play with
them:Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. Children may find these keys to
be an interesting toy to play with and
could cause the power windows or
other controls to operate, or even make
the vehicle move.
CAUTION
 Because the key (transmitter) uses
low-intensity radio waves, it may not
function correctly under the following
conditions:
 The key is carried with
communication devices such as
cellular phones.
 The key contacts or is covered by a
metal object. The key is near electronic devices such
as personal computers. Non-Mazda genuine electronic
equipment is installed in the vehicle. There is equipment which discharges
radio waves near the vehicle.
 The key (transmitter) may consume
battery power excessively if it receives
high-intensity radio waves. Do not place
the key near electronic devices such as
televisions or personal computers.
 To avoid damage to the key
(transmitter), DO NOT:
 Drop the key. Get the key wet. Disassemble the key. Expose the key to high temperatures
on places such as the dashboard or
hood, under direct sunlight.
 Expose the key to any kind of
magnetic field. Place heavy objects on the key. Put the key in an ultrasonic cleaner. Put any magnetized objects close to
the key.
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key (auxiliary key).
Also write down the code number and
keep it in a separate safe and convenient
place, but not in the vehicle.
If your key (auxiliary key) is lost, consult
your Authorized Mazda Dealer and have
your code number ready.
Mazda3_8FA4-EA-15G_Edition1.indb 22015/05/11 14:00:17

3–3
Before Driving
Keys
NOTE
The driver must carry the key to ensure the
system functions properly.
Auxiliary key
Transmitter
Ke y code number plate
To use the auxiliary key, press the knob
and pull out the auxiliary key from the
transmitter.
Keyless Entry System
This system uses the key buttons to
remotely lock and unlock the doors and
the liftgate/trunk lid, and opens the trunk
lid.
The system can start the engine without
having to take the key out of your purse or
pocket.
It can also help you signal for attention.
Operating the theft-deterrent system is
also possible on theft-deterrent system-
equipped vehicles.
Press the buttons slowly and carefully.
System malfunctions or warnings are
indicated by the following warning lights
or beeps.
 KEY Warning Light (Red)
Refer to Warning/Indicator Lights on
page 4-20. Ignition Not Switched Of f (STOP)
Warning Beep
Refer to Ignition Not Switched Of f
(STOP) Warning Beep on page 7-36. Key Removed from Vehicle Warning
Beep
Refer to Key Removed from Vehicle
Warning Beep on page 7-36.
If you have a problem with the key,
consult an Authorized Mazda Dealer.
If your key is lost or stolen, consult an
Authorized Mazda Dealer as soon as
possible for a replacement and to make the
lost or stolen key inoperative.
Mazda3_8FA4-EA-15G_Edition3.indb 32015/12/04 19:22:07
