2016 MAZDA MODEL 3 4-DOOR engine

2–4
Essential Safety Equipment
Seats
Always leave your car locked and keep the car keys safely away from children (4–
Door):Leaving your car unlocked or the keys in reach of children is dangerous. Children who find
their way into the trunk through an unlocked rear seatback or an open trunk can become
accidentally locked in the trunk. This could result in death or brain damage from heat
prostration, particularly in the summer. Always lock the doors and the trunk, and as an
added measure, keep the rear seatbacks locked, whether you have children in your home
or not.
CAUTION
 When operating a seat, be careful not to put your hands or fingers near the moving parts of
the seat or on the side trim to prevent injury. When moving the seats, make sure there is no cargo in the surrounding area. If the cargo
gets caught it could damage the cargo. (Manual Seat)
When moving the seats forward and rearward or returning a rear-reclined seatback to its
upright position, make sure you hold onto the seatback with your hand while operating. If
the seatback is not held, the seat will move suddenly and could cause injury.
NOTE
 When returning a rear seat to its original position, place the seat belt in its normal
position. Verify that the seat belt pulls out and retracts.
 (Power Seat)
The seat-bottom power adjustment is operated by motors. Avoid extended operation
because excessive use can damage the motors.
 To prevent the battery from running down, avoid using the power adjustment when the
engine is stopped. The adjuster uses a large amount of electrical power. Do not use the switch to make more than one adjustment at a time.
Mazda3_8FA4-EA-15G_Edition3.indb 42015/12/04 19:21:41

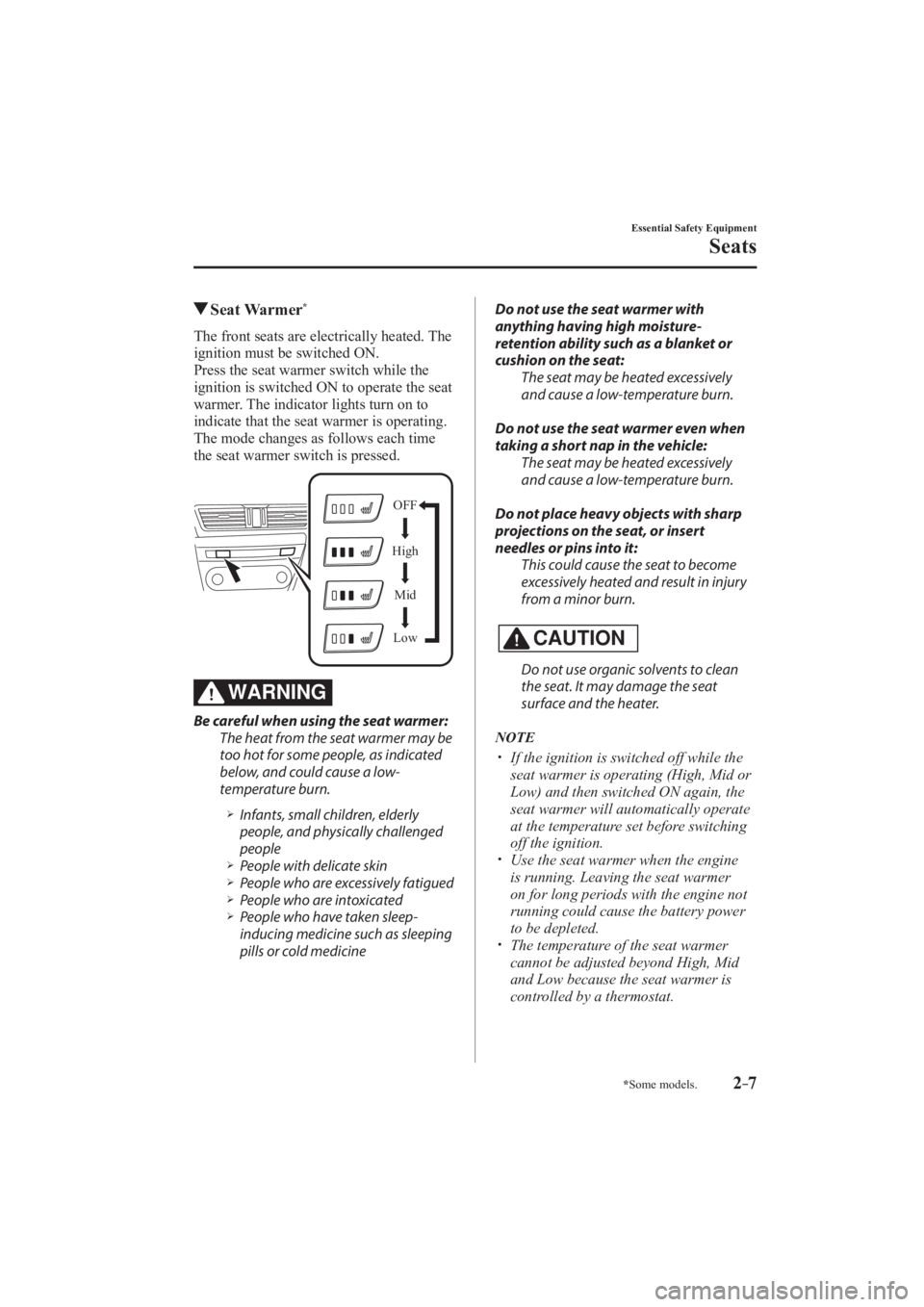

2–7
Essential Safety Equipment
Seats
*Some models.
Seat Warmer *
The front seats are electrically heated. The
ignition must be switched ON.
Press the seat warmer switch while the
ignition is switched ON to operate the seat
warmer. The indicator lights turn on to
indicate that the seat warmer is operating.
The mode changes as follows each time
the seat warmer switch is pressed.
OFF
High Mid
Low

WARNING
Be careful when using the seat warmer: The heat from the seat warmer may be
too hot for some people, as indicated
below, and could cause a low-
temperature burn.
 ¾ Infants, small children, elderly people, and physically challenged
people
 ¾  People with delicate skin ¾ People who are excessively fatigued ¾ People who are intoxicated ¾ People who have taken sleep-
inducing medicine such as sleeping
pills or cold medicine
Do not use the seat warmer with
anything having high moisture-
retention ability such as a blanket or
cushion on the seat:
The seat may be heated excessively
and cause a low-temperature burn.

Do not use the seat warmer even when
taking a short nap in the vehicle: The seat may be heated excessively
and cause a low-temperature burn.

Do not place heavy objects with sharp
projections on the seat, or insert
needles or pins into it: This could cause the seat to become
excessively heated and result in injury
from a minor burn.

CAUTION
Do not use organic solvents to clean
the seat. It may damage the seat
surface and the heater.

N O T E
 y If the ignition is switched off while the
seat warmer is operating (High, Mid or
Low) and then switched ON again, the
seat warmer will automatically operate
at the temperature set before switching
off the ignition.
 y Use the seat warmer when the engine
is running. Leaving the seat warmer
on for long periods with the engine not
running could cause the battery power
to be depleted.
 y The temperature of the seat warmer
cannot be adjusted beyond High, Mid
and Low because the seat warmer is
controlled by a thermostat.

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










3–1*Some models.
3Before Driving
Use of various features, including keys, doors, mirrors and windows.
Keys ......................................................3-2
Keys
...............................................3-2
Keyless Entry System
....................3-3
Advanced Keyless Entry System
.......3-9
Advanced Keyless Entry
System
* ...........................................3-9
Operational Range
.......................3-10
Doors and Locks
................................3-11
Door Locks
...................................3-11
Liftgate/Trunk Lid
........................3-20
Inside Trunk Release Lever
(4-Door)
* ......................................3-24
Fuel and Emission
.............................3-26
Fuel and Engine Exhaust
Precautions
...................................3-26
Fuel-Filler Lid and Cap
................3-29
Steering Wheel ................................... 3-31
Steering Wheel
.............................3-31
Mirrors
...............................................3-32
Mirrors
.........................................3-32
Windows
.............................................3-35
Power Windows
...........................3-35
Moonroof * ...................................3-38 Security System
.................................3-40
Modification and Add-On
Equipment
....................................3-40
Immobilizer System
.....................3-40
Theft-Deterrent System* ...............3-42
Driving Tips
.......................................3-44
Break-In Period
............................3-44
Saving Fuel and Protection of the
Environment
.................................3-44
Hazardous Driving
.......................3-45
Floor Mat
.....................................3-45
Rocking the Vehicle
.....................3-46
Winter Driving
.............................3-46
Driving In Flooded Area
..............3-48
Overloading
..................................3-49
Driving on Uneven Road
.............3-50
Towing
................................................3-51
Trailer Towing
..............................3-51
Recreational Towing
....................3-51
Mazda3_8FA4-EA-15G_Edition1.indb 12015/05/11 14:00:16

3–3
Before Driving
Keys
NOTE
The driver must carry the key to ensure the
system functions properly.
Auxiliary key
Transmitter
Ke y code number plate
To use the auxiliary key, press the knob
and pull out the auxiliary key from the
transmitter.
Keyless Entry System
This system uses the key buttons to
remotely lock and unlock the doors and
the liftgate/trunk lid, and opens the trunk
lid.
The system can start the engine without
having to take the key out of your purse or
pocket.
It can also help you signal for attention.
Operating the theft-deterrent system is
also possible on theft-deterrent system-
equipped vehicles.
Press the buttons slowly and carefully.
System malfunctions or warnings are
indicated by the following warning lights
or beeps.
 KEY Warning Light (Red)
Refer to Warning/Indicator Lights on
page 4-20. Ignition Not Switched Of f (STOP)
Warning Beep
Refer to Ignition Not Switched Of f
(STOP) Warning Beep on page 7-36. Key Removed from Vehicle Warning
Beep
Refer to Key Removed from Vehicle
Warning Beep on page 7-36.
If you have a problem with the key,
consult an Authorized Mazda Dealer.
If your key is lost or stolen, consult an
Authorized Mazda Dealer as soon as
possible for a replacement and to make the
lost or stolen key inoperative.
Mazda3_8FA4-EA-15G_Edition3.indb 32015/12/04 19:22:07

3–7
Before Driving
Keys
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, press and hold the panic button to
activate the vehicle's alarm.
NOTE
The panic button will work whether any
door or the liftgate/trunk lid is open or
closed.
(Turning on the alarm)
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the following
will occur:
 The horn sounds intermittently. The hazard warning lights flash.
(Turning off the alarm)
The alarm stops by pressing any button on
the key.
Operational Range
The system operates only when the driver
is in the vehicle or within operational
range while the key is being carried.
Starting the Engine
NOTE
 Starting the engine may be possible
even if the key is outside of the vehicle
and extremely close to a door and
window, however, always start the
engine from the driver's seat.
If the vehicle is started and the key
is not in the vehicle, the vehicle will
not restart after it is shut off and the
ignition is switched to off.
 The luggage compartment/trunk is
out of the assured operational range,
however, if the key (transmitter) is
operable the engine will start.
With the advanced keyless function
Interior antenna
Operational range
Without the advanced keyless function
Operational range
Interior antenna
Mazda3_8FA4-EA-15G_Edition1.indb 72015/05/11 14:00:18

3–8
Before Driving
Keys
NOTE
The engine may not start if the key is
placed in the following areas:
 Around the dashboard In the storage compartments such as
the glove compartment or the center
console
 On the rear parcel shelf (4–door)
Key Suspend Function
If a key is left in the vehicle, the
functions of the key left in the vehicle are
temporarily suspended to prevent theft of
the vehicle.
To restore the functions, press the unlock
button on the functions-suspended key in
the vehicle.
Mazda3_8FA4-EA-15G_Edition3.indb 82015/12/04 19:22:09

3–9
Before Driving
Advanced Keyless Entry System
*Some models.
Advanced Keyless Entry
System
*
WARNING
Radio waves from the key may affect
medical devices such as pacemakers:Before using the key near people who
use medical devices, ask the medical
device manufacturer or your physician
if radio waves from the key will affect
the device.
The advanced keyless function allows you
to lock/unlock the door and the liftgate, or
open the liftgate/trunk lid while carrying
the key.
System malfunctions or warnings are
indicated by the following warning beeps.
 Request switch Inoperable Warning
Beep
Refer to Request Switch Inoperable
Warning Beep (With the advanced
keyless function) on page 7-36.
 Key Left-in-luggage Compartment/
Trunk Warning Beep
Refer to Key Left-in-luggage
Compartment Warning Beep (With the
advanced keyless function) on page
7-37.
 Key Left-in-vehicle Warning Beep
Refer to Key Left-in-vehicle Warning
Beep (With the advanced keyless
function) on page 7-37.
NOTE
The advanced keyless entry system
functions can be deactivated to prevent
any possible adverse effect on a user
wearing a pacemaker or other medical
device. If the system is deactivated, you
will be unable to start the engine by
carrying the key. Consult an Authorized
Mazda Dealer for details. If the advanced
keyless entry system has been deactivated,
you can start the engine by following the
procedure indicated when the key battery
goes dead.
Refer to Engine Start Function When Key
Battery is Dead on page 4-8.
Mazda3_8FA4-EA-15G_Edition1.indb 92015/05/11 14:00:18

3–20
Before Driving
Doors and Locks
Liftgate/Trunk Lid
WARNING
Never allow a person to ride in the
luggage compartment/trunk:Allowing a person to ride in the
luggage compartment/trunk is
dangerous. The person in the luggage
compartment/trunk could be seriously
injured or killed during sudden braking
or a collision.
Do not drive with the liftgate/trunk lid
open: Exhaust gas in the cabin of a vehicle is
dangerous. An open liftgate/trunk lid
in a moving vehicle will cause exhaust
gas to be drawn into the cabin. This
gas contains CO (carbon monoxide),
which is colorless, odorless, and highly
poisonous, and it can cause loss of
consciousness and death. Moreover,
an open liftgate/trunk lid could cause
occupants to fall out in an accident.
Do not stack or leave loaded luggage
unsecured in the luggage compartment: Otherwise, the luggage may move
or collapse, resulting in injury or an
accident. In addition, do not load
luggage higher than the seatbacks. It
may affect the side or rear field of view.
CAUTION
 Before opening the liftgate/trunk lid,
remove any snow and ice accumulation
on it. Otherwise, the liftgate/trunk lid
could close under the weight of the snow
and ice resulting in injury.
 Be careful when opening/closing the
liftgate/trunk lid during strong winds.
If a strong gust blows against the
liftgate/trunk lid, it could close suddenly
resulting in injury.
 Fully open the liftgate/trunk lid and
make sure that it stays open. If the
liftgate/trunk lid is only opened partially,
it could slam shut by vibration or wind
gusts resulting in injury.
 When loading or unloading luggage in
the luggage compartment/trunk, turn
off the engine. Otherwise, you could get
burned by the heat of the exhaust gas.
 Be careful not to apply excessive force
to the damper stay on the liftgate such
as by putting your hand on the stay.
Otherwise, the damper stay may bend
and affect the liftgate operation.
Damper stay
Mazda3_8FA4-EA-15G_Edition1.indb 202015/05/11 14:00:22
