2016 LINCOLN MKZ fuses

Protected components
Fuse amp rating
Fuse or relay number
Heated rear window.
40A168
Anti-lock brake system valves.
30A
169
Passenger seat.
30A
170
Not used.
-
71
Transmission oil pump.
20A
172
Rear climate controlled seats.
20A
173
Driver seat module.
30A
174
Wiper motor 1.
25A
175
Power lift gate module.
30A
176
Front climate controlled seats.
30A
177
Trailer tow module.
40A
178
Blower motor.
40A
279
273
Fuses

Protected components
Fuse amp rating
Fuse or relay number
Wiper motor 2.
25A180
Inverter.
40A
181
Not used.
–
82
TRCM shifter.
20A
183
Starter solenoid.
30A
184
Wide open panoramic roof 2.
30A
185
Not used.
-
86
Anti-lock brake system pump.
60A
287
1 M-type fuse.2J-type fuse.
Passenger Compartment Fuse Panel
The fuse panel is under the instrument panel
to the left of the steering column.
274
Fuses

E145984
275
Fuses

Protected components
Fuse amp rating
Fuse or relay number
Lighting (ambient, glove box, vanity, dome, trunk).
10A11
Memory seats, Lumbar, Power mirror.
7.5A
12
Driver door unlock.
20A
13
Not used (spare).
5A
14
Subwoofer amplifier.
20A
15
Heated seat relay coil.
10A
26
Not used (spare).
10A
27
Not used (spare).
10A
28
Not used (spare).
10A
29
Power trunk logic.
5A
210
Keypad.
Cellphone passport module.
276
Fuses

Protected components
Fuse amp rating
Fuse or relay number
Not used (spare).
5A211
Climate control, Gear shift.
7.5A
212
Steering wheel column.
7.5A
213
Cluster.
Datalink logic.
Battery electronic control module.
10A
214
Datalink-Gateway module.
10A
215
Trunk release.
15A
116
Child lock.
Tracking and blocking.
5A
217
Ignition.
5A
218
Push button stop-start.
Passenger-airbag-disabled indicator.
7.5A
219
Transmission range.
Adaptive headlamps.
7.5A
220
277
Fuses

Protected components
Fuse amp rating
Fuse or relay number
Humidity and in-car temperature sensor.
5A221
Occupant classification sensor.
5A
222
Delayed accessory (power inverter, smart window, driver-
window switch).
10A
123
Central lock-unlock.
20A
124
Driver door (window, mirror).
30A
125
Front passenger door (window, mirror).
30A
126
Moonroof.
30A
127
Amplifier.
20A
128
Rear driver side door (window).
30A
129
Rear passenger side door (window).
30A
130
Not used (spare).
15A
131
278
Fuses

Protected components
Fuse amp rating
Fuse or relay number
GPS.
10A132
Voice control.
Adaptive cruise control.
Radio frequency receiver.
Display.
Radio.
20A
133
Active noise control.
CD changer.
Run-start bus (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker).
30A
134
Restraints control module.
5A
135
Continuous control damping suspension module.
15A
136
Auto dimming rear view mirror.
Rear heated seats.
Heated steering wheel.
15A
137
All wheel drive.
Not used (spare).
30A
38
1Micro fuse.2Dual micro fuse.
279
Fuses

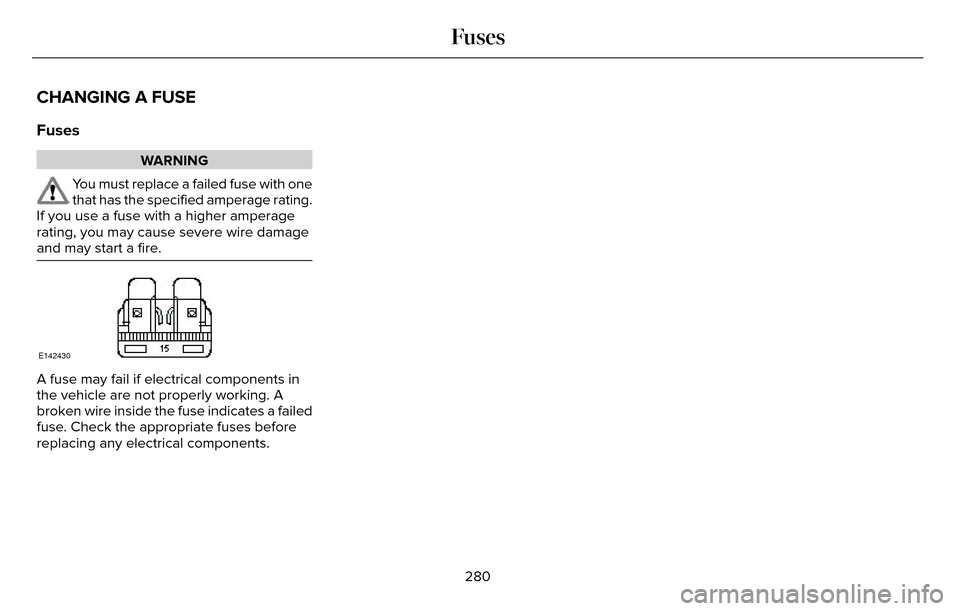

CHANGING A FUSE
Fuses
WARNING
You must replace a failed fuse with one
that has the specified amperage rating.
If you use a fuse with a higher amperage
rating, you may cause severe wire damage
and may start a fire.
E142430
A fuse may fail if electrical components in
the vehicle are not properly working. A
broken wire inside the fuse indicates a failed
fuse. Check the appropriate fuses before
replacing any electrical components.
280
Fuses
