2016 LEXUS LS460L ECO mode

4465-3. Using the air conditioning system and defogger
LS460/LS460L_GE (OM50G06E)
Press the “MENU” button on the Remote Touch. (P. 406)
Select on the “Menu” screen.
Select on the “Climate” screen.
Operates the windshield wiper
de-icer on/off.
Select on the option control
screen to turn on the windshield wiper
de-icer, then the indicator will be on.
The windshield wiper de-icer will
automatically turn off after approxi-
mately 15 minutes, then the indicator
will be off. Selecting on the
option control screen again also turns
the de-icer off.
■Operating conditions
The engine switch must be in the IGNITION ON mode.
Windshield wiper de-icer
: If equipped
This feature is used to prevent ice from building up on the windshield
and wiper blades.
1
2
3
4
CAUTION
■When the windshield wiper de-icer is on
Do not touch the glass at the lower part of the windshield or to the side of the front
pillars as the surfaces can become very hot and burn you.

4525-5. Using the storage features
LS460/LS460L_GE (OM50G06E)
4-seat models
Glove box (P. 453)
Auxiliary boxes ( P. 462)
Cup holders ( P. 455)
Door pockets ( P. 454)
Auxiliary boxes (if equipped)
( P. 462)
Ashtrays (if equipped)
( P. 470)
Cool box/auxiliary box
( P. 459)
Console box ( P. 457)
Coin holder ( P. 454)
CAUTION
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause
the following when cabin temperature becomes high:
●Glasses may be deformed by heat or cracked if they come into contact with
other stored items.
●Lighters or spray cans may explode. If they come into contact with other stored
items, the lighter may catch fire or the spray can may release gas, causing a fire
hazard.
1
2
3
4
5
6
7
8

4885-6. Other interior features
LS460/LS460L_GE (OM50G06E)
■The rear sunshade can be used when
The engine switch is in IGNITION ON mode.
■Operating the rear sunshade after turning the engine switch off
The rear sunshade can be operated for approximately 60 seconds even after the
engine switch is switched to ACCESSORY mode or turned off.
■Reverse operation feature
To ensure adequate rear visibility, the rear sunshade automatically lowers when the
shift lever is shifted to R.
However, the rear sunshade is raised again if any of the following occurs:
●The button is pressed again.
●The shift lever is shifted to P.
●The shift lever is shifted out of P and R, and the vehicle reaches a speed of 15 km/h
(9 mph).
If the engine is turned off when the rear sunshade has been lowered due to the
reverse operation feature, it will not be raised even when the engine is turned on
again and the vehicle reaches a speed of 15 km/h (9 mph). To raise the sunshade
again, press the button.
■Button lock function
To prevent inadvertent operation, some buttons on the rear controller can be locked.
( P. 444)

4925-6. Other interior features
LS460/LS460L_GE (OM50G06E)
■Operating conditions
●The engine switch is in IGNITION ON mode.
●The rear windows are fully closed.
The rear door sunshades automatically retract when the rear windows are opened.
■Operating the rear door sunshades after turning the engine switch off
The rear door sunshades can be operated for approximately 60 seconds even after
the engine switch is switched to ACCESSORY mode or turned off.
■Jam protection function
If an object becomes caught between a rear door sunshade and the window frame,
the jam protection function will cause the sunshade to detach from its drive mecha-
nism and retract.
If the jam protection function operates when extending the rear door sunshades
Pressing the button will reconnect the sunshade.
Pressing the button again will allow the sunshades to be operated.
If the sunshade does not operate after the button is pressed, press the button again.
If the jam protection function operates when retracting the rear door sunshades
Press and hold the button to re-extend the rear door sunshades, and continue press-
ing for more than 5 seconds after the sunshades have fully extended and stopped.
■Button lock function
To prevent inadvertent operation, some buttons on the rear controller can be locked.
( P. 444)
■When reconnecting the battery
The rear door sunshades will always be retracted the first time the button is pressed.

5055-6. Other interior features
5
Interior features
LS460/LS460L_GE (OM50G06E)
■Emergency Assistance Button (“SOS”)
In the event of an emergency, push the “SOS” button to reach the Pub-
lic Safety Answering Point (PSAP). The answering agent will determine
your vehicle's location, assess the emergency, and dispatch the neces-
sary assistance required.
If you accidentally press the “SOS” button, tell the agent that you are not expe-
riencing an emergency.
When the engine switch is turned to IGNITION ON mode, the red indi-
cator light will illuminate for 10 seconds and then the green indicator light
will illuminate for 2 seconds, indicatin g that the system is enabled. The
indicator lights indicate the following:
●If the green indicator light illuminates and stays on, the system is
enabled.
●If the green indicator light flashes, an emergency call is being made
(either automatically or manually).
●If no indicator lights illuminate, the system is not enabled.
●If the red indicator light illuminates any time other than immediately
after the engine switch is turned to IGNITION ON mode, the system
may be malfunctioning or the backup battery may be depleted. Con-
tact your Lexus dealer.
The service life of the backup battery is 3 years or more.
Indicator lights

5346-3. Do-it-yourself maintenance
LS460/LS460L_GE (OM50G06E)
Tire inflation pressure (P. 568)• Tire pressure gauge
• Compressed air source
Washer fluid ( P. 553)
• Water or washer fluid containing anti-
freeze (for winter use)
• Funnel (used only for adding water or
washer fluid)
CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious
injury, observe the following precautions.
■When working on the engine compartment
●Keep hands, clothing and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, radiator, exhaust manifold, etc. right after driv-
ing as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper and rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel
and battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and
corrosive sulfuric acid.
●Take care because brake fluid can harm your hands or eyes and damage painted
surfaces. If fluid gets on your hands or in your eyes, flush the affected area with
clean water immediately.
If you still experience disc omfort, consult a doctor.
■When working near the electric cooling fans or radiator grille
Be sure the engine switch is off.
With the engine switch in IGNITION ON mode, the electric cooling fans may
automatically start to run if the air conditioning is on and/or the coolant tempera-
ture is high. ( P. 549)
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from get-
ting in your eyes.
ItemsParts and tools

5576-3. Do-it-yourself maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)

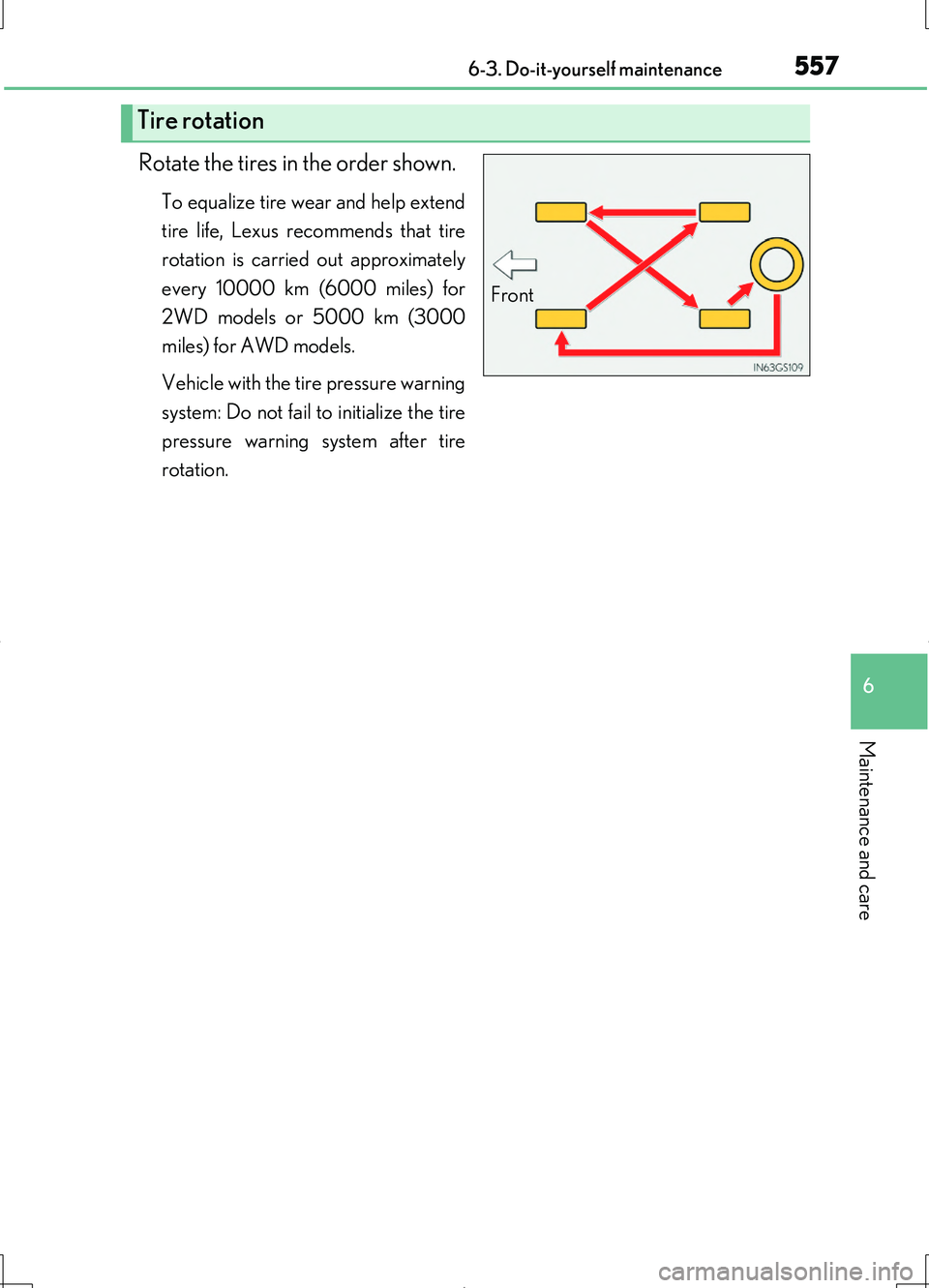

Rotate the tires in the order shown.
To equalize tire wear and help extend
tire life, Lexus recommends that tire
rotation is carried out approximately
every 10000 km (6000 miles) for
2WD models or 5000 km (3000
miles) for AWD models.
Vehicle with the tire pressure warning
system: Do not fail to initialize the tire
pressure warning system after tire
rotation.
Tire rotation
Front

5626-3. Do-it-yourself maintenance
LS460/LS460L_GE (OM50G06E)
■The initialization operation (vehicles with the tire pressure warning system)
●Make sure to carry out initialization after adjusting the tire inflation pressure.
Also, make sure the tires are cold before carrying out initialization or tire inflation
pressure adjustment.
●If you have accidentally turned the engine switch off during initialization, it is not
necessary to press the reset switch again as initialization will restart automatically
when the engine switch has been turned to IGNITION ON mode for the next time.
●If you accidentally press the reset switch when initialization is not necessary, adjust
the tire inflation pressure to the specified level when the tires are cold, and conduct
initialization again.
■Warning performance of the tire pressure warning system (if equipped)
The warning of the tire pressure warning system will change in accordance with driv-
ing conditions. For this reason, the system may give a warning even if the tire pres-
sure does not reach a low enough level, or if the pressure is higher than the pressure
that was adjusted to when the system was initialized.
■When initialization of the tire pressure warning system has failed (vehicles with the
tire pressure warning system)
Initialization can be completed in a few minutes. However, in the following cases, the
settings have not been recorded and the system will not operate properly. If
repeated attempts to record tire inflation pressure settings are unsuccessful, have
the vehicle inspected by your Lexus dealer.
●When operating the tire pressure warning reset switch, the tire pressure warning
light does not blink 3 times.
●After carrying out the initialization procedure, the tire pressure warning light blinks
for 1 minute then stays on after driving for 20 minutes.
