2016 LEXUS LS460L remote control

5015-6. Other interior features
5
Interior features
LS460/LS460L_GE (OM50G06E)
Press and hold the vehicle’s programmed HomeLink button for 2
seconds and release it. Repeat this step once again. The garage door
may open.
If the garage door opens, the programming process is complete. If the door
does not open, press and release the button a third time. This third press and
release will complete the programming process by opening the garage door.
The ceiling mounted garage door opener motor should now recognize the
HomeLink signal and operate the garage door.
Repeat the steps above to program another rolling code system for
any of the remaining HomeLink buttons.
Place your transmitter 25 to 75 mm (1 to 3 in.) away from the surface of
the HomeLink.
Keep the HomeLink indicator light in view while programming.
Press and hold the selected HomeLink button.
Repeatedly press and release (cycle ) the device’s remote control but-
ton for two seconds each until step 4 is completed.
When the indicator light on the HomeLink compatible transceiver
starts to flash rapidly, release the buttons.
Test the operation of the HomeLink by pressing the newly pro-
grammed button. Check to see if the gate/device operates correctly.
Repeat the steps above to program another device for each of the
remaining HomeLink buttons.
To program other devices such as home security systems, home door
locks or lighting, contact your Lexus dealer for assistance.
Programming the HomeLink® (garage door type B) or entry gate
Programming other devices
3
4
1
2
3
4
5
6

5035-6. Other interior features
5
Interior features
LS460/LS460L_GE (OM50G06E)

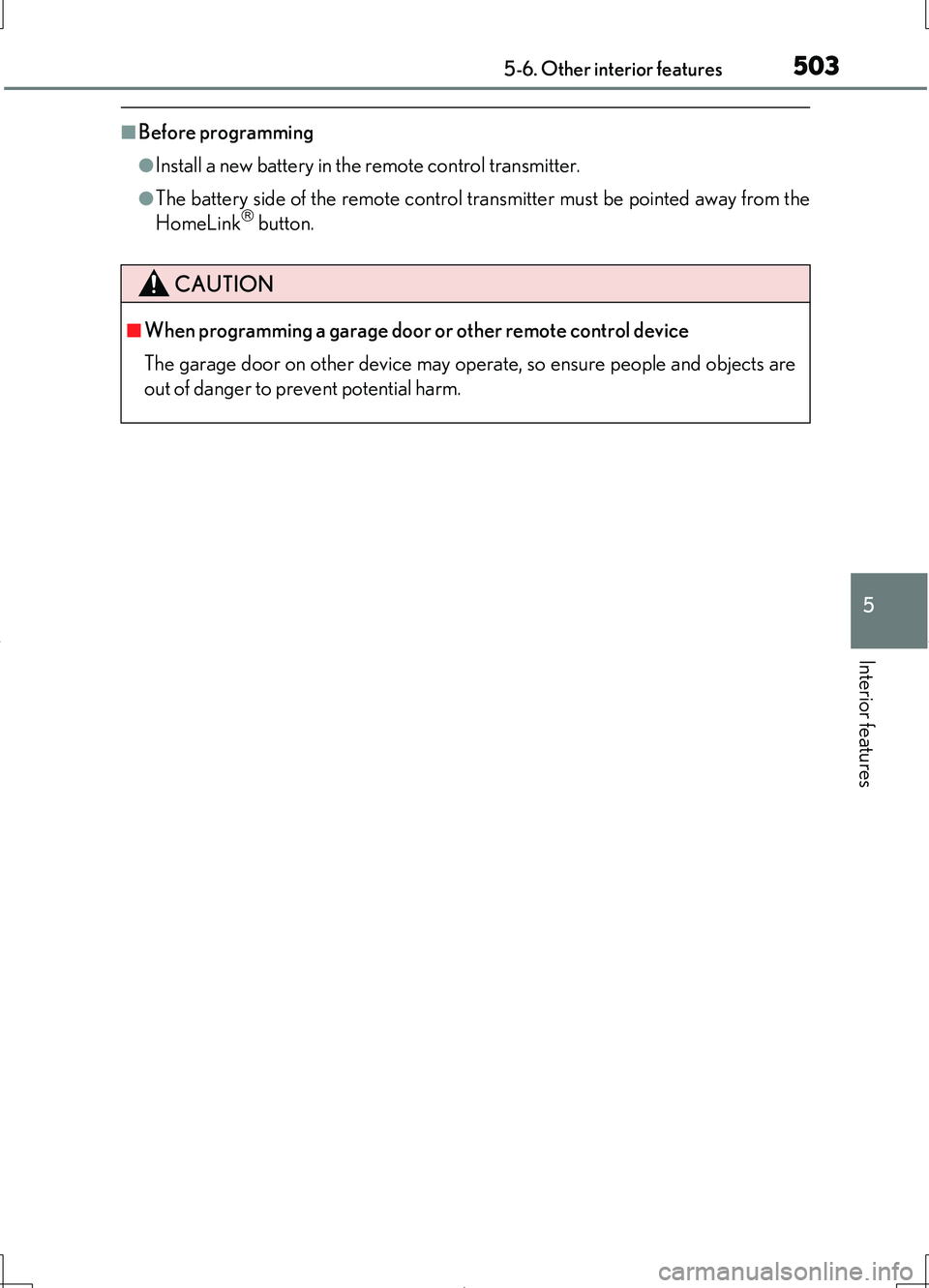

■Before programming
●Install a new battery in the remote control transmitter.
●The battery side of the remote control transmitter must be pointed away from the
HomeLink button.
CAUTION
■When programming a garage door or other remote control device
The garage door on other device may oper ate, so ensure people and objects are
out of danger to prevent potential harm.

5776-3. Do-it-yourself maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
Remove the depleted battery.
Insert a new battery with the “+” termi-
nal facing up.
*
*:Taiwan only
■Use a CR1632 lithium battery
●Batteries can be purchased at your Lexus dealer, local electrical appliance shops
or camera stores.
●Replace only with the same or equivalent type recommended by the manufacturer.
●Dispose of used batteries according to local laws.
■When the card key battery needs to be replaced (if equipped)
The battery for the card key is available only at Lexus dealers. Your Lexus dealer can
replace the battery for you.
■If the electronic key battery is depleted
The following symptoms may occur:
●The smart entry & start system and wireless remote control will not function prop-
erly.
●The operational range will be reduced.
3
CAUTION
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking. Keep
away from children. Failure to do so could result in death or serious injury.
■Lithium battery precautions
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS

5786-3. Do-it-yourself maintenance
LS460/LS460L_GE (OM50G06E)

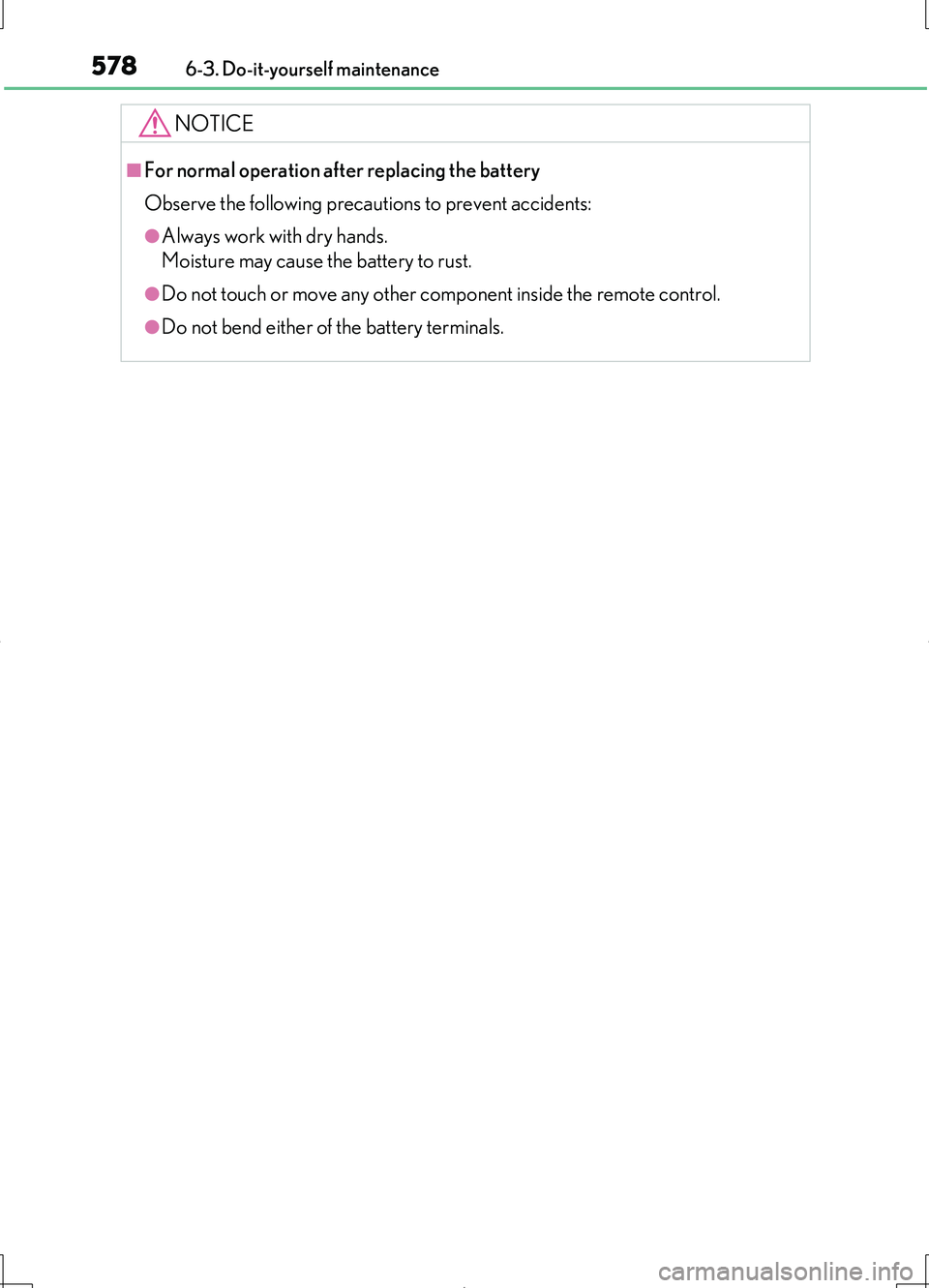

NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other co mponent inside the remote control.
●Do not bend either of the battery terminals.

6317-2. Steps to take in an emergency
7
When trouble arises
LS460/LS460L_GE (OM50G06E)
Use the mechanical key built in to the electronic keys to operate the
doors. ( P. 145)
On some models: An alarm will sound if the alarm is set when the trunk or doors
are unlocked. ( P. 112)
■Doors
Remove the cover on the
driver’s door handle.
If the electronic key does not operate properly
If communication between the electronic key and vehicle is inter-
rupted ( P. 163) or the electronic key cannot be used because the
battery is depleted, the smart entry & start system and wireless remote
control cannot be used. In such cases, the doors and trunk can be
opened and the engine can be started by following the procedure
below.
Locking and unlocking the doors, unlocking the trunk and key
linked functions
1

6397-2. Steps to take in an emergency
7
When trouble arises
LS460/LS460L_GE (OM50G06E)
■Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■To prevent battery discharge
●Turn off the headlights and the audio system while the engine is off.
●Turn off any unnecessary electrical components when the vehicle is running at a
low speed for an extended period, such as in heavy traffic.
■Charging the battery
The electricity stored in the battery will discharge gradually even when the vehicle is
not in use, due to natural discharge and the draining effects of certain electrical
appliances. If the vehicle is left for a long time, the battery may discharge, and the
engine may be unable to start. (The battery recharges automatically during driving.)
■When recharging or replacing the battery
In some cases, it may not be possible to unlock the doors using the smart entry &
start system when the battery is discharged. Use the wireless remote control or the
mechanical key to lock or unlock the doors.
■If the battery is discharged
The information stored in the computer will be deleted.
If the battery is discharged, have the vehicle inspected by your Lexus dealer.

669
8
8-2. Customization
Vehicle specifications
LS460/LS460L_GE (OM50G06E)
Door lock
( P. 186,
631)
Unlocking using a
mechanical key*1
All doors
unlocked in
one step
Driver’s
door
unlocked in
one step, all
doors
unlocked in
two steps
——O
Speed-detecting auto-
matic door lock functionOnOffO—O
Shifting gears to position
other than P locks all
doors.
OffOnO—O
Shifting gears to P unlocks
all doors.*1OffOnO—O
Opening driver’s door
unlocks all doors.*1OnOffO—O
Smart entry
& start
system
( P. 153)
and
wireless
remote
control
( P. 177)
Operation buzzer volume7OffO—O1 to 6
Operational signal
(Emergency flashers)OnOffO—O
Time elapsed before auto-
matic lock function is acti-
vated if door is not opened
after being unlocked
30
seconds
60
seconds
——O
120
seconds
Open door warning
buzzerOnOff——O
ItemFunctionDefault
setting
Custom-
ized setting123

6708-2. Customization
LS460/LS460L_GE (OM50G06E)
Smart entry
& start
system
( P. 153)
Smart entry & start systemOnOffO—O
Smart door unlocking*1All the
doors
Driver’s
door
O—OEach door
Same side
doors
Welcome light illumination
controlOnOff——O
Opening trunk without the
electronic key when all
doors are unlocked
OnOff——O
Wireless
remote
control
( P. 177)
Wireless remote controlOnOff——O
Unlocking operation*1All doors
unlocked in
one step
Driver’s
door
unlocked in
one step, all
doors
unlocked in
two steps
O—O
Trunk unlocking operationOne long
press
One short
press
——OPush twice
Off
Front seats
( P. 198)
Driver’s seat movement
when exiting the vehicleStandard
Off
O—O
Partial
Driver’s seat lumbar sup-
port movement when exit-
ing the vehicle
OnOff——O
ItemFunctionDefault
setting
Custom-
ized setting123
