2016 LEXUS LS460L stop start

1963-2. Opening, closing and locking the doors
LS460/LS460L_GE (OM50G06E)
CAUTION
■Trunk easy closer
■Power trunk lid
Observe the following precautions when operating the power trunk lid.
Failure to do so may cause serious injury.
●Check the safety of the surrounding area to make sure there are no obstacles or
anything that could cause any of your belongings to get caught.
●If anyone is in the vicinity, make sure they are safe and let them know that the
trunk is about to open or close.
●If the trunk closer switch is pressed while the trunk lid is opening during automatic
operation, the trunk lid stops opening. Take extra care when on an incline, as the
trunk lid may open or close suddenly.
●On an incline, the trunk lid may suddenly shut after it opens automatically. Make
sure the trunk lid is fully open and secure before using the trunk.
●In the following situations, the power trunk lid may detect an abnormality and
automatic operation may be stopped. In this case, the trunk lid has to be operated
manually. Take extra care in this situation, as the stopped trunk lid may suddenly
shut, causing an accident.
• When the trunk lid contacts an obstacle
• When the battery voltage suddenly drops, such as when the engine switch is
turned to IGNITION ON mode or the engine is started during automatic
operation
●Do not attach any accessories other than genuine Lexus parts to the trunk lid. The
power trunk lid may not operate, causing itself to malfunction, or the trunk lid may
suddenly shut again after it is opened.
In the event that the trunk lid is left slightly
open, the trunk easy closer will automatically
close it to the fully closed position. It takes
several seconds before the trunk easy closer
begins to operate. Be careful not to catch fin-
gers or anything else in the trunk lid, as this
may cause bone fractures or other serious
injuries.

2023-3. Adjusting the seats
LS460/LS460L_GE (OM50G06E)
■Operating the foldable head restraint (vehicles with relaxation seat)
●If the seatback angle is adjusted using the switches located on the side of the front
passenger’s seat or center console when the engine switch is in IGNITION ON
mode, the head restraint will operate as follows:
• When tilting the seatback forward: After the seatback movement ends, the head
restraint starts to rise and fold. A signal beeps once operation is complete. If the
switch is released during the operation, the head restraint will return to the neu-
tral position.
• When tilting the seatback backward: If the head restraint is folded, it will return
to the neutral position.
●In the following situations, the head restraint will not operate even when the seat-
back angle adjustment switch is operated:
• The engine switch is off.
• The weight of an occupant or heavy object, etc. is detected on the front passen-
ger’s seat.
• The front passenger’s seat belt is fastened.
• The front passenger’s door is open.
■Operating the front passenger’s seat from the rear seat (vehicles with relaxation
seat)
The front passenger’s seat can be operated when the engine switch is in IGNITION
ON mode. However, in the following situations, the front passenger’s seat does not
move even when the switch is operated:
●The weight of an occupant or heavy object etc. is detected on the front passenger’s
seat.
●The front passenger’s seat belt is fastened.
●The front passenger’s door is open. (The front seat will not move forward.)
■Seat cushion automatic length adjustment (driver’s seat)
If the front of the cushion gets too close to the area around the instrument panel
when the seat position is being adjusted, the seat cushion will automatically retract.
■Seat operation automatic stop function (vehicles with relaxation seat)
If a front seat is likely to come into contact with the retractable table (4-seat models)
or the ottoman during seat operation or activation of the power easy access system,
a buzzer will sound and seat slide operation will be stopped partway.
(A warning message will be shown on the multi-information display.)

2093-3. Adjusting the seats
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
Relaxation mode can be entered by operating a switch. The front passen-
ger seat will move forward, and then the seatback of the relaxation seat
will recline and the ottoman will simultaneously rise.
5-seat models
Pressing the switch will cause a
beep to sound and operation will
start.
Enters relaxation mode
Returns to the neutral position
To stop the operation part-way
through, press either side of the
switch again, or press any other seat
adjustment button.
4-seat models
Pressing the switch will cause a
beep to sound and operation will
start.
Enters relaxation mode
Returns to the neutral position
To stop the operation part-way
through, press either side of the
switch again, or press any other seat
adjustment button.
Relaxation mode operation (relaxation seat)
1
2
1
2

2103-3. Adjusting the seats
LS460/LS460L_GE (OM50G06E)
Pelvic support seat with seat vibrator, which features a support plate
mounted in the seatback and a vibration function, is equipped on each
outer rear seat. The support plate position and vibration speed can be
adjusted according to the occupant’s preferences.
5-seat models without relaxation seat
Support plate position adjustment switch
Vibration switch
Press to operate the vibration function. Vibration will start in the same
speed level as when previously operated. Each time is pressed, the speed
changes between 3 levels. Pressing “OFF” stops the vibration function.
Pelvic support seat with seat vibrator
1
2

2113-3. Adjusting the seats
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
5-seat models with relaxation seat
This illustration is for a left-hand drive vehicle. Support plate position adjustment switch
Vibration switch
Press to operate the vibration function. Vibration will start in the same
speed level as when previously operated. Each time is pressed, the speed
changes between 3 levels. Pressing “OFF” stops the vibration function.
4-seat models
Support plate position adjust-
ment switch
Vibration switch
Press to operate the vibration
function. Vibration will start in the
same speed level as when previously
operated. Each time is
pressed, the speed changes between
3 levels. Pressing “OFF” stops the
vibration function.
1
2
1
2

2153-3. Adjusting the seats
3
Operation of each component
LS460/LS460L_GE (OM50G06E)

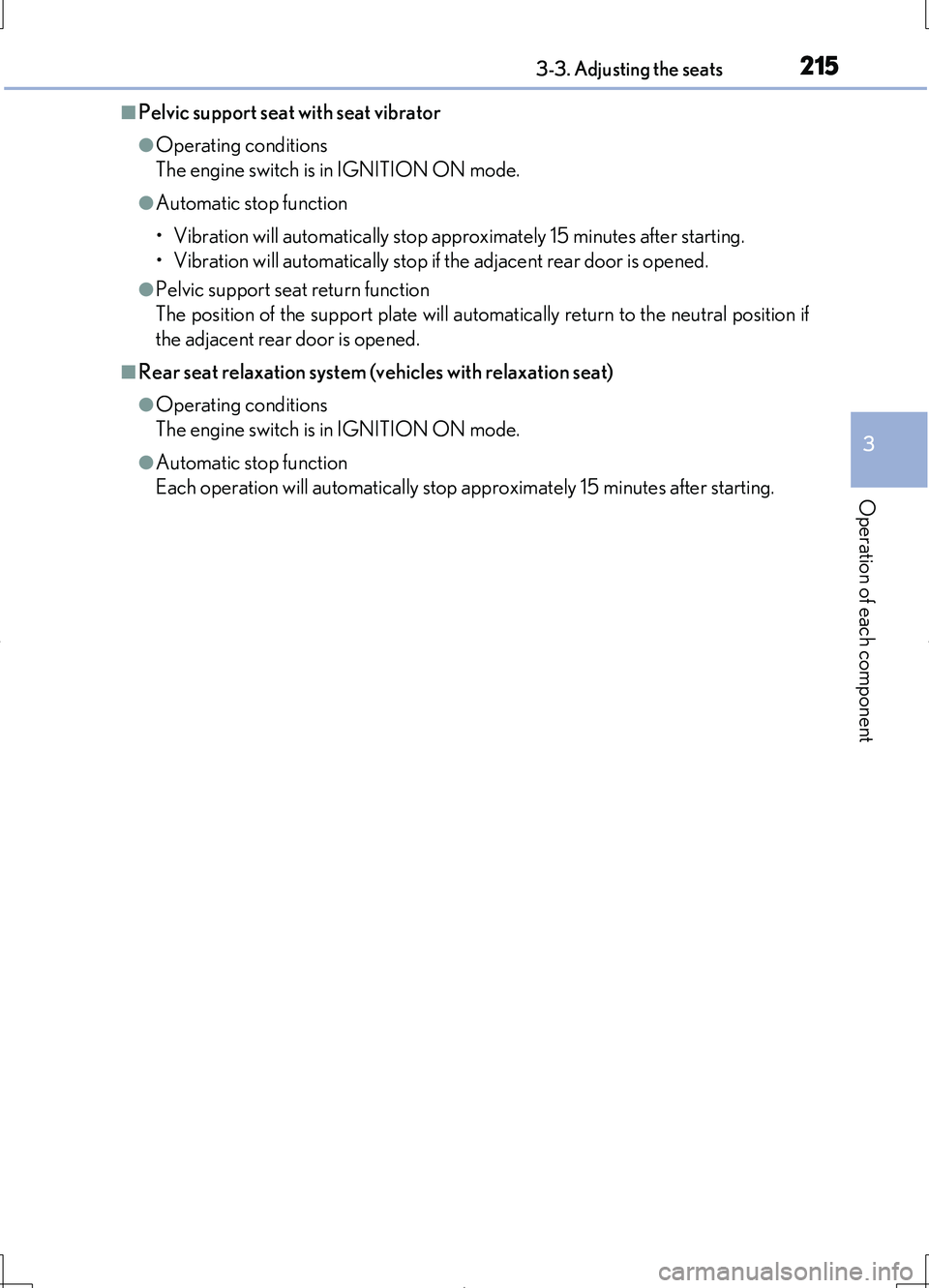

■Pelvic support seat with seat vibrator
●Operating conditions
The engine switch is in IGNITION ON mode.
●Automatic stop function
• Vibration will automatically stop approximately 15 minutes after starting.
• Vibration will automatically stop if the adjacent rear door is opened.
●Pelvic support seat return function
The position of the support plate will automatically return to the neutral position if
the adjacent rear door is opened.
■Rear seat relaxation system (vehicles with relaxation seat)
●Operating conditions
The engine switch is in IGNITION ON mode.
●Automatic stop function
Each operation will automatically stop approximately 15 minutes after starting.

2223-3. Adjusting the seats
LS460/LS460L_GE (OM50G06E)
■Cancelation procedure
Using the wireless remote control
Turn the engine switch off and close the driver’s door.
While pressing the “SET” switch, press on the wireless remote
control until the buzzer sounds.
Using the door lock switch
Carry only the key you want to cancel and then close the driver’s door.
If 2 or more keys are in the vehicl e, the driving position cannot be can-
celed properly.
Turn the engine switch off and close the driver’s door.
While pressing the “SET” switch, press the lock or unlock side on the
door lock switch until the buzzer sounds.
■Recalling the driving position using the memory recall function
●Different driving positions can be registered for each electronic key. Therefore, the
driving position that is recalled may be different depending on the key being car-
ried.
●If a door other than the driver’s door is unlocked with the smart entry & start sys-
tem, the driving position cannot be recalled. In this case, press the driving position
switch which has been set.
■Seat operation automatic stop function (vehicles with relaxation seat)
If a front seat is likely to come into contact with the retractable table (4-seat models)
or the ottoman during seat operation or activation of the power easy access system,
a buzzer will sound and seat slide operation will be stopped partway.
(A warning message will be shown on the multi-information display.)
CAUTION
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passen-
ger or squeeze your body against the steering wheel.
1
2
1
2

2373-5. Opening, closing the windows and moon roof
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
■Jam protection function
If an object becomes jammed between the window and the window frame while the
window is closing, window movement is stopped and the window is opened slightly.
■Catch protection function
If an object becomes caught between the door and window while the window is
opening, window movement is stopped.
■When the window cannot be opened or closed
When the jam protection function or catch protection function operates unusually and
the door window cannot be opened or closed , perform the following operations with the power window switch of that door.
●Stop the vehicle. With the engine switch in IGNITION ON mode, within 4 seconds of
the jam protection function or catch protecti on function activating, continuously oper- ate the power window switch in the one-to uch closing direction or one-touch opening direction so that the door window can be opened and closed.
●If the door window cannot be opened and closed even when performing the above operations, perform the following pr ocedure for function initialization.
Turn the engine switch to IGNITION ON mode.
Pull and hold the power window switch in the one-touch closing direction and com- pletely close the door window.
Release the power window switch for a moment, resume pulling the switch in the
one-touch closing direction, and hold it there for approximately 6 seconds or more.
Press and hold the power window switch in the one-touch opening direction. After the door window is completely opened, cont inue holding the switch for an additional
1 second or more.
Release the power window switch for a moment, resume pressing the switch in the
one-touch opening direction, and hold it there for approximately 4 seconds or more.
Pull and hold the power window switch in the one-touch closing direction again.
After the door window is completely clos ed, continue holding the switch for a fur- ther 1 second or more.
If you release the switch while the window is moving, start again from the beginning.
If the window reverses and cannot be fully closed or opened, have the vehicle inspected by your Lexus dealer.
1
2
3
4
5
6
