2016 LEXUS LS460L display

3934-5. Using the driving support systems
4
Driving
LS460/LS460L_GE (OM50G06E)
Turn the engine switch to IGNITION ON mode.
Turn the headlights on.
Press the Lexus night view switch.
The Lexus night view is displayed on
the Remote Touch screen.
To return the screen to its previous
state, press the switch again.
When the light sensor ( P. 288)
determines that it is currently night
time from the brightness of the sur-
rounding area, the Lexus night view
can be operated by pressing the
Lexus night view switch while the
headlights are on.
Lexus night view
: If equipped
Lexus night view is a system which assists with nighttime driving.
Near-infrared rays are irradiated forward and an image converted
from the irradiated light is show n on the Remote Touch screen. The
image shows pedestrians, obstacles, and road conditions ahead of the
vehicle, which are difficult to see at nighttime with the naked eye.
Displaying the Lexus night view
1
2
3

3944-5. Using the driving support systems
LS460/LS460L_GE (OM50G06E)

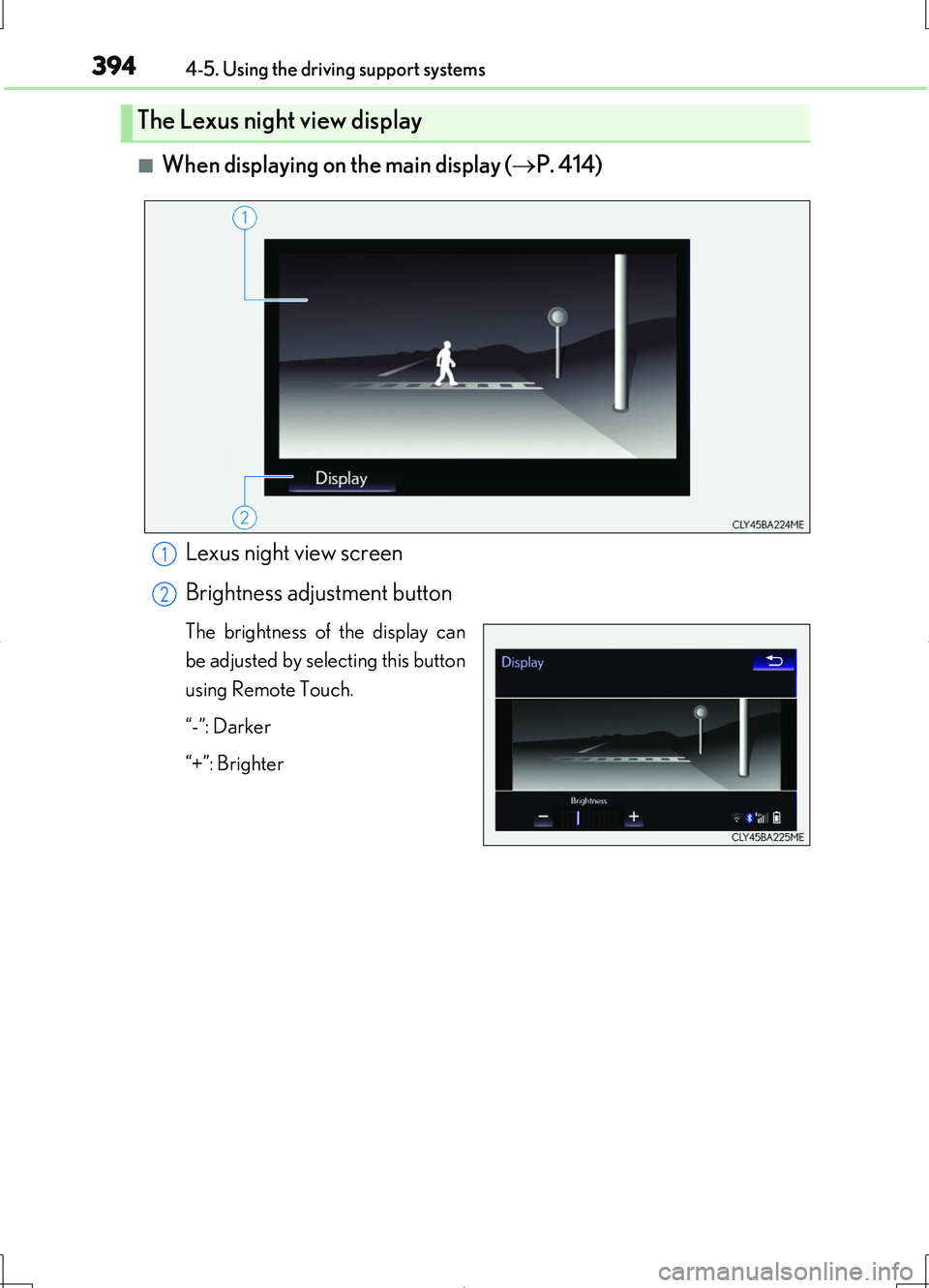

■When displaying on the main display (P. 414)
Lexus night view screen
Brightness adjustment button
The brightness of the display can
be adjusted by selecting this button
using Remote Touch.
“-”: Darker
“+”: Brighter
The Lexus night view display
1
2

3954-5. Using the driving support systems
4
Driving
LS460/LS460L_GE (OM50G06E)
■When displaying on the side display
When another screen is displayed on
the main display while the Lexus night
view is being shown on the main dis-
play, the Lexus night view screen will
be displayed on the side display.
Lexus night view screen
Main display switching button
Switches the Lexus night view from
the side display to the main display.
■Imaging range
The image is shown ranging from the tip of the low beam to the high beam.
■If the vehicle speed is less than approximately 15 km/h (9 mph) when the Lexus
night view is operating
An image will be displayed on the Lexus night view screen, but both the range and
the distance of the projection will be limited as near-infrared rays are not being radi-
ated outward.
■When the Lexus night view switch is pressed while the Lexus night view cannot be
operated
Advice information will be displayed on the Lexus night view screen. Follow the dis-
played advice.
■If the Lexus night view switch is pressed at a time when the Lexus night view opera-
tion is not possible
Follow the advice displayed on the Remote Touch screen.
■When the shift lever is shifted to R wh ile the Lexus night view is operating
The Lexus night view screen switches as follows.
Main display: Switches to the Lexus parking assist monitor screen.
Side display: The display blacks out and no image is displayed.
1
2

3964-5. Using the driving support systems
LS460/LS460L_GE (OM50G06E)
CAUTION
■Before using the Lexus night view
Never depend on this system only.
Lexus night view is intended as a supplemental aid to help you see pedestrians and
road conditions ahead of the vehicle. As there are limits to the system, do not rely
solely on the system while in use, and drive safely while observing the following
precautions.
■When using the Lexus night view
Observe the following precautions.
Failure to do so may cause an accident resulting in death or serious injury.
●Never drive while looking at the Lexus night view screen only.
●Do not look continuously at the Lexus ni ght view screen while driving. Pedestri-
ans, objects etc. ahead of the vehicle may be overlooked by the system. The sys-
tem should always be used as a supplemental aid only.
●Lexus night view is designed to help you see objects better when driving in dark-
ness on a road with few curves. Do not use the Lexus night view in well-lit areas or
on roads with many curves or slopes. There may be areas that cannot be dis-
played by the system due to the road conditions (curve size, gradient, etc.)
●Lexus night view may be unable to project some features at an appropriate level
of brightness. Some or all parts of certain features may be dark or difficult to see.
Do not rely solely on the Lexus night view, and drive carefully while checking the
surroundings for safety, as you would with a normal vehicle. Also, the following
features and conditions may not be displayed clearly.
Features that are difficult to display:
• Clothing of a pedestrian made of a certain kind of material (ex. leather jackets)
• The characters on signs and billboards
• The information on road signs
Conditions in which display is difficult:
• Unfavorable weather conditions such as rain, fog, snowfall, snow storms etc.
• There are large puddles of water on the road surface following rainfall
• The area of the windshield in front of the camera is fogged up, dirty or icy
• The areas around the headlights are covered with ice, snow, mud etc.
• The battery voltage is remarkably low
• There are bright lights ahead of the vehicle

4034-6. Driving tips
4
Driving
LS460/LS460L_GE (OM50G06E)
◆Using Eco drive mode
When using Eco drive mode, the torque corresponding to the accelerator
pedal depression amount can be generate d more smoothly than it is in normal
conditions. In addition, the operation of the air conditioning system (heating/
cooling) will be minimized, improving the fuel economy. ( P. 354)
◆Use of Eco Driving Indicator
The Eco-friendly driving is possible by keeping the bar display of the Eco Driv-
ing Indicator shown in the multi-information display within the Zone of Eco
driving. (  P. 132)
◆Accelerator pedal/brake pedal operation
Drive your vehicle smoothly. Avoid abrupt acceleration and deceleration.
Gradual acceleration and deceleration will help reduce excessive fuel con-
sumption.
◆When braking
Observe conditions in front of and ar ound the vehicle, and estimate your
stopping position. Release the accelerator pedal early and continue coasting.
Use the brake pedal to adjust your stopping position. Make sure to operate
the brake pedal gently.
◆Delays
Repeated acceleration and deceleration, as well as long waits at traffic lights,
will lead to bad fuel economy. Check traffic reports before leaving and avoid
delays as much as possible.
◆Highway driving
Control and maintain the vehicle at a constant speed. Before stopping at a toll
booth or similar, allow plenty of time to release the accelerator pedal and gen-
tly apply the brakes.
Eco-friendly driving tips
For improved fuel economy and reduced CO2 emissions, pay attention to the
following points:

405
5Interior features
LS460/LS460L_GE (OM50G06E)
5-1. Remote Touch screen
Remote Touch .............................406
12.3-inch display.......................... 413
5-2. Lexus Climate Concierge
Lexus Climate
Concierge ....................................417
5-3. Using the air conditioning
system and defogger
Front automatic air
conditioning system ................ 418
Rear air conditioning
system ......................................... 438
Rear window and outside
rear view mirror
defoggers ...................................445
Windshield wiper de-icer ....... 446
5-4. Using the interior lights
Interior lights list.......................... 447
• Interior lights ..........................448
• Personal lights ....................... 449
5-5. Using the storage features
List of storage features ............. 451
• Glove box ...............................453
• Coin holder ............................454
• Door pockets .........................454
• Cup holders ...........................455
• Console box........................... 457
• Cool box/auxiliary
box .............................................459
• Auxiliary boxes ..................... 462
Trunk features..............................465
5-6. Other interior features
Sun visors and vanity
mirrors ......................................... 467
Clock .............................................. 469
Ashtrays ......................................... 470
Cigarette lighters.........................471
Power outlets............................... 473
Heated steering wheel ............ 476
Climate control seats/seat
heaters......................................... 478
Armrest..........................................483
Retractable table........................ 484
Rear sunshade ............................486
Rear door sunshades ...............490
Trunk storage extension ......... 494
Coat hooks ................................... 496
Assist grips.................................... 497
Garage door opener ...............498
ERA-GLONASS ......................504

406
LS460/LS460L_GE (OM50G06E)
5-1. Remote Touch screen
Except for Korea
“MAP” button
Press this button to display the current position, cancel the screen scroll, start
guidance, and repeat a voice guidance.
“ •” button
Vehicles with a navigation system
Press this button to scroll the list screen and to change the scale of the map.
Vehicles without a navigation system
Press this button to scroll the list screen.
Back button
Press this button to display the previous screen.
Remote Touch
The Remote Touch can be used to operate the Remote Touch screens.
For details, refer to “Navigation and Multimedia System Owner’s Man-
ual” or “Navigation System Owner’s Manual”.
The illustrations below are for left-hand drive vehicles.
Vehicles with a
navigation system
Vehicles without a
navigation system
1
2
3

4075-1. Remote Touch screen
5
Interior features
LS460/LS460L_GE (OM50G06E)
“MENU” button
Press this button to display the “Menu” screen. (P. 410)
Remote Touch knob
Move in the desired direction to select a function, letter and screen button.
Press this button the knob to enter the selected function, letter or screen button.
“ENTER” button
Press this button to enter the selected function, letter or screen button.
“HOME” button
Press this button to display the compass mode screen.
4
5
6
7
