711-2. Hybrid system
GS450h_OM_OM30E99U_(U)
1
For safety and security
When a certain level of impact is detected by the impact sensor, the emergency
shut off system blocks the high voltage current and stops the fuel pump to mini-
mize the risk of electrocution and fuel leakage. If the emergency shut off system
activates, your vehicle will not restart. To restart the hybrid system, contact your
Lexus dealer.
A message is automatically displayed when a malfunction occurs in the hybrid
system or an improper operation is attempted.
If a warning message is shown on the
multi-information display, read the
message and follow the instructions.
( P. 4 0 6 )
■If a warning light comes on, a warning message is displayed, or the 12-volt battery is dis-
connected
The hybrid system may not start. In this case, try to start the system again. If the “READY”
indicator does not come on, contact your Lexus dealer.
■Running out of fuel
When the vehicle has run out of fuel and the hybrid system cannot be started, refuel the
vehicle with at least enough gasoline to make the low fuel level warning light (P. 4 0 2 ,
406) go off. If there is only a small amount of fuel, the hybrid system may not be able to
start. (The standard amount of fuel is about 2.6 gal. [10.0 L, 2.2 Imp.gal.] [except F
SPORT models] or 2.6 gal. [9.9 L, 2.2 Imp.gal.] [F SPORT models], when the vehicle is
on a level surface. This value may vary when the vehicle is on a slope. Add extra fuel
when the vehicle is inclined.)
■Electromagnetic waves
●High voltage parts and cables on hybrid ve hicles incorporate electromagnetic shield-
ing, and therefore emit approximately the same amount of electromagnetic waves as
conventional gasoline powered vehicl es or home electronic appliances.
●Your vehicle may cause sound interference in some third party-produced radio parts.
■Hybrid battery (traction battery)
The hybrid battery (traction battery) has a limited service life. The lifespan of the hybrid
battery (traction battery) can change in accordance with driving style and driving condi-
tions.
Emergency shut off system
Hybrid warning message

326
GS450h_OM_OM30E99U_(U)

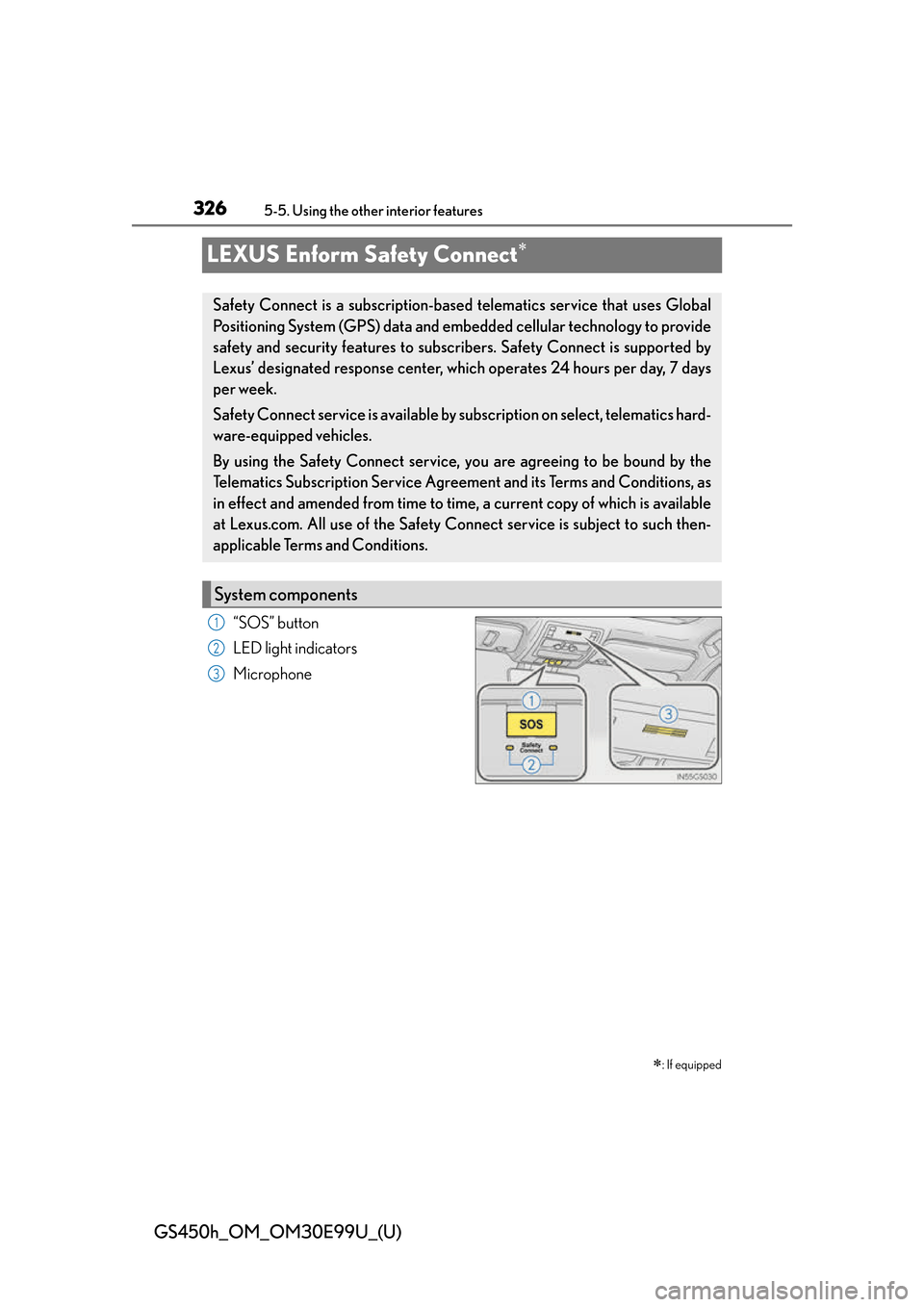

5-5. Using the other interior features
LEXUS Enform Safety Connect
“SOS” button
LED light indicators
Microphone
: If equipped
Safety Connect is a subscription-based telematics service that uses Global
Positioning System (GPS) data and embedded cellular technology to provide
safety and security features to subscribers. Safety Connect is supported by
Lexus’ designated response center, wh ich operates 24 hours per day, 7 days
per week.
Safety Connect service is available by su bscription on select, telematics hard-
ware-equipped vehicles.
By using the Safety Connect service, yo u are agreeing to be bound by the
Telematics Subscription Service Agreement and its Terms and Conditions, as
in effect and amended from time to time, a current copy of which is available
at Lexus.com. All use of the Safety Connect service is subject to such then-
applicable Terms and Conditions.
System components
1
2
3

328
GS450h_OM_OM30E99U_(U)

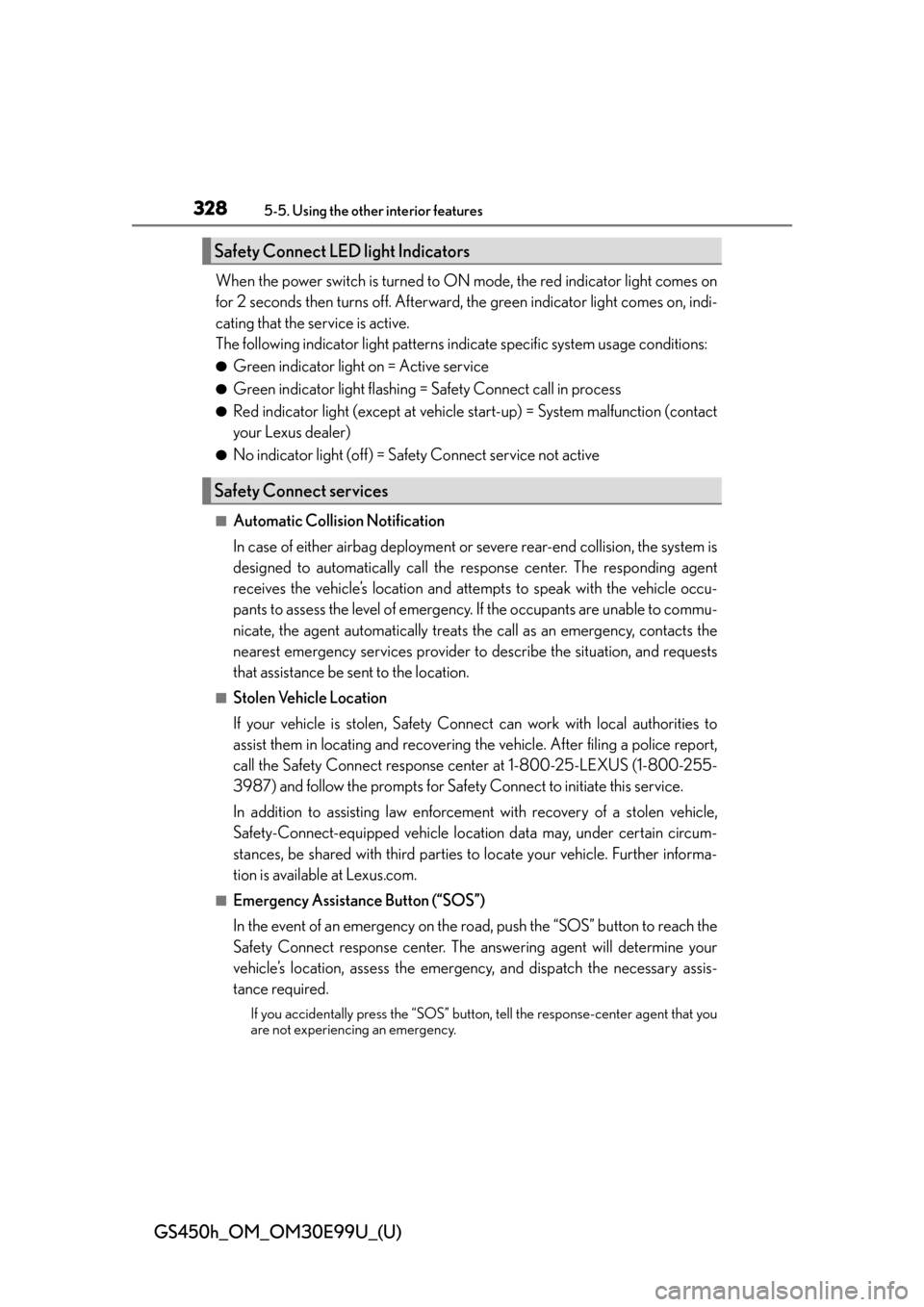

5-5. Using the other interior features
When the power switch is turned to ON mode, the red indicator light comes on
for 2 seconds then turns off. Afterward, the green indicator light comes on, indi-
cating that the service is active.
The following indicator light patterns indicate specific system usage conditions:
●Green indicator light on = Active service
●Green indicator light flashing = Safety Connect call in process
●Red indicator light (except at vehicle start-up) = System malfunction (contact
your Lexus dealer)
●No indicator light (off) = Safety Connect service not active
■Automatic Collis ion Notification
In case of either airbag deployment or severe rear-end collision, the system is
designed to automatically call the response center. The responding agent
receives the vehicle’s location and attempts to speak with the vehicle occu-
pants to assess the level of emergency. If the occupants are unable to commu-
nicate, the agent automatically treats the call as an emergency, contacts the
nearest emergency services provider to describe the situation, and requests
that assistance be se nt to the location.
■Stolen Vehicle Location
If your vehicle is stolen, Safety Connect can work with local authorities to
assist them in locating and recovering the vehicle. After filing a police report,
call the Safety Connect response center at 1-800-25-LEXUS (1-800-255-
3987) and follow the prompts for Safety Connect to initiate this service.
In addition to assisting law enforcement with recovery of a stolen vehicle,
Safety-Connect-equipped vehicle location data may, under certain circum-
stances, be shared with third parties to locate your vehicle. Further informa-
tion is available at Lexus.com.
■Emergency Assistance Button (“SOS”)
In the event of an emergency on the ro ad, push the “SOS” button to reach the
Safety Connect response center. Th e answering agent will determine your
vehicle’s location, assess the emergency, and dispatch the necessary assis-
tance required.
If you accidentally press the “SOS” button, tell the response-center agent that you
are not experiencing an emergency.
Safety Connect LED light Indicators
Safety Connect services

344
GS450h_OM_OM30E99U_(U)

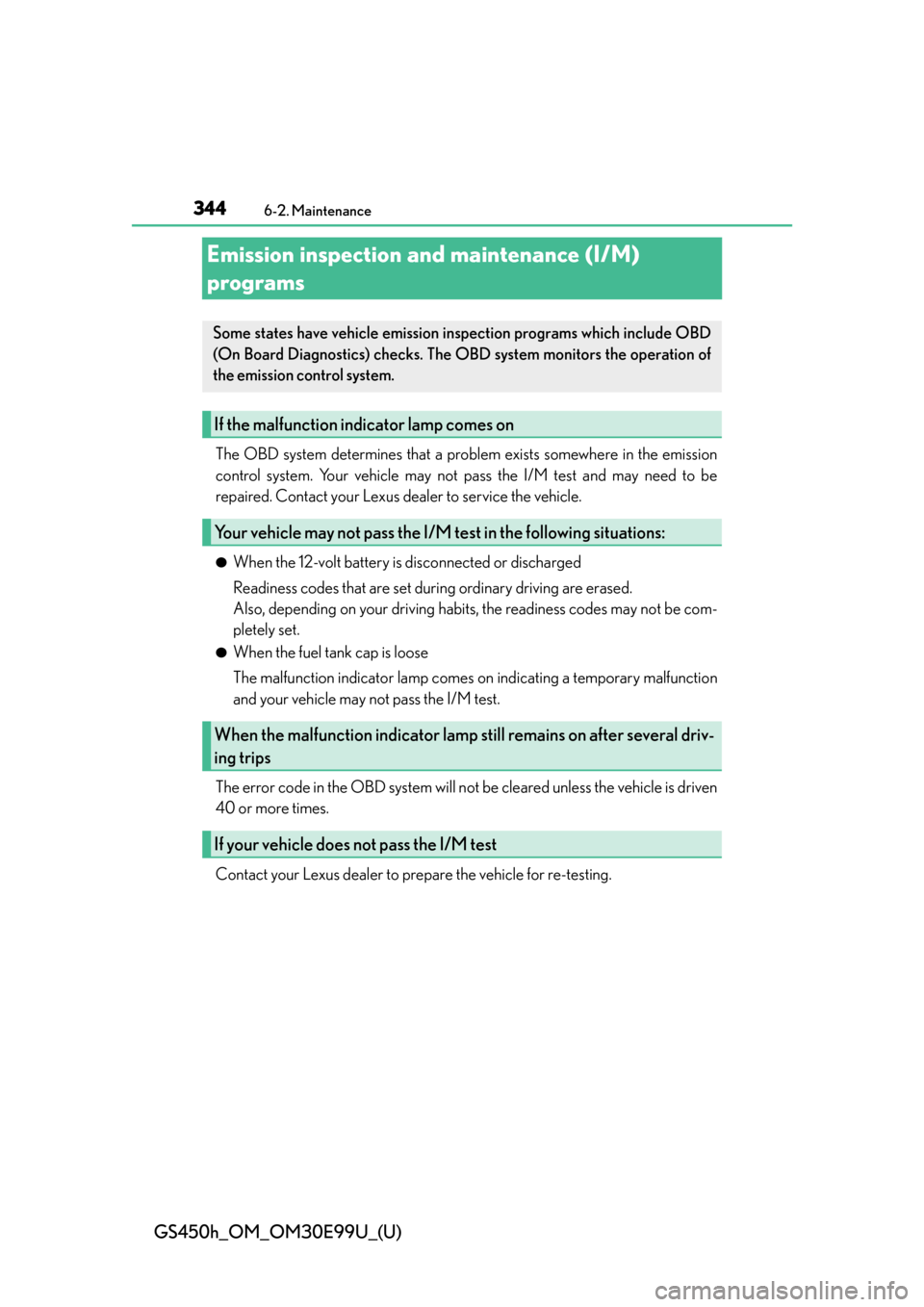

6-2. Maintenance
Emission inspection and maintenance (I/M)
programs
The OBD system determines that a problem exists somewhere in the emission
control system. Your vehicle may not pa ss the I/M test and may need to be
repaired. Contact your Lexus dealer to service the vehicle.
●When the 12-volt battery is disconnected or discharged
Readiness codes that are set during ordinary driving are erased.
Also, depending on your driving habits, the readiness codes may not be com-
pletely set.
●When the fuel tank cap is loose
The malfunction indicator lamp comes on indicating a temporary malfunction
and your vehicle may not pass the I/M test.
The error code in the OBD system will not be cleared unless the vehicle is driven
40 or more times.
Contact your Lexus dealer to prepare the vehicle for re-testing.
Some states have vehicle emission inspection programs which include OBD
(On Board Diagnostics) checks. The OBD system monitors the operation of
the emission control system.
If the malfunction indicator lamp comes on
Your vehicle may not pass the I/M test in the following situations:
When the malfunction indicator lamp s till remains on after several driv-
ing trips
If your vehicle does not pass the I/M test

GS450h_OM_OM30E99U_(U)

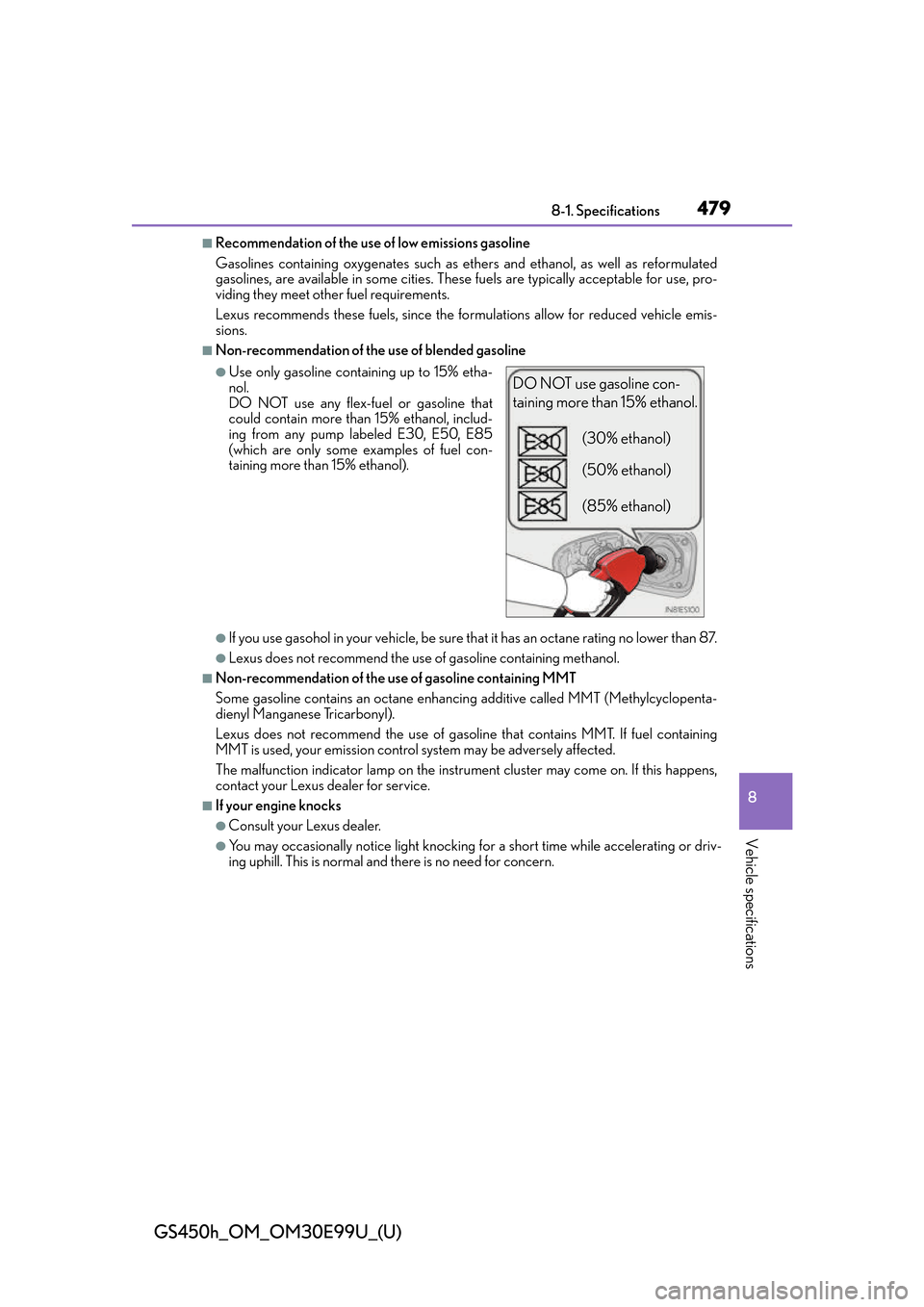

4798-1. Specifications
8
Vehicle specifications
■Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as ethers and ethanol, as well as reformulated
gasolines, are available in some cities. These fuels are typically acceptable for use, pro-
viding they meet other fuel requirements.
Lexus recommends these fuels, since the fo rmulations allow for reduced vehicle emis-
sions.
■Non-recommendation of the use of blended gasoline
●If you use gasohol in your vehicle, be sure th at it has an octane rating no lower than 87.
●Lexus does not recommend the use of gasoline containing methanol.
■Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancin g additive called MMT (Methylcyclopenta-
dienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gasolin e that contains MMT. If fuel containing
MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the instru ment cluster may come on. If this happens,
contact your Lexus dealer for service.
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking fo r a short time while accelerating or driv-
ing uphill. This is normal and there is no need for concern.
●Use only gasoline containing up to 15% etha-
nol.
DO NOT use any flex-fuel or gasoline that
could contain more than 15% ethanol, includ-
ing from any pump labeled E30, E50, E85
(which are only some examples of fuel con-
taining more than 15% ethanol).DO NOT use gasoline con-
taining more than 15% ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)

536Alphabetical index
GS450h_OM_OM30E99U_(U)
Seat heaters ............................................300
Seat position memory...........................143
Seat ventilators ......................................300
Seating capacity...................................... 177
Seats.............................................................. 141Adjustment ............................................... 141
Adjustment precautions ...................142
Child seats/child restraint system installation.............................. 57
Cleaning .................................................336
Driving position memory ................ 143
Head restraints ..................................... 148
Power easy access system ............ 143
Properly sitting in the seat ................ 28
Seat heaters ......................................... 300
Seat position memory....................... 143
Seat ventilators ................................... 300
Sensor Automatic headlight system .......... 198
Inside rear view mirror ..................... 153
Intuitive parking assist
*
LKA (Lane-Keeping Assist) ......... 232
Radar sensor ............................. 216, 260
Rain-sensing windshield wipers .................................................. 208
Service plug ............................................... 70
Service reminder indicators ............... 80 S-FLOW mode..................................... 286
Shift lever ................................................... 187
Hybrid transmission ...........................187
If the shift lever cannot be shifted from P ............ 448
Shift lever light ....................................... 302
Shift lock system ................................... 448
Side airbags ................................................36
Side display ............................................. 283
Side marker lights .................................. 197 Light switch............................................. 197
Replacing light bulbs ...................... 388
Welcome light illumination control......................................................121
Side mirrors .............................................. 154 Adjusting and folding ........................154
BSM (Blind spot monitor) ............258
Linked mirror function when reversing..................................156
Mirror position memory .................. 143
Side turn signal lights ............................ 192 Replacing light bulbs ...................... 388
Turn signal lever ................................... 192
Smart access system with push-button start ....................... 133Antenna location.................................. 133
Entry functions ......................................120
Starting the hybrid system.............. 180
Warning message.............................406
Snow mode .............................................. 188
Snow tires ................................................. 277
