2016 Lexus GS200t seat memory

3
1
8 7
6
5
4
3
2
GS350_200t_GS F_OM_OM30E87E_(EE)
3-1. Key informationKeys................................................... 154
3-2. Opening, closing and locking the doors and trunk
Doors ............................................... 159
Trunk ................................................. 166
Smart entry & start system .......173
3-3. Adjusting the seats Front seats ...................................... 195
Driving position memory ......... 198
Head restraints............................203
3-4. Adjusting the steering wheel and mirrors
Steering wheel ............................206
Inside rear view mirror ............ 208
Outside rear view mirrors ....... 210
3-5. Opening, closing the windows and moon roof
Power windows ............................ 213
Moon roof ...................................... 216 4-1. Before driving
Driving the vehicle ..................... 222
Cargo and luggage ...................230
Trailer towing (vehicles without towing package) ...... 231
Trailer towing (vehicles with towing package) ...................... 232
4-2. Driving procedures Engine (ignition) switch ...........239
Automatic transmission........... 245
Turn signal lever ..........................253
Parking brake............................... 254
Brake Hold (GS350/GS200t) ................ 257
ASC (Active Sound Control) (GS F) ....................... 259
4-3. Operating the lights and wipers
Headlight switch .........................260
AHS (Adaptive High-beam System) ........................................ 263
Automatic High Beam .............268
Fog light switch............................ 273
Windshield wipers and washer.................................. 274
4-4. Refueling Opening the fuel tank cap..... 280
3Operation of
each component4Driving

153
3
Operation of
each component
GS350_200t_GS F_OM_OM30E87E_(EE)
3-1. Key information
Keys .................................................. 154
3-2. Opening, closing and locking the doors and trunk
Doors ............................................... 159
Trunk ..................................................166
Smart entry & start system....... 173
3-3. Adjusting the seats Front seats...................................... 195
Driving position memory ......... 198
Head restraints ........................... 203
3-4. Adjusting the steering wheel and mirrors
Steering wheel ............................206
Inside rear view mirror.............208
Outside rear view mirrors ....... 210
3-5. Opening, closing the windows and moon roof
Power windows .............................213
Moon roof .......................................216

1983-3. Adjusting the seats
GS350_200t_GS F_OM_OM30E87E_(EE)
Driving position memory
The seat and steering wheel are automatically adjusted to allow the driver or
front passenger to enter and exit the vehicle easily.
■Driver’s seat
When all of the following have been
performed, the driver’s seat and
steering wheel are automatically
adjusted to a position that allows
driver to enter and exit the vehicle
easily.• The shift lever has been shifted to P.
• The engine switch has been turned off.
• The driver’s seat belt has been unfastened.
When any of the following has been performed, the driver’s seat and steering
wheel automatically return to their original positions. • The engine switch has been turned to ACCESSORY mode or IGNITION
ON mode.
• The driver’s seat belt has been fastened.
■Front passenger’s seat (if equipped)
If the front passenger’s door is opened while the vehicle is stopped, the
adjusted lumbar support, ottoman (if equi pped), etc. will return to its original
position.
This feature automatically adjusts the front seats, steering wheel and outside
rear view mirrors to make entering and exiting the vehicle easier or to suit
your preferences.
Power easy access system

1993-3. Adjusting the seats
3
Operation of each component
GS350_200t_GS F_OM_OM30E87E_(EE)
■Operation of the power easy access system
When exiting the vehicle, the power easy access system may not operate if the seat is
already close to the rearmost position, etc.
■Customization
The seat movement amount settings of the power easy access system can be custom-
ized. (Customizable features: →P. 6 2 8 )

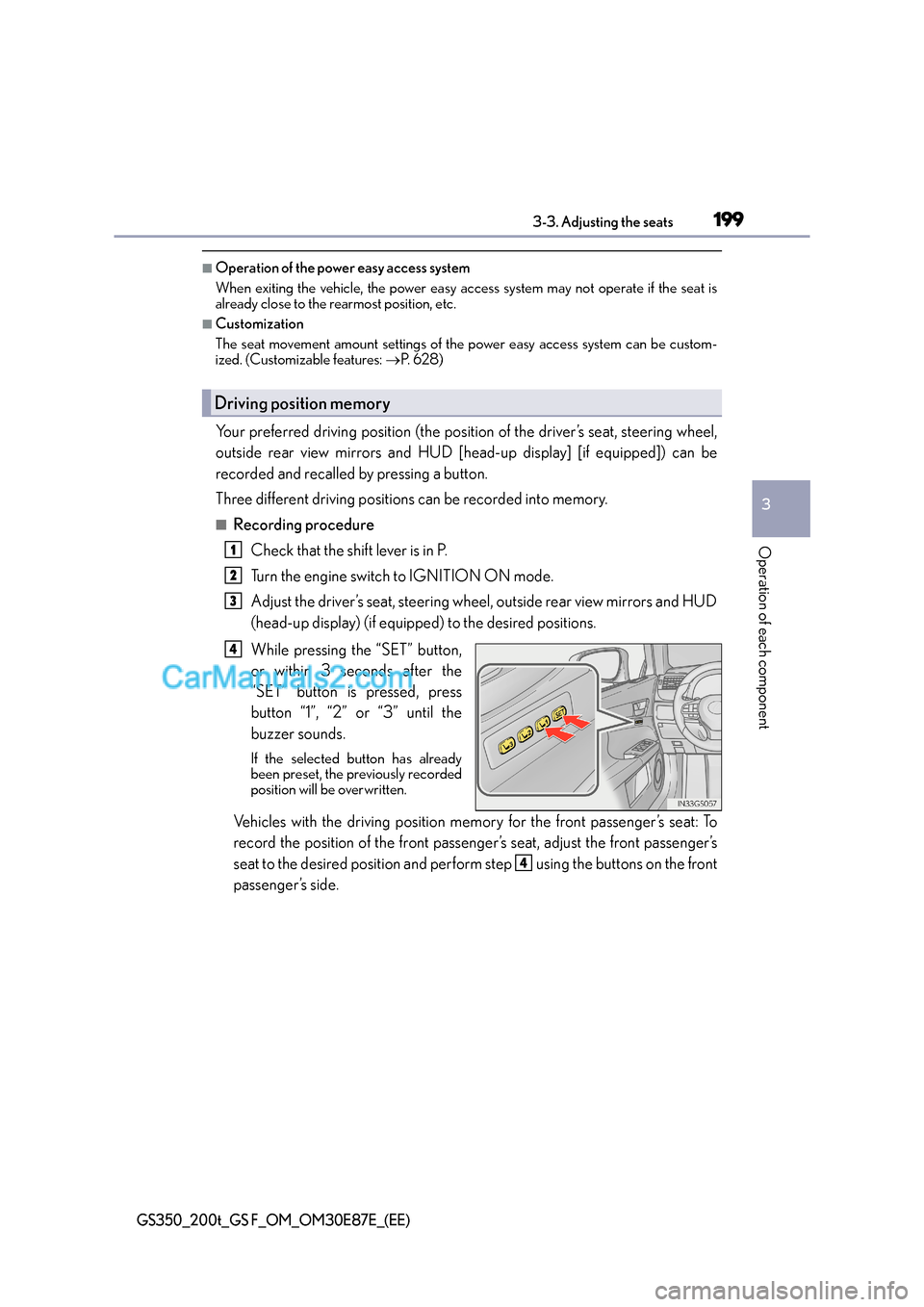

Your preferred driving position (the positi on of the driver’s seat, steering wheel,
outside rear view mirrors and HUD [head-up display] [if equipped]) can be
recorded and recalled by pressing a button.
Three different driving positions can be recorded into memory.
■Recording procedure
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Adjust the driver’s seat, steering wheel, outside rear view mirrors and HUD
(head-up display) (if equipped) to the desired positions.
While pressing the “SET” button,
or within 3 seconds after the
“SET” button is pressed, press
button “1”, “2” or “3” until the
buzzer sounds.
If the selected button has already
been preset, the previously recorded
position will be overwritten.
Vehicles with the driving position memory for the front passenger’s seat: To
record the position of the front passenger’s seat, adjust the front passenger’s
seat to the desired position and perform step using the buttons on the front
passenger’s side.
Driving position memory
1
2
3
4
4

2013-3. Adjusting the seats
3
Operation of each component
GS350_200t_GS F_OM_OM30E87E_(EE)
■Operating the driving position memory after turning the engine switch off
Driver’s seat:
Recorded seat positions can be activated up to 180 seconds after the driver’s door is
opened and another 60 seconds after it is closed again.
Front passenger’s seat:
Recorded seat positions can be activated up to 180 seconds after the front passenger’s
door is opened.
■In order to correctly use the driving position memory function
If a seat position is already in the furthest possible position and the seat is operated in the
same direction, the recorded position may be slightly different when it is recalled.
Each electronic key (including a card key) can be registered to recall your pre-
ferred driving position.
■Registering procedure
Record your driving position to button “1”, “2” or “3” before performing the
following:
Carry only the key you want to register, and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be recorded
properly.
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Recall the driving position that you want to record.
While pressing the recalled but-
ton, press and hold the door lock
switch (either lock or unlock) until
the buzzer sounds.
If the button could not be registered,
the buzzer sounds continuously for
approximately 3 seconds.
Memory recall function (driver’s side only)
1
2
3
4

2023-3. Adjusting the seats
GS350_200t_GS F_OM_OM30E87E_(EE)
■Recall procedureCarry the electronic key that has been registered to the driving position,
and then unlock and open the driver’s door using the smart entry & start
system or wireless remote control.
The driving position will move to the reco rded position (not including the steering
wheel and HUD [head-up display] [if equipped]). However, the seat will move to a
position slightly behind the recorded position in order to make entering the vehicle
easier.
If the driving position is in a position that has already been recorded, the seat and
outside rear view mirrors will not move.
Turn the engine switch to ACCESSORY mode or IGNITION ON mode,
or fasten a seat belt.
The seat, steering wheel and HUD (head-up display) (if equipped) will move to the
recorded position.
■Cancelation procedure
Carry only the key you want to cancel and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be canceled
properly.
Turn the engine switch to IGNITION ON mode.
While pressing the “SET” button, press and hold the door lock switch
(either lock or unlock) until the buzzer sounds twice.
If the button could not be canceled, the buzzer sounds continuously for approxi-
mately 3 seconds.
■Recalling the driving position us ing the memory recall function
●Different driving positions can be registered for each electronic key. Therefore, the
driving position that is recalled may be di fferent depending on the key being carried.
●If a door other than the driver’s door is unlocked with the smart entry & start system, the
driving position cannot be recalled. In this case, press the driving position button which
has been set.
■Customization
The unlock door settings of the memory recall function can be customized.
(Customizable features: →P. 6 2 8 )
WA R N I N G
■Seat adjustment caution
Take care during seat adjustment so that th e seat does not strike the rear passenger or
squeeze your body against the steering wheel.
1
2
1
2

2063-4. Adjusting the steering wheel and mirrors
GS350_200t_GS F_OM_OM30E87E_(EE)
Steering wheel
Operating the switch moves the steering wheel in the following directions:Up
Down
Toward the driver
Away from the driver
To sound the horn, press on or close to
the mark.
■The steering wheel can be adjusted when
The engine switch is in ACCESSORY or IGNITION ON mode
*.
*: If the driver’s seat belt is fastened, the steering wheel can be adjusted regardless of engine switch mode.
■Automatic adjustment of the steering position
A desired steering position can be entered to memory and recalled automatically by the
driving position memory system. ( →P. 1 9 8 )
■Power easy access system
The steering wheel and driver’s seat move in accordance with engine switch mode and
the driver’s seat belt condition. ( →P. 1 9 8 )
Adjustment procedure
1
2
3
4
Horn

6368-2. Customization
GS350_200t_GS F_OM_OM30E87E_(EE)
■Front seats (→P. 1 9 5 )
■Outside rear view mirrors ( →P. 2 1 0 )
■Power windows and moon roof* (→ P. 2 1 3 , 2 1 6 )
*: If equipped
FunctionDefault
settingCustomized setting
Driver’s seat movement when
exiting the vehicleStandardOffO—OPar t i a l
Selecting the door linking driv-
ing position memory with door
unlock operationDriver’s doorAll doors——O
123
FunctionDefaultsettingCustomized setting
Automatic mirror folding and
extending operation
Linked to the
locking/
unlocking of the doorsOff
——OLinked to opera-
tion of the engine
switch
Linked mirror function when
reversingOnOff——O
123
FunctionDefaultsettingCustomized setting
Mechanical key linked opera-
tionOffOn——O
Wireless remote control linked
operationOffOn——O
Buzzer sounds if operated
using wireless remote controlOnOff——O
123
