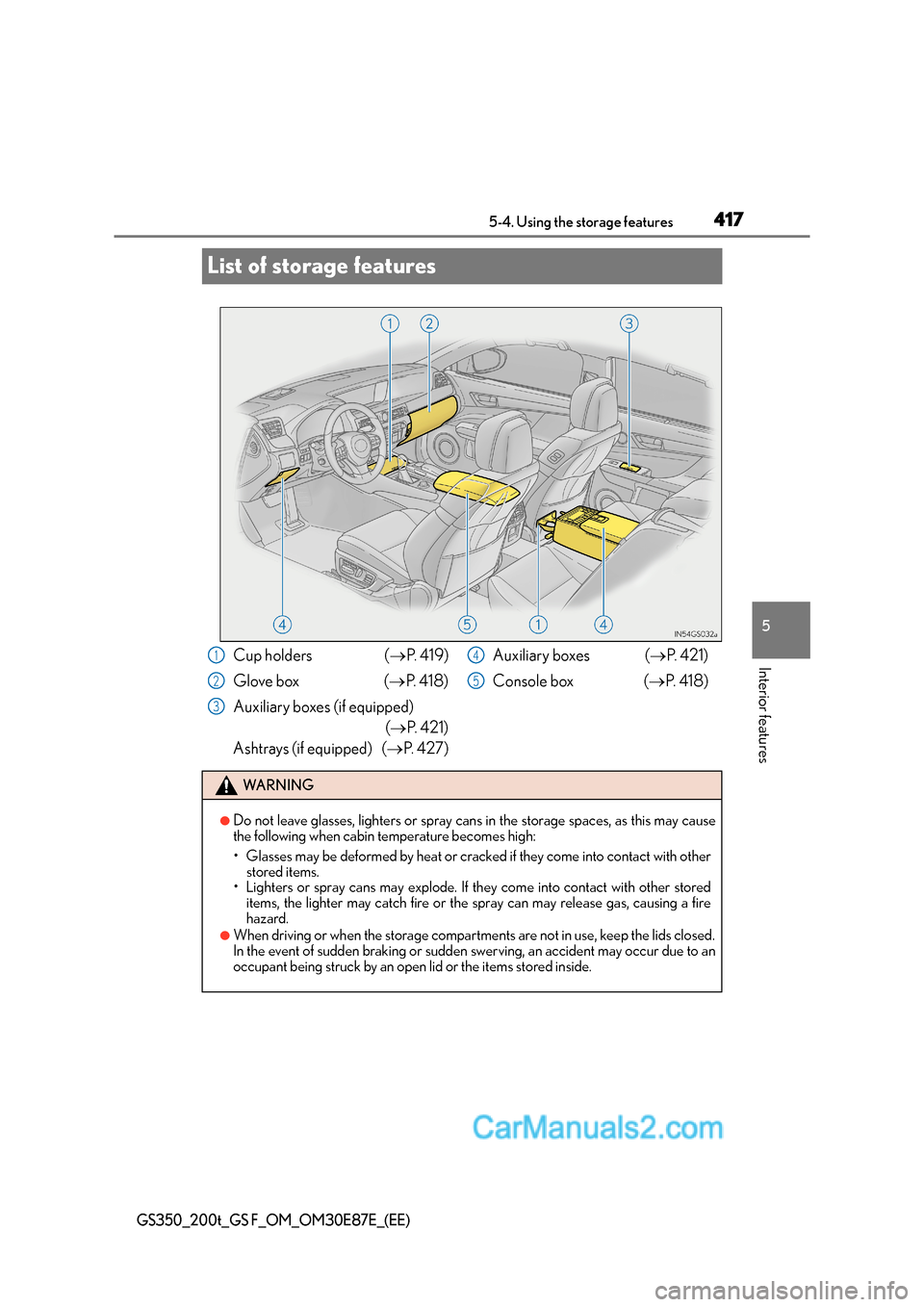

5-4. Using the storage features
Interior features
GS350_200t_GS F_OM_OM30E87E_(EE)
List of storage features
Cup holders (
→P. 4 1 9 )
Glove box ( →P. 4 1 8 )
Auxiliary boxes (if equipped) (→ P. 4 2 1 )
Ashtrays (if equipped) ( →P. 4 2 7 ) Auxiliary boxes (
→P. 4 2 1 )
Console box ( →P. 4 1 8 )
WA R N I N G
●Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause
the following when cabin temperature becomes high:
• Glasses may be deformed by heat or cracked if they come into contact with other
stored items.
• Lighters or spray cans may explode. If th ey come into contact with other stored
items, the lighter may catch fire or the spray can may release gas, causing a fire
hazard.
●When driving or when the storage compartments are not in use, keep the lids closed.
In the event of sudden braking or sudden swerving, an accident may occur due to an
occupant being struck by an open lid or the items stored inside.
1
2
3
4
5

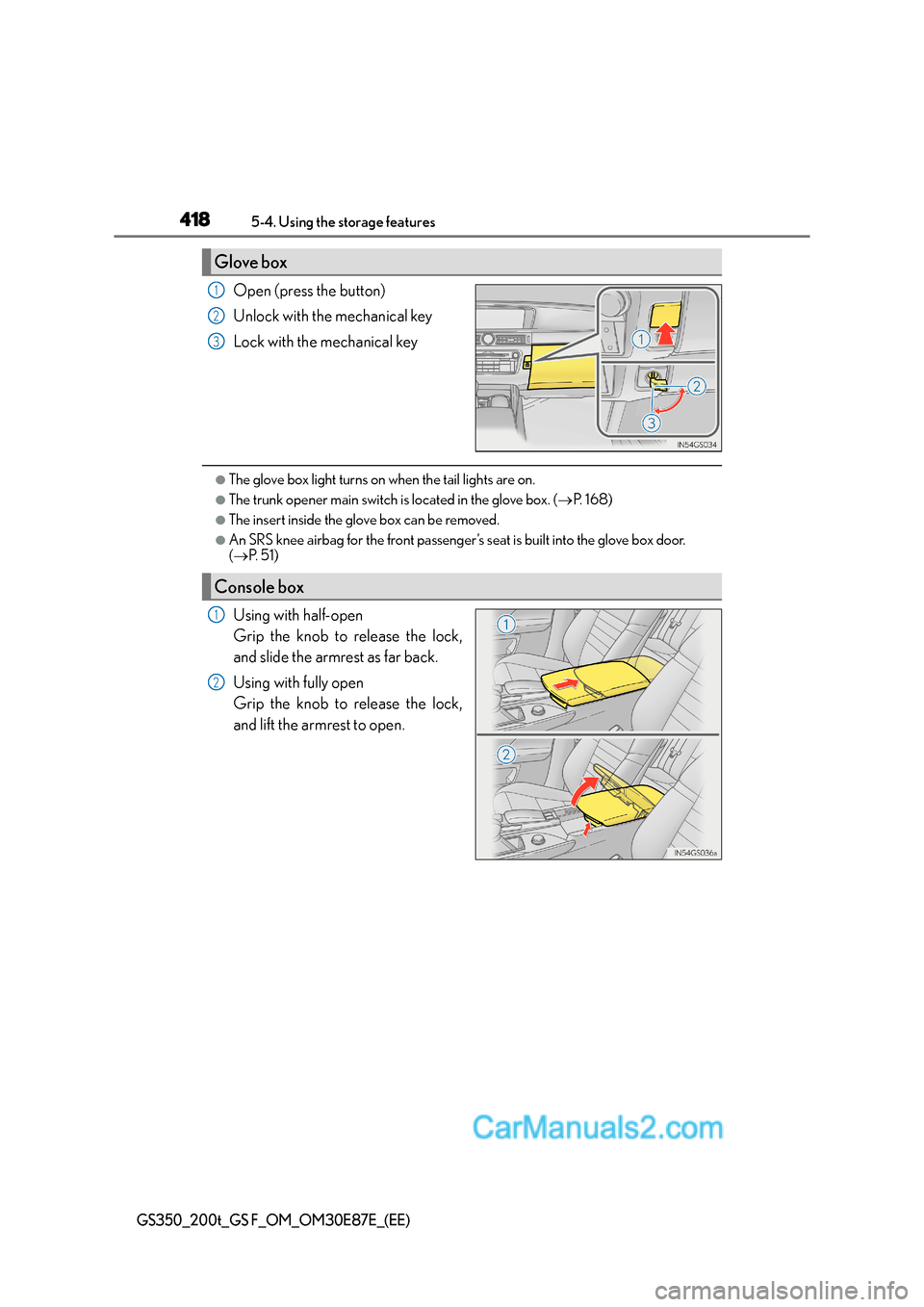

4185-4. Using the storage features
GS350_200t_GS F_OM_OM30E87E_(EE)
Open (press the button)
Unlock with the mechanical key
Lock with the mechanical key
●The glove box light turns on when the tail lights are on.
●The trunk opener main switch is located in the glove box. (→P. 1 6 8 )
●The insert inside the glove box can be removed.
●An SRS knee airbag for the front passenger’s seat is built into the glove box door.
(→ P. 5 1 )
Using with half-open
Grip the knob to release the lock,
and slide the armrest as far back.
Using with fully open
Grip the knob to release the lock,
and lift the armrest to open.
Glove box
1
2
3
Console box
1
2

4195-4. Using the storage features
5
Interior features
GS350_200t_GS F_OM_OM30E87E_(EE)
●The console box light turns on when the tail lights are on.
■Front
To open, press down and release the
cup holder lid.
■Rear
To open, pull down the armrest and
press in and release the rear cup
holder on the armrest.
●The tray slides forward/backward and can be
removed.
WA R N I N G
When using the console box with half-open, do not apply too much load on the arm-
rest. Doing so may damage the armrest and may cause you to injure yourself.
Cup holders

4205-4. Using the storage features
GS350_200t_GS F_OM_OM30E87E_(EE)
●Rear cup holder: When stowing the cup holder, stow the cup holder with the armrest
down. The cup holder cannot be stowed if the armrest is not down.
●Front cup holder: The cup holder insert may
be removed for cleaning.
WA R N I N G
Do not place anything other than cups or beverage cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or sudden
braking, causing injury. If possible , cover hot drinks to prevent burns.
NOTICE
To prevent damage to the rear cup holder, stow the cup holder before stowing the arm-
rest.

4215-4. Using the storage features
5
Interior features
GS350_200t_GS F_OM_OM30E87E_(EE)
Auxiliary boxes
XTy p e AXTy p e B
Press in the button. Pull up the lever to release the lock and lift the lid.
XTy p e C ( i f e q u i p p e d )
Open the lid.
WA R N I N G
Type C: Do not use the auxiliary box as an ashtray.
Doing so may cause a fire.

4225-4. Using the storage features
GS350_200t_GS F_OM_OM30E87E_(EE)
Trunk features
Raise the hooks when needed.
The cargo hooks are provided for
securing loose items.
Pull the strap when using the hook.
Cargo hooks
WA R N I N G
To avoid injury, always return the cargo hooks to their stowed positions when not in use.
Luggage hook
NOTICE
Do not hang any object heavier than 5 kg (11 lb.) on the luggage hook.

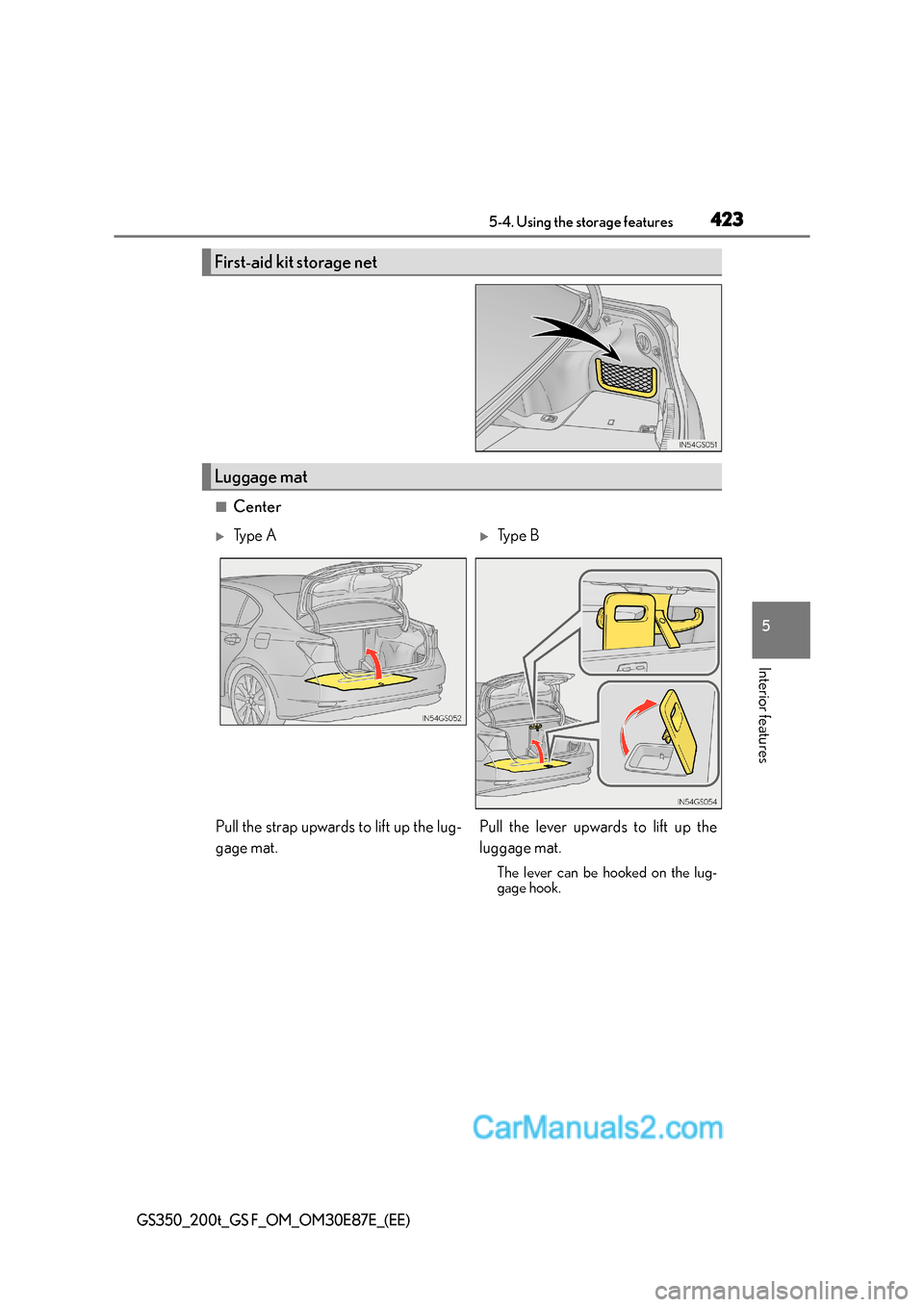

4235-4. Using the storage features
5
Interior features
GS350_200t_GS F_OM_OM30E87E_(EE)
■Center
First-aid kit storage net
Luggage mat
XTy p e AXTy p e B
Pull the strap upwards to lift up the lug-
gage mat. Pull the lever upwards to lift up the
luggage mat.
The lever can be hooked on the lug-
gage hook.

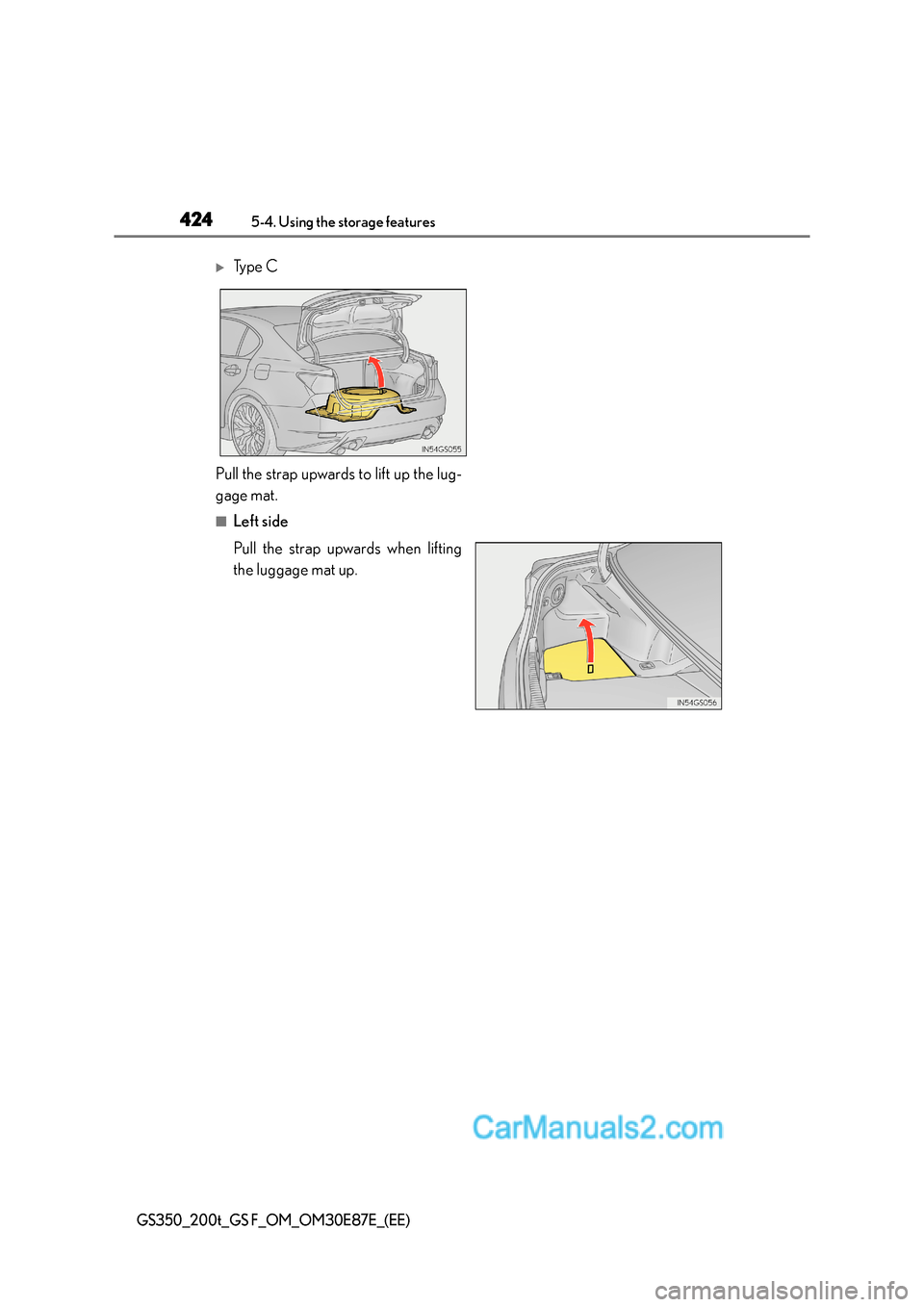

4245-4. Using the storage features
GS350_200t_GS F_OM_OM30E87E_(EE)
■Left side
Pull the strap upwards when lifting
the luggage mat up.
XTy p e C
Pull the strap upwards to lift up the lug-
gage mat.
