2016 Lexus GS F display

GS350_200t_GS F_OM_OM30E86U_(U)
1032. Instrument cluster
2
Instrument cluster

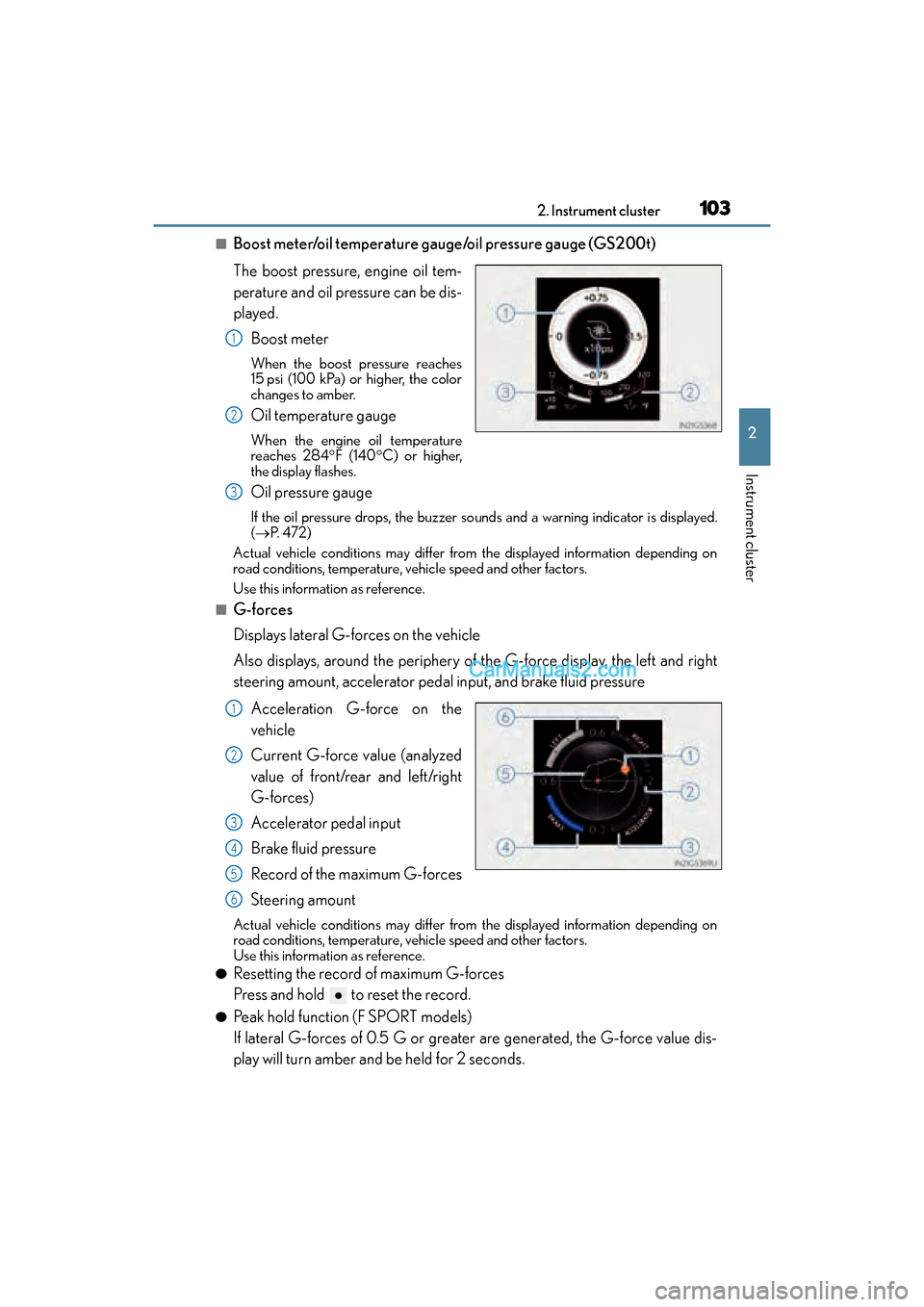

■Boost meter/oil temperature gauge/oil pressure gauge (GS200t)
The boost pressure, engine oil tem-
perature and oil pressure can be dis-
played.Boost meter
When the boost pressure reaches
15 psi (100 kPa) or higher, the color
changes to amber.
Oil temperature gauge
When the engine oil temperature
reaches 284 °F (140 °C) or higher,
the display flashes.
Oil pressure gauge
If the oil pressure drops, the buzzer sounds and a warning indicator is displayed.
( → P. 4 7 2 )
Actual vehicle conditions may differ from the displayed information depending on
road conditions, temperature, vehicle speed and other factors.
Use this information as reference.
■G-forces
Displays lateral G-forces on the vehicle
Also displays, around the periphery of the G-force display, the left and right
steering amount, accelerator pedal input, and brake fluid pressure
Acceleration G-force on the
vehicle
Current G-force value (analyzed
value of front/rear and left/right
G-forces)
Accelerator pedal input
Brake fluid pressure
Record of the maximum G-forces
Steering amount
Actual vehicle conditions may differ from the displayed information depending on
road conditions, temperature, vehicle speed and other factors.
Use this information as reference.
●Resetting the record of maximum G-forces
Press and hold to reset the record.
●Peak hold function (F SPORT models)
If lateral G-forces of 0.5 G or greater are generated, the G-force value dis-
play will turn amber and be held for 2 seconds.
1
2
3
1
2
3
4
5
6

104
GS350_200t_GS F_OM_OM30E86U_(U)2. Instrument cluster
■Tire inflation pressure
Displays inflation pressure of each tire.
The inflation pressure of the compact spare tire will not be displayed.
■LKA (Lane-Keeping Assist) vehicle sway warning (if equipped)
→
P. 2 4 9
■Display off
A blank screen is displayed
*1: Displayed when the item is set in “Drive Info 1”, “Drive Info 2” or “Drive Info 3”.
(→ P. 5 6 9 )
*2: The function can be reset by pressing the of the meter control switches for longer
than 1 second when the item to reset is displayed.
If there is more than one item that can be reset, the item selection screen will appear.
The settings of the following items can be changed, refer to P. 568
For functions that can be enabled or disabled, the function switches between on and
off each time is pressed.
■(Lane-Keeping Assist ) (if equipped) ( →P. 2 4 9 )
■(Pre-Collision System) (if equipped) ( →P. 2 3 7 )
■(Adaptive Front-lighting System) (if equipped) ( →P. 2 1 6 )
■(Blind Spot Monitor) (if equipped) (→P. 2 9 8 )
■
Select to set the display mode of the clock.
Settings display

GS350_200t_GS F_OM_OM30E86U_(U)
1052. Instrument cluster
2
Instrument cluster
■●
Scheduled Maintenance (→ P. 386)
●Oil Maintenance (→ P. 404)
●TPMS (Tire pressure warning system) (→ P. 4 1 5 )
■
●
Language
Select to change the language on the display.
●Units
Select to change the unit of measure.
●Eco Driving Indicator Light
Select to activate/deactivate the Eco Driving Indicator Light.
● switch
Displays a procedure to register a desired screen to .
You can register 1 screen as a shortcut, which can be displayed by pressing .
●Drive information 1 /2 /3
Select to select up to 2 items that will be displayed on a Drive information screen,
up to 3 Drive information screens can be set.
●Po p - u p d i s p l a y
Select to set the following pop-up displays, which may appear in some situations,
on/off. • Route guidance of the navigation system-linked display (if equipped)
• Incoming call display of the hands-free phone system
• Instrument panel brightness adjustment display
●Accent color (except F SPORT models)
Select to change the accent colors on the screen, such as the cursor color.
●Needle (F SPORT models)
Select to change the needle color for the tachometer.
●Rev indicator (F SPORT models)
Select to set the rev indicator on/off.
When set to on, proceed to set the engine speed at which the rev indicator will be
displayed.
Selectable engine speed range:
GS350: 2000 rpm to 6800 rpm
GS200t: 2000 rpm to 6100 rpm
●Rev peak (F SPORT models)
Select to set the rev peak on/off.
●Default settings
Registered or changed meter settings will be deleted or returned to their default
setting.

106
GS350_200t_GS F_OM_OM30E86U_(U)2. Instrument cluster
■G-force display
●The G-force values may not be zero even when the vehicle is parked, such as when it is
parked on an incline.
●Depending on the vehicle usage conditions, the brake fluid pressure display may not
reach its maximum reading even though the brake pedal is fully depressed.
●If a battery terminal is disconnected and reconnected, the steering amount display may
be disabled temporarily. After driving the vehi
cle for a while, the display will be enabled.
■System check display
After turning the engine switch to IGNITION ON mode, opening image is displayed
while system operation is checked. When the system check is complete, the normal
screen will return.
■Suspension of the settings display
In the following situations, the settings display using the meter control switches will be
suspended.
●When a warning message appears on the multi-information display
●When the vehicle begins to move
■Tire inflation pressure
●It may take a few minutes to display the tire inflation pressure after the engine switch is
turned to IGNITION ON mode. It may also take a few minutes to display the tire infla-
tion pressure after inflation pressure has been adjusted.
●“---” may be displayed if the tire information cannot be determined due to unfavorable
radio wave conditions.
●Tire inflation pressure changes with temperature. The displayed values may also be dif-
ferent from the values measured using a tire pressure gauge.
■When disconnecting and reconnecting battery terminals
The drive information will be reset.
■Liquid crystal display
→P. 9 0
WA R N I N G
■Caution for use while driving
●When operating the mult i-information display while drivin g, pay extra attention to the
safety of the area around the vehicle.
●Do not look continuously at the multi-information display while driving as you may fail
to see pedestrians, objects on the road, etc. ahead of the vehicle.
■Cautions during setting up the display
As the engine needs to be operating during setting up the display, ensure that the vehi-
cle is parked in a place with adequate ventilation. In a closed area such as a garage,
exhaust gases including harmful carbon monoxide (CO) may collect and enter the
vehicle. This may lead to death or a serious health hazard.

GS350_200t_GS F_OM_OM30E86U_(U)
1072. Instrument cluster
2
Instrument cluster
NOTICE
■During setting up the display
To prevent battery discharge, ensure that the engine is operating while setting up the
display features.

108
GS350_200t_GS F_OM_OM30E86U_(U)2. Instrument cluster
Multi-information display (GS F)
The multi-information display presents the driver with a variety of vehicle data.
●Menu icons
Displays the following information
when an icon is selected. (
→P. 1 0 9 )
Some of the information may be dis-
played automatically depending on
the situation.
Drive information
Select to display various drive data. ( →P. 1 0 9 )
“F” content
Select to display the lap timer, G-force, torque distribution and other useful
functions for sporty driving. ( →P. 111)
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display
Select to enable selection of an audio source or track on the meter using the
meter control switches.
Driving assist system information
Select to display the cruise control or dynamic radar cruise control/ LDA (Lane
Departure Alert with steering control) (if equipped) information, when the sys-
tem is used. (
→P. 258, 278, 290)
Warning message display
Select to display warning messages and measures to be taken if a malfunction is
detected. ( →P. 4 5 9 )
Display content

GS350_200t_GS F_OM_OM30E86U_(U)
1092. Instrument cluster
2
Instrument cluster
Settings display
Select to change the meter display settings. (→P. 5 7 1 )
The multi-information display is oper-
ated using the meter control switches.
:Switch menu
: Change displayed con-tent, scroll up/down the
screen and move the cur-
sor up/down
Press: Enter/Set
Press and hold: Reset
Return to the previous screen
Press: Displays the screen registered to
When no screen has been re gistered, the drive information screen will be displayed.
Press and hold: Registers the currently displayed screen to ( →P. 5 7 1 )
When the confirmation screen is displayed, select yes to register the screen. If the
selected screen cannot be registered, a re gistration failure message will be shown.
Items displayed can be switched by pressing or of the meter control
switches to select and pressing or .
■Current fuel consumption*1
Displays the current rate of fuel consumption
■Average fuel economy (after reset*2/after start/after refuel)*1
Displays the average fuel consumption since the function was reset, the
engine was started, and the vehicle was refueled, respectively
Use the displayed average fuel consumption as a reference.
Operating the meter control switches
1
2
Drive information
3
4

110
GS350_200t_GS F_OM_OM30E86U_(U)2. Instrument cluster
■Average speed (after reset*2/a f t e r s t a r t )*1
Displays the average vehicle speed since the function was reset and the
engine was started, respectively
■Elapsed time (after reset*2/a f t e r s t a r t )*1
Displays the elapsed time since the function was reset and the engine was
started, respectively
■Distance (range/after start)*1
Displays the estimated maximum distance that can be driven with the quantity
of fuel remaining and the distance driven after the engine was started respec-
tively.
• This distance is computed based on your average fuel consumption. As a result,
the actual distance that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be
updated.
When refueling, turn the engine switch off. If the vehicle is refueled without turning
the engine switch off, the display may not be updated.
■Tire inflation pressure
Displays inflation pressure of each tire.
The inflation pressure of the spare tire will not be displayed.
■Gear positions
Displays the current gear position when the shift lever is in D or M.
■LDA (Lane Departure Alert with steering control) vehicle sway warning (if
equipped)
→ P. 2 5 8
■Display off
A blank screen is displayed
*1: Displayed when the item is set in “Drive Info 1”, “Drive Info 2” or “Drive Info 3”.
(→ P. 5 7 1 )
*2: The function can be reset by pressing the of the meter control switches for longer
than 1 second when the item to reset is displayed.
If there is more than one item that can be reset, the item selection screen will appear.
