5438-1. Specifications
8
Vehicle specifications
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
at the next oil change.
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container label:
The International Lubricant Specifi-
cation Advisory Committee
(ILSAC) Certification Mark is added
to some oil containers to help you
select the oil you should use.
Outside temperature

544
GS350_200t_GS F_OM_OM30E86U_(U)8-1. Specifications
XGS200t
*: The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up the engine and turn off the engine, wait more than 5 minutes, and check
the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil SAE 0W-20 for Direct Injection Turbo Gasoline
Engines” is used in your Lexus vehicle. Use Lexus approved “Toyota Genuine
Motor Oil SAE 0W-20 for Direct Injection Turbo Gasoline Engines” or
equivalent to satisfy the fo llowing grade and viscosity.
Oil grade: “Toyota Genuine Motor Oil SAE 0W-20 for Direct Injection Turbo
Gasoline Engines” or ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
at the next oil change.
Oil capacity
(Drain and refill — reference
*)
With filter
Without filter4.9 qt. (4.6 L, 4.0 Imp.qt.)
4.5 qt. (4.3 L, 3.8 Imp.qt.)
Outside temperature

GS350_200t_GS F_OM_OM30E86U_(U)
5458-1. Specifications
8
Vehicle specifications
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container label:
The International Lubricant Specifi-
cation Advisory Committee
(ILSAC) Certification Mark is added
to some oil containers to help you
select the oil you should use.
XGS F
*: The engine oil capacity is a reference quantity to be used when changing the engine oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 5W-30
Oil capacity
(Drain and refill — reference*)
With filter
Without filter9.3 qt. (8.8 L, 7.7 Imp.qt.)
8.3 qt. (7.9 L, 7.0 Imp.qt.)

546
GS350_200t_GS F_OM_OM30E86U_(U)8-1. Specifications
SAE 5W-30 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 5W-30 is not available, SAE
10W-30 oil may be used. However,
it must be replaced with SAE 5W-
30 at the next oil change.
Oil viscosity (5W-30 is explained here as an example):
• The 5W in 5W-30 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 30 in 5W-30 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container label:
The International Lubricant Specifi-
cation Advisory Committee
(ILSAC) Certification Mark is added
to some oil containers to help you
select the oil you should use.
Outside temperature

GS350_200t_GS F_OM_OM30E86U_(U)
5478-1. Specifications
8
Vehicle specifications
Cooling system
Capacity
GS3509.9 q t . ( 9.4 L , 8 . 3 I m p . q t . )
GS200t
XEngine coolant
9.7 qt.(9.2 L, 8.1 Imp.qt.)
XIntercooler
2.3 qt.(2.2 L, 1.9 Imp.qt.)
GS F11.9 qt. (11.3 L, 9.9 Imp.qt.)
Coolant typeUse either of the following: • “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-
cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system
GS350GS200tGS F
Spark plug
Make
GapDENSO
FK20HBR8
0.031 in. (0.8 mm)NGK
DILFR7K9G
0.04 in. (0.9 mm )DENSO
FK20HBR-J8
0.031 in. (0.8 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

548
GS350_200t_GS F_OM_OM30E86U_(U)8-1. Specifications
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact your Lexus dealer.
Electrical system
Battery
Open voltage at 68 °F (20 °C):12.3 V or higher
(Voltage is checked 20 minutes after the engine
and all lights are turned off.)
Charging rates5 A
Automatic transmission
Fluid capacity*
GS350 (2WD)10.0 qt. (9.5 L, 8.4 Imp.qt.)
GS350 (AWD)10.6 qt. (10.0 L, 8.8 Imp.qt.)
GS200t9.2 qt. (8.7 L, 7.7 Imp.qt.)
GS F11.8 qt. (11.2 L, 9.9 Imp.qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
■Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration
in shift quality, locking up of your transmission accompanied by vibration, and ulti-
mately damage the transmission of your vehicle.
Front differential (AWD models)
Oil capacity0.74 qt. (0.70 L, 0.62 Imp.qt.)
Oil type and viscosityToyota Genuine Differential gear oil GL-5 or equivalent
Above 0 °F (-18 °C): SAE90
Below 0 °F (-18° C): SAE80W or SAE80W-90

GS350_200t_GS F_OM_OM30E86U_(U)
5498-1. Specifications
8
Vehicle specifications
XGS350/GS200t
XGS F
*1: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus dealer
for further details.
*2: Torque transfer modules are located on the ri ght and left sides of the rear differential
unit.
*3: Using torque transfer module fluid other than “Toyota Genuine ATF WS” may cause deterioration of performance, vibration, or ultimately damage the TVD system of your
vehicle.
*: Minimum pedal clearance when depressed with a force of 112.4 lbf (500 N, 51.0 kgf) while the engine is running.
Rear differential
Oil capacity1.43 qt. (1.35 L, 1.19 Imp.qt.)
Oil type and viscosityToyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
*1
DifferentialTo r q u e t r a n s f e r m o d u l e*2
Oil capacity 1.43 qt. (1.35 L, 1.19 Imp. qt.)
Left-hand side:
0.74 qt. (0.70 L, 0.62 Imp. qt.)
Right-hand side:
0.74 qt. (0.70 L, 0.62 Imp. qt.)
Oil type and
viscosity Toyota Genuine Differential gear
oil LT
75W-85 GL-5 or equivalent
*1To y o t a G e n u i n e AT F W S*3
Brakes
Pe d a l c l e a r a n c e*GS350/GS200t4.0 in. (102 mm) Min.
GS F4.4 in. (112 mm) Min.
Pedal free play0.04 — 0.24 in. (1.0 — 6.0 mm)
Brake pad wear limit0.04 in. (1.0 m m)
Parking brake lining wear limit0.04 in. (1.0 m m)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3

555
GS350_200t_GS F_OM_OM30E86U_(U)8-1. Specifications
8
Vehicle specifications

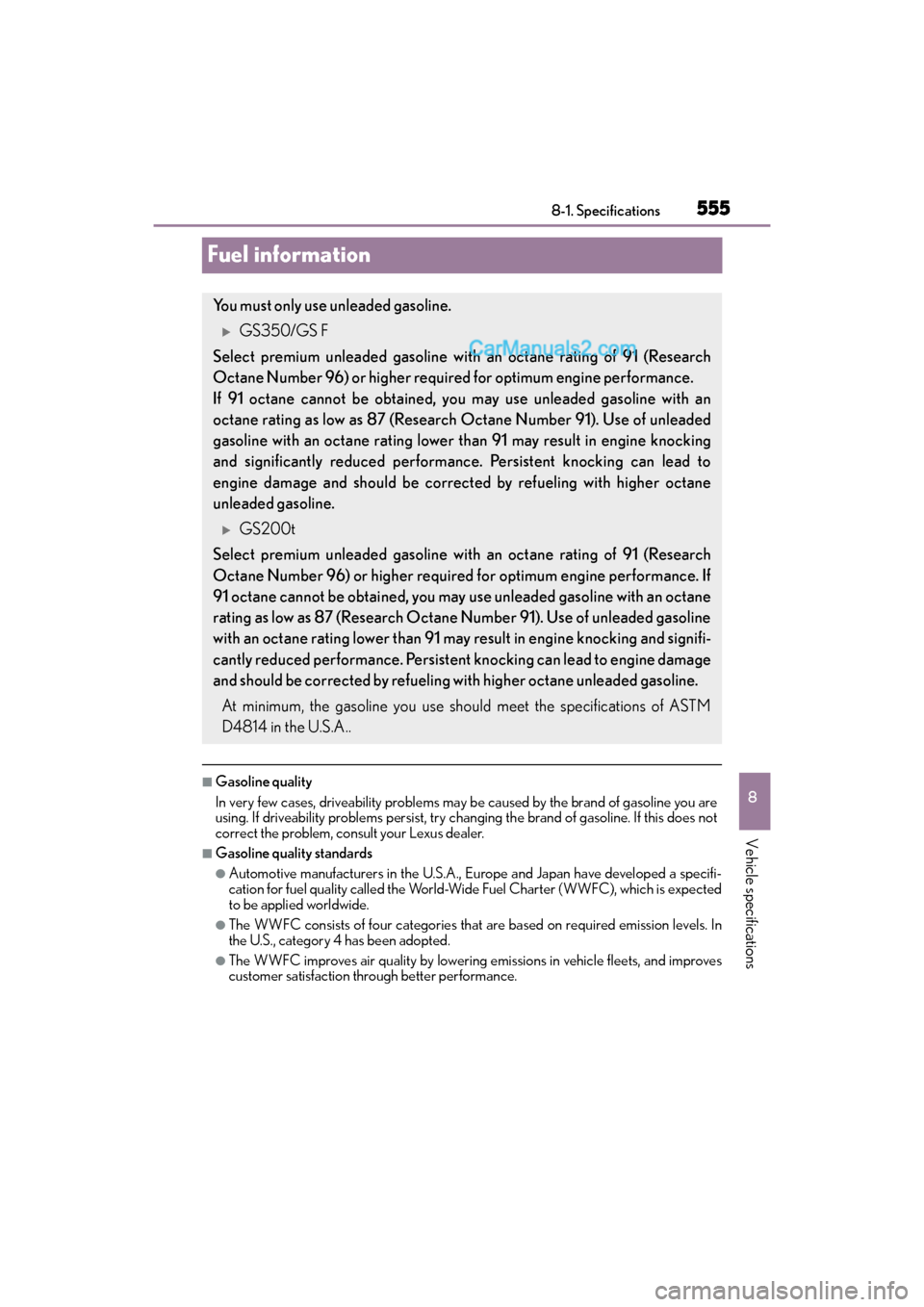

Fuel information
■Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you are
using. If driveability problems persist, try chan
ging the brand of gasoline. If this does not
correct the problem, consult your Lexus dealer.
■Gasoline quality standards
●Automotive manufacturers in the U.S.A., Europe and Japan have developed a specifi-
cation for fuel quality called the World-Wide Fuel Charter (WWFC), which is expected
to be applied worldwide.
●The WWFC consists of four categories that are based on required emission levels. In
the U.S., category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets, and improves
customer satisfaction through better performance.
You must only use unleaded gasoline.
XGS350/GS F
Select premium unleaded gasoline with an octane rating of 91 (Research
Octane Number 96) or higher required for optimum engine performance.
If 91 octane cannot be obtained, you may use unleaded gasoline with an
octane rating as low as 87 (Research Octane Number 91). Use of unleaded
gasoline with an octane rating lower than 91 may result in engine knocking
and significantly reduced performance. Persistent knocking can lead to
engine damage and should be corrected by refueling with higher octane
unleaded gasoline.
XGS200t
Select premium unleaded gasoline with an octane rating of 91 (Research
Octane Number 96) or higher required for optimum engine performance. If
91 octane cannot be obtained, you may use unleaded gasoline with an octane
rating as low as 87 (Research Octane Number 91). Use of unleaded gasoline
with an octane rating lower than 91 may result in engine knocking and signifi-
cantly reduced performance. Persistent knocking can lead to engine damage
and should be corrected by refueling with higher octane unleaded gasoline.
At minimum, the gasoline you use should meet the specifications of ASTM
D4814 in the U.S.A..
