2016 Lexus GS F Navigation Manual

287
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
PHONE
8
1Display the phone top screen.
(→ P.285)
2Select the “Contacts” tab and select the
desired contact.
3Select the desired number.
z The order of the phone numbers that are
displayed may differ from the order shown
on the cellular phone.
4Check that the “Call” screen is dis-
played.
INFORMATION
●When making a call to the same number
continuously, only the most recent call is
listed in call history.
● When a phone number registered in the
contact list is received, the name is dis-
played.
● Number-withheld calls are also memo-
rized in the system.
● International phone calls may not be
made depending on the type of cellular
phone you have.
● The list should group together consecu-
tive entries with the same phone number
and same call type. For example, two calls
from John’s mobile would be displayed as
follows: John (2)
● By pressing the switch on the steer-
ing wheel, a call to the latest history item
can be made.
BY CONTACTS LIST
Calls can be made by using contact data
which is transferred from a registered
cellular phone. ( →P.288)
Up to 2500 contacts (maximum of 4
phone numbers and e-mail addresses
per contact) can be registered in the
contact list.

288
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
■FOR PBAP COMPATIBLE
Bluetooth
® PHONES
X When “Automatic Transfer” is set to on
(→ P.302)
zContacts are transferred automatically.
X When “Automatic Transfer” is set to off
(→ P.302)
1Select the desired item.
2Check that a confirmation screen is dis-
played when the operation is complete.
■FOR PBAP INCOMPATIBLE BUT
OPP COMPATIBLE Bluetooth
®
PHONES
1Select the desired item.
WHEN THE CONTACT IS
EMPTY
No.Function
Select to always transfer all the con-
tacts from a connected cellular
phone automatically.
Select to transfer all the contacts
from a connected cellular phone
only once.
Select to cancel transferring.
No.Function
Select to transfer the contacts from
the connected cellular phone.
Select to add a new contact manual-
ly.
Select to cancel transferring.

289
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
PHONE
8

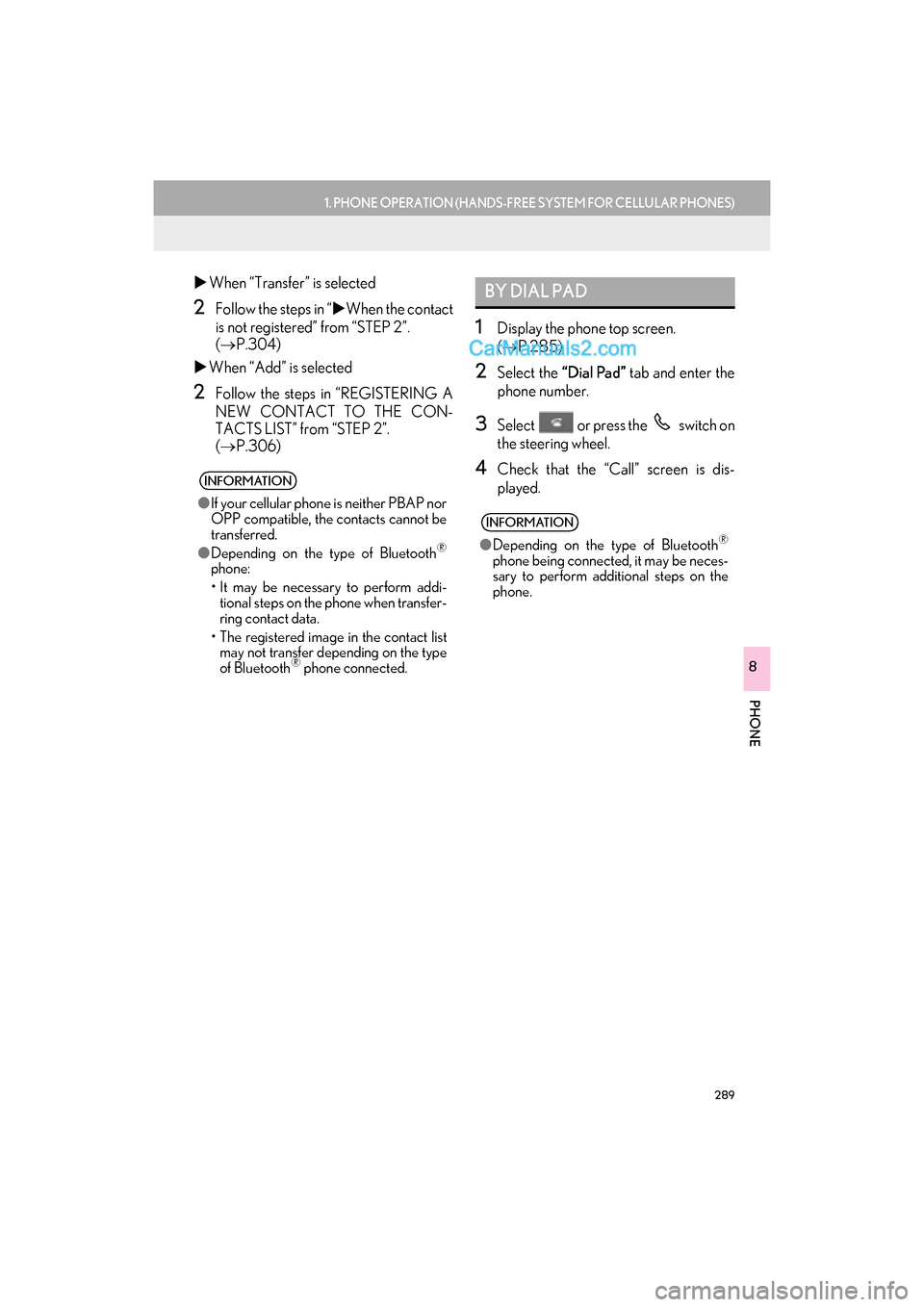

XWhen “Transfer” is selected
2Follow the steps in “ XWhen the contact
is not registered” from “STEP 2”.
( → P.304)
X When “Add” is selected
2Follow the steps in “REGISTERING A
NEW CONTACT TO THE CON-
TACTS LIST” from “STEP 2”.
(→ P.306)
1Display the phone top screen.
(→ P.285)
2Select the “Dial Pad” tab and enter the
phone number.
3Select or press the switch on
the steering wheel.
4Check that the “Call” screen is dis-
played.INFORMATION
● If your cellular phone is neither PBAP nor
OPP compatible, the contacts cannot be
transferred.
● Depending on the type of Bluetooth
®
phone:
• It may be necessary to perform addi-
tional steps on the phone when transfer-
ring contact data.
• The registered image in the contact list may not transfer depending on the type
of Bluetooth
® phone connected.
BY DIAL PAD
INFORMATION
● Depending on the type of Bluetooth®
phone being connected, it may be neces-
sary to perform additional steps on the
phone.

290
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
1Press the switch on the steering
wheel to display the phone top screen.
2Press the switch on the steering
wheel to display the “Call History”
screen.
3Press the switch on the steering
wheel to call the latest history item.
4Check that the “Call” screen is dis-
played.
BY OFF HOOK SWITCH
Calls can be made using the latest call
history item.

291
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
PHONE
8
4. RECEIVING ON THE Bluetooth® PHONE
1Select or press the switch on
the steering wheel to talk on the phone.
To refuse to receive the call : Select
or press the switch on the steering
wheel.
To adjust the volume of a received call :
Turn the “PWR·VOL” knob, or use the vol-
ume control switch on the steering wheel.
INCOMING CALLS
When a call is received, this screen is
displayed with a sound.
With 12.3-inch display: This screen can
also be displayed on the side display.
( →
P. 3 4 9)
INFORMATION
● During international phone calls, the
other party’s name or number may not be
displayed correctly depending on the
type of cellular phone you have.
● The ringtone that has been set in the
“Sounds” screen sounds when there is an
incoming call. Depending on the type of
Bluetooth
® phone, both the system and
Bluetooth® phone may sound
simultaneously when there is an incoming
call. ( →P. 3 0 1 )
● The incoming call display mode can be
set. ( →P. 3 1 0 )

292
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
5. TALKING ON THE Bluetooth® PHONE
While talking on the phone, this screen is
displayed. The operations outlined be-
low can be performed on this screen.
With 12.3-inch display: This screen can
also be displayed on the side display.
(→
P. 3 4 9)
No.FunctionPage
Select to display the dial
pad to send tones.293
Select to mute your voice to
the other party.
Select to change handset
modes between hands-free
and cellular phone.

Select to adjust your voice
volume that the other party
hears from their speaker.294
Select to send tones. This
button only appears when a
number that contains a (w)
is dialed in hands-free
mode.
293
Select to hang up the
phone.
Select “+” or “-” to adjust
the volume of the other par-
ty’s voice.
Select to start talking with
the other party.294
INFORMATION
● When cellular phone call is changed to
hands-free call, the hands-free screen will
be displayed and its functions can be
operated on the screen.
● Changing between cellular phone call
and hands-free call can be performed by
operating the cellular phone directly.
● Transferring methods and operations will
be different depending on the type of cel-
lular phone you have.
● For the operation of the cellular phone,
see the manual that comes with it.
● This screen can be displayed on the main
display or side display. ( →P. 3 1 0 )

293
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
PHONE
8
■BY DIAL PAD
1Select “0-9”.
2Enter the desired number.
■BY SELECTING “Release Tones”
1Select “Release Tones” .
SENDING TONES
This operation cannot be performed
while driving.
“Release Tones” appear when a contin-
uous tone signal(s) containing a (w) is
registered in the contact list.INFORMATION
● A continuous tone signal is a character
string that consists of numbers and the
characters p or w. (e.g.
056133w0123p#1 ½)
● When the “p” pause tone is used, the tone
data up until the next pause tone will be
automatically sent after 2 seconds have
elapsed. When the “w” pause tone is
used, the tone data up until the next
pause tone will be automatically sent
after a user operation is performed.
● Release tones can be used when auto-
mated operation of a phone based ser-
vice such as an answering machine or
bank phone service is desired. A phone
number with continuous tone signals can
be registered in the contact list.
● Tone data after a “w” pause tone can be
operated on voice command during a
call.

294
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
1Select “Transmit Volume” .
2Select the desired level for the transmit
volume.
“Default” : Select to reset the transmit vol-
ume.
3Select “OK”.
1Select or press the switch on
the steering wheel to start talking with
the other party.
To refuse to receive the call : Select
or press the switch on the steering
wheel.
z Each time is selected or the
switch on the steering wheel is pressed
during an interrupted call, the party who is
on hold will be switched.
TRANSMIT VOLUME SETTING
INFORMATION
●The sound quality of the voice heard from
the other party’s speaker may be nega-
tively impacted.
● “Transmit Volume” is dimmed when mute
is on.
INCOMING CALL WAITING
When a call is interrupted by a third par-
ty while talking, the incoming screen is
displayed.

With 12.3-inch display: The incoming
screen can also be displayed on the side
display.
( → P. 3 4 9 )
INFORMATION
●This function may not be available
depending on the type of cellular phone.
● This screen can be displayed on the main
display or side display. ( →P. 3 1 0 )
